WZRELB RBP80024B1 Installation And Usage Instructions

Backup power off grid pure sine wave inverter 800w 24vdc to 120vac 60hz usa outlets power converter

Advertisement

Quick Links

1. Prepare tools (for 800W24VDC inverter):
Battery: 40AH 24V (recommended to use a battery system of not less than 40A)
Cables: 1 Sets of 7AWG Cables (provided by the manufacturer)
2.Installation steps

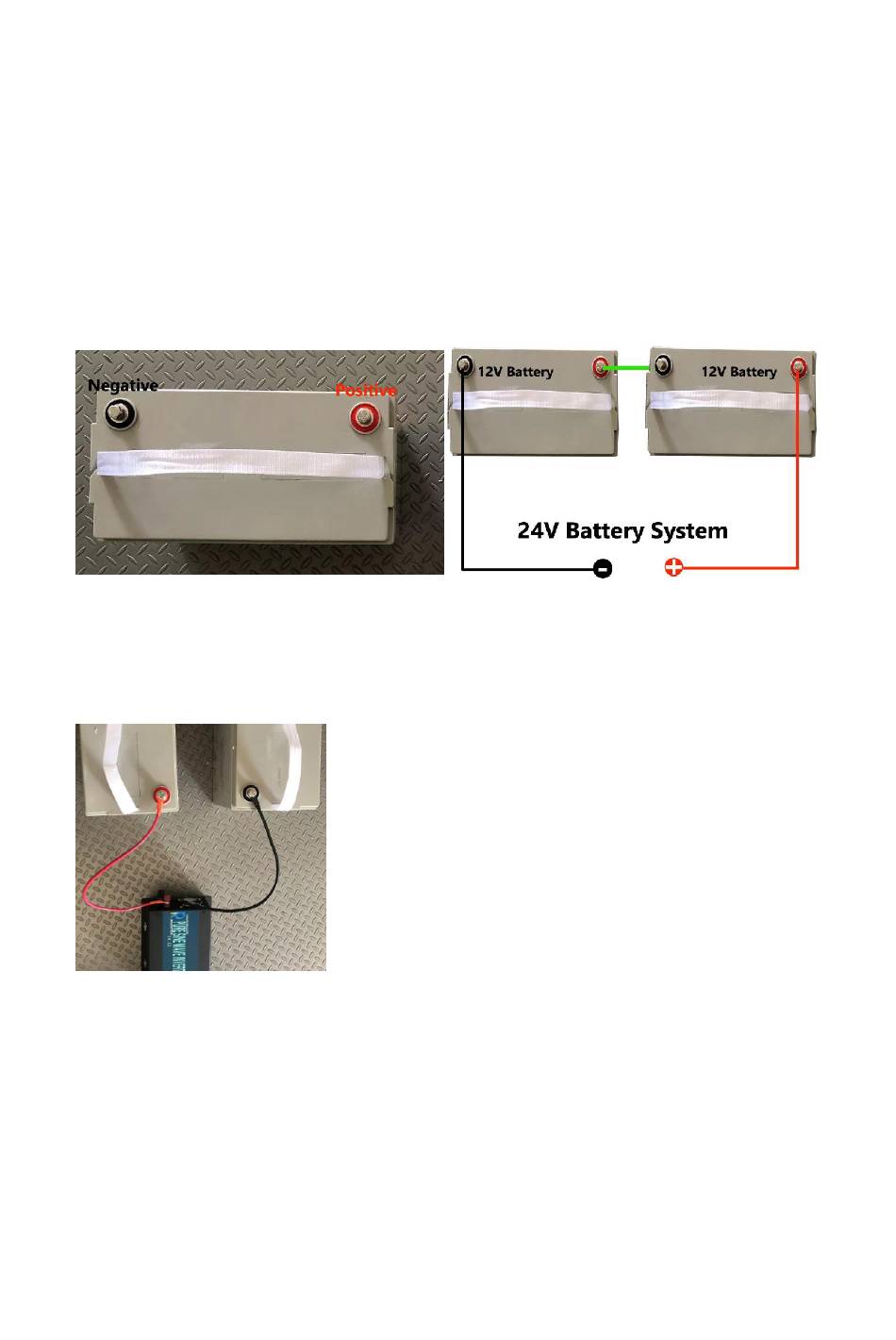

a. Confirm the positive and negative poles of the battery, install the cables and tighten the
screws.
b.Find the positive and negative poles of the inverter input terminals, connect battery+
to inverter +, battery- to inverter - and hen tighten the screws.
Red: positive, black : negative
c.Use a multimeter to confirm the inverter input voltage.Make sure the voltage reaches
about 24V before turning on the inverter.
Installation and usage instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the RBP80024B1 and is the answer not in the manual?

Questions and answers

Summary of Contents for WZRELB RBP80024B1

  • Page 1 Installation and usage instructions 1. Prepare tools (for 800W24VDC inverter): Battery: 40AH 24V (recommended to use a battery system of not less than 40A) Cables: 1 Sets of 7AWG Cables (provided by the manufacturer) 2.Installation steps a. Confirm the positive and negative poles of the battery, install the cables and tighten the screws.
  • Page 2 d. After turning on the inverter, confirm whether the LED display normally displays the input and output voltages. Notes: a.Please use the standard battery cables which we sent, and the spare fuses sent with the package are just used when the original ones are burned by accident. If any missing parts, please contact with me freely.
  • Page 3 3) . Pls check if the battery capacity is too small We recommend connecting to a battery system ≥ 40AH for a 800 watt 24vDC inverter. When the DC LED reading drops while the load is running, it is likely that your battery capacity is too small to supply power to the load.
