WZRELB RBP-150048 Installation And Usage Instructions

1500w 48v 120v pure sine wave power inverter with 2 ac outlets
Hide thumbs
1
2
3

Advertisement

Quick Links

Download this manual

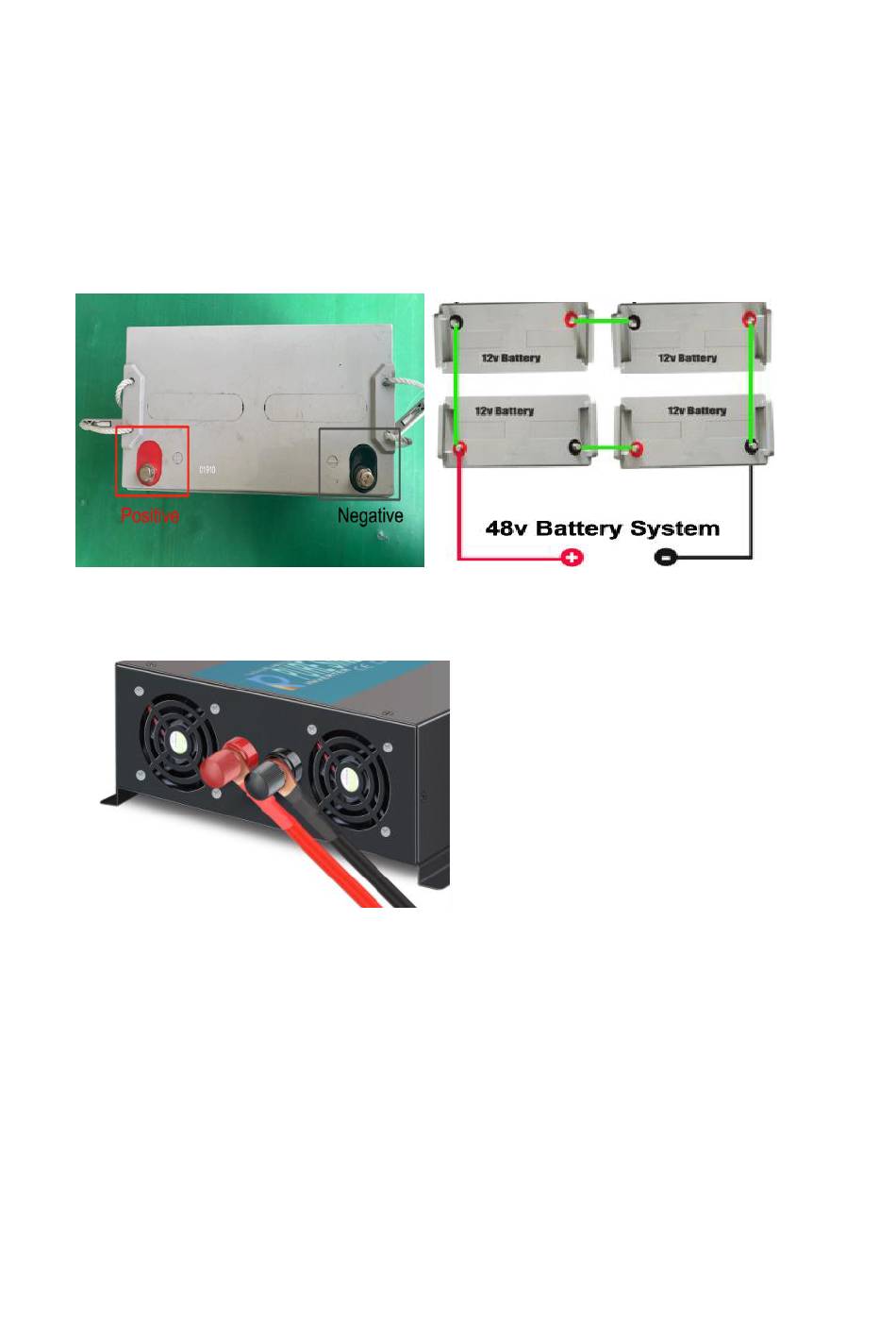

1. Prepare tools (for 1500W 48VDC inverter):
Battery: 48V (recommended to use a battery system of not less than 37.5AH)
Cables: 1 Set of 7AWG Cables (provided by the manufacturer)
2.Installation steps
a. Confirm the positive and negative poles of the battery, install the cables and tighten the
screws.
b.Find the positive and negative poles of the inverter input terminals, install the cables and
tighten them. Red: positive, black : negative.
c.Use a multimeter to confirm the inverter input voltage.Make sure the voltage reaches
about 48V before turning on the inverter
Installation and usage instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the RBP-150048 and is the answer not in the manual?

Questions and answers

Related Manuals for WZRELB RBP-150048

Summary of Contents for WZRELB RBP-150048

  • Page 1 Installation and usage instructions 1. Prepare tools (for 1500W 48VDC inverter): Battery: 48V (recommended to use a battery system of not less than 37.5AH) Cables: 1 Set of 7AWG Cables (provided by the manufacturer) 2.Installation steps a. Confirm the positive and negative poles of the battery, install the cables and tighten the screws.
  • Page 2 d. After turning on the inverter, confirm whether the LED display normally displays the input and output voltages. Notes: a.Please use the standard battery cables which we sent, and the spare fuses sent with the package are spare ones. If any missing parts, please contact with me freely. Don’t connect the inverter with grid power, or the inverter may have a permanent damage.
  • Page 3 4) Please do not overload. Loads are divided into resistive loads and inductive loads .If need the inverter to run the resistive load (like laptop, TV, electric cooker,LED light), please choose the inverter with continuous power higher than the appliance's rated power. If use microwaves,water pumps, air conditioners and other appliances with motors or compressors ,please choose the inverter whose continuous power is 3-7 times higher than your appliances.If wanna to power up a refrigerator, we suggest you use 10 times higher power inverter...
