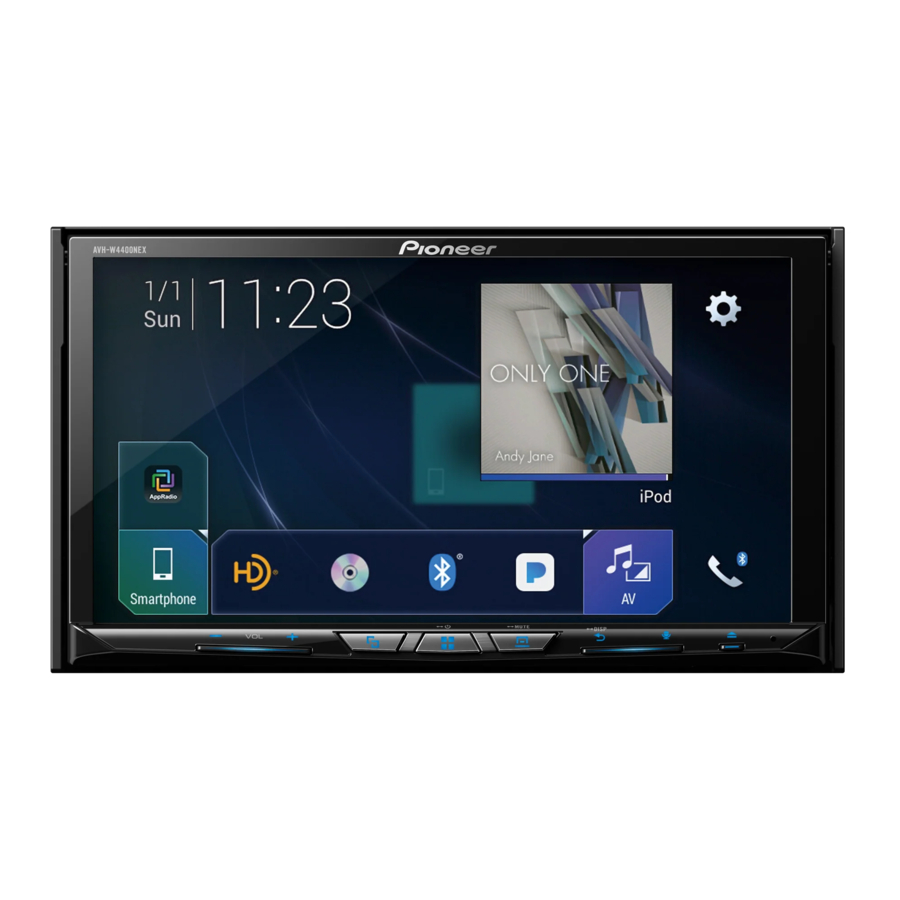

Pioneer AVH-W4400NEX Manual

Connection

Precautions
Your new product and this manual

• Do not operate this product, any applications, or the rear view camera option (if purchased) if doing so will divert your attention in any way from the safe operation of your vehicle. Always observe safe driving rules and follow all existing traffic regulations. If you experience difficulty in operating this product, pull over, park your vehicle in a safe location and apply the parking brake before making the necessary adjustments.

Important safeguards

Pioneer does not recommend that you install this product yourself. This product is designed for professional installation only. We recommend that only authorized Pioneer service personnel, who have special training and experience in mobile electronics, set up and install this product. NEVER SERVICE THIS PRODUCT YOURSELF.
Installing or servicing this product and its connecting cables may expose you to the risk of electric shock or other hazards, and can cause damage to this product that is not covered by warranty.

Precautions before connecting the system

Do not take any steps to tamper with or disable the parking brake interlock system which is in place for your protection. Tampering with or disabling the parking brake interlock system could result in serious injury or death.

• Secure all wiring with cable clamps or electrical tape. Do not allow any bare wiring to remain exposed.
• Do not directly connect the yellow lead of this product to the vehicle battery. If the lead is directly connected to the battery, engine vibration may eventually cause the insulation to fail at the point where the wire passes from the passenger compartment into the engine compartment. If the yellow lead's insulation tears as a result of contact with metal parts, short-circuiting can occur, resulting in considerable danger.
• It is extremely dangerous to allow cables to become wound around the steering column or shift lever. Be sure to install this product, its cables, and wiring away in such so that they will not obstruct or hinder driving.
• Make sure that the cables and wires will not interfere with or become caught in any of the vehicle's moving parts, especially the steering wheel, shift lever, parking brake, sliding seat tracks, doors, or any of the vehicle's controls.
• Do not route wires where they will be exposed to high temperatures. If the insulation heats up, wires may become damaged, resulting in a short circuit or malfunction and permanent damage to the product.
• Do not shorten any leads. If you do, the protection circuit (fuse holder, fuse resistor or filter, etc.) may fail to work properly.
• Never feed power to other electronic products by cutting the insulation of the power supply lead of this product and tapping into the lead. The current capacity of the lead will be exceeded, causing overheating.

Before installing this product

• Use this unit with a 12-volt battery and negative grounding only. Failure to do so may result in a fire or malfunction.
• To avoid shorts in the electrical system, be sure to disconnect the (–) battery cable before installation.

To prevent damage

• Use speakers over 50 W (maximum input power) and between 4 Ω to 8 Ω (impedance value). Do not use 1 Ω to 3 Ω speakers for this product.
• The black lead is ground. When installing this unit or power amp (sold separately), make sure to connect the ground wire first. Ensure that the ground wire is properly connected to metal parts of the car's body. The ground wire of the power amp and the one of this unit or any other device must be connected to the car separately with different screws. If the screw for the ground wire loosens or falls out, it could result in fire generation of smoke or malfunction.

  *1 Not supplied for this unit
• When replacing the fuse, be sure to only use a fuse of the rating prescribed on this product.
• When disconnecting a connector, pull the connector itself. Do not pull the lead, as you may pull it out of the connector.
• This product cannot be installed in a vehicle without ACC (accessory) position on the ignition switch.

• To avoid short-circuiting, cover the disconnected lead with insulating tape. It is especially important to insulate all unused speaker leads, which if left uncovered may cause a short circuit.
• For connecting a power amp or other devices to this product, refer to the manual for the product to be connected.
• The graphical symbol placed on the product means direct current.

Notice for the blue/ white lead

• When the ignition switch is turned on (ACC ON), a control signal is output through the blue/white lead. Connect to an external power amp's system remote control terminal, the auto-antenna relay control terminal, or the antenna booster power control terminal (max. 300 mA 12 V DC). The control signal is output through the blue/white lead, even if the audio source is switched off.

When this product is in [Power OFF] mode, the control signal is also turned off. If [Power OFF] mode is canceled, the control signal is output again and the antenna is extended with the auto antenna function (if the antenna is being used). Be careful so that the extended antenna does not come into contact with any obstacles.

Rear panel (main terminals)

1. GPS antenna 3.55 m (11 ft. 8 in.)
2. Microphone 3 m (9 ft. 10-1/8 in.)
3. iDatalink adapter input Refer to the instruction manual for the
4. iDataLink adapter (sold separately). RGB cable (supplied with Navigation system)
5. SiriusXM Connect Vehicle Tuner Refer to the instruction manual for SiriusXM Connect Vehicle Tuner (sold separately).
6. This product
7. Pioneer navigation system Contact your dealer to inquire about the connectable navigation unit.
8. Antenna jack
9. AV cable IN/OUT
10. Power supply
11. Fuse (10 A)
12. Wired remote input Hard-wired remote control adapter can be connected (sold separately).

NOTE
Before using and/or connecting the iDatalink Maestro adapter, you will need to first flash the Maestro module with the appropriate vehicle and head unit firmware. You can find the device number that is required for the activation on the followings (refer to the Operation Manual.):

• The label on the packaging of this product
• The label on this product
• The [Firmware Information] screen

Power cord

IMPROPER CONNECTION MAY RESULT IN SERIOUS DAMAGE OR INJURY INCLUDING ELECTRICAL SHOCK, AND INTERFERENCE WITH THE OPERATION OF THE VEHICLE'S ANTILOCK BRAKING SYSTEM, AUTOMATIC TRANSMISSION AND SPEEDOMETER INDICATION.

1. To power supply
2. Power cord
3. Yellow To terminal supplied with power regardless of ignition switch position.
4. Red To electric terminal controlled by ignition switch (12 V DC) ON/OFF
5. Orange/white
   To lighting switch terminal.

6. Black (ground) To vehicle (metal) body.
7. Violet/white Of the two lead wires connected to the back lamp, connect the one in which the voltage changes when the gear shift is in the REVERSE (R) position. This connection enables the unit to sense whether the car is moving forward or backward.
8. Pink Car speed signal input
9. Blue/white Connect to system control terminal of the power amp (max. 300 mA 12 V DC).
10. Light green Used to detect the ON/OFF status of the parking brake. This lead must be connected to the power supply side of
11. the parking brake switch. Power supply side
12. Parking brake switch
13. Ground side

NOTE
The position of the speed detection circuit and the position of the parking brake switch vary depending on the vehicle model. For details, consult your authorized Pioneer dealer or an installation professional.

Speaker leads

Perform these connections when using a subwoofer without the optional amplifier.

1. To power supply
2. Power cord
3. Left
4. Right
5. Front speaker (STD) or high range speaker (NW)
6. Rear speaker (STD) or middle range speaker (NW)
7. White
8. White/black
9. Gray
10. Gray/black
11. Green
12. Green/black
13. Violet
14. Violet/black
15. Subwoofer (4 Ω)
16. When using a subwoofer of 2 Ω, be sure to connect the subwoofer to the violet and violet/black leads of this unit. Do not connect anything to the green and green/black leads.
17. Not used.
18. Subwoofer (4 Ω) × 2

NOTES

• When a subwoofer is connected to this product instead of a rear speaker, change the rear output setting in the initial setting. The subwoofer output of this product is monaural.
  For details, refer to the Operation Manual.
• With a two-speaker system, do not connect anything to the speaker leads that are not connected to speakers.

Power amp (sold separately)

The speaker leads are not used when this connection is in use.

1. Subwoofer output (SUBWOOFER OUTPUT) 23 cm (9 in.) (STD)
   Low range output (NW)
2. RCA cable (sold separately)
3. Power amp
4. Front output (FRONT OUTPUT) 15 cm (5-7/8 in.) (STD)
   High range output (NW)
5. Rear output (REAR OUTPUT) 15 cm (5-7/8 in.) (STD)
   Middle range output (NW)
6. Yellow/black (MUTE)
   If you use an equipment with Mute function, wire this lead to the Audio Mute lead on that equipment. If not, keep the Audio Mute lead free of any connections.
7. This product
8. System remote control
   Connect to Blue/white cable (max. 300 mA 12 V DC).
9. Rear speaker (STD)
   Middle range speaker (NW)
10. Front speaker (STD)
    High range speaker (NW)
11. Subwoofer (STD)
    Low range speaker (NW)

NOTE
Select the appropriate speaker mode between standard mode (STD) and network mode (NW). For details, refer to the Operation Manual.

iPod/iPhone and smartphone
NOTES

• For details on how to connect an external device using a separately sold cable, refer to the manual for the cable.
• For details concerning the connection, operations and compatibility of the iPhone, refer to the Operation Manual.
• For details concerning the connection and operations of the smartphone, refer to the Operation Manual.

Attaching identification labels to USB cables
Attach identification labels to USB cables (supplied and sold separately) before installing this product in a vehicle.

1. Connect USB cables to the USB port 1 and 2 on the rear of this product.
2. Attach the identification labels corresponding to each port to the USB cables as illustrated below. Attach the "Port 1 Apple CarPlay" label to the USB cable connected to the USB port 1.
   Attach the "Port 2 Android Auto" label to the USB cable connected to the USB port 2.


iPod/iPhone
Connecting via the USB port

1. USB port1
2. USB cable 1.5 m (4 ft. 11 in.)
3. USB interface cable for iPod/iPhone (CD- IU52) (sold separately)
4. iPhone

Smartphone (Android™ device)
Connecting via the USB port

1. USB port2
2. USB cable (supplied with CD-MU200)
3. USB - micro USB cable (Type USB A -micro USB B) (supplied with CD-MU200)
4. Smartphone

Camera

When you use the rear view camera, the rear view image is automatically switched from the video by moving the shift lever to REVERSE (R). Camera View mode also allows you to check what is behind you while driving.

USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY RESULT IN INJURY OR DAMAGE.

• The screen image may appear reversed.
• With the rear view camera you can keep an eye on trailers, or back into a tight parking spot. Do not use for entertainment purposes.
• Objects in rear view may appear closer or more distant than in reality.
• The image area of full-screen images displayed while backing or checking the rear of the vehicle may differ slightly

1. This product
2. Power supply
3. Power cord
4. Violet/white (REVERSE-GEAR SIGNAL INPUT)
5. Brown (REAR VIEW CAMERA IN) 23 cm (9 in.)
6. Yellow (VIDEO INPUT) 23 cm (9 in.)
7. Rear view camera (ND-BC8) (sold separately)
8. To video output
9. RCA cable (supplied with ND-BC8)
10. RCA cable (sold separately)
11. View camera (sold separately)

NOTES

• Connect only the rear view camera to brown cable. Do not connect any other equipment.
• Some appropriate settings are required to use rear view cameras. For details, refer to the Operation Manual.

External video component

Using AV input

1. This product
2. Red, white (AUDIO INPUT) 23 cm (9 in.)
3. Yellow (VIDEO INPUT) 23 cm (9 in.)
4. RCA cable (sold separately)
5. To audio input
6. To video input
7. External video component (sold separately)

NOTE
The appropriate setting is required to use the external video component. For details, refer to the Operation Manual.

Using an AUX input

1. This product
2. Mini-jack AV cable (CD-RM10) (sold separately)
3. AUX input (AUX IN) 15 cm (5-7/8 in.)
4. Yellow
5. Red, white
6. RCA cables (sold separately)
7. To video output
8. To audio outputs
9. External video component (sold separately)

NOTE
The appropriate setting is required to use the external video component. For details, refer to the Operation Manual.

Be sure to use a mini-jack AV cable (CDRM10) (sold separately) for wiring. If you use other cables, the wiring position might differ resulting in disturbed images and sounds.

L: Left audio (White)
R: Right audio (Red)
V: Video (Yellow)
G: Ground

Using an HDMI input

1. This product
2. HDMI port
3. High Speed HDMI® Cable (sold separately)
4. HDMI device (sold separately)

NOTE

When you connect the High Speed HDMI® Cable, use the lock tie to fix it securely.

Securing the High Speed HDMI^®

Be sure to fix the High Speed HDMI® Cable with the lock tie, when you connect the external device with the High Speed HDMI® Cable.

1. Insert the High Speed HDMI® Cable into the HDMI port.
2. Wrap the lock tie around the hook above the HDMI port and the High Speed HDMI® Cable, and then tighten it to secure the High Speed HDMI® Cable.

   1. Hook
   2. Lock tie
   3. High Speed HDMI® Cable

      Do not tighten up the lock tie more than necessary.

Rear display

1. This product
2. Rear audio output (R. AUDIO OUT)
3. Yellow (REAR MONITOR OUTPUT) 30 cm (11-7/8 in.)
4. Mini pin plug cable (sold separately)
5. RCA cables (sold separately)
6. To audio input
7. To video input
8. Rear display with RCA input jacks (sold separately)

NEVER install the rear display in a location that enables the driver to watch the video passengers in the rear seats to watch the video source.

Installation

Precautions before installation

• Never install this product in places where, or in a manner that:
  • Could injure the driver or passengers if the vehicle stops suddenly.
  • May interfere with the driver's operation of the vehicle, such as on the floor in front of the driver's seat, or close to the steering wheel or shift lever.
• To ensure proper installation, be sure to use the supplied parts in the manner specified. If any parts are not supplied with this product, use compatible parts in the manner specified after you have the part compatibility checked by your dealer. If parts other than supplied or compatible ones are used, they may damage internal parts of this product or they may work loose and the product may become detached.
• It is extremely dangerous to allow cables to become wound around the steering column or shift lever. Be sure to install this product, its cables, and wiring away in such so that they will not obstruct or hinder driving.
• Make sure that leads cannot get caught in a door or the sliding mechanism of a seat, resulting in a short circuit.
• Please confirm the proper function of your vehicle's other equipment after installation of this product.
• Do not install this product where it may (i) obstruct the driver's vision, (ii) impair the performance of any of the vehicle's operating systems or safety features, including airbags, hazard lamp buttons or
  (iii) impair the driver's ability to safely operate the vehicle.
• Never install this product in front of or next to the place in the dashboard, door, or pillar from which one of your vehicle's airbags would deploy. Please refer to your vehicle's owner's manual for reference to the deployment area of the frontal airbags.

Before installing

• Consult with your nearest dealer if installation requires drilling holes or other modifications of the vehicle.
• Before making a final installation of this product, temporarily connect the wiring to confirm that the connections are correct and the system works properly.
• Do not install this product in a position where the opening of the LCD panel is obstructed by any obstacles, such as the shift lever. Before installing this product, be sure to leave sufficient space so that the LCD panel does not obstruct the shift lever when it is fully opened. This may cause interference with the shift lever, or a malfunction of the mechanism of this product.

Installation notes

• Do not install this product in places subject to high temperatures or humidity, such as:
  • Places close to a heater, vent or air conditioner.
  • Places exposed to direct sunlight, such as on top of the dashboard.
  • Places that may be exposed to rain, such as close to the door or on the vehicle's floor.
• Install this product horizontally on a surface within 0 to 30 degrees tolerance (within 5 degrees to the left or right). Improper installation of the unit with the surface tilted more than these tolerances increases the potential for errors in the vehicle's location display, and might otherwise cause reduced display performance.

• When installing, to ensure proper heat dispersal when using this unit, make sure you leave ample space behind the rear panel and wrap any loose cables so they are not blocking the vents.


Installation using the screw holes on the side of this product

1. Fastening this product to the factory radio-mounting bracket.

Position this product so that its screw holes are aligned with the screw holes of the bracket, and tighten the screws at three locations on each side.
Use either the truss head screws or flush surface screws, depending on the shape of the bracket's screw holes.

1. Factory radio-mounting bracket
2. If the pawl interferes with installation, you may bend it down out of the way.
3. Dashboard or console
4. Truss head screw or flush surface screw
   Be sure to use the screws supplied with this product.

Installing the GPS antenna

Do not cut the GPS antenna lead to shorten it or use an extension to make it longer. Altering the antenna cable could result in a short circuit or malfunction and permanent damage to this product.

Installation notes

• The antenna should be installed on a level surface where radio waves will be blocked as little as possible. Radio waves cannot be received by the antenna if reception from the satellite is blocked.


1. Dashboard
2. Rear shelf

• When installing the GPS antenna inside the vehicle, be sure to use the metal sheet provided with your system. If this is not used, the reception sensitivity will be poor.
• Do not cut the accessory metal sheet. This would reduce the sensitivity of the GPS antenna.
• Take care not to pull the antenna lead when removing the GPS antenna. The lead may become detached.
• Do not paint the GPS antenna, as this may affect its performance.

When installing the antenna inside the vehicle (on the dashboard or rear shelf)

Do not install the GPS antenna over any sensors or vents on the dashboard of the vehicle, as doing so may interfere with the proper functioning of such sensors or vents and may compromise the ability of the metal sheet under the GPS antenna to properly and securely affix to the dashboard.

1. GPS antenna
2. Metal sheet
   Peel off the protective sheet on the rear.
3. Double-sided tape
4. Clamps
   Use clamps to secure the lead where necessary inside the vehicle.

NOTES

• Affix the metal sheet on the surface as level as possible where the GPS antenna faces the window.
• Affix the GPS antenna on the metal sheet using the double-sided tape.
• The metal sheet contains a strong adhesive which may leave a mark on the surface if it is removed.
• When attaching the metal sheet, do not cut it into small pieces.
• Some models use window glass that does not allow signals from GPS satellites to pass through. On such models, install the GPS antenna on the outside of the vehicle.

Installing the microphone

• Install the microphone in a place where its direction and distance from the driver make it easiest to pick up the driver's voice.
• Be sure to turn off (ACC OFF) the product before connecting the microphone.
• Depending on the vehicle model, the microphone cable length may be too short when you mount the microphone on the sun visor. In such cases, install the microphone on the steering column.

Mounting on the sun visor

1. Fit the microphone lead into the groove.

   1. Microphone lead
   2. Groove
2. Attach the microphone clip to the sun visor.

   1. Microphone clip
   2. Clamps
      Use separately sold clamps to secure the lead where necessary inside the vehicle.

Install the microphone on the sun visor when it is in the up position. It cannot recognize the driver's voice if the sun visor is in the down position.

Installation on the steering column

1. Detach the microphone base from the microphone clip by sliding the microphone base while pressing the tab.

   1. Tab
   2. Microphone base
2. Mount the microphone on the steering column.

   1. Double-sided tape
   2. Clamps
      Use separately sold clamps to secure the lead where necessary inside the vehicle.

NOTE
Install the microphone on the steering column, keeping it away from the steering wheel.

Adjusting the microphone angle
The microphone angle can be adjusted.
