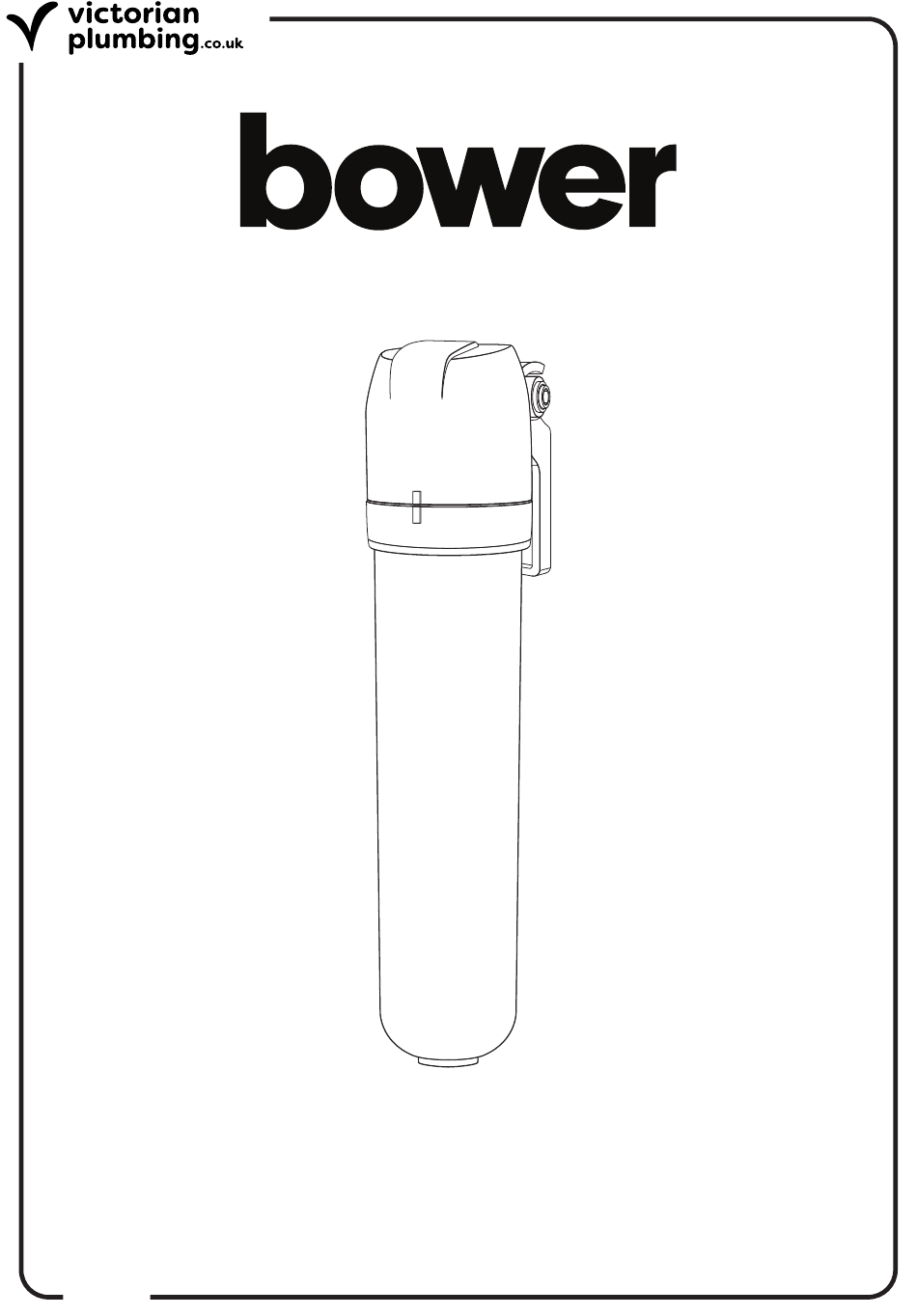

- Page 1 Boiling Water Carbon Filter Fitting Instructions Please follow them carefully and leave this manual with end user V2.07.25...
- Page 2 Before you begin: We recommend that this product is installed by a qualified tradesperson, Victorian Plumbing Ltd. accept no liability for products incorrectly installed, or where the correct testing procedures have not been adhered to, thus resulting in the escape of water and consequential damage.
- Page 3 Installation: Step 1: Position the ‘Housing Bracket’ at the desired position and height, then mark the fixing holes. Ensure the bracket is level using a spirit level. Note: It is recommended to mount the water filter at least 4 inches lower than the bottom of the basin for easier installation.
- Page 4 Step 4: Attach the ‘Filter Body’ to the ‘Filter Head’ twist the body clockwise to secure into place. Clip the ‘Filter Head’ to the ‘Housing Bracket’ ensure that the head is clipped firmly into place. Step 5: Measure the length of the ‘PE Pipe’ required for the inlet and outlet of the filter, then make a mark.
- Page 5 Connection Diagram: This diagram shows the connections Note: The Hoses for A,B,C are typically included with the ‘Boiling Tap’, refer to the instructions of for a generic 3-in-1 boiling tap. the Boiling tap for guidance if needed. (Boiling Tap and Boiler not included.) Standard Hot &...
- Page 6 Flexible Connecting Pipes: When installing the flexi-pipes to the household pipework. Special care must be taken to ensure they do not bend sharply causing a kink or twist. Failure to do so may result in poor performance and damage to the flexi-pipes. Curved Kink Twist...
- Page 7 Technical Information: CF001 Model Name: Removal of chlorine and other organic Function: components present in the water. Filter Diameter 68±1mm, Length 283±1mm Size: Initial Flow: 0.3MPa, ≥3L/min Burst Pressure: ≥3.2MPa 0~1.05MPa, 100 thousand times, filter no Water Hammer Test: leakage 1.2MPa, 5min, no leakage Seal: 0.1MPa, 15min, no leakage...
- Page 8 www.victorianplumbing.co.uk V2.07.25...
