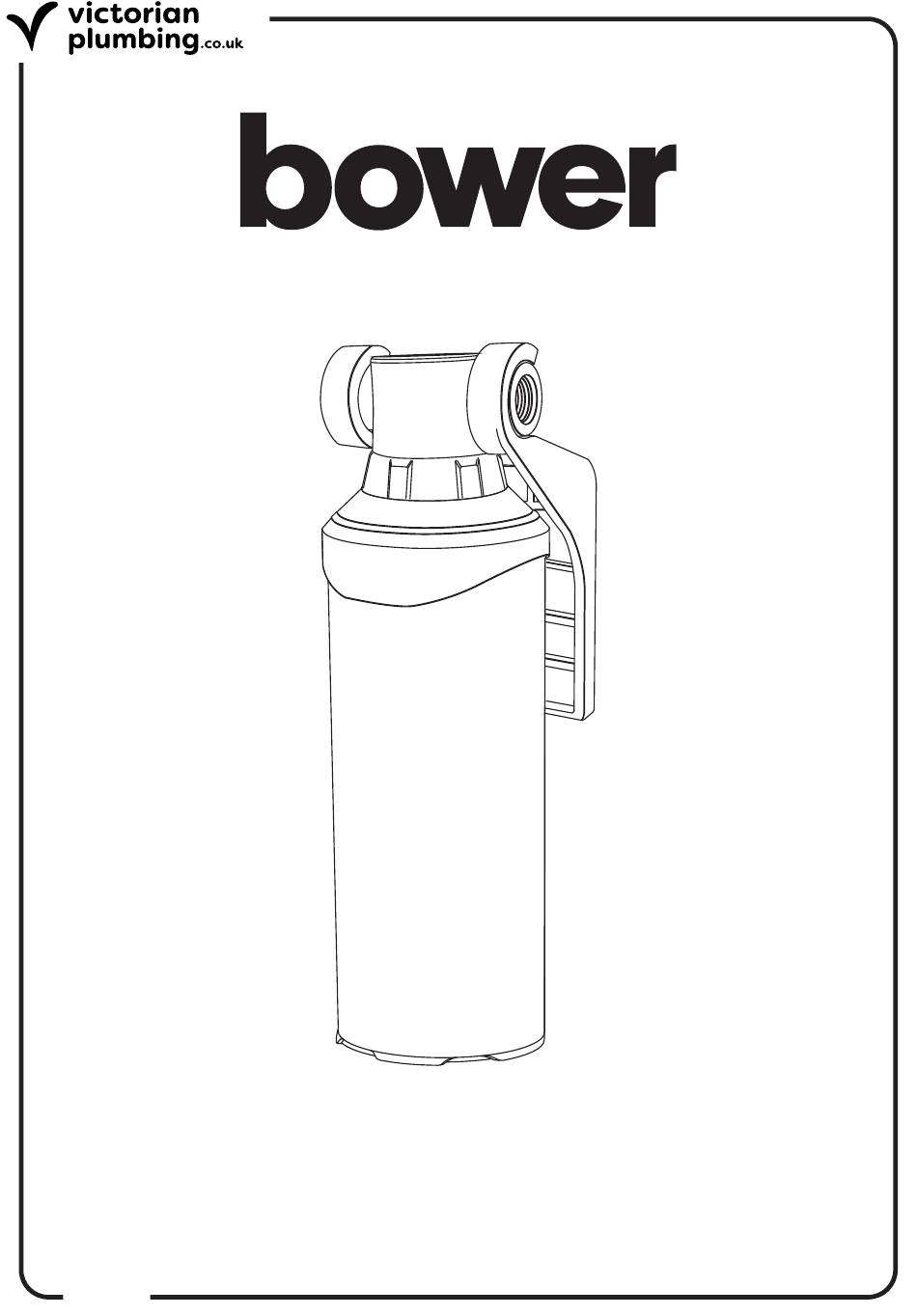

- Page 1 Undersink Water Filter Fitting Instructions Please follow them carefully and leave this manual with end user V1.11.24...
-
Page 2: Technical Information
Before you begin: We recommend that this product is installed by a qualified tradesperson, Victorian Plumbing Ltd. accept no liability for products incorrectly installed, or where the correct testing procedures have not been adhered to, thus resulting in the escape of water and consequential damage. - Page 3 Fitting List: PTFE Tape x1 Housing Bracket x1 3/8” - 1/2” converter x1 Housing Wrench x2 Screws x4 Filter Body x1 (cartridge inside) Inlet Hose x1 Outlet Hose x1 Tool required for installation (Not Included): *Ensure the appropriate PPE is used during installation* Spirit Level Power Drill Screwdriver...
-
Page 4: Installation
Installation: Step 1: Place the ‘Housing Bracket’ at the back of your chosen wall/cabinet. Position the bracket at the desired position and height, then mark the fixing holes. Ensure the bracket is level using a spirit level. Note: It is recommended to mount the water filter at least 4 inches lower than the bottom of the basin for easier installation. - Page 5 Step 4: Clip the ‘Filter Head’ to the ‘Housing Bracket’ ensure that the head is clipped firmly into place. Attach the ‘Filter Body’ to the ‘Filter Head’ twist the body clockwise to secure into place. Cold Hose Pipe to Tap Inlet Hose Step 5: Connect the ‘Inlet Hose’...
-
Page 6: Connection Diagram
Adapter Conversion: for 3/8” threads attach the ‘3/8” - 1/2” converter’ to the cold water supply and cold hose pipe. Then connect the ‘Inlet and Outlet Hose’ to the supply valve and flexi-pipe. Tighten all connections with an adjustable wrench. Cold Hose Inlet Hose Pipe to Tap... -
Page 7: Filter Replacement
Filter Replacement: Note: The filter head has an auto shut o design. It is not necessary to turn o the water supply valve. Step 1: Remove the ‘Filter Body’ from the ‘Filter head’ then using the ‘Housing Wrench’ provided, unscrew the filter cap from the filter body to access the filter. Step 2: Replace the ‘Old Filter’... -
Page 8: Troubleshooting
Flexible Connecting Pipes: When installing the flexi-pipes to the household pipework. Special care must be taken to ensure they do not bend sharply causing a kink or twist. Failure to do so may result in poor performance and damage to the flexi-pipes. Curved Kink Twist...
