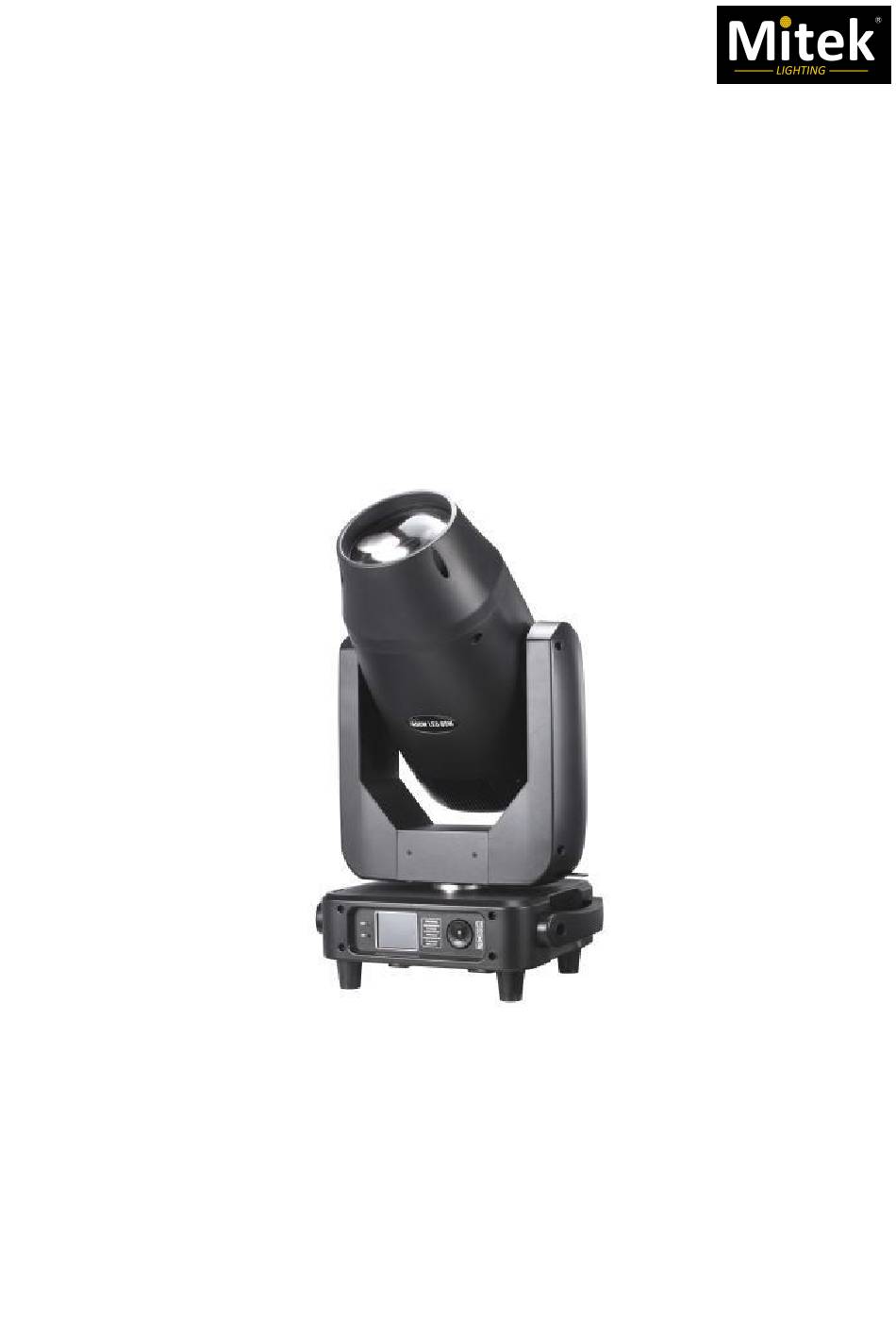

- Page 1 ALED BSW 400 CMY User Manual Guangzhou Mitek Light Co.,LTD Email: info@miteklight.com Website: www.miteklight.com Add: No. 21 Dongfeng Avenue, Automobile Industry Base, Huadu District, Guangzhou...
- Page 2 TECHNICAL PARAMETERS Light source Input voltage: AC110V-240V/50-60HZ Power consumption: 430W Light source specification: Imported new LED Module engine 400 W Light source life: 50000 hours Lumen illuminance: 5 meters 580,000 lm Color temperature: 8000K CRI>95 Optical Dimming system: 0-100% linear adjustment Focusing system: linear adjustment from 4 meters to 50 meters Frost: 1 independent frost filter, soft and natural light spot Spot zoom angle: 4-35 degrees...
- Page 3 SIZE DRAWING LUX Date COLOR WHEEL FIXED GOBO WHEEL www.miteklight.com...
- Page 4 ROTATING GOBOS - optional CMY FILTER Thank you for your patronage! We are confident that our excellent products and service can satisfy you . For your own safety, please read this user manual carefully before installing the device . In order to install, operate, and maintain the lighting safety correctly.
- Page 5 One power in cable One 3 Pin DMX cable(5 Pin optional) Two mounted brackets One safety rope English user manual （ Flight case, Clamps are optional, please contact your dealer） Please check carefully that there is no damage caused by transportation . Should there be any questions, please consult your dealer and don’t install this device .
- Page 6 2 . Always mount this unit in safe and stable matter. The qualified professionals are allowed to carry out the lamp installation , operation and maintenance, but they must guarantee to operate in strict accordance with the instructions referred to. Important: ▲...
- Page 7 The following points have to be considered during the inspection All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded. There must not be any deformations on the housing. Fixations and installations spots(ceiling, suspension, trussing) .
- Page 8 Rigging (Optional) This equipment can be positioned and fixed by clamp in every direction of the stage. Locking system makes it easy to fasten to the bracket. Attention! Two clamps is needed to fix the equipment. Every clamp is locked by fastener of kind.
- Page 9 Display & operation just like ‘Android operation system’, touch the item will set or modify setting. Note: Prevent damage the touch or TFT displayer, Can use sharp objects chick displayer. Figure 3 Panel diagram Operation 2.2 .1 Operate light with touch or KEY The left area is TFT Displayer and touch, chick item or value with finger will to complete...
- Page 10 2.2 .3 Boolean parameter setting when the selected parameters is a Boolean value (such as ON or OFF), can directly modify setting by chick corresponding item, the setting will been saved right now. When the parameter is a key item, chick corresponding item, a dialog shown in Figure 5 will been ...
- Page 11 In main menu, chick 1/ 6 function button into corresponding parameter menu. In sub menu(page), chick main item on the left side of displayer, can shift to corresponding sub menu(page) quickly. 2.3.1 ADDR--> Address: Set DMX Address Click and select the " ADDR", can enter the page of DMX address setting, range from...
- Page 12 ◆ M/ S Choose:Available just in ‘AUTO RUN’ or ‘ SOUND Ctrl’ mode. ON--> Master. (Data will be send to other slave lamp immediately.) OFF--> Slaver. (NOT send data to other lamp via DMX Cable) . (Default) ◆ Light Switch: ON-->...
- Page 13 Figure 10 page of Test ◆ PAN: range for 0 to 255; range for 0 to 255; ◆TILT: ◆ FOCUS: range for 0 to 255; ◆ COLOR: range for 0 to 255; ◆ GOBO: range for 0 to 255; ◆ PRISM: range for 0 to 255;...
- Page 14 ◆ P/ T Rectify: Disable or enable position rectify function. OFF--> Disable P/T rectify ON--> Enable P/T rectify-(Default) ◆ Pan Offset: Default: PAN original position. ◆ Tilt Offset: Set TILT original position. Default: 10 ◆ Lamp when: PowerON--> Turn on the lamp when power on. (Default) RstDone-->...
- Page 15 CHANNEL LIST 23CH FUNCTION DESCRIPTION VALUE 0-255 0-540 Degree PAN FINE 0-255 0-2 Degree TILT 0-255 0-270 Degree TILT FINE 0-255 0-1 Degree P/T SPEED 0-255 From fast to slow 0-100% Dimmer DIMMER 0-255 Dark 4-103 Slow strobe to fast strobe White 104-107 Slow strobe to fast strobe (mode 2)
- Page 16 CH10 0-255 0-100% CH11 0-255 0-100% CH12 0-255 0-100% White Gobo 1 10-14 Gobo 2 15-19 Gobo 3 20-24 Gobo 4 25-29 Gobo 5 30-34 Gobo 6 35-39 Gobo 7 40-44 Gobo 8 45-49 Gobo 9 50-54 Gobo 10 55-59 Gobo 11 60-64 Gobo 12...
- Page 17 70-79 Gobo 7 Shake slow to fast GOBO1 80-89 90-99 Shake slow to fast GOBO2 100-109 Shake slow to fast GOBO3 110-119 Shake slow to fast GOBO4 120-129 Shake slow to fast GOBO5 Shake slow to fast GOBO6 130-139 Shake slow to fast GOBO7 140-149 Rotate forward (fast to slow) 150-199...
- Page 18 Use Attention Common fault handling The lamp contains professional components such as microcomputer circuit board and high- voltage power supply. For your safety and product life, non-professionals should not disassemble the lamp and related accessories without authorization. 1. The bulb does not light up (except LED light source) Possible cause: The bulb is not completely cooled, or the bulb has reached the end of its life, the treatment is as follows：...
- Page 19 When installing the lamp, the fixing screws must be fastened, with safety cables, and regular inspections； When installing and positioning the luminaire, keep minimum distance meters between any point on the surface of the luminaire and any flammable and explosive object, and the distance from the irradiated object is 2.5 meters.
