COB 400 ZOOM IP
User Manual
Guangzhou Mitek Light Co.,LTD
Email: info@miteklight.com
Website: www.miteklight.com
Add: No. 21 Dongfeng Avenue, Automobile Industry Base, Huadu District, Guangzhou

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COB 400 ZOOM IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mitek COB 400 ZOOM IP

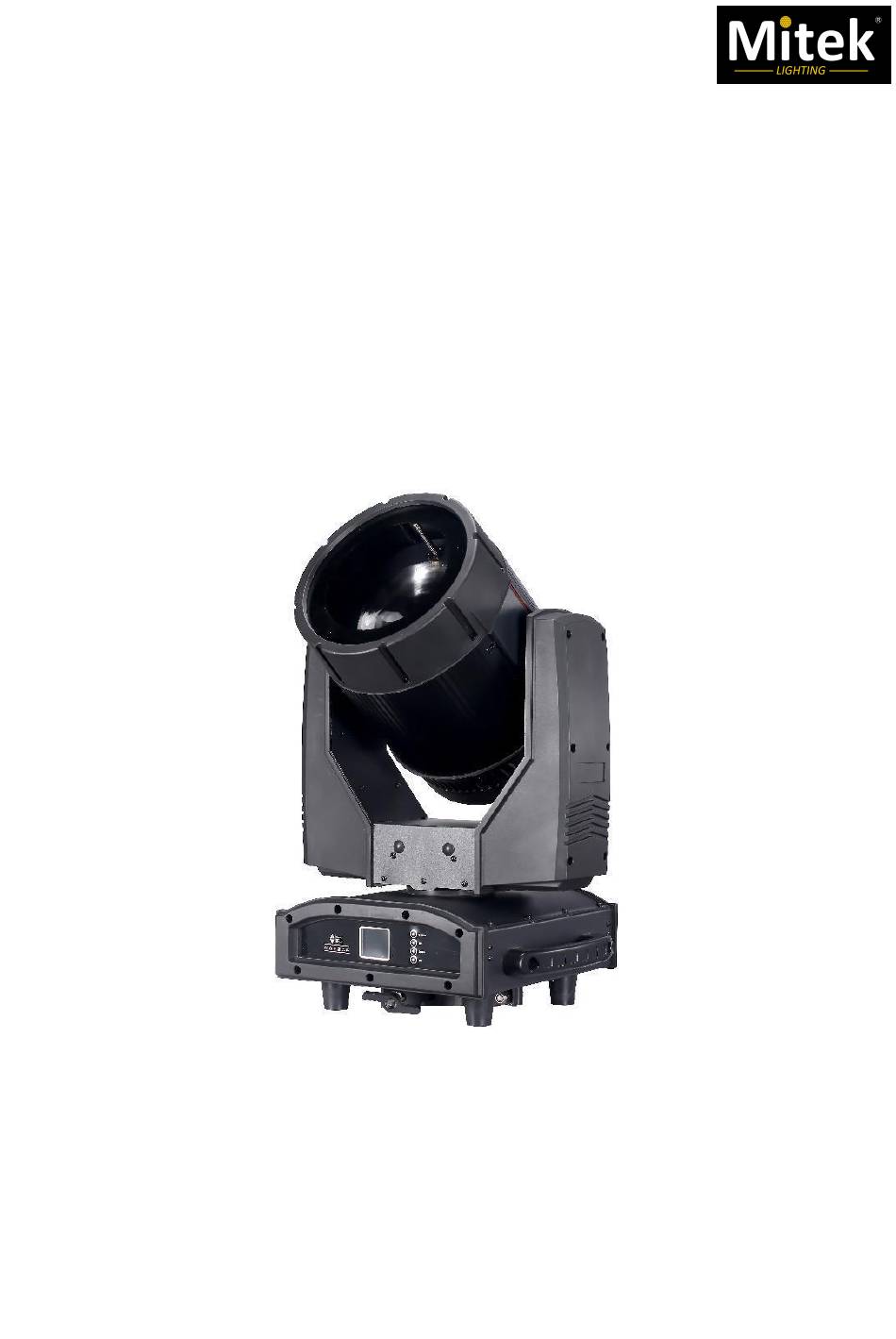

  • Page 1 COB 400 ZOOM IP User Manual Guangzhou Mitek Light Co.,LTD Email: info@miteklight.com Website: www.miteklight.com Add: No. 21 Dongfeng Avenue, Automobile Industry Base, Huadu District, Guangzhou...
  • Page 2: Technical Parameters

    TECHNICAL PARAMETERS Light source Power Supply:AC 100-240V,50/60Hz Power consumption:500W Light Source:1*400W LED LED life expectancy: ≥50000 Hours Optical Color Temperature:2800K-6800K Color Rendering Index:CRI≥90 Zoom angle: 8°- 50° Dimmer:0-100% linear electronic dimmer Strobe:1-12.5Hz/s,fast electronic strobe Automatically accurate positioning Controls Control mode:DMX512,RDM,Master/Slave,Auto DMX Channel:9/11 CH Intelligent control : Intelligent temperature control to ensure LED life Power In/Out: IP Power Connector in/out...
  • Page 3 1 Safety Guidance Warning Please save this manual for future inquiries, and if you market this product to other users, make sure they get this manual too. Notice: The equipment is well packaged when it leaves the factory. Please operate it according to the user manual. The machine failure caused by human reasons is not covered by the warranty.
  • Page 4 • The bulb will be very hot when the fixture is running, do not touch the bulb with bare hands. • Do not operate the luminaire without a protective cover or if the housing is damaged. 2.1 DMX Cable connection Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ω...
  • Page 5 2.3 Rigging (Optional) As shown in Figure 2 (the fixture in the figure is an example picture and does not represent the real appearance of this product),this equipment can be positioned and fixed by clamp in every direction of the stage.
  • Page 6 fixture , lamp status, communication status, etc. (the panel in the figure is an example picture and does not represent the real appearance of the product panel,please select a panel of the same type as your product for reference.). RDM protocol is embed in fixture, user set DMX address via cable using the controller support RDM function.
  • Page 7 Figure 5 Dialog of confirm 3.2.4 Sub Menu(Parameter) Figure 6 Parameter menu 3.3 Operation and parameter instruction In the main interface, you can enter the corresponding parameter setting interface by selecting six buttons. 3.3.1 DMX Address setting Enter page show in Figure6-1, can set fixture DMX address, channel mode and so on. The menu settings of fixture have optimized the setting of addresses.
  • Page 8: Display Setting

    3.3.2 Fixture operating mode setting Through the page shown in Figure 6-2, the operating mode of the fixture can be set and the lamp can be controlled. The fixture supports four operating modes (DMX mode, auto mode, voice control mode and scene mode).
  • Page 9: Scene Mode

    Mode4 Display trademark information, address code and operation mode,which lasts for 30 seconds ,black screen. Screen Rot Set the display direction of the screen. No reverse display Reverse display DMX Indicate Set the indication mode of DMX signal indicator. Mode1 When signal is bright, no signal is off.
  • Page 10: Advanced Setting

    Enter the page shown in Figure 6-5, adjust the field parameters of fixture, facilitate the installation of fixture, etc. ADVANCED SETTING Pan Invert Set the rotation direction of PAN Tilt Invert Set the rotation direction of TILT P/T Rectify Setting up fixture to detect XY lost step and correct Uncorrected position after out of step After losing step, the position is automatically corrected and the out of step fault is recorded.
  • Page 11: Status Information

    STATUS INFORMATION Stepper info Display information status of all motors and signals in fixture. Hall No display, indicating that the motor has no Hall, 0 indicating that the motor leaves the correction position point, 1 indicating that the motor is in the correction position point Status Display motor reset status...
  • Page 12 Light time Record the total cumulative time of light source opening, unit minute, user manual cleaning, as a reference for regular maintenance of light source time. Total time The total accumulated time for recording the opening of fixture is not allowed to be removed.
  • Page 13 5 Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for troubleshooting: A. The unit does not work, no light and the fan does not work ·Check the connected power. ·Measure the voltage. ·Check the power indicator to see whether it can be lit up or not.
