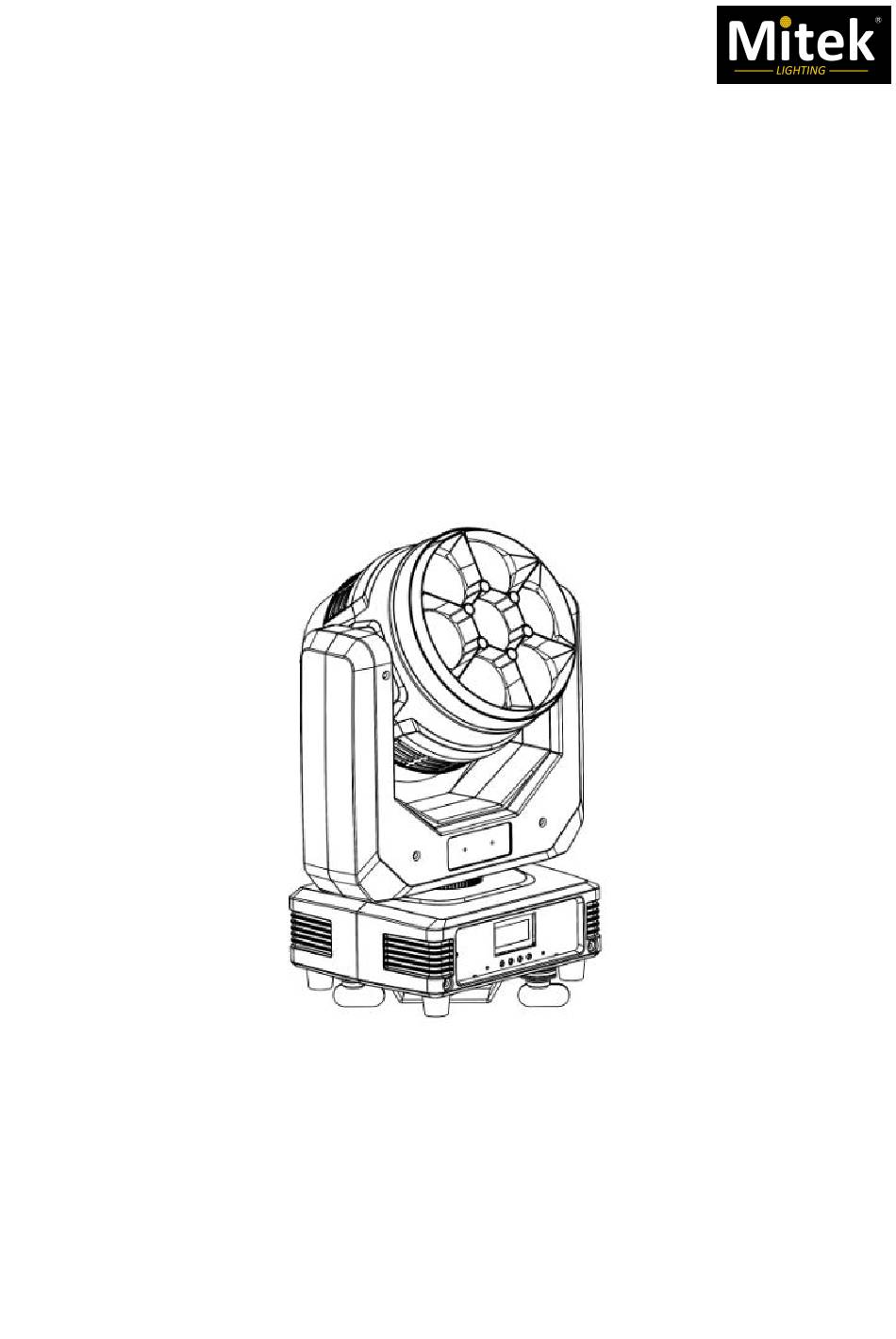

- Page 1 Mini B-EYE 740 User Manual Guangzhou Mitek Light Co.,LTD Email: info@miteklight.com Website: www.miteklight.com Add: No. 21 Dongfeng Avenue, Automobile Industry Base, Huadu District, Guangzhou...
-
Page 2: Technical Parameters
TECHNICAL PARAMETERS Light source Light Sources: 7x 40W 4IN1 RGBW LED Power Consumption: 250W Power Voltage: AC 100-240V, 50/60Hz Optical Beam Angle: 3.5°~ 45° Controls DMX Channel: 21/24/32/60 Channels Control Modes: DMX512/Master-Slave/Auto Run/Music/RDM Display: LCD Display Data In/Out socket: 3-pin XLR sockets Power Socket: Power con in/out Construction Pan/Tilt... - Page 3 SIZE DRAWING LUX Date www.miteklight.com...
-
Page 4: Safety Instructions
statement The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can’t be responsible for any malfunction & problem owing to ignore the manual. 1. - Page 5 Display: MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions Set DMX Address Code Press "Menu" to "Set DMX Address", and press "ENTER" keys to enter into Show "Set DMX Address DMX Address:001", Press the "UP and DOWN"...
- Page 6 6.Blue:0-255 7.White:0-255 8.Strobe:0-255 21CH 24CH Select Channel Mode Channel 32CH 60CH Pan forward and reverse setting 1.Pan Invert 1.NO,2.YES Tilt forward and reverse setting Invert 2.Tilt Invert 1.NO,2.YES Sound 0-100 Sound sensitivity Degree 1.540, 2.360 No signal 1.Black out 2.Hold Fan set 1.Auto, 2.High, 3.Low 1.NO...
-
Page 7: Dmx Channels
3. DMX Channels DMX channel´s functions and values (21 DMX channels): 21 Channel Mode: Channel Function Description Value Ch 1 Red dimming 0----255 Ch 2 Red adjustment Red adjustment 0----255 Ch 3 0----255 Green Green dimming Ch 4 0----255 Green adjustment Green adjustment Ch 5 Blue... - Page 8 DMX channel´s functions and values (24 DMX channels): 24 channel mode： Channel Function Description Value Ch 1 pan adjustment pan adjustment 0----255 Ch 2 Pan fine adjustment Pan fine adjustment 0----255 Ch 3 Tilt adjustment Tilt adjustment 0----255 Ch 4 Tilt fine adjustment Pan fine adjustment 0----255...
- Page 9 Monochrome dynamic pattern 2 15----19 ..(5numbers 1 pattern) ..Monochrome dynamic pattern 20 105----109 Mixed color dynamic pattern 1 110----114 Mixed color dynamic pattern 2 115----119 ..(5 numbers 1 pattern) ..Mixed color dynamic pattern 12 165----169 Mixed color dynamic pattern 13 170----255 Ch 17 Pattern movement...
- Page 10 Mode -4 150----255 no function 0----250 Ch 24 Reset Reset 5s 251----255 DMX channel´s functions and values (32 DMX channels): 32 channel mode： Channel Function Description Value Ch 1 pan adjustment pan adjustment 0----255 Ch 2 Pan fine adjustment Pan fine adjustment 0----255 Ch 3 Tilt adjustment...
- Page 11 No function 0---4 Linear Color CH20 Temperature Color temperature from warm to cold 5---255 No function 0----9 Macro color 1 10----19 Macro color 2 20----29 Ch 21 Macro color ..(10 numbers 1 macro color) ..Macro color 19 190---199 Macro color 20 200----255 No function 0----9...
- Page 12 Ch 25 Pattern effect fade Pattern effect fade 0----255 Ch 26 Background dimming Background 0-100% dimming 0----255 Ch 27 Background strobe Background strobe 0----255 Ch 28 Background R dark to bright 0----255 Ch 29 Background G dark to bright 0----255 Ch 30 Background B dark to bright...
- Page 13 Ch 13 Green dimming 0----255 Ch 14 Green adjust Green adjust 0----255 Ch 15 Blue dimming 0----255 Ch 16 Blue adjust Blue adjust 0----255 Ch 17 White dimming 0----255 Ch 18 White adjust White adjust 0----255 Mode -1 0 --- 49 Mode -2 50 --- 99 Ch 19...
- Page 14 Mixed color dynamic pattern 12 165----169 Mixed color dynamic pattern 13 170----255 Ch 23 Pattern movement Pattern movement(with 22CH) 0----255 No function 0----9 Pattern effect Ch 24 Forward, from fast to slow 10----132 speed(with 22CH) Reverse, from slow to fast 133----255 Ch 25 Pattern effect fade...
-
Page 15: Troubleshooting
4.Trouble shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
