H. HIGH VOLTAGE TRANSFORMER
REMOVAL
1) Discharge the high voltage capacitor.
2) Disconnect the leadwire from magnetron, high voltage
transformer, and capacitor.
3) Remove the screw holding the high voltage
transformer to the bottom plate.
I. BLOWER MOTOR ASSEMBLY REMOVAL
1) Disconnect the leadwire from blower motor.
2) Remove the two screws holding the blower motor
to the bottom plate.
J. HIGH VOLTAGE CAPACITOR AND

DIODE REMOVAL

1) Discharge the high voltage capacitor.
2) Disconnect the leadwire from high voltage capacitor.
3) Remove the screw holding the high voltage diode
earth screw.
4) Remove the screw holding the high voltage capacitor
bracket.

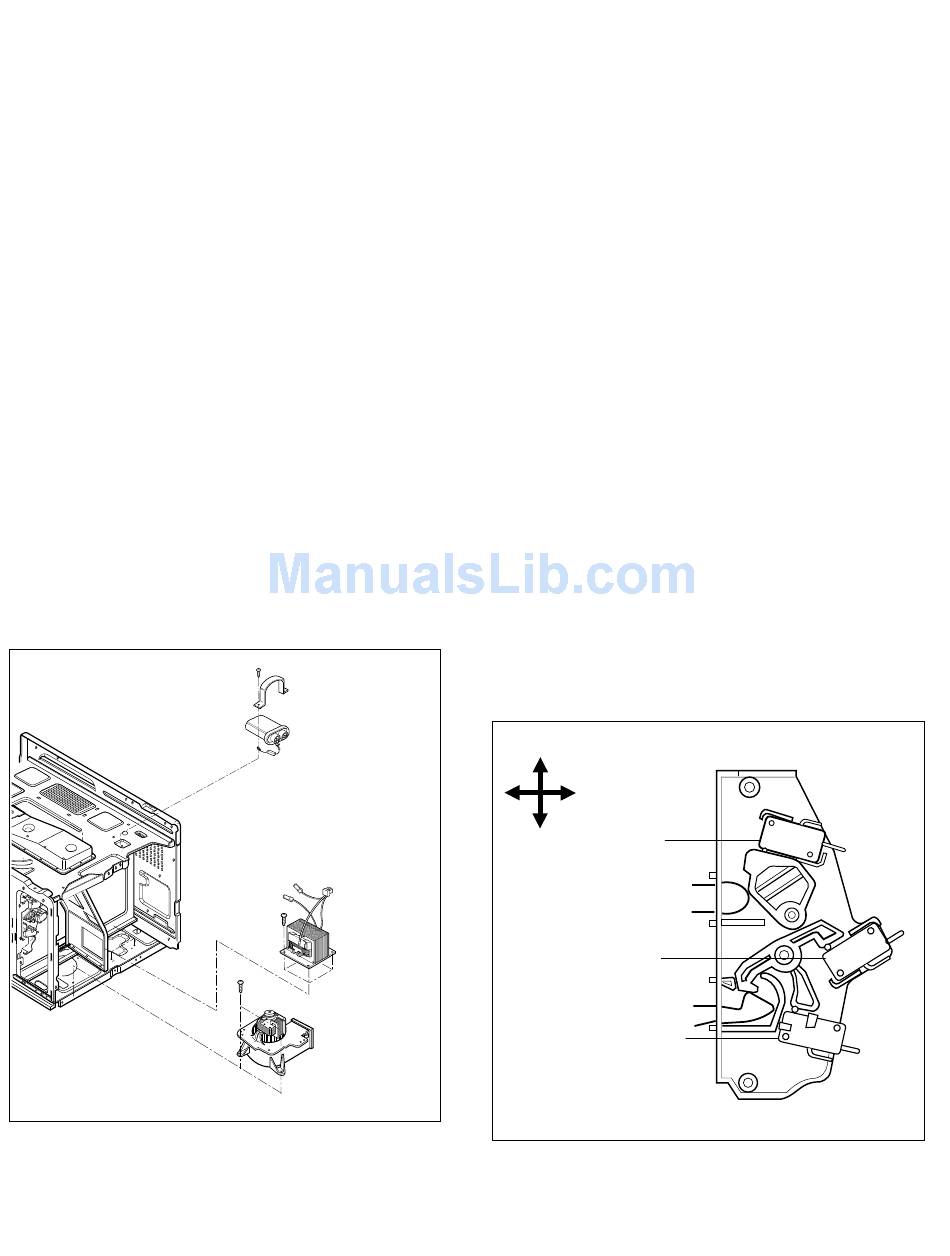

Bottom plate
H.V. Capacitor
H.V. Transformer
Blower motor assembly
5-6
K. INTERLOCK SYSTEM
1) INTERLOCK MECHANISM
The door lock mechanism is a device which has
been specially designed to eliminate completely
microwave activity when the door is opened during
cooking and thus to prevent the danger resulting
from the microwave leakage.
2) MOUNTING OF THE PRIMARY/MONITOR/
SECONDARY SWITCHES TO THE LATCH
BOARD
3) INSTALLATION AND ADJUSTMENT OF THE
LATCH BOARD TO THE OVEN ASSEMBLY
• Mount the latch b oard to the oven assembly.
• Adjust the latch board in the arrow direction so that
oven door will not have any play in it when the door
is closed.
• Tighten the mounting screw.
• Check for play in the door by pushing the door
release button. Door movement should be less
than 0.5 mm. (1/64 inch)
Don't push the door release button while making this
adjustment. Make sure that the latch moves
smoothly after adjustment is completed and that the
screws are tight. Make sure the primary, monitor,
and secondary switches operate properly by
following the continuity test procedure.
ADJUSTMENT
DIRECTION
MONITOR
SWITCH
PRIMARY
SWITCH
SECONDARY
SWITCH
