Henley Falcon Important Installation Information

Henley Falcon Hugger Ceiling Fan - Important Installation Info
Note: This information applies to all Falcon hugger ceiling fans. For the non-LED version just ignore any
references to the light kit and the blades will be a different shape at the motor.
1. Remove all the packaging from inside the motor – check
both ends as this will prevent the motor form running
quietly.

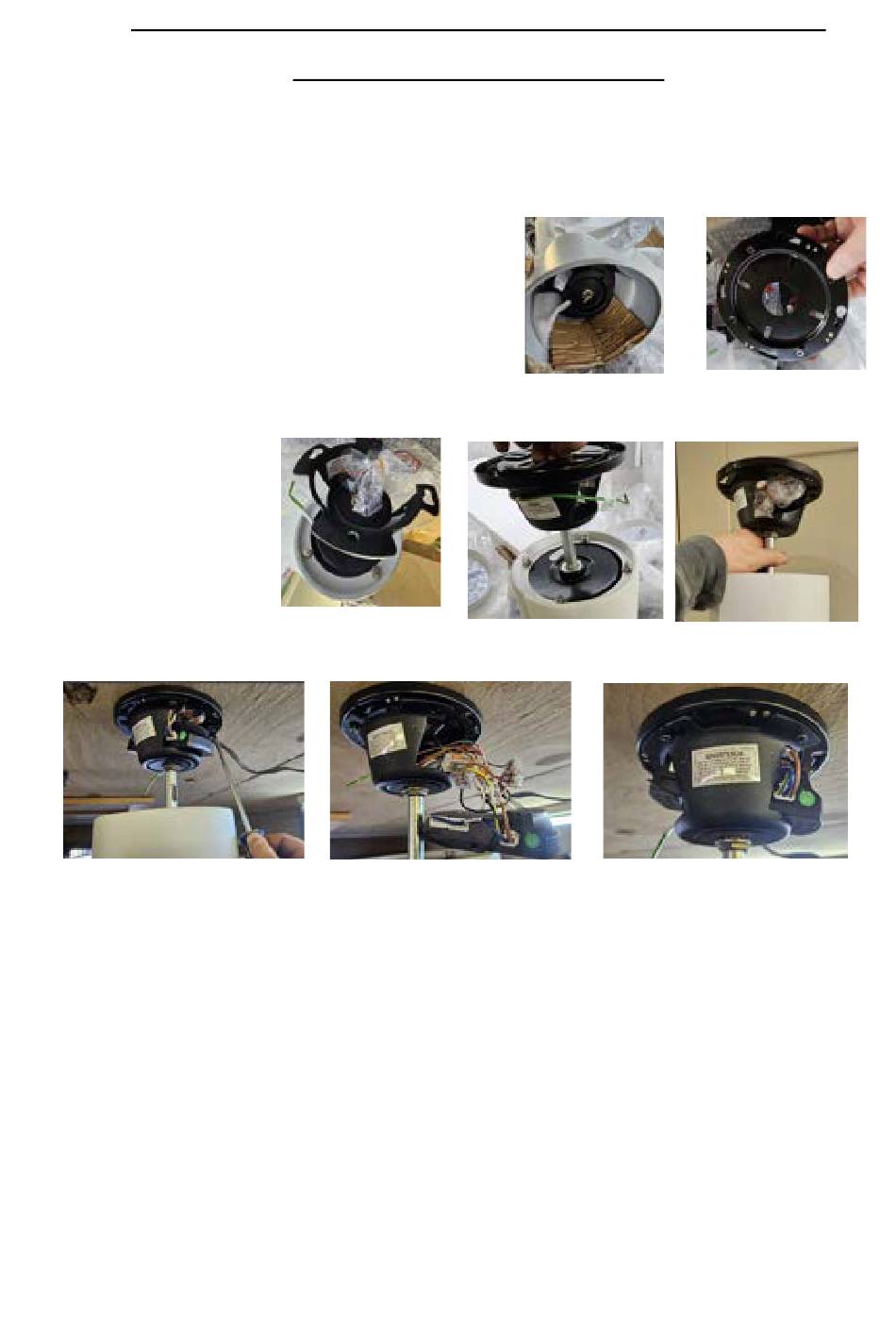

2. Find the ceiling mounting plate and attach to the ceiling
bringing your live feed wires in.
3. Attaching - Lift the
hanging bracket up out of
the can and attach it to
the mounting plate by
locating it with the 2
screws and twisting to
hold it, then screw up the
other 2 fixed position
screws and then tighten all 4. A long screwdriver is easiest. Pic shows how it
attaches to base plate but the plate will be on the ceiling.
4.
Wiring - Wire in the receiver and position within the hanging bracket. Use connector blocks or crimp. It will
be a bit tight but will fit.
up as in the pic otherwise it will get locked in position and cannot easily be disassembled.
the connections are made push the receiver all the way through from the large gap side and into the small
gap side in the bracket to sit in the middle pushing all the wires and connectors into the space between the
receiver and mounting plate. Ensure no wires are loose or under the hanging bracket near the motor. Then
offer up the can and twist it on the mounts anti-clockwise by approx 0.5cm to be tight. The fan should now
be tight and square with the ceiling.
Please read as will save you time
VERY VERY IMPORTANT – Ensure that the receiver is put in the correct way
When
