- Page 1 AEOLUS AC CEILING FAN Installation & Operating Manual...
- Page 2 This ceiling fan is for circulating room air. Their use in machines, outside, in Operating Instructions garages, in moist or wet rooms or rooms in danger of fire or explosion, is not permitted. The voltage details on the rating label are to conform with the available mains Before using the Aeolus fan please read the operating instructions carefully. Keep voltage. the operating instructions within reach and never pass the fan onto another The building mains must be earthed! person without the operating instructions. Only operate the ceiling fan when completely assembled! Dispose of packaging taking the environment into account and keep out of the reach of children. Before accessing the connection, all current carrying conductors must be isolated. The wire connection is to be provided with a multi‐pole isolator with contact gaps of at least 3 mm. The construction and fixture of the holder and ceiling is to be able to bear 5 times the weight of the fan when being moved. Choose a safe place for installation and make sure that there are no objects within the a rea of rotation. None of the fan blades are to be less than 2.30 m from the ground. The ceiling fan must be correctly earthed. Caution – Important Safety Guidance ...

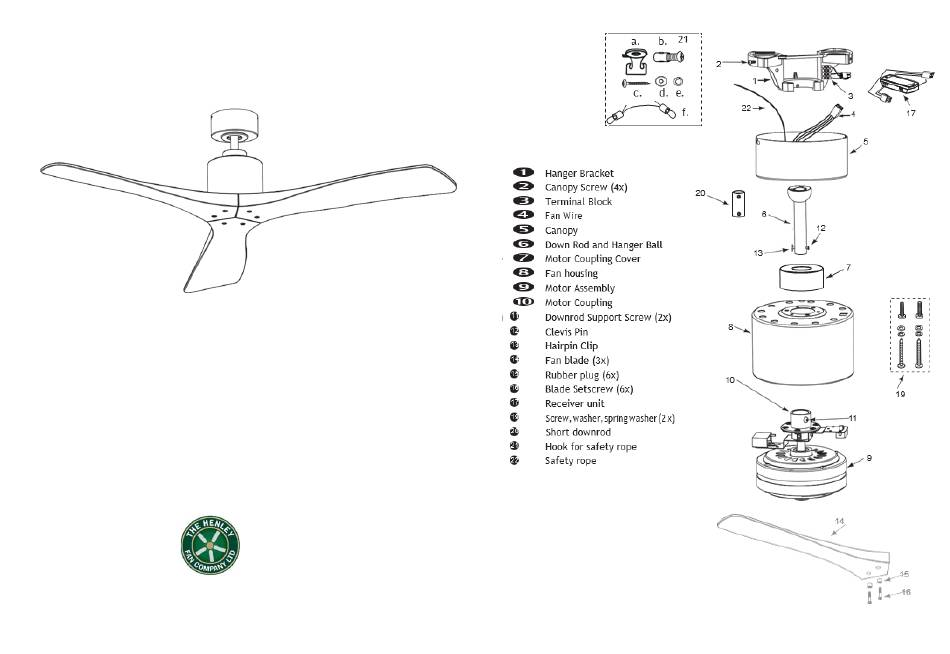

- Page 3 Mounting & Assembly Insert the motor unit for preassembly reversed in the styrofoam packaging. Mount the 3 blades with using 6 rubber plugs and 6 screws. Securely attach the hanger bracket to the ceiling joist using the lag bolts, flat washers and lock washers supplied. Use only for your type of ceiling suitable screws and plugs Install the canopy and motor coupling cover (not sup‐ plied). If mounting between joists then a solid wood cross‐member must be used. It must not be mounted on plasterboard only as this is not strong enough and through downrod. Loosen two screws on the downrod support. Place the downrod into dangerous. downrod support. Detail A: Align the holes on the downrod support to the holes on downrod. Fix the clevis pin through the hole. Install the hairpin clip. Tighten the two screws on the downrod support. Pre‐install two canopy screws on the opposite sides of the hanger bracket. (Do not tighten)! ...
- Page 4 Connect the wires from the motor to the wires from downrod. Align the holes on the downrod support to the holes on downrod. Fix the clevis pin through the hole. Install the hairpin clip. Tighten the two screws on the downrod support. Place the receiver of the remote control as shown in the figure in the ceiling bracket. Hang the pre‐assembled ceiling fan into the hanger bracket. Connect the safety rope with the screw connection to a loop and hang the loop in the safety hook. Connect the plugs as shown in the picture and connect the mains voltage at the terminal block. ...
- Page 5 Operation To change the direction of rotation (summer/winter), please use the switch A on top of the motor housing. For the functions and operation of your ceiling fan with the remote control, please refer to the operating instructions of the remote control supplied with your fan. Fault Finding Fault Remedy The fan does not Check the fuses/trips at the main box and other connections. Check that live is coming out of the receiver when turned on. start. Slide the canopy up to the mounting bracket and place the key hole slots on canopy Check the fan connection to the mains. over the two screws on the mounting bracket. Rotate the canopy until the screws The fan is noisy. Check that all bolts and screws have been tightened. head locks in place. Re‐tighten the 2 screws and reinstall the other 2 screws. The installation of your ceiling fan is now complete. Run in the fan and the bearings for 24 hours. Most noises disappear after this time. The fan vibrates All screws during assembly of the ventilator, especially those too much. ...
- Page 6 Check o nce a y ear a ll t he s crews, e specially t hose o f t he c eiling s uspension, f or tightness. Check electrical connections for proper connection. Disposal This product conforms to EU Directive 2012/19/EU. This appliance bears the symbol of the barred waste bin. This indicates that, at the end of its useful life, it must not be disposed of as domestic waste, but must be taken to a collection centre for waste electrical and electronic equipment, or returned to a retailer on purchase of a replacement. It is the user‘s responsibility to dispose of this appli‐ ance trough the appropriate channels at the end of its useful life. Manufacturers and importers fulfil their responsibilities for recycling, processing and environmentally compatible disposal either directly or by participating in collective systems. © The Henley Fan Company Ltd. 2020 Unit 1, 22 Harrison Close Twyford Berkshire, RG10 0LL 01256 636 509 ...
