Videx 893N1 Manual

Accessories
Art. 893N1
Art. 893N1/A
A
POWER SUPPLY
893N1
ART.
PRI. 230V 50/60 Hz
OUT 20V DC 1.0A
Made in Italy
230V 0
A

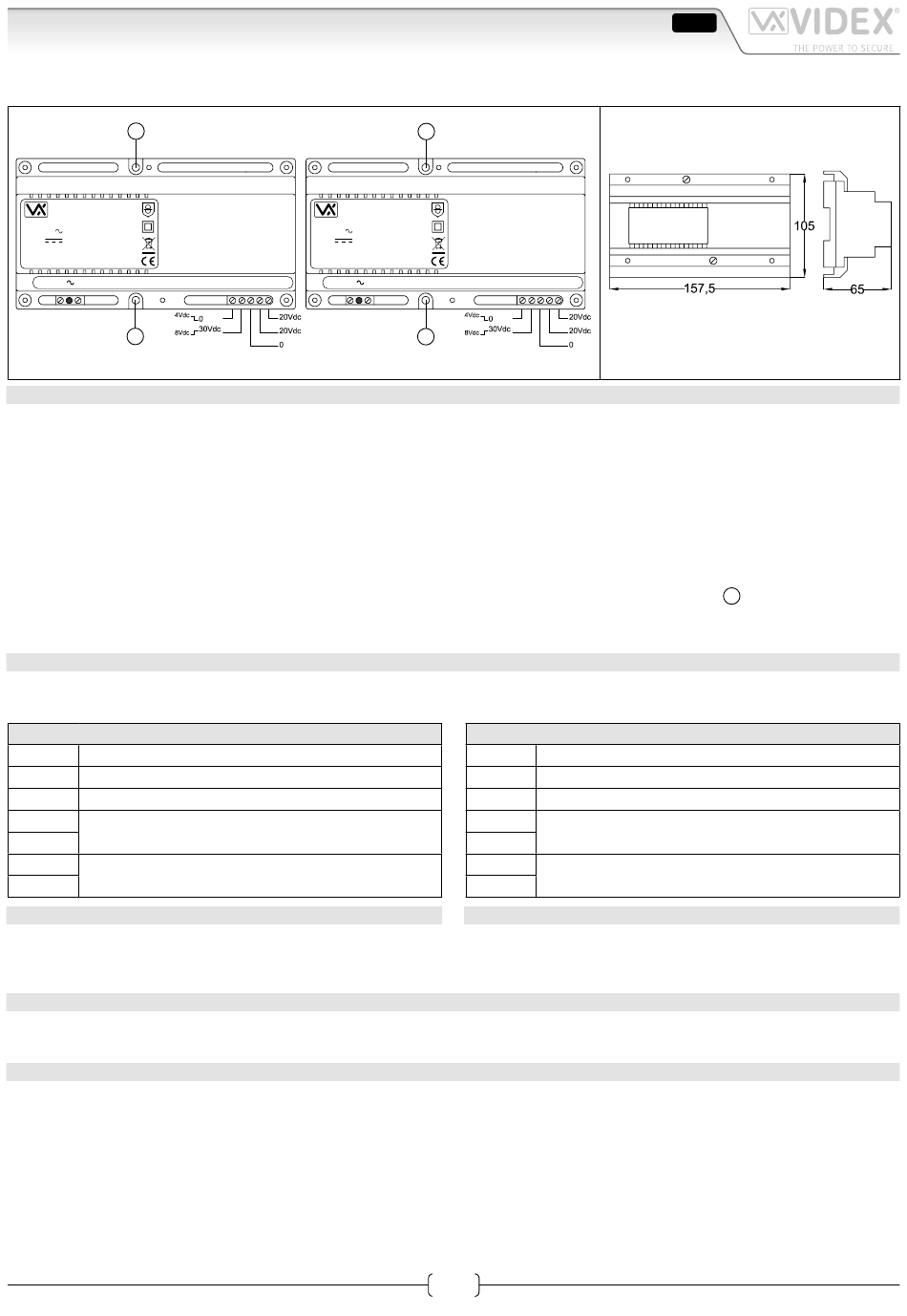

Fig. 1
DESCRIPTION
Regulated 20Vdc 1A max (1A pulse - 0.8A continuous) power supply fed by 230Vac 50/60Hz (115Vac 50/60Hz for Art. 893N1/A)
mains tension.
In the rest position (no command signal on input terminals +C or –C) the output (terminals + and −) has no voltage. The 20Vdc
output between terminals + and − is enabled by a signal (a voltage from 8 to 30Vdc) on input terminal +C or a signal (voltage from
4 down to 0Vdc) on input terminal −C.
This power supply can also be used as a normal power supply with 20Vdc output (terminals + and −) by putting a short between
the terminals −C and −. This model has an additional 20Vdc output +D specific for use on VIDEX digital systems. As the + terminal,
the +D and is enabled by the command terminals +C and –C.
The power supply is built in a 9 modules DIN box type A (157.5mm) and can be installed on a DIN bar or fixed directly to the wall
through the two holes (diameter 4.2mm) on the DIN box base by using two expansion type screws (Ref.
The main use of this product is on video intercom installations, either as a basic power supply or as an additional power supply in
case the installation needs to supply more than 2 video intercoms.
PROTECTIONS
Both Art. 893N1 and Art. 893N1/A has an internal restorable PTC for protection. In case of damage or short circuit, to restore the
internal protection: switch off for 1 minute and during that time eliminate the cause of the short.
ART. 893N1 TERMINALS
230V~ 0 Mains input 230Vac +6% -10%
−C
Terminal for negative command (from 4Vdc down to 0)
+C Terminal for positive command (from 8 up to 30Vdc)
− 20Vdc output - 0.8A continuous 1A max with com-
mand signal on terminal –C or +C
+
−
20Vdc output - 0.8A continuous 1A max with com-
mand signal on terminal –C or +C
+D
ART. 893N1 ELECTRICAL DATA
Mains Voltage: 230Vac +6% -10%
Frequency:
50/60Hz
Output Voltage:
20Vdc +6% -10% 1A max
MECHANICAL DATA
Dimensions: 157.5 x 65 x 105mm
All terminals allow the fixing of several wires with a total diameter of 2.5mm.
WORKING CONDITIONS
Temperature:
-10 +50° C
Maximum humidity: 90% RM
Protection degree: IP 40
Art. 893N1 - 893N1/A - Installation instructions
230Vac regulated power supply
115Vac regulated power supply
POWER SUPPLY
ART.
PRI. 115V 50/60 Hz
OUT 20V DC
Made in Italy
115V
–C +C – + +D
A
893N1/A
1.0A
0
–C +C
A
ART. 893N1/A TERMINALS
115V~ 0 Mains input 115Vac +6% -10%
−C
+C
−
+
−
+D
ART. 893N1/A ELECTRICAL DATA
Mains Voltage:
Frequency:
Output Voltage:
1
ENG
– + +D
Fig. 2
Terminal for negative command (from 4Vdc down to 0)
Terminal for positive command (from 8 up to 30Vdc)
20Vdc output - 0.8A continuous 1A max with com-
mand signal on terminal –C or +C
20Vdc output - 0.8A continuous 1A max with com-
mand signal on terminal –C or +C
115Vac +6% -10%
50/60Hz
20Vdc +6% -10% 1A max
Fig. 1).
A
