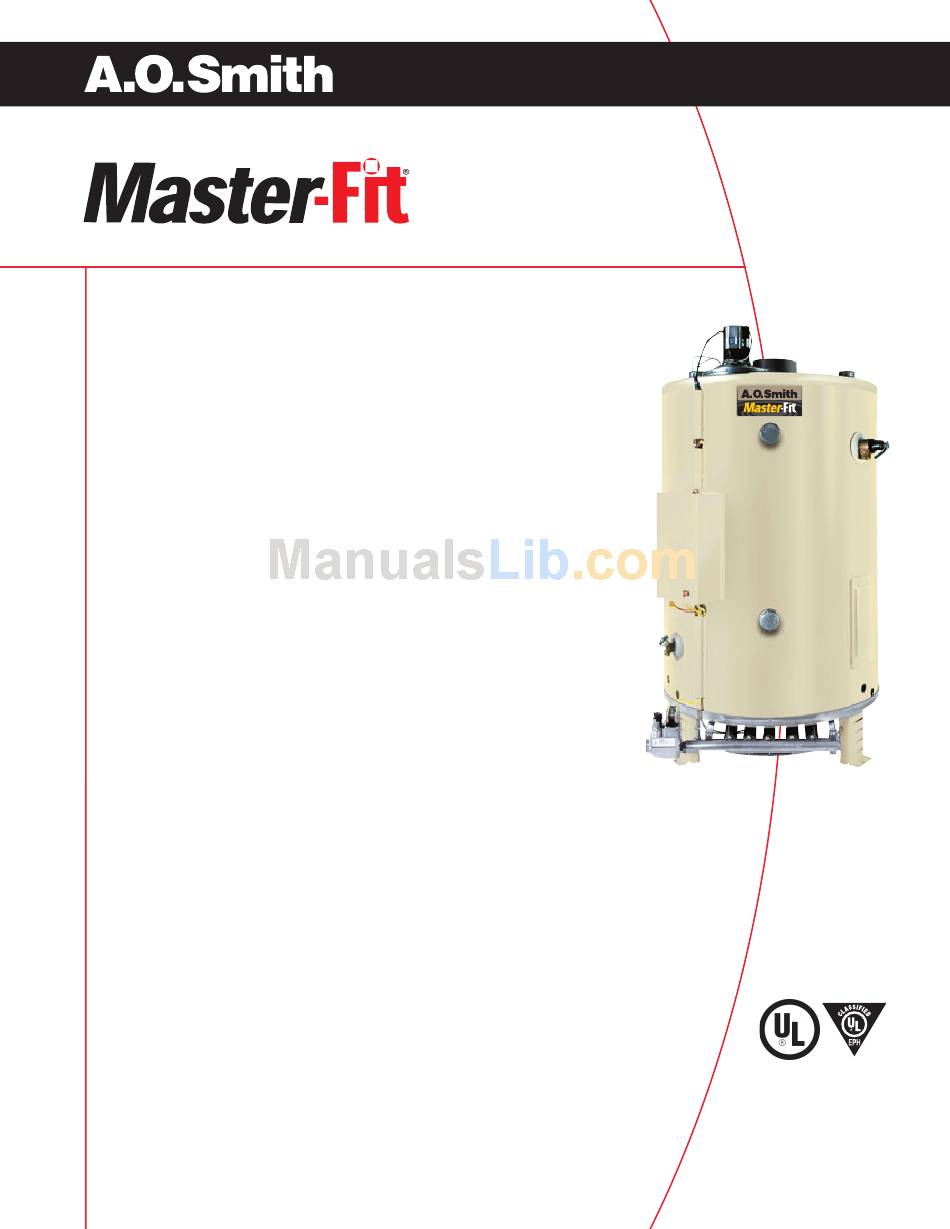

A.O. Smith Master-Fit BTR-151 through BTR-201 Specification Sheet

BOOSTER MODELS
The Master-Fit® BTR-151 and BTR-201 are designed for installation in "booster"
applications, to supply commercial dishwashers with very high temperature water...
usually 180ºF. A booster water heater is normally used in conjunction with a
standard water heater water delivering hot water at a lower temperature to meet
the non-dishwashing needs of a restaurant or other foodservice application.
With a 32-gallon storage tank, these compact units measure only 45'' high,
and hot and cold water connections can be made in the top, front or rear,
for installation versatility.
THE ELIMINATOR ™ SELF-CLEANING SYSTEM
• Designed to significantly reduce or eliminate buildup of lime, sand and
other sediment inside the tank
• Reduced sediment buildup helps Master-Fit water heaters maintain their
rated energy-efficiency and reduce water heating costs
• Self-cleaning system also helps prolong tank life
BUILT-IN INDUCED DRAFT BLOWER
• Produces power-induced draft of makeup air prior to burner ignition
• Provides more efficient control of heat through the flue collector
• No draft hood or barometric damper required
RATED AS CATEGORY 1 APPLIANCE
• Can be commonly vented with other Category 1 appliances, using standard
metal type "B" vent
®
PERMAGLAS ULTRA COAT GLASS LINING
• Exclusive process provides superior protection against corrosion
• CoreGard anode rods with stainless steel core provide additional
corrosion protection
THREE WATER CONNECTION OPTIONS
• Hot and cold water connections can be made through top, front or rear of water heater
• The Eliminator self-cleaning device operates when cold water is connected
through front
INTERMITTENT ELECTRONIC IGNITION
• Eliminates standing pilot
• Includes power ON/OFF switch
• Provides flame failure response in less than one second
FACTORY-INSTALLED TEMPERATURE & PRESSURE RELIEF VALVE
MAXIMUM HYDROSTATIC WORKING PRESSURE 160 PSI
80% THERMAL EFFICIENCY
CODES AND STANDARDS
• Design-certified by UL (Underwriters Laboratories), according to
ANSZ21.10.3-CSA4.3 standards governing storage-type water heaters
• Meets ASHRAE/IESNA 90.1-1999
• Optional ASME construction available

WARRANTY

• Three-year limited warranty against tank leaks
• For complete warranty information, consult written warranty shipped
with water heater, or contact A.O. Smith Water Products Company
June2007R

Commercial Gas Water Heaters

BTR-151
through
BTR-201
ACGSS00705
