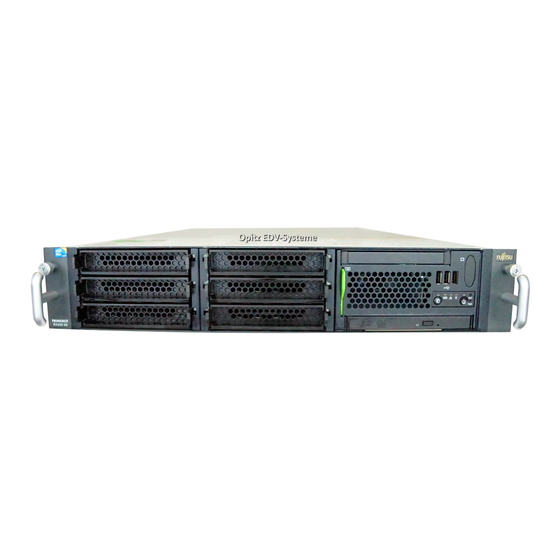

PRIMERGY RX300 S5
Options Guide
Edition september 2009

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRIMERGY RX300 S5 and is the answer not in the manual?

Questions and answers

Related Manuals for Fujitsu PRIMERGY RX300 S5

Summary of Contents for Fujitsu PRIMERGY RX300 S5

  • Page 1 PRIMERGY RX300 S5 Options Guide Edition september 2009...
  • Page 2 Gesellschaft für Technik-Dokumentation mbH www.cognitas.de Copyright and Trademarks Copyright © 2009 Fujitsu Technology Solutions GmbH. All rights reserved. Delivery subject to availability. The right to technical modification is reserved. All hardware and software names used are trade names and/or trademarks of their respective...
  • Page 3 Content Preface ......7 Concept and target groups for this manual .
  • Page 4 Contents Accessible drives ......47 Inserting the ServerView Local Service Module ..47 Installing an optical drive .
  • Page 5 Contents 13.2 Installing a power supply cage ....108 13.3 Inserting the air duct ..... . 110 13.4 Closing the server .
  • Page 7 The system was developed specifically for configurations with multiple servers (clusters), front-end solutions, e-commerce applications and ERP solutions. The PRIMERGY RX300 S5 is ideal for applications and operational areas that require maximum scalability, performance and availability in a space-saving rack cabinet.
  • Page 8 Documentation overview Preface Documentation overview More information on your PRIMERGY RX300 S5 can be found in the following documents: – "Quick Start Hardware - PRIMERGY RX300 S5" leaflet (only included as a printed copy) – "Quick Start Software - Quick Installation Guide" DVD booklet (only included with the PRIMERGY ServerView Suite as a printed copy) –...
  • Page 9 Preface Expansions and conversions Further sources of information: – PRIMERGY Abbreviations and Glossary on the PRIMERGY ServerView Suite DVD 2 – Manual for the monitor – Documentation for the boards and drives – Operating system documentation – Information files in your operating system Expansions and conversions Second processor The system board can be upgraded with a second processor.
  • Page 10 Expansions and conversions Preface Only the populated memory in the 4 channels A, B, D and E can be used (max. 96 GB). Channels C and F are for failure protection purposes only. There are different population requirements, depending on the mode of operation.
  • Page 11 Local Service Concept - LSC" manual on the PRIMERGY ServerView Suite DVD 2). Customer Self Service (CSS) The Fujitsu Technology Solutions Customer Self Service (CSS) concept enables you to identify and replace the affected component yourself in the case of certain error scenarios.
  • Page 12 Preface In addition, CSS errors are displayed in the ServerView Operations Manager - the server management software from Fujitsu Technology Solutions. In the event of errors, the ServerView Operations Manager refers you directly to the affected component and its order information in the Illustrated Spares catalog of the server in question.
  • Page 13 (e.g. drive encryption using Windows Bitlocker Drive Encryption). The TPM is activated via the BIOS system (for more information, refer to the Fujitsu Technology Solutions BIOS manual). CAUTION! – When using the TPM, note the program descriptions provided by the third party manufacturers.
  • Page 15 Procedure CAUTION! ● The actions described in this manual shall be performed by technical specialists. A technical specialist is a person who is trained to install the server including hardware and software. Repairs to the device that do not relate to CSS failures shall be ●...
  • Page 17 Safety instructions The following safety instructions are also provided in the manual "Safety notes and other important information". This device meets the relevant safety regulations for IT equipment. If you have any questions about whether you can install the server in the intended environment, please contact your sales outlet or our customer service team.
  • Page 18 Safety instructions Installation and operation CAUTION! ● This unit should not be operated in ambient temperatures above 35 °C. If the unit is integrated into an installation that draws power from an ● industrial power supply network with an IEC309 connector, the power supply's fuse protection must comply with the requirements for non- industrial power supply networks for type A connectors.
  • Page 19 Safety instructions CAUTION! ● Ensure that the power sockets on the device and the grounded shockproof sockets are freely accessible. The On/Off button or the main power switch (if present) does not ● isolate the device from the mains power supply. To disconnect it completely from the mains power supply, unplug all network power plugs from the grounded shockproof sockets.
  • Page 20 Safety instructions CAUTION! ● Proper operation of the system (in accordance with IEC 60950-1/ EN 60950-1) is only ensured if the casing is completely assembled and the rear covers for the installation slots have been fitted (electric shock, cooling, fire protection, interference suppression). ●...
  • Page 21 Safety instructions CAUTION! ● Only use CDs/DVDs that are in perfect condition in your server's CD/DVD drive, in order to prevent data loss, equipment damage and injury. ● Check each CD/DVD for damage, cracks, breakages etc. before inserting it in the drive. Note that any additional labels applied may change the mechanical properties of a CD/DVD and cause imbalance.
  • Page 22 Safety instructions Figure 1: ESD label When you handle components fitted with ESDs, you must observe the following points under all circumstances: ● Remove the power plug before installing or removing components containing ESDs. ● You must always discharge yourself of static charges (e.g. by touching a grounded object) before working.
  • Page 23 Preparation CAUTION! Please note the safety instructions in chapter "Safety instructions" on page 17 Removing the server from the rack Ê Terminate all applications and shut down the server correctly. Ê If your operating system has not switched off the server, press the on/off button.
  • Page 24 Opening the server Preparation Ê Lift the server off the rails. CAUTION! At least two people are needed to lift the server out of the rack cabinet. Opening the server Figure 3: Removing the top cover Ê Press the two locks down. Ê...
  • Page 25 Preparation Removing the air duct Removing the air duct You only need to remove the air duct if you want to work in the area of the expansion cards, main memory or processors. Figure 4: Removing the air duct over the main memory and processors Ê...
  • Page 26 Removing the fan box Preparation Removing the fan box Figure 5: Removing the fan box Ê Push in the fan box locks on the right and left-hand side. Ê Pull the fan box straight up and out. Ê Place the fan box on the plate over the drives. Options Guide RX300 S5...
  • Page 27 Preparation Removing the power supply cage Removing the power supply cage Removing the power supply and dummy module Figure 6: Removing the power supply dummy module Ê Unlock the dummy module and pull it out. Figure 7: Removing the power supply module Ê...
  • Page 28 Removing the power supply cage Preparation Figure 8: Removing the power supply cage Ê Remove the two screws (blue circles) on the upper rear side. Ê Loosen the four captive screws (yellow circles). Ê Remove the power supply cage by lifting it straight up to avoid damaging the plugs on the system board.
  • Page 29 Main memory CAUTION! Please note the safety instructions in chapter "Safety instructions" on page 17. The system board supports up to 144 GB main memory. There are 18 slots available for the main memory. Each slot can be populated with 2 GB, 4 GB or 8 GB single or dual ranked RDIMM memory modules.
  • Page 30 Equipping rules Main memory Equipping rules Equipping the modules Channel D Channel E Channel F Channel B Channel C Channel A CPU 2 CPU 1 Figure 9: Configuring the main memory in channels and slots The arrows in figure 9 show the order in which the slots must be populated.
  • Page 31 Main memory Extending/replacing the main memory – Spare Channel Mode (high memory configuration with high security) Only the populated memory in the 4 channels A, B, D and E can be used (max. 96 GB). Channels C and F are for failure protection purposes only. Depending on the mode of operation there are different population requirements.
  • Page 32 Extending/replacing the main memory Main memory Inserting a memory module CAUTION! Please note the equipping rules in the technical manual for the system board D2619. Figure 11: Inserting a memory module Ê Carefully press the memory module into the slot (1) until the fastening tabs on both sides of it engage (2).
  • Page 33 Processors CAUTION! Please note the safety instructions in chapter "Safety instructions" on page CAUTION! Processors are modules which can react extremely sensitively to electrostatic discharges and which must therefore always be handled with care. After removing the processor from its protective sleeve or socket, place it with its smooth side down on a non-conducting, antistatic surface.
  • Page 34 Installing a second processor Processors Figure 12: Opening the processor cover Ê Push the two heat sink retention levers in, unlock them, and swing them open. Ê Open the socket release lever and swing it up as far as possible. Options Guide RX300 S5...
  • Page 35 Processors Installing a second processor Figure 13: Opening the processor holder Ê Open the processor holder. Options Guide RX300 S5...
  • Page 36 Installing a second processor Processors Figure 14: Removing the socket cover Ê Take hold of the socket cover by the handles. Lift the socket cover straight up and off. CAUTION! If the socket cover is tilted when it is lifted off, the contact springs of the processor socket will be damaged.
  • Page 37 Processors Installing a second processor Figure 15: Slot for second CPU, socket coding and marking CAUTION! The processor can only be installed in one particular direction. Pay attention to the marking on one of the corners and the two socket codings.
  • Page 38 Installing a second processor Processors Figure 16: Inserting the processor Ê Position the new processor above the socket, and press it horizontally into the socket. CAUTION! The processor can only be installed in one particular direction. Note the marking on one of the corners. CAUTION! If the processor is tilted when it is inserted, the contact springs of the processor socket will be damaged.
  • Page 39 Processors Installing a second processor Figure 17: Closing the processor holder Ê Close the socket release lever. Figure 18: Engaging the socket release lever Ê Engage the socket release lever. Options Guide RX300 S5...
  • Page 40 Installing a second processor Processors Installing the heat sink Figure 19: Installing the heat sink Ê Remove the protective cover on the underside of the heat sink. When doing so, do not touch the thermal paste on the underside of the heat sink.
  • Page 41 Processors Installing a second processor Figure 20: Closing the heat sink retention levers Ê Close the two heat sink retention levers at the same time. Ê Engage the two heat sink retention levers. CAUTION! Never install a processor without a heat sink. Doing so may cause the processor to overheat.
  • Page 42 Replacing the processor Processors Replacing the processor CAUTION! Only identic processors may be used on the system board. The second processor must have the same clock frequency and the same cache as the first processor. For dual operation, use a suitable multiprocessor operating system.
  • Page 43 Processors Replacing the processor Figure 22: Disengaging the socket release lever Ê Open the socket release lever and swing it up as far as possible. Ê Then open the socket cover. Ê Carefully lift the installed processor horizontally up and out of the socket. Options Guide RX300 S5...
  • Page 44 Figure 23: Inserting the processor Ê Position the new processor over the socket and then carefully press it into the socket. CAUTION! The processor can only be installed in one particular direction. Pay attention to the marking on one of the corners and the socket coding. To avoid damaging the connections (pins) or the processor, do not force it into the socket.
  • Page 45 Processors Replacing the heat sink Figure 24: Installing the heat sink Ê Close the two heat sink retention levers at the same time. Ê Replace the air duct over the main memory (see section "Inserting the air duct" on page 110).
  • Page 46 Replacing the heat sink Processors When doing so, do not touch the thermal paste on the underside of the heat sink. Ê Place the heat sink on the processor socket (see section "Replacing the processor" on page 42). Ê Close the two heat sink retention levers at the same time. Ê...
  • Page 47 Accessible drives Inserting the ServerView Local Service Module Accessible drives CAUTION! Please note the safety instructions in chapter "Safety instructions" on page 17 There are two free slots available for accessible drives. 5.25-inch x 0.5- inch slot for an optical drive and one bay for a USB magnetic tape drive or USB RDX drive.
  • Page 48 Inserting the ServerView Local Service Module Accessible drives The ServerView Local Service Panel or ServerView Local Service Display can be installed in the empty 3.5"/0.5" bay. The installation of the ServerView Local Service Display is depicted below. The ServerView Local Service Panel is installed in the same way. Ê...
  • Page 49 Accessible drives Inserting the ServerView Local Service Module Figure 27: Removing the dummy module Ê Pull out the dummy module frontward. Options Guide RX300 S5...
  • Page 50 Inserting the ServerView Local Service Module Accessible drives Figure 28: Connecting the Local View Service Module Ê Thread the cable through the bay to the front. Ê Connect the cable to the ServerView Local Service Display. Figure 29: Inserting the ServerView Local Service Module Options Guide RX300 S5...
  • Page 51 Accessible drives Inserting the ServerView Local Service Module Carefully insert the ServerView Local Service Module horizontally to avoid damaging the EMC springs. Ê Push the ServerView Local Service Module right in. Further information on usage and display modes is provided in the documentation for the ServerView Local Service Panel or ServerView Local Service Display.
  • Page 52 Installing an optical drive Accessible drives Installing an optical drive Ê Open the server as described in chapter "Preparation" on page Figure 30: Unlocking the dummy module Ê Unlock the dummy module. Ê Push the dummy module frontward. Carefully push the dummy module out horizontally to avoid damaging the EMC springs.
  • Page 53 Accessible drives Installing an optical drive Figure 31: Remove the dummy module Ê Remove the dummy module from the bay. CAUTION! Store the dummy module in a safe place. If you remove the accessible drive and do not replace it with a new one, the dummy module must be reinstalled to comply with EMC regulations and to satisfy cooling requirements and fire protection measures.
  • Page 54 Installing an optical drive Accessible drives Figure 32: Installing an optical drive in the frame Ê Install the optical drive in the frame. Pay attention to the plastic pins that hold the drive in the frame. Ê Thread the power cable and SATA cable through the bay. Figure 33: Connect the power and data cable.
  • Page 55 Accessible drives Installing an optical drive Ê Connect the power cable to the optical drive (see the cabling plans in the chapter "Appendix" on page 115). Ê Connect the SATA cable to the drive (see the cabling plan in the chapter "Appendix"...
  • Page 56 Installing an optical drive Accessible drives Figure 35: Connecting the SATA cable to the system board Ê Connect the SATA cable to the connector SATA1 on the system board (see the cabling plans in the chapter "Appendix" on page 115). Ê...
  • Page 57 Accessible drives USB tape drive/USB RDX drive USB tape drive/USB RDX drive A USB drive can only be installed in the 6x 3.5" and 8x 2.5" hard disk drive variant. Ê Open the server as described in section "Opening the server" on page Ê...
  • Page 58 USB tape drive/USB RDX drive Accessible drives Figure 37: USB tape drive Figure 38: USB RDX drive Options Guide RX300 S5...
  • Page 59 Accessible drives USB tape drive/USB RDX drive Figure 39: Installing a USB tape drive in a drive cage Ê Insert the USB drive into the drive cage. Figure 40: Securing the USB tape drive with screws Ê Secure the USB tape drive with 2 screws (M3x4,5) on the left and right-hand side.
  • Page 60 USB tape drive/USB RDX drive Accessible drives 7.3.1.2 Installing a USB drive Installing a USB tape drive Figure 41: Connecting the power supply adapter cable Ê Remove the power supply cable for the USB drive from the fan box holder. Ê...
  • Page 61 Accessible drives USB tape drive/USB RDX drive Connecting the tape drive Figure 42: Pushing the power supply and USB cable frontward through the bay Ê Push the power supply cable frontward through the bay. Ê Push the USB cable frontward through the bay. The black plug must be on the outside.
  • Page 62 USB tape drive/USB RDX drive Accessible drives Figure 43: Connecting the cables to the USB tape drive Ê Connect the two cables to the USB tape drive. Figure 44: Pushing the USB tape drive into the server Options Guide RX300 S5...
  • Page 63 Accessible drives USB tape drive/USB RDX drive Route the USB cable Route th Ê Before pushing in the USB tape drive route the USB cable und the connector to the right side. Figure 45: Installing a USB tape drive Ê Push the drive in. Make sure that the locking levers at both sides (see circles) are engaged.
  • Page 64 USB tape drive/USB RDX drive Accessible drives Figure 46: Routing the cable Ê First route the cables to the right (see photograph) and then up, to ensure that the cables do not become trapped between the backplane and the USB drive module.
  • Page 65 Accessible drives USB tape drive/USB RDX drive Figure 47: Connecting the USB cable to the system board Ê Connect the USB cable to the system board in USB slot 1 (see cabling plan in the chapter "Appendix" on page 115). Options Guide RX300 S5...
  • Page 66 USB tape drive/USB RDX drive Accessible drives Figure 48: Routing cables in the fan box holder and air duct holder Ê Route the cables in the fan box holder and air duct holder as shown in the photograph. Ê Replace the fan box (see section "Installing a fan box"...
  • Page 67 Accessible drives USB tape drive/USB RDX drive Installing a USB RDX drive Figure 49: Pushing the power supply and USB cable frontward through the bay Ê Push the power supply cable frontward through the bay. Ê Push the USB cable frontward through the bay. The black plug must be on the outside.
  • Page 68 USB tape drive/USB RDX drive Accessible drives Figure 50: Connecting a USB RDX drive Ê Connect the power supply cable to the RDX drive. Ê Connect the USB cable to the RDX drive. Ê Push the drive in. Make sure that the locking levers at both sides (see circles in figure 45) are engaged.
  • Page 69 Accessible drives USB tape drive/USB RDX drive Figure 51: Installing a USB RDX drive Ê First route the cables to the right (see photograph) and then up, to ensure that the cables do not become trapped between the backplane and the USB drive module.
  • Page 70 USB tape drive/USB RDX drive Accessible drives Figure 52: Connecting the USB cable to the system board Ê Connect the USB cable to the system board in USB slot 1 (see cabling plan in the chapter "Appendix" on page 115). Options Guide RX300 S5...
  • Page 71 Accessible drives USB tape drive/USB RDX drive Figure 53: Routing the USB cable and power supply cable through the fan box holder and air duct holder Ê Route the cables in the fan box holder and air duct holder as shown in the photograph.
  • Page 72 USB tape drive/USB RDX drive Accessible drives 7.3.2 Installing a USB drive in the 8x 2.5" variant In the 8x 2.5" variant, the DAT and RDX drive are installed using the same method, except for the cabling. 7.3.2.1 Installing a USB drive Figure 54: Removing a drive module Ê...
  • Page 73 Accessible drives USB tape drive/USB RDX drive Figure 55: Preparing the drive module Ê Remove the two screws on both sides. Ê Remove the cover. Options Guide RX300 S5...
  • Page 74 USB tape drive/USB RDX drive Accessible drives Figure 56: Inserting the USB drive into the drive module Ê Insert the USB drive into the drive module. Ê Secure the drive with the 4 screws (M3x4). Figure 57: Inserting the drive module Options Guide RX300 S5...
  • Page 75 Accessible drives USB tape drive/USB RDX drive Ê Insert the drive module. CAUTION! When you push back the USB drive module, take care that the SAS backplane do not lay in front of the drive module. In this case you must push back the backplane into the correct position before you push the drive module in completely.
  • Page 76 USB tape drive/USB RDX drive Accessible drives Figure 59: Connecting the USB cable Ê Connect the USB cable to the USB drive. Options Guide RX300 S5...
  • Page 77 Accessible drives USB tape drive/USB RDX drive Figure 60: Connecting the USB cable for the tape drive to the system board Ê Connect the USB cable to the system board in USB slot 1 (see cabling plan in the chapter "Appendix" on page 115).
  • Page 78 USB tape drive/USB RDX drive Accessible drives Figure 61: Routing cables in the fan box holder and air ductholder Ê Route the cables in the fan box holder and air duct holder as shown in the photograph. Ê Replace the fan box (see section "Installing a fan box"...
  • Page 79 Accessible drives USB tape drive/USB RDX drive Connecting a USB RDX drive Figure 62: Connecting the power supply cable Ê Connect the power supply cable to the USB drive. Figure 63: Connecting the USB cable Options Guide RX300 S5...
  • Page 80 USB tape drive/USB RDX drive Accessible drives Ê Connect the USB cable to the USB drive. Figure 64: Connecting the USB cable for the tape drive to the system board Ê Connect the USB cable to the system board in USB slot 1 (see cabling plan in the chapter "Appendix"...
  • Page 81 Accessible drives USB tape drive/USB RDX drive Figure 65: Routing cables in the fan box holder and air duct holder Ê Route the cables in the fan box holder and air duct holder as shown in the photograph. Ê Replace the fan box (see section "Installing a fan box"...
  • Page 83 Expansion cards in the PCI slots CAUTION! Please note the safety instructions in chapter "Safety instructions" on page 17 The system board offers seven low profile PCI slots: There are no hot-plug slots. In the standard setup, slot 1 is populated with a SAS controller. You will find an overview of the slots in the technical manual for the system board D2619.
  • Page 84 Installing an expansion card Expansion cards in the PCI slots CAUTION! Keep the rear cover of the PCI slot. If you remove the controller again and do not replace it with a new one, the rear cover must be reinstalled to comply with EMC regulations and to satisfy cooling requirements and fire protection measures.
  • Page 85 Expansion cards in the PCI slots Upgrading a SAS controller Upgrading a SAS controller A SAS controller is required for operating internal hard disk drives. A SAS IME or a SAS RAID controller is available for this purpose. Ê Open the server as described in chapter "Preparation"...
  • Page 86 Upgrading a SAS controller Expansion cards in the PCI slots Installing a SAS RAID controller Figure 69: Removing a controller Ê Remove the screw. Ê Loosen the two SAS cables. Ê Pull out the controller. Options Guide RX300 S5...
  • Page 87 Expansion cards in the PCI slots Upgrading a SAS controller Figure 70: Installing a controller Ê Insert the SAS controller into PCI slot 1 (1) and push it carefully to secure. Ê Secure the rear cover (2) with a screw. Ê...
  • Page 89 Battery Backup Unit CAUTION! Please note the safety instructions in chapter "Safety instructions" on page 17 BBU-Modul einbauen Ê Open the server as described in section "Opening the server" on page Ê Remove the air duct as described in the section "Removing the air duct"...
  • Page 90 BBU-Modul einbauen Battery Backup Unit Installing BBU 1 for SAS controllers Figure 72: Connecting the BBU cable Ê Connect the BBU cable. Use the short cable for the controller in slot 1. The side of the plug with 2 pin rows must be facing upward. Figure 73: Screwing the BBU to the air duct Options Guide RX300 S5...
  • Page 91 Battery Backup Unit BBU-Modul einbauen Ê Place the BBU on the air duct in such a way that the 3 holes are in line with the bolts on the BBU. Ê Secure the BBU to the air duct using the 3 screws. Figure 74: Inserting the air duct Ê...
  • Page 92 BBU-Modul einbauen Battery Backup Unit Figure 75: Connecting the BBU to a SAS controller Ê Connect the connecting cable (BBU to controller) on the controller. The side of the plug with just one pin row must be facing the board. Installing BBU2 for slot 7 Figure 76: Connecting the battery Ê...
  • Page 93 Battery Backup Unit BBU-Modul einbauen The side of the plug with 2 pin rows must be facing upward. Figure 77: Securing BBU 2 to the cover Ê Secure the BBU to the air duct using the 3 screws. Figure 78: Connecting BBU 2 to the controller Ê...
  • Page 94 BBU-Modul einbauen Battery Backup Unit Figure 79: Connecting the cable to the controller Ê Connect the connecting cable (BBU to controller) on the controller. The side of the plug with just one pin row must be facing the board. Ê Push the cable behind the controller between the power supply cage and the controller.
  • Page 95 Front VGA port CAUTION! Please note the safety instructions in chapter "Safety instructions" on page 17 10.1 Installing a front VGA port Ê Open the server as described in chapter "Preparation" on page Ê Remove the air duct as described in section "Removing the air duct"...
  • Page 96 Figure 81: Preparing a VGA port Ê Remove both screws from the plug. Figure 82: Removing the fan box holder Ê Remove the cables from the fan box holder. Ê Loosen the screw and remove the fan box holder.
  • Page 97 Front VGA port Installing a front VGA port Figure 83: Removing the front panel frame Ê Push the locking lever up. Ê Pull the front panel frame inward and out. Figure 84: Installing a VGA port in the front panel frame Ê...
  • Page 98 Installing a front VGA port Front VGA port Ê Tighten both screws. Figure 85: Installing a front panel frame Ê Replace the front panel frame. Ê Push the front panel frame forward until it engages. Ê Replace the fan box holder, and secure with screws. Ê...
  • Page 99 Front VGA port Installing a front VGA port Figure 86: Connecting the VGA cable to the system board Ê Connect the front VGA cable to the system board. See cabling plan chapter "Appendix" on page 115. Ê Replace the fan box (see section "Installing a fan box"...
  • Page 101 Trusted Platform Module CAUTION! Please note the safety instructions in chapter "Safety instructions" on page 17 11.1 Installing a TPM-Module Ê Open the server as described in section "Opening the server" on page Ê Remove the air duct as described in section "Removing the air duct"...
  • Page 102 Figure 88: Installing the distance holder Ê Install the distance holder. Figure 89: Installing a TPM Module...
  • Page 103 Trusted Platform Module Installing a TPM-Module Ê Connect the TPM Module to the slot. Figure 90: Securing a TPM Module Ê Tighten the special screw using the special element for a bit screwdriver supplied. Figure 91: Element for bit screwdrivers Ê...
  • Page 105 USB Flash Module CAUTION! Please note the safety instructions in chapter "Safety instructions" on page 17 12.1 Installing USB Flash Module Ê Open the server as described in section "Opening the server" on page Ê Remove the air duct as described in section "Removing the air duct"...
  • Page 106 Installing USB Flash Module USB Flash Module Ê Insert the power supply cage as in section "Installing a power supply cage" on page 108. Ê Reinstall the air duct (see section "Inserting the air duct" on page 110). Ê Close the server (see section "Closing the server"...
  • Page 107 Completion Installing a fan box Completion CAUTION! Please note the safety instructions in chapter "Safety instructions" on page 13.1 Installing a fan box Figure 93: Installing a fan box Ê Install the fan box perfectly straight. Ê Push fan box down until it engages. Make sure that all cables lie in fan box holder and air duct holder.
  • Page 108 Installing a power supply cage Completion 13.2 Installing a power supply cage Figure 94: Installing a power supply cage Ê When installing the power supply cage, keep it perfectly straight and horizontal to avoid damaging the plugs on the system board, then push to secure.
  • Page 109 Completion Installing a power supply cage Figure 95: Removing the power supply dummy module Ê Reinstall the dummy module and the power supply module(s), depending on the configuration. Options Guide RX300 S5...
  • Page 110 Inserting the air duct Completion 13.3 Inserting the air duct Figure 96: Inserting the air duct over the main memory and processors Ê Replace the air duct over the main memory and processors. Ê If a SAS/SATA RAID controller is installed and you loosened the BBU cable when removing the air duct, re-connect the BBU cable.
  • Page 111 Completion Closing the server 13.4 Closing the server Figure 97: Closing the top cover Ê Replace the top cover. Ê Slide the cover forward. Ê Make sure that the locks engage. Options Guide RX300 S5...
  • Page 112 Installing the server in the rack Completion 13.5 Installing the server in the rack If you have not removed the server from the rack cabinet, please skip this section: Figure 98: Installing the server in the rack cabinet CAUTION! Ensure that the safety lock has been inserted before the server is inserted.
  • Page 113 Completion Installing the server in the rack Ê Connect all power plugs to the power outlets. Ê Press the On/Off button to start up the server. Options Guide RX300 S5...
  • Page 115 Appendix 14.1 Cable list Cable # * Part number Code number Name T26139-Y3994-V1 A3C40097650 Front VGA T26139-Y3925-V303 A3C40097792 Front panel T26139-Y3928-V205 A3C40103930 SATA (750 mm) T26139-Y3807-V201 A3C40097864 Front USB cable T26139-Y3986-V301 A3C40097692 Optical / USB drive power supply for barebone model S26361-K1237-A100/A200 T26139-Y3986-V302 A3C40103416 Optical drive power supply for barebone model...
  • Page 116 Cable list Appendix Cable # * Part number Code number Name T26139-Y3963-V109 A3C40103414 SAS C2/X2 für 2.5"- backplane (barebone models S26361-K1237- A200 and S26361-K1237- A300) T26139-Y3973-V96 A3C40099017 Internal USB drives T26139-Y3987-V3 A3C40092034 BBU Slot 1 T26139-Y3987-V2 A3C40090454 BBU Slot 7 The following table shows a cable overview: *Refers to the following cabling plans.
  • Page 117 H D D WGS 3 Inte rn only Inte rn only Inte rn only I 2 C Fan backplane 6x3,5” 1 2 V/5 V backplane Figure 99: Cabling for PRIMERGY RX300 S5 with 3.5" hard disk drives Options Guide RX300 S5...
  • Page 118 Inte rn only Inte rn only only Inte rn only I 2 C Fan backplane 6x3,5“ 1 2 V/5 V backplane Figure 100: Cabling for PRIMERGY RX300 S5 with 3.5" hard disk drives and 1 USB drive Options Guide RX300 S5...
  • Page 119 I 2 C Fan backplane 1 2 V/5 V 8x3 ,5 “ S A S b a ckp la n e Figure 101: Cabling for PRIMERGY RX300 S5 with 8x 2.5" hard disk drives and 1 USB drive Options Guide RX300 S5...
  • Page 120 Inte rn only Inte rn only I 2 C Fan backplane 1 2 V/5 V S A S backplane 12x2,5 “ Figure 102: Cabling for PRIMERGY RX300 S5 with 12 x 2.5" hard disk drives Options Guide RX300 S5...
  • Page 121 Appendix Configuration schema 14.3 Configuration schema Area for 9 slots for FAN1 PSU1 T4 (ambient memory PSU1 sensor, • located at Temp • Local View FAN2 PSU1 board) • FAN1 PSU2 2 • CPU 1 • PSU2 • Front VGA redundant FAN2 PSU2 Drive Area based on...
  • Page 123 Index accessible drives fan box additional battery fan box holder air duct fan box lock Anschluss USB-Bandlaufwerk 3,5" FD dummy module Variante fitting rules front panel frame unlocking battery backup unit front VGA port battery connecting cable 92, hard disk drive configurations heat sink 40, cable channel cable list...
  • Page 124 Index unlocking Trusted Platform Module 13, partial extension update PCI slot USB DAT drive low profile USB RDX drive power supply cage USB-Flash-Module power supply dummy module power supply module processor 9, processor coding 37, processor cover processor marking 37, processor socket cover rack RAID controller cabling...
