4-3 Replacement of Door Assembly

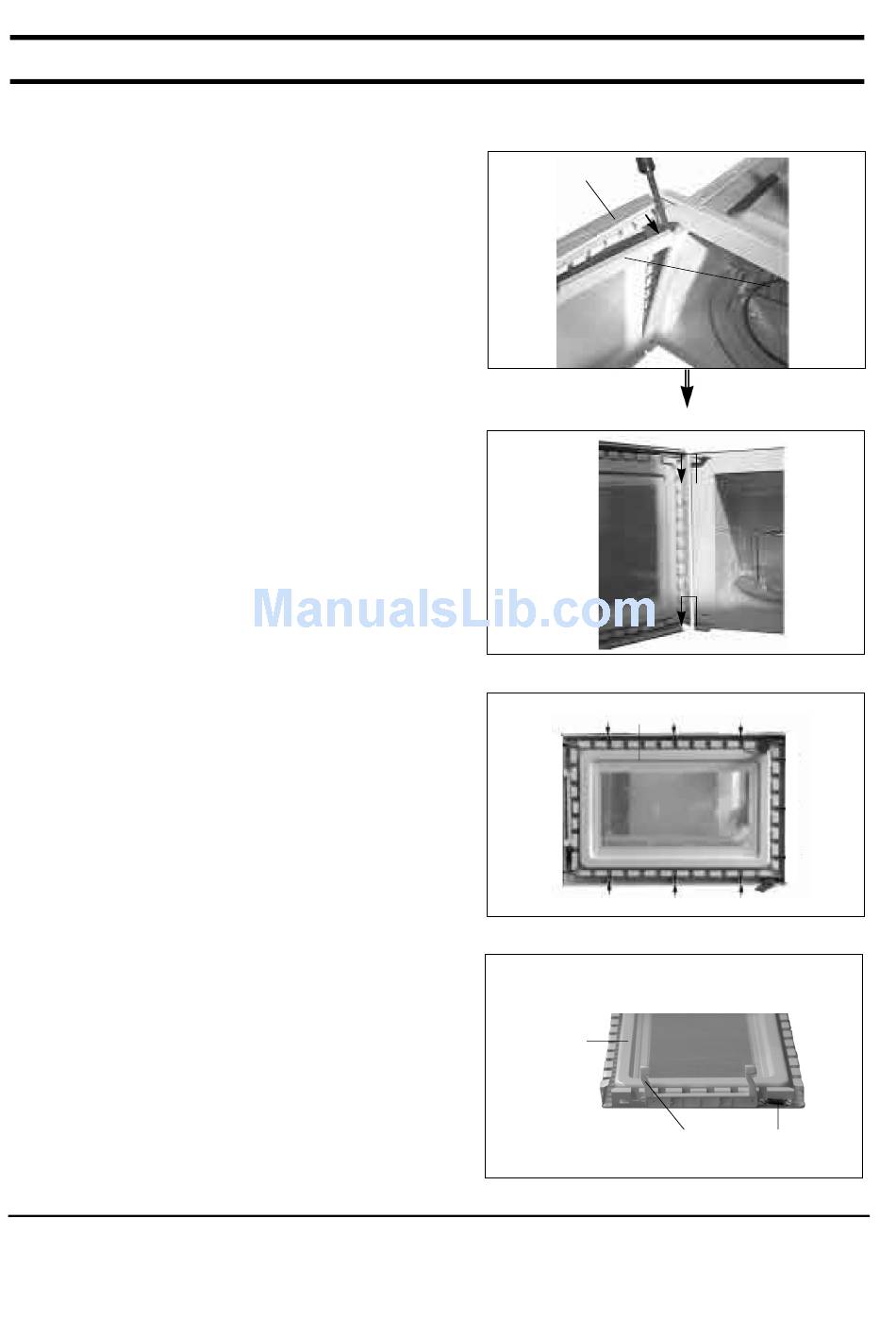

4-3-1 Removal of Door "C"
Insert flat screw driver into the gap between Door
"A" and Door "C" to remove Door "C". Be careful
Door "A"
when handling Door "C" because it is fragile.
Then remove the door assembly.
Door "C"
4-3-2 Removal of Door "E"
Door "E"
Following the procedure as shown in the figure,
insert and bend a thin metal plate between Door
"E" and Door "A" until you hear the 'tick' sound.
1. Insertion depth of the thin metal plate should be
0.5mm or less.
4-3-3 Removal of Key Door & Spring
Remove pin hinge from Door "E"
Detach spring from Door "E" and key door.
oor "E"
Key Door
Spring
