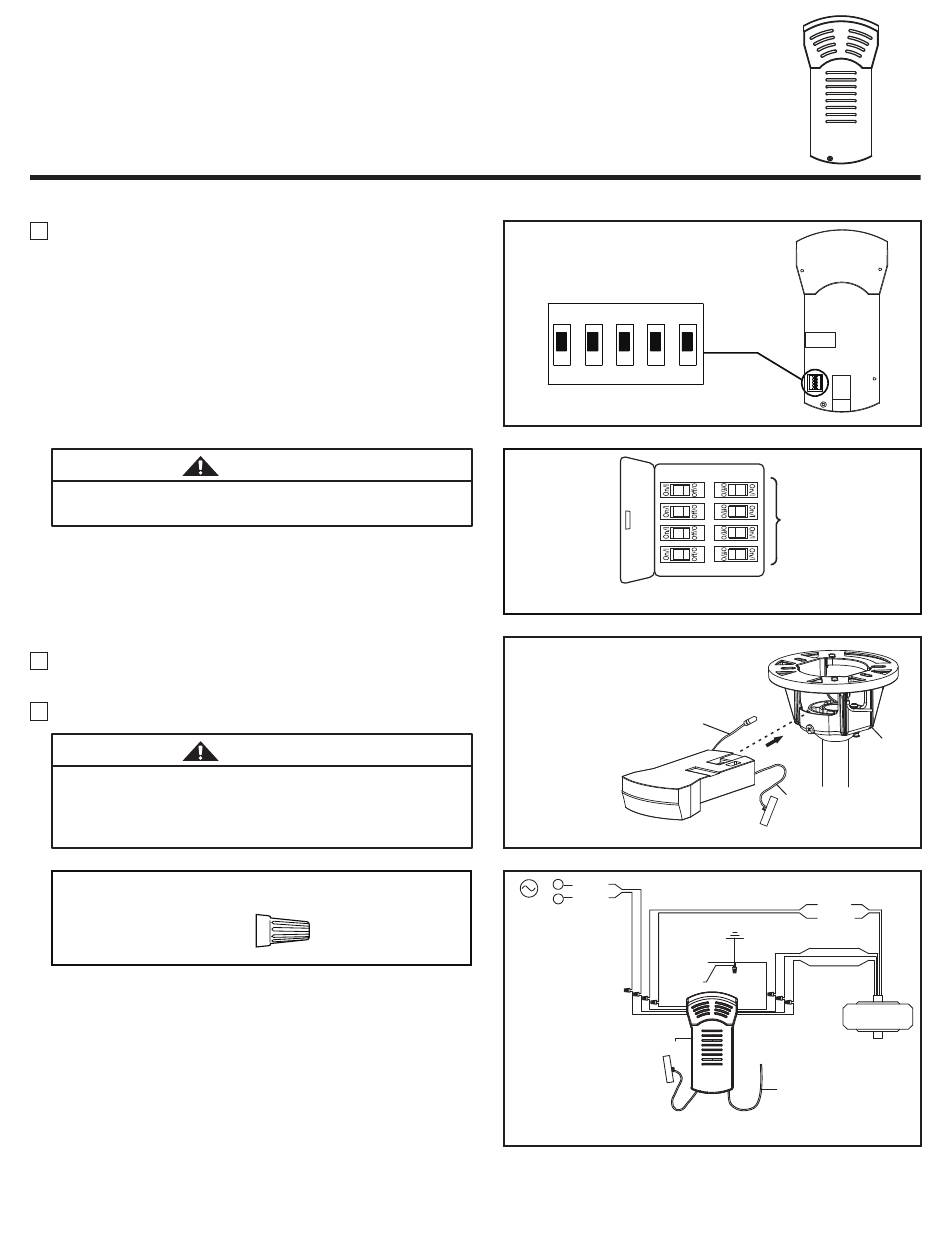

Fanimation WFR8534 Specification And Instruction Sheet

WFR8534 DC WIFI Receiver
SPECIFICATION and INSTRUCTION SHEET
ELECTRICAL SPECS: 120 Volts, 60 Hertz, Fan 0.6 amp
FAN MODEL USED: Used on Kute 52 FPD8534 DC motor fan only.
May be used in conjunction with TR205D Remote or TW206D Wall Remote.
NOTE: If fan or supply wires are different colors than indicated, have this unit installed by a qualified electrician.
1. To set the code on receiver unit, slide dip switches to
the same positions as set on the remote. (Figure 1)
NOTE: The remote unit has 32 different code
combinations. To prevent possible interference from or
to other remote units, simply change the combination
code in the remote and receiver.
NOTE: Factory setting is all up. Do not use this position.
• To set the code on receiver unit, slide dip switches to
the same positions as set on the remote, when using
with the TR205D remote or TW206D wall remote.
To avoid possible electrical shock, be sure electricity is
turned off at the main fuse box before wiring. (Figure 2)
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
CAUTION: INCORRECT WIRE CONNECTION COULD
DAMAGE THIS RECEIVER.
2. Slide the receiver into the hanger bracket before
wiring as shown in figure 3.
3. Connect wires using connectors as shown in Figure 4.
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors. Do not operate fan until the blades are in
place. Noise and motor damage could result.
RECEIVER HARDWARE USED:
Wire Connectors
WARNING
WARNING
X 8
Dip Switch
ON
1 2 3 4
NOTE: Supply wires
omitted for clarity
ANTENNA
(Leave connected
and do not cut)
Black
L
White
N
AC
POWER
Receiver
1
5
Figure 1
Main Fuse Box
Figure 2
WIFI Antenna
Figure 3
Blue
Black /
Ground
White
Red
Yellow /
Hanger
Gray
green
Yellow
Bracket
Hanger
Ball
Black Antenna
Figure 4
Hanger
Bracket
DC MOTOR
