Fanimation WFR50 Specification And Instruction Sheet

WFR50 AC WIFI Receiver
SPECIFICATION and INSTRUCTION SHEET
ELECTRICAL SPECS: 120 Volts, 60 Hertz, Fan 1.0 amp
FAN MODEL USED: May be used in conjunction with TR500 Remote Control.
Compatible with most Fanimation AC motor fans - see catalog or visit our website,
www.FANIMATION.com for more information
NOTE: If fan or supply wires are different colors than indicated, have this unit installed by a qualified electrician.
WARNING
To avoid possible electrical shock, be sure electricity is
you are not sure if the outlet box is grounded, contact a
licensed electrician for advise, as it must be grounded for
safe operation.

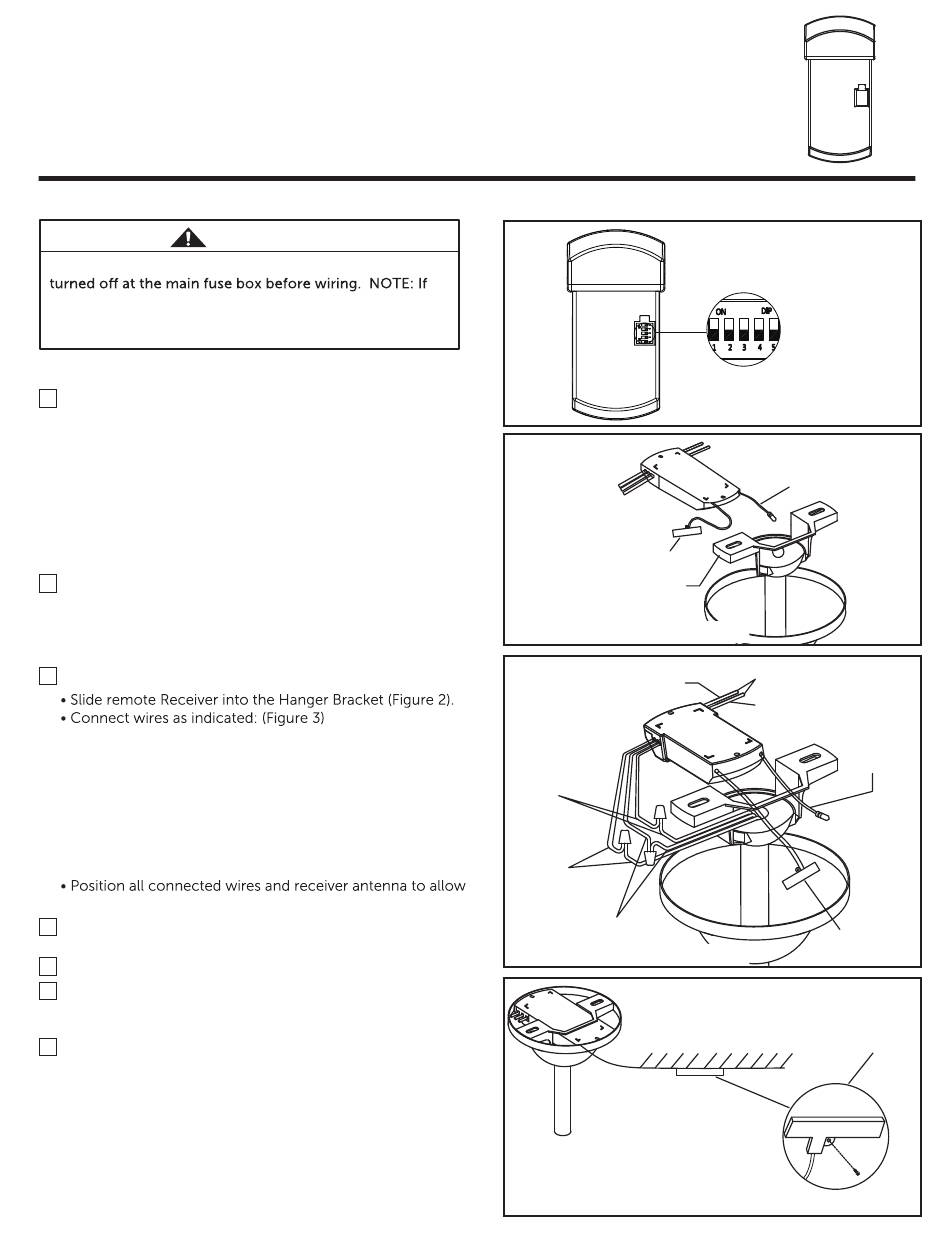

INSTALLATION INSTRUCTIONS:
1. Dip Switch Set Up
NOTE: The remote unit has 32 different code
combinations. To prevent possible interference from or
to other remote units, simply change the combination
code in the remote and receiver.
NOTE: Factory setting is all up. Do not use this position.
• To set the code on receiver unit, slide dip switches
to the same positions as set on the remote, if using in
conjunction with the TR500 remote (Figure 1)
2. The breaker and wall switch that controls the power to the
fan must be in the off position. Please make sure that the
wall switch that controls the power to the fan and ligth kit
if installed, is a true on off toggle or rocker switch. It cannot
have a dimming function on of any kind.
3. Install Receiver in the Hanger Bracket:
–BLACK Receiver Unit wire (AC IN L) to BLACK supply wire.
–WHITE Receiver Unit wire (AC IN N) to WHITE supply wire.
–WHITE Receiver Unit wire (TO MOTOR N) to WHITE fan
wire.
–BLACK Receiver Unit wire (TO MOTOR L) to BLACK fan
wire.
–BLUE Receiver Unit wire (FOR LIGHT DOWN) to BLUE light
wire.
installation of ceiling canopy.
4. The receiver has a wifi antenna that can be used if you
experience range issues. (Figure 4)
5. Restore electrical power at the breaker and wall switch.
6. Ceiling fan must be set at HIGH speed and light kit (If any)
at the ON position by pressing the "Light Switch" after
installation.
7. Follow the app set up instructions on the following pages.
WARNING:
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box and not
pinched between the wall plate and the wall.
WARNING:
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire connectors,
except for the ground wire. Do not operate fan unless blades are
in place. Noise and fan damage could result.
WIFI Antenna
Hanger Bracket
WHITE
(AC IN N)
BLUE
(FOR LIGHT
DOWN)
WHITE
(TO MOTOR N)
BLACK
(TO MOTOR L)
After Installation
Figure 4 (Optional)
1
Dip Switch
Figure 1
ANTENNA
(Leave connected
and do not cut)
Figure 2
AC POWER SUPPLY
BLACK
(AC IN L)
BLACK
(ANTENNA)
WHITE
Figure 3
(WIFI ANTENNA)
WIFI Antenna
mount to ceiling using
Ceiling
wood screw
WIFI antenna
