Fanimation WFR7912 Specification And Instruction Sheet

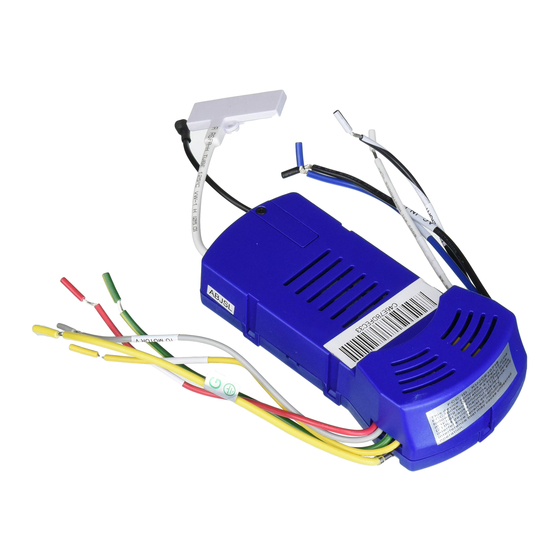

WFR7912 DC WIFI Receiver
SPECIFICATION and INSTRUCTION SHEET
ELECTRICAL SPECS: 120 Volts, 60 Hertz, Fan 0.6 amp
FAN MODEL USED: Use on Levon Custom MAD7912 DC motor fan only. The WiFi receiver needs to conjunct
with TR205D or TW206D control to learn the optional blade size load before fan operation
with fanSync WiFi APP. See catalog or our website, www.FANIMATION.com for TR205D or
TW206D wall remote information.
NOTE: If fan or supply wires are different colors than indicated, have this unit installed by a qualified electrician.
WARNING
To avoid possible electrical shock, be sure electricity is
you are not sure if the outlet box is grounded, contact a
licensed electrician for advise, as it must be grounded for
safe operation.

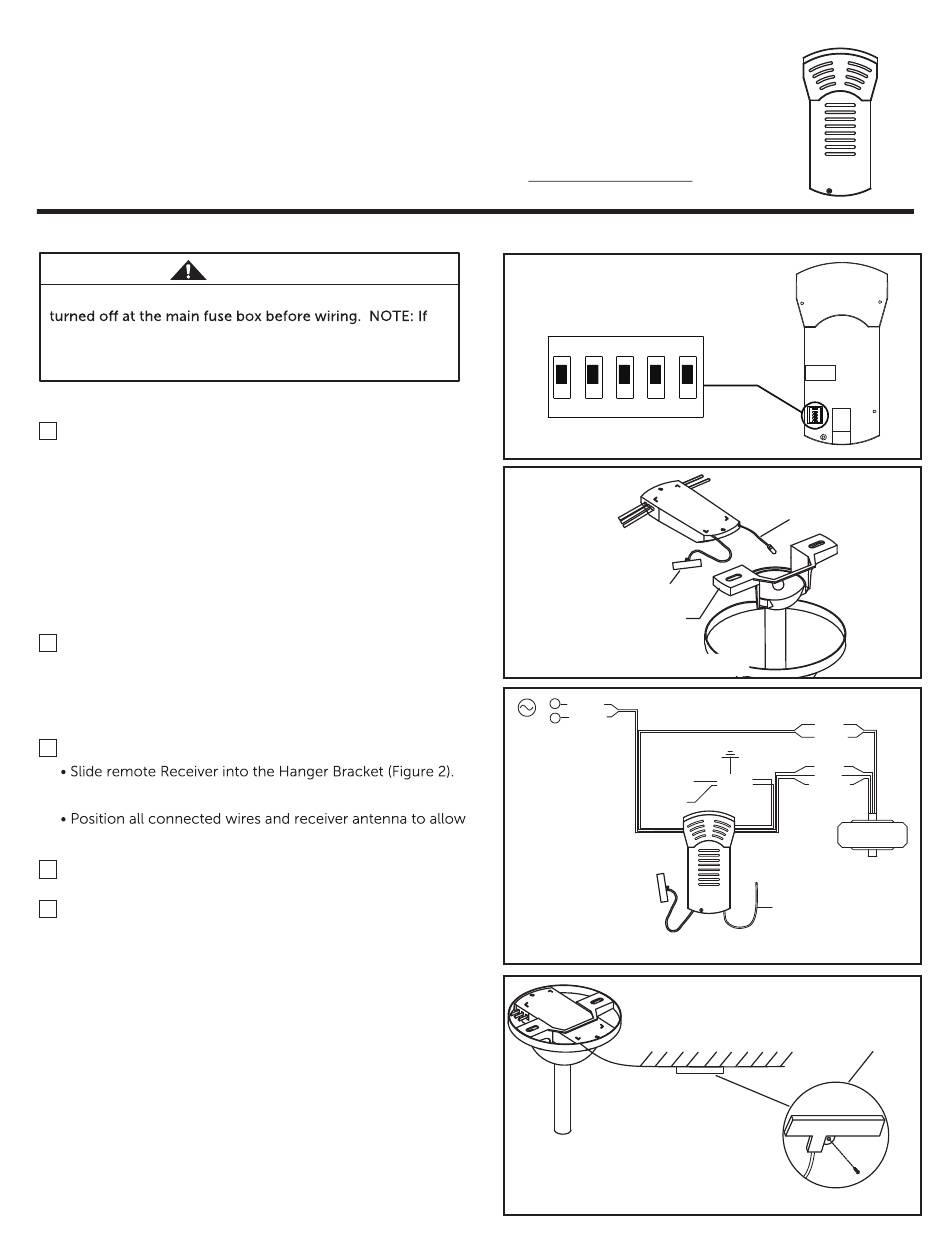

INSTALLATION INSTRUCTIONS:
1. Dip Switch Set Up
NOTE: The remote unit has 32 different code
combinations. To prevent possible interference from or
to other remote units, simply change the combination
code in the remote and receiver.
NOTE: Factory setting is all up. Do not use this position.
• To set the code on receiver unit, slide dip switches
to the same positions as set on the remote, when using
with the TR205D remote or TW206D wall remote.
(Figure 1)
2. The breaker and wall switch that controls the power to the
fan must be in the off position. Please make sure that the
wall switch that controls the power to the fan and ligth kit
if installed, is a true on off toggle or rocker switch. It cannot
have a dimming function on of any kind.
3. Install Receiver in the Hanger Bracket:
• Connect wires using connectors as shown in Figure 3.
installation of ceiling canopy.
4. The receiver has a wifi antenna that can be used if you
experience range issues. (Figure 4)
5. Restore electrical power at the breaker and wall switch.
WARNING:
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box and not
pinched between the wall plate and the wall.
WARNING:
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire connectors,
except for the ground wire. Do not operate fan unless blades are
in place. Noise and fan damage could result.
Dip Switch
ON
1 2 3 4
WIFI Antenna
Hanger Bracket
BLACK
L
WHITE
N
AC
POWER
HANGER
BRACKET
HANGER
BALL
After Installation
Figure 4 (Optional)
1
5
Figure 1
ANTENNA
(Leave connected
and do not cut)
Figure 2
BLUE
BLACK
GROUND
/ WHITE
RED
GRAY
YELLOW
YELLOW
/ GREEN
DC MOTOR
BLACK
ANTENNA
Figure 3
WIFI Antenna
mount to ceiling using
Ceiling
wood screw
WIFI antenna
