Battery Bag
Install the battery bag on or near the neck block as
shown in fi gure 1.
1. Clean the area where you will mount the bag with
an alcohol wipe or cotton swab moistened with rub-
bing alcohol. Let dry.
2. Peel off the plastic fi lm from the Velcro patch and
attach the bag at the chosen location.
3. Carefully separate the bag from the Velcro patch.
To set the adhesive, burnish the entire area of the
patch, especially the edges.
4. Install a 9V alkaline or lithium battery. Tuck the
battery into the bag and re-attach to the Velcro
patch. The adhesive under the Velcro patch requires
24 hours to achieve a full bond, so take care to not
stress the adhesive if you remove the battery bag
after the initial installation.
Installation Options
Nylon String Guitar Mount
An optional control module mount is provided in
the package for use with nylon string guitars whose
bracing patterns may interfere with the standard
mount. To install this:
1. Carefully push back the retaining latch and rock
the control module circuit board away from the plas-
tic mount as shown in fi gure 3.
2. Locate the included nylon string guitar mount and
snap it into place as shown in fi gure 4.

Installation Without Controls

Under normal installations, the Volume and Tone
control module is installed in the soundhole. Op-
tionally, the infi nity preamp may be installed without
these controls, however this requires setting the
circuit board-mounted switches appropriately as
shown in fi gure 5.
1. To remove the control module, open the Infi nity
preamp case and gently pull the control module
cable and connector away from its circuit board-
mounted connector.
2. Use switch marked with a "1" to select either a
bass boost ("ON" position) or the fl at setting.
3. Set the switch marked with a "2" to the "ON"
position. This allows the preamp to operate properly
without the control module in place.

Second Pickup Source Option

A second source such as a microphone or magnetic
soundhole pickup may be added (fi gure 6). The
output will appear on the ring connection when a
tip-ring-sleeve 1/4" jack is inserted.
For specifi c wiring diagrams, refer to fi shman.com.

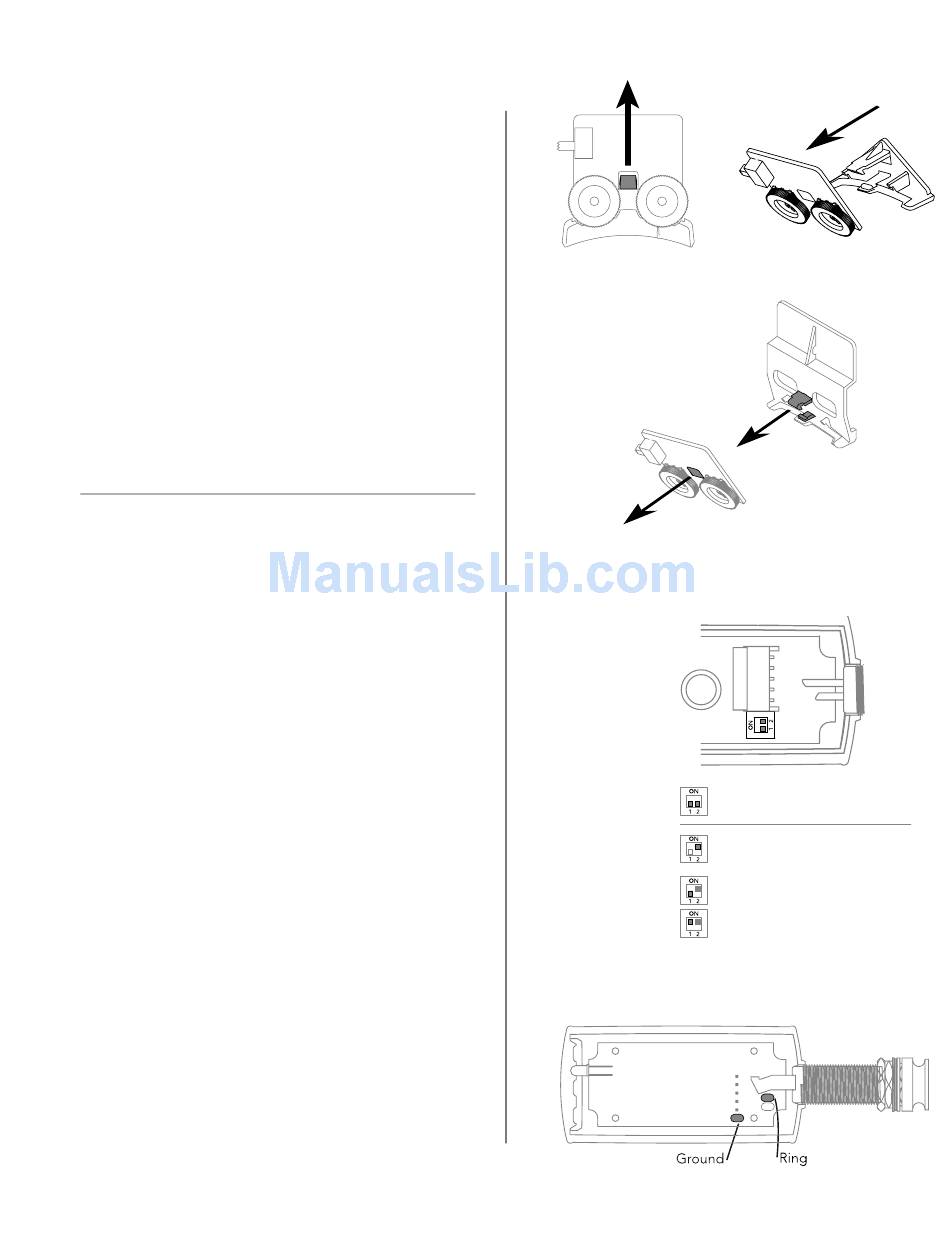

Figure 3.
Figure 4.
Figure 5.
Figure 6.
2
Bass Flat
With Volume & Tone
controls installed
If controls are removed:
1. Set switch 2 to ON
2. Choose Flat voicing or
Bass Boost with switch 1.
514-300-003 Rev A 1-08
