USER GUIDE
MATRIX INFINITY™ MIC BLEND
fishman.com

Advertisement

Table of Contents
loading

Related Manuals for Fishman MATRIX INFINITY

Summary of Contents for Fishman MATRIX INFINITY

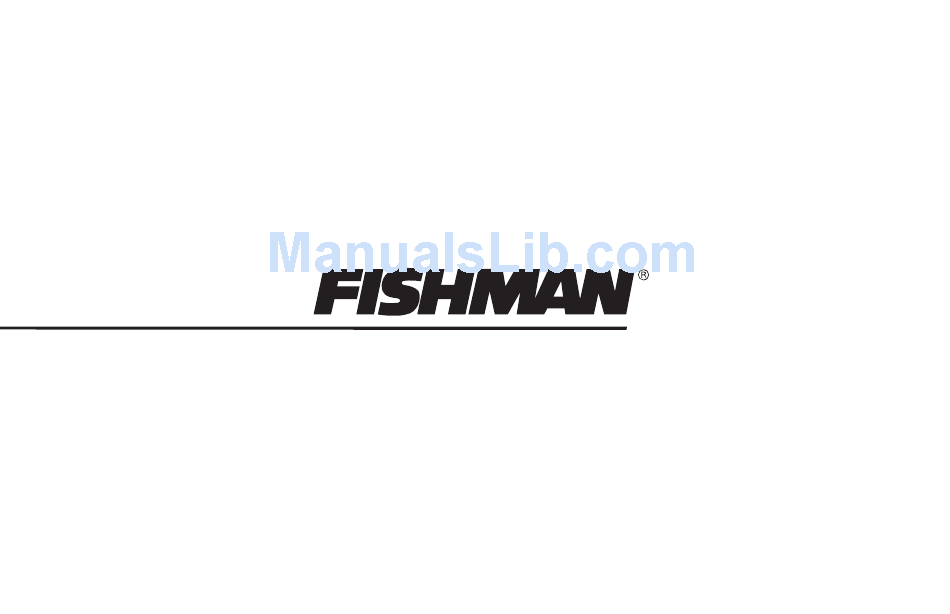

  • Page 1 USER GUIDE MATRIX INFINITY™ MIC BLEND fishman.com...
  • Page 2 Welcome Thank you for making Fishman a part of your acoustic experience. We are proud to offer the finest acoustic amplification products available; high-quality professional-grade tools which empower you to sound your very best.
  • Page 3 Controls Plug In • Connect the Matrix Infinity to your amplifier or PA with a ¼-inch instrument cable. To conserve battery life, remove the instrument cable from the guitar when the system is not in use.
  • Page 4 Controls Volume • For the cleanest noise-free sound, set the volume as high as possible without causing your amp or mixer to distort. Tone • This innovative one-knob tone control lets you adjust between the natural undersaddle sound with no EQ (flat) and a variable “Scooped” tone with emphasized bass &...
  • Page 5 Mic Blend Controls Mic Blend • Rotate the thumbwheel towards neck to achieve full microphone signal. Rotate fully towards bridge to achieve full pickup signal. The center de- tent position will deliver an equal 50/50 blend of pickup/mic signals. Mic T rim • For the best blend functionality, the Mic and undersaddle pickup should be roughly the same output level.
  • Page 6 Mic Mount Angle The angle of the microphone is adjustable and useful for fine tuning the amount of soundhole resonance in the mic (see Fig.2). Start with the mic in the 3rd detent away from the guitar top (approximately 35 degrees down). Adjust the mic angle further away from the soundhole to reduce boominess in the bass.
  • Page 7 Stereo/Mono Output The Matrix Infinity Mic Blend can be used in mono or stereo output simply by choosing the appropriate cable. For a blended mono output use a standard ¼” to ¼” instrument cable. For stereo operation, use a TRS to TRS or a TRS to stereo “Y”...
  • Page 8 Additional Controls Voicing Switch This switch, located on the underside of the control module, selects how the pickup is voiced. The switch position away from the soundhole provides a subtle bass boost and extended low end for added punch. The switch position towards the soundhole yields a flatter response.

  • Page 9: Battery Replacement

    Installation by a qualified professional is strongly recommended. Should you have any problems, please check with your installer or refer to the online installation guide for this product. Technical support, troubleshooting tips and installation information can be found at http://www.fishman.com/support/...
  • Page 10 Fishman at their sole discretion. Fishman may also choose to replace this product or part of this product with a substitute, in lieu of repair, in exchange for quoted labor charges. This warranty applies only if the Product is sold and delivered within the U.S.
  • Page 11 United States. Product repaired after the first year warranty period at the Fishman factory will be returned at customer expense. Prod- uct returned to Fishman that is not covered by the terms of this warranty will be serviced only after payment is arranged.
  • Page 12 Fishman and Fishman Transducers are trademarks or tradenames of Fishman Transducers Inc. 513-300-285_r1...
