- Page 1 U s e r ’ s G u i d e Ellipse Matrix Blend ™...

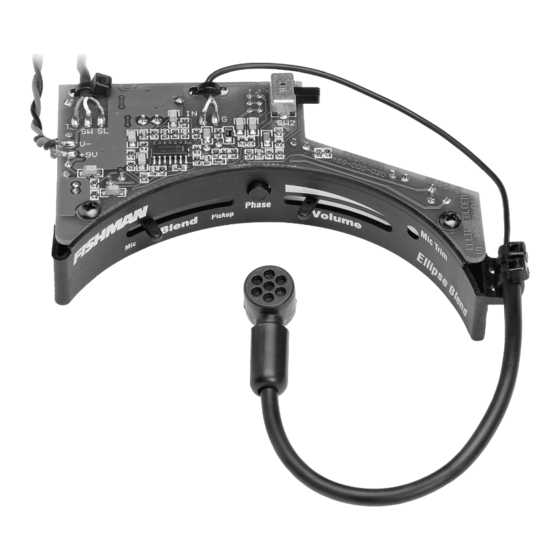

- Page 2 Ellipse Matrix Blend ELCOME ... and thank you for choosing the Ellipse Matrix Blend onboard preamp system. Now you can achieve incredible acoustic sound of our acclaimed undersaddle pickup - the Acoustic Matrix - blended with an adjustable condenser mini-microphone. A patented neodymium mount holds the Ellipse preamp cleverly inside the soundhole, with the controls right at your fingertips;...
- Page 3 User’s Guide Phase Switch Push the phase switch in and out until you find the position that sounds best and reduces feedback. Blend Move the Blend slider to change the balance between the pickup and the microphone. Microphone Position Position the microphone to find the “sweet spot”...
- Page 4 Ellipse Matrix Blend Battery When the battery is low you will hear distortion as you play through the Ellipse system. Remove the strings, to access the battery inside the guitar. Replace with a fresh 9V alkaline battery. We recommend that you remove the battery prior to shipping or airline travel. If loose inside the guitar, the battery may damage the instrument.
