Fishman SWITCHJACK Installation Manual

INSTALLATION GUIDE
www.fishman.com
Installation of this product is a simple procedure, but we recommend this job only if you are an experienced
repair technician.
The Switchjack is an easy to install TRS stereo jack with an additional "4th pin" terminal for battery switching
(figure ). It is manufactured exclusively for Fishman by Switchcraft Inc.
The switch terminal on the Switchjack is typically connected to the negative battery wire of an active pickup
system. When you insert a plug, the negative battery wire connects to ground via the sleeve, and the system
switches on.
Preliminary
To gain better access to the Tip, Ring and Switch terminals, gently bend back the Strain Relief/Sleeve tab before
soldering (figure 2).

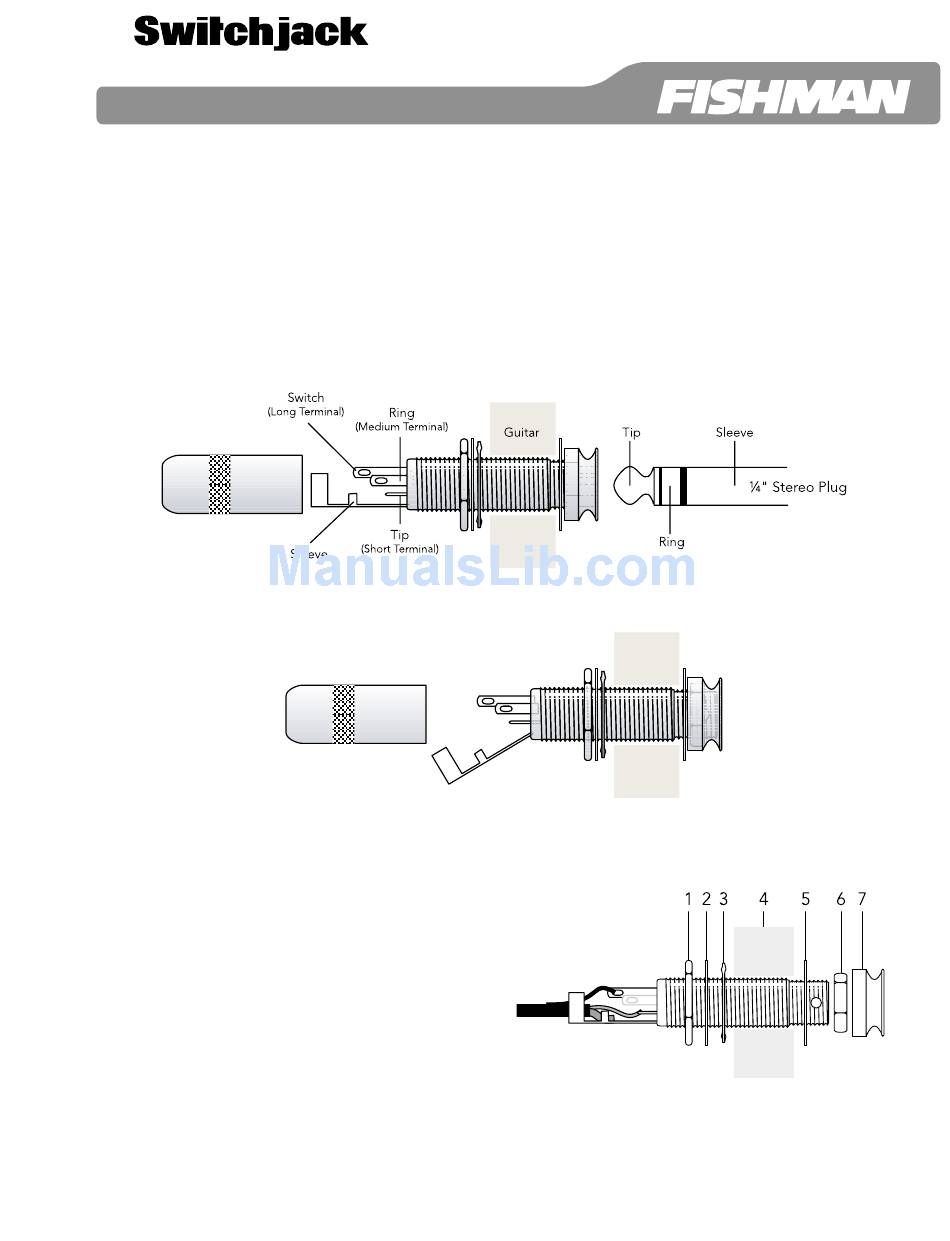

Figure 1. Tip, ring, sleeve and switch terminals
Figure 2. Bend back strain relief
Installation
. Remove the endpin and enlarge the hole to
2. Follow this sequence when you install the endpin jack (figure 3):
1. Large backing nut
2. Large backing washer
3. Star washer
4. Guitar endblock
5. Small dress washer
6. Small dress nut
7. Strap nut
5
∕ ".
32
Figure 3. Installation sequence
