Summary of Contents for Bose ArenaMatch AM10

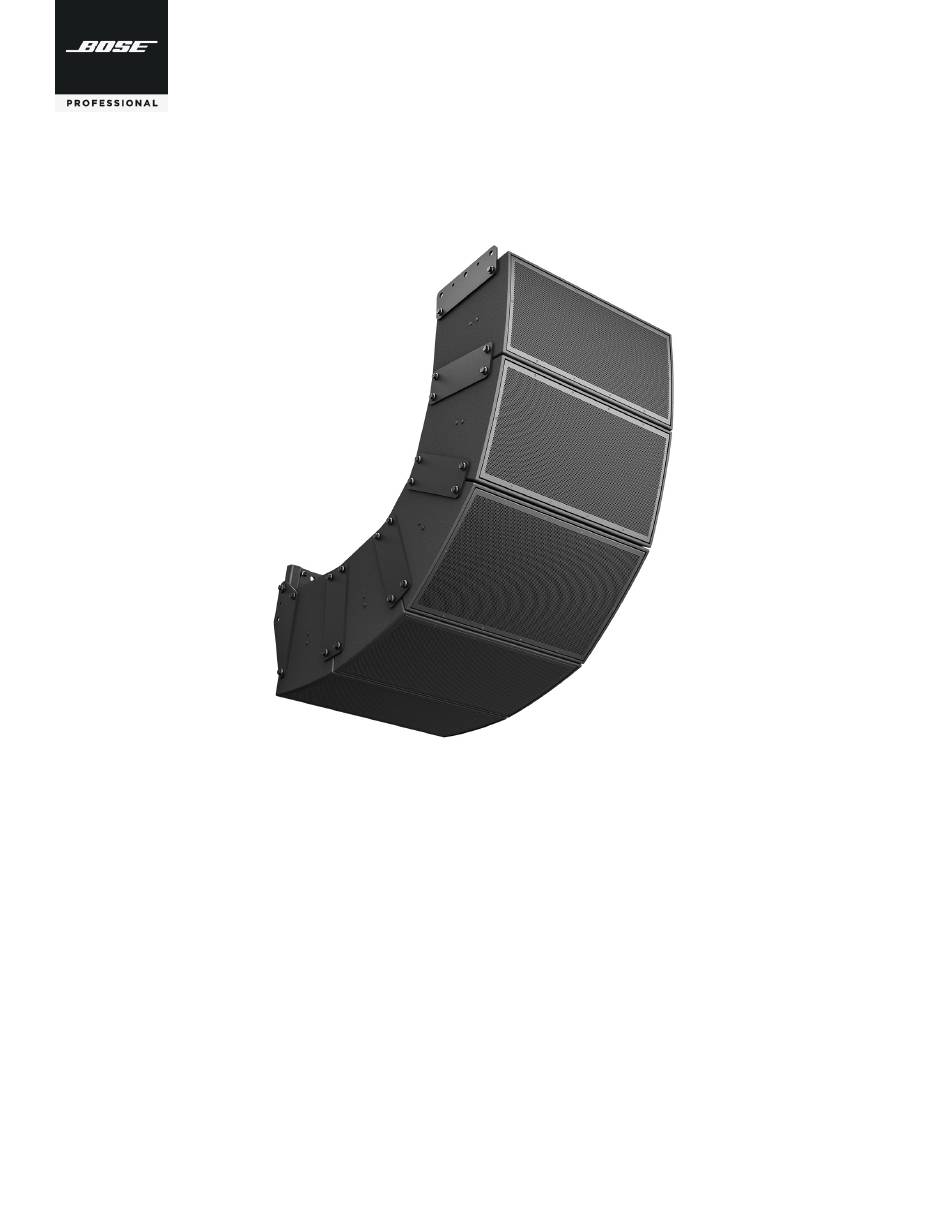

- Page 1 ArenaMatch DeltaQ Array Loudspeakers Installation Guide Guía de instalación Guide d’installation Installationsanleitung Guida all’installazione Installatiehandleiding...
-
Page 2: Important Safety Instructions
(PBB) (PBDE) PCBs Metal Parts • All Bose Professional products must be installed in accordance with local, state, Plastic Parts federal and industry regulations. It is the installer’s responsibility to ensure Speakers installation of the loudspeakers and mounting system is performed in accordance Cables with all applicable codes, including local building codes and regulations. -
Page 3: Instrucciones Importantes De Seguridad
2209, Building 1, 175 Longyao Road, Xuhui District, Shanghái | Importador de México: • Todos los productos Bose Professional deben instalarse conforme a las leyes POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur n.º 1079, piso 1, Colonia Noche locales, estatales, federales y del sector. -
Page 4: Instructions Importantes Relatives À La Sécurité
BoseProfessional.com maintenance à des centres de service, installateurs, techniciens, revendeurs ou distributeurs agréés. Pour contacter Bose Professional ou pour trouver un revendeur ou un Ce symbole signifie que le produit ne doit pas être jeté avec les déchets distributeur près de chez vous, rendez-vous à l’adresse BoseProfessional.com. -
Page 5: Wichtige Sicherheitshinweise
2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | Importeur aus Mexiko: • Alle Produkte von Bose Professional müssen gemäß den örtlichen und staatlichen POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st Floor, Colonia Vorschriften sowie gemäß... -
Page 6: Informazioni Sulle Normative
La dichiarazione di conformità completa è disponibile all’indirizzo: BoseProfessional.com Per contattare Bose Professional o per trovare il rivenditore o distributore più vicino, visita BoseProfessional.com. Questo simbolo indica che il prodotto non deve essere smaltito con i rifiuti domestici, ma deve essere consegnato a una struttura di raccolta appropriata per il riciclaggio. -
Page 7: Belangrijke Veiligheidsinstructies
Om contact Dit symbool betekent dat het product niet mag worden weggegooid als op te nemen met Bose Professional en voor informatie over de dichtstbijzijnde dealer of huishoudelijk afval en naar een geschikt inzamelpunt voor recycling moet distributeur, gaat u naar BoseProfessional.com. -
Page 8: Table Of Contents
Inspection & Maintenance ......................................13 Maintaining Weather Resistance ..................................13 Recommended Tools ........................................13 Specifications Product Dimensions ......................................... 14 ArenaMatch AM10 ........................................14 ArenaMatch AM20 ........................................14 ArenaMatch AM40 ........................................15 Working Load Limits ..........................................15 ArenaMatch Full-range Modules (AM10, AM20, AM40) ........................15 Input Panel Wiring ..........................................16 Passive Crossover (Low-impedance) ................................ -
Page 9: Overview
High SPL: six (6) Bose Professional EMB2S compression drivers on CADS manifold with 14-inch neodymium, high-excursion woofer allows peak output of up to 145 dB SPL in arrays. -
Page 10: Arenamatch Array Modules
Overview BoseProfessional.com ArenaMatch Array Modules ArenaMatch AM10 full-range module with 10° vertical coverage. Available with 60°, 80°, or 100° horizontal waveguide pre-installed. AM10/60 AM10/80 AM10/100 ArenaMatch AM20 full-range module with 20° vertical coverage. Available with 60°, 80°, or 100° horizontal waveguide pre-installed. -
Page 11: Product Details
BoseProfessional.com Overview Product Details Loudspeaker grille Factory-installed waveguide: Replaceable with optional horizontal waveguide accessory. M6 threaded insert: Stainless steel inserts for use with the ArenaMatch U-bracket (AMUBRKT). For pitch angle stabilization. Note: Torque to 20.3 to 27.1 newton·meters (15 to 20 pound·feet). M10 threaded insert: Stainless steel inserts for use with the ArenaMatch U-bracket (AMUBRKT). -
Page 12: Optional Accessories
Overview BoseProfessional.com Optional Accessories ArenaMatch DeltaQ array loudspeakers include four M12 threaded inserts per side, designed to be used with optional ArenaMatch rigging accessories. Additionally, the M10 and M6 inserts on each side are designed to be used with the optional ArenaMatch U-bracket accessory. Refer to the ArenaMatch Array Rigging guide at BoseProfessional.com for more information regarding design and installation. -
Page 13: Inspection & Maintenance
BoseProfessional.com Overview Inspection & Maintenance WARNING: The loudspeaker and all mounting components must be inspected annually by a qualified professional who is trained and certified in suspending loudspeaker systems. All rigging parts and components used in the suspension of the loudspeaker system should be visually inspected for signs of cracking, bending, water damage, corrosion, de-lamination, or any other condition that could compromise the system's integrity and create a dangerous falling hazard. -
Page 14: Specifications
Specifications BoseProfessional.com Specifications Product Dimensions ArenaMatch AM10 Product net weight: 36.3 kg (80.0 lb) Top View Side View 473 mm 789 mm 18.6 in 31.1 in 89 mm 3.5 in 319 mm 268 mm 337 mm 12.6 in 10.5 in 13.3 in... -
Page 15: Arenamatch Am40
BoseProfessional.com Specifications ArenaMatch AM40 Product net weight: 34.9 kg (76.9 lb) Top View Side View 789 mm 454 mm 31.1 in 17.9 in 77 mm 3.0 in 362 mm 159 mm 207 mm 14.3 in 6.3 in 8.1 in Front View 296 mm 11.7 in 403 mm... -
Page 16: Input Panel Wiring
Input connector terminals are available for passive, bi-amp, or 70V/100V transformer configurations. All ArenaMatch loudspeaker modules are shipped in the passive mode with transformer bypassed. Note: The ArenaMatch AM10, AM20, and AM40 loudspeakers are designed to work with a maximum of 10 AWG (5.3 mm ) size wire. -
Page 17: Securing The Wiring
BoseProfessional.com Specifications Securing the Wiring Feed the wiring through the gland nut on the bottom of the input panel. Once you are done wiring your loudspeaker, rotate the gland nut clockwise to seal the wire after attaching the input cover (see Attaching the Input Panel Cover section). -
Page 18: Recommended Amplifier Power
Recommended loudspeaker DSP presets are available in Bose Professional ControlSpace Designer software for both bi-amp and passive-crossover input configurations and are designed for use with Bose Professional PowerMatch configurable professional amplifiers and ControlSpace ESP and EX processor hardware (sold separately). -
Page 19: Technical Specifications
Frequency response and range measured on-axis in anechoic environment with recommended bandpass and EQ. Frequency response graphs display SPL axis with 0 dB line referenced to sensitivity SPL value. Impedance measurements were recorded with the 60° waveguide installed, per EN 54-24. Bose Professional extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration. AES standard 2-hour duration with IEC system noise. - Page 20 Technical Specifications BoseProfessional.com AM10 Frequency Response (60° waveguide) With no EQ applied 1000 10000 20000 Frequency (Hz) AM10 Frequency Response (80° waveguide) With no EQ applied 1000 10000 20000 Frequency (Hz) AM10 Frequency Response (100° waveguide) With no EQ applied 1000 10000 20000...
-
Page 21: Am20
SPL value. Impedance measurements were recorded with the 60° waveguide installed, per EN 54-24. Bose Professional extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration. AES standard 2-hour duration with IEC system noise. - Page 22 Technical Specifications BoseProfessional.com AM20 Frequency Response (60° waveguide) With no EQ applied 1000 10000 20000 Frequency (Hz) AM20 Frequency Response (80° waveguide) With no EQ applied 1000 10000 20000 Frequency (Hz) AM20 Frequency Response (100° waveguide) With no EQ applied 1000 10000 20000...
-
Page 23: Am40
SPL value. Impedance measurements were recorded with the 60° waveguide installed, per EN 54-24. Bose Professional extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration. AES standard 2-hour duration with IEC system noise. - Page 24 Technical Specifications BoseProfessional.com AM40 Frequency Response (60° waveguide) With no EQ applied 1000 10000 20000 Frequency (Hz) AM40 Frequency Response (80° waveguide) With no EQ applied 1000 10000 20000 Frequency (Hz) AM40 Frequency Response (100° waveguide) With no EQ applied 1000 10000 20000...
- Page 25 EN 54-24: 2008 Loudspeaker for voice alarm systems for fire detection and fire Loudspeaker for voice alarm systems for fire detection and fire alarm systems for buildings alarm systems for buildings ArenaMatch AM10 ArenaMatch AM20 Provided options: Provided options: Type B Type B For DOP 794010, see BoseProfessional.com/AM10DOP...
- Page 28 ©2024 Transom Post OpCo LLC. All rights reserved. BoseProfessional.com AM814939 Rev. 05 June 2024...
