- Page 1 FortiExtenderVehicle 511G FEV-511G QuickStart Guide...
- Page 2 Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. Fortinet disclaims in full Fax: 1 408 235 7737 any covenants, representations, and guarantees pursuant hereto, whether express or implied.

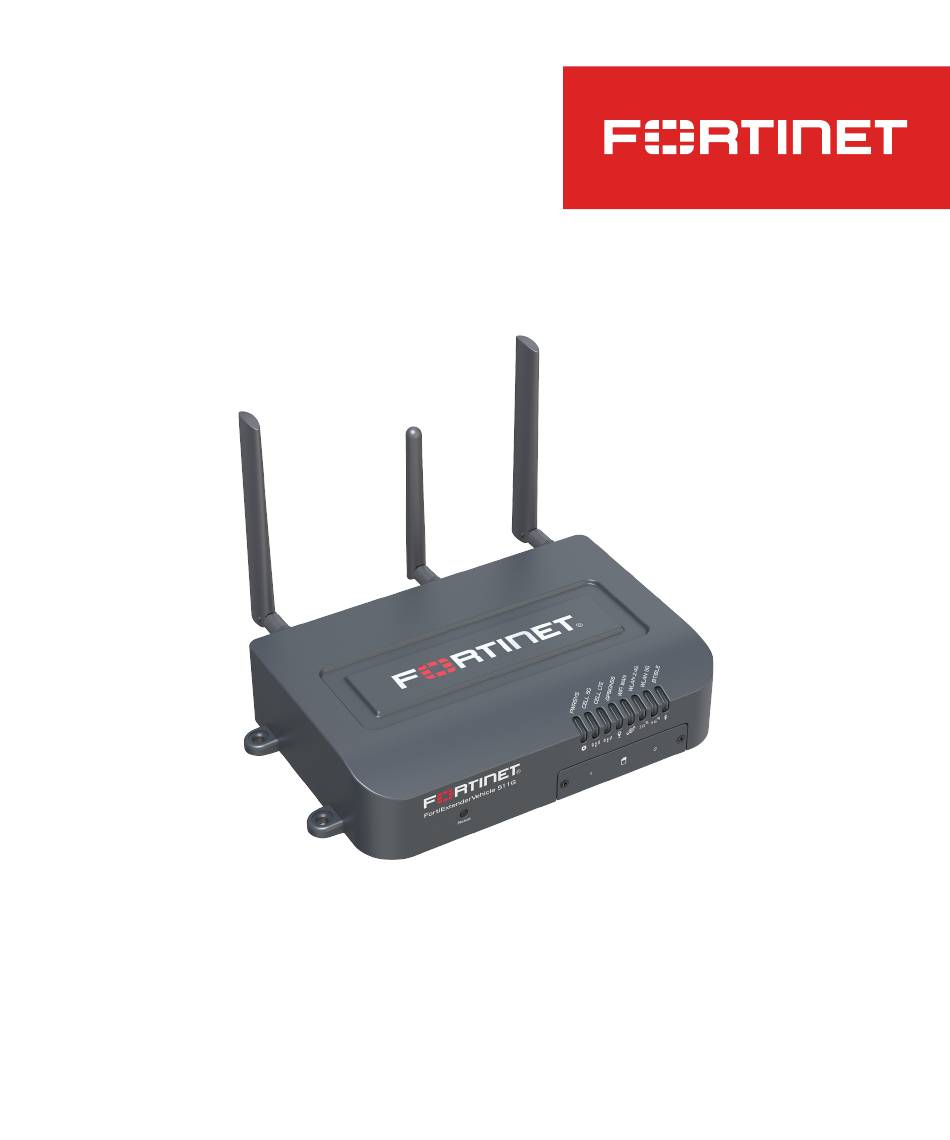

- Page 3 Product Description Packing List FortiExtenderVehicle 511G is a secure 5G/LTE wireless WAN extender device for vehiclular and industrial applications. It has a single 5G Sub 6 GHz high power module, 2x2 2.4G/5G dual-band WiFi6 (802.11 a/b/g/n/ac/ax) and BLE 5.0 integrated in the...
- Page 4 Front Panel LEDs and Controls LED Behavior Definition Cellular 5G Power/System • Green Steady ON: System running normal Cellular LTE • Green Flashing: Connected (Green/Amber) • Amber Steady ON: System error GPS/GNSS • Amber Flashing: System boots up WiFi WAN •...
- Page 5 LEDs on RJ45 Rear View Ports, LEDs, Buttons, and Antenna Connectors LEDs Color Definition WiFi Antenna Digital I/O Blue • Blue Steady ON: 2.5G Etherent connected Cellular Antenna 0 Cellular Antenna 2 • Blue Flashing: 2.5G Etherent activity (Right LED) •...
- Page 6 Mounting Holes Digital I/O Definitions Isolated Digital Input - Relay Output - NO Relay Output - COM Isolated Digital Input + Relay Output - NC (0V to 50V) Mounting Holes Mounting Holes Battery Adapter Cable Power Input Pin Definitions Ignition Sense Reserved Power + Power GND...
- Page 7 Basic Connections Power Connection to Vehicle Fuse Panel To vehicle cigarette lighter socket Note: UL/cUL Listing for US/Canada vehicle use does not cover use of products connected to vehicle battery via DC cable/connector. Assembly 1. Press to release the power button to ensure that the device is in power-off state (the power button is fully out).
- Page 8 Installation FortiExtenderVehicle 511G is designed for placement inside an automotive vehicle. Refer to the following diagram for proper placement and mounting. Fasten onto the wall of your vehicle 1. Peel off the drill template sticker, and stick it in a desired location on the wall.
- Page 9 Mount on DIN rail (optional) 1. Align the top two holes on the device with the matching holes on the DIN rail clip. Make sure the spring on the clip is at the top. 2. Insert screws into the aligned holes and tighten them securely. 3.
- Page 10 Cautions and Warnings Professional Installation Instruction 1. Installation personnel Environmental specifications This product is designed for specific application and needs to be installed by qualified personnel who has RF and related rule knowledge. The general user shall not attempt to install or change the settings. Ambient operating temperature: -40°C to 70°C 2.
- Page 11 European Conformity (CE) - EU This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 26cm between the radiator & your body. Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement doit être This is a Class B product.
- Page 12 EU or countries that have implemented the EU Directives and/or spectrum Slovensko regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s authorized partners may not comply with EU Directives and Fortinet Ta izdelek je v skladu z Direktivo 2014/53/EU.
- Page 13 Create a support account, register and manage your products, download updates, firmware images, and release notes, and create technical support tickets. https://support.fortinet.com Fortinet Document Library Up-to-date versions of Fortinet publications for the entire family of Fortinet products. https://docs.fortinet.com Training Services Course descriptions, availability, schedules, and location of training programs in your area.
