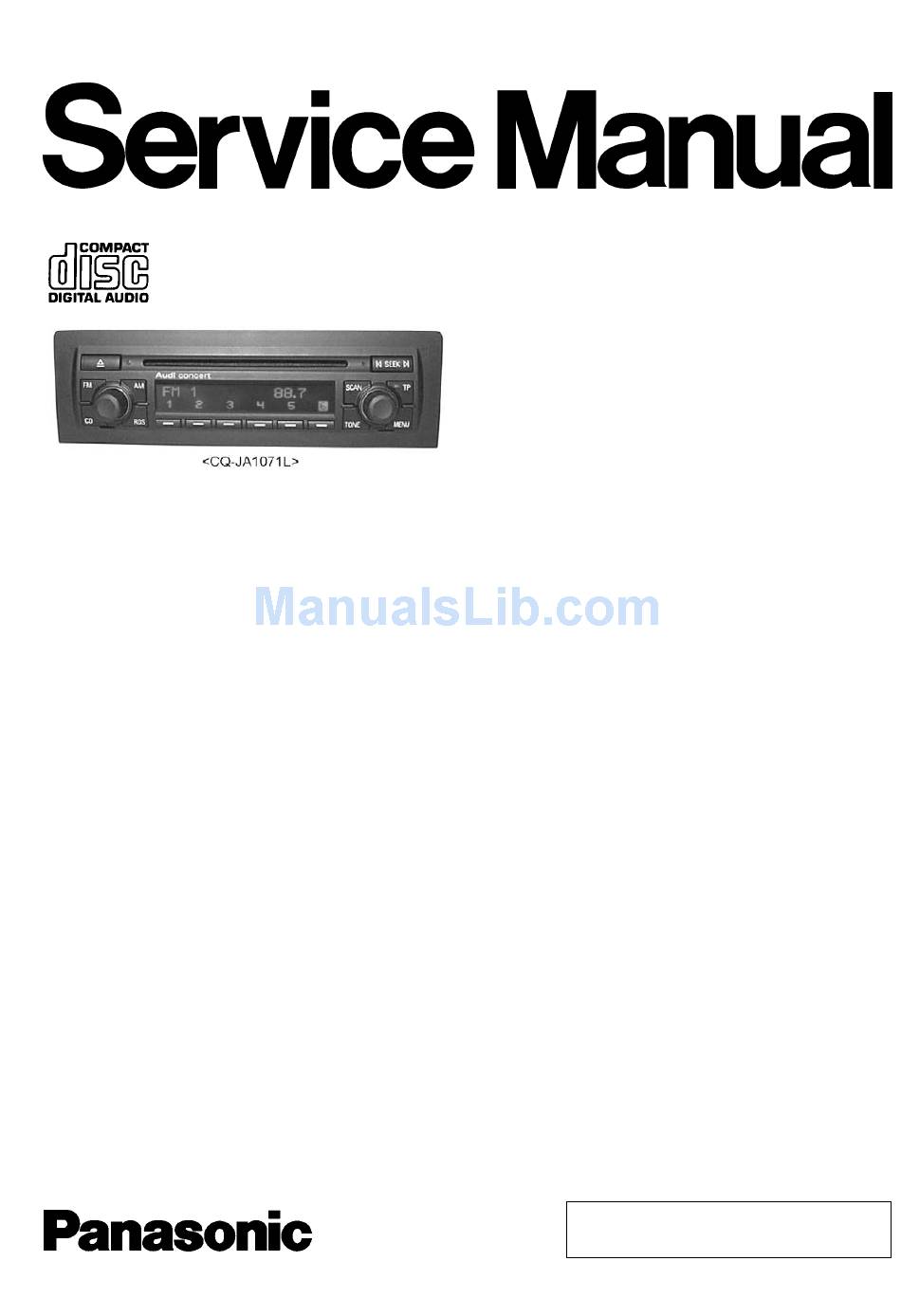

Panasonic CQ-JA1070L Service Manual

Specification*
General
Power Supply
Current Consumption
Power Output
Speaker Impedance
LW Radio
Frequency Range
Usable Sensitivity
MW Radio
Frequency Range
Usable Sensitivity
DC 12V (11V - 16V),
Test Voltage 14.4V
Negative Ground
Less than 2.5A (0.5W×4ch)
12W×2ch
4Ω
153 - 279kHz
18dB/µV (S/N 20dB)
531 - 1,602kHz
14dB/µV (S/N 20dB)
AUTOMOTIVE ELECTRONICS
AUDI
CQ-JA1070L
CQ-JA1071L
CQ-JA1072L
CQ-JA1073L
CQ-JA1074L
AM/FM MPX ELECTRONIC TUNING
RADIO with CD Player
DESTINATION : Europe
PRODUCED AFTER : Aug., 2001
[Note] See the next page about PART No. and VECLE.
FM Stereo Radio
Frequency Range
Usable Sensitivity
CD Player
Signal to Noise Ratio
Channel Separation
Dimensions**
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
© 2001 Matsushita Communication Industrial Co.,
Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.
ORDER No. AED0111010
87.5 - 108.0MHz
12dB/µV (S/N 30dB)
More than 70dB (IHF-A)
More than 65dB (IHF-A)
179(W)×51(H)×154(D)mm
1.7kg
