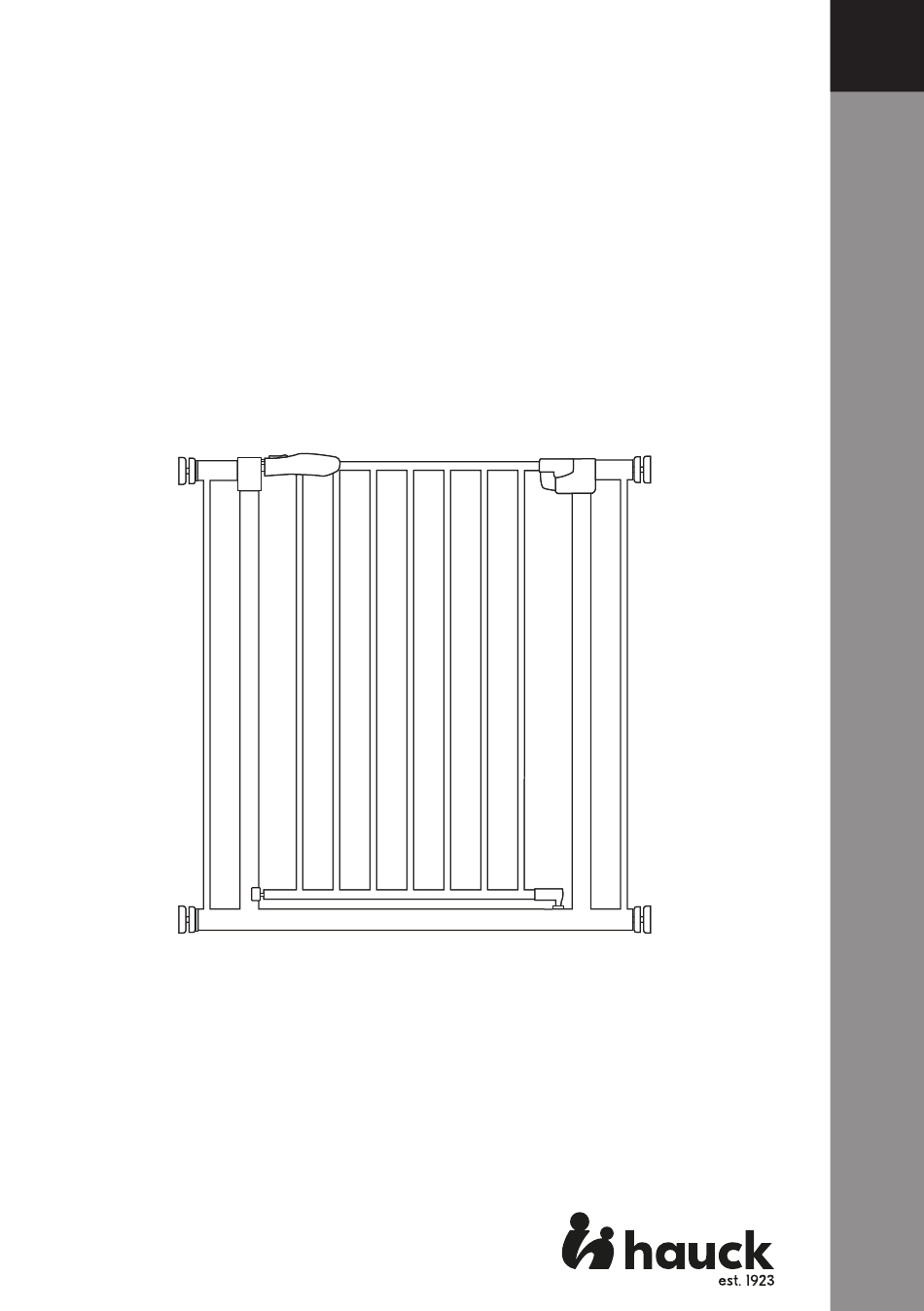

  • Page 1 OPEN N STOP 2...
  • Page 2 » This safety barrier should be checked regularly to ensure that it is secure and functioning in accordance with these instructions. » Additional or replacement parts should be obtained by hauck only. » Check that the safety barrier is always correctly closed.
  • Page 3 Instructions for use Upute za korištenje Gebrauchsanweisung Uputstvo za upotrebu Mode d‘emploi Instrucțiuni de utilizare Упатство за употреба Manual de instrucciones Инструкции за употреба Istruzioni per l‘uso Οδηγίες χρήσης Instruções de utilização Gebruiksinstructies Kullanım talimatları Vejledning til brugen Kasutusjuhend Käyttöohjeet Lietošanas instrukcija Användningsinstruktioner Naudojimo instrukcijos...
  • Page 4 Page 15 Page 19 OPTIONS 21 cm Extension 9 cm Extension...
  • Page 5 min. 0 - max. 24 months...
  • Page 6 Attach the two frame pieces together by sliding the base of the smaller section into large section base then fix in place using the two small screws...
  • Page 7 When you stand the gate up there will be a gap between the locking mechanism...
  • Page 8 max. 1mm min. 75cm - max. 80cm Without optional extensions the Insert the 4 spindles into the maximum width is 80cm frame as above...
  • Page 9 max. 3mm The base of the gate must be resting on the floor 90˚ Mark Position for the Wall Cups...
  • Page 10 Peel and stick wall cup in postion...
  • Page 11 Place Gate in position and tighten each spindle by turning the inner wheel. (Image 9) < max. 5,5cm >...
  • Page 12 The gap will close as you tighten gate in position Tighten until gap is a maximum of 1mm max. 1mm To open gate, slide lock and then slightly lift the gate...
  • Page 13 Gate wll open in both directions. Ensure gate is securely locked back in position when closing click...
  • Page 15 OPTION 9cm Extension...
  • Page 16 3 4 5...
  • Page 17 Option 1 Option 2 The optional extension pieces can be used on either side of the gate For minimum or maximum widths please see page 24 When using 2 extensions place one on either side of gate only...
  • Page 18 mind. 84cm - max. 89cm < max. 5,5cm > max. 1mm...
  • Page 19 21cm OPTION 21cm Extension...
  • Page 20 21cm...
  • Page 21 21cm Option 1 Option 2...
  • Page 22 21cm mind. 96cm - max. 101cm 21cm < max. 5,5cm > max. 1mm...
  • Page 24 Open N Stop 2 + Extensions Open N Stop 2 75cm - 80cm Open N Stop 2 + 9cm Extension 84cm - 89cm 84cm - 89cm Open N Stop 2 + 21cm Extension 96cm - 101cm 96cm - 101cm...
  • Page 25 Open N Stop 2 + Extensions Open N Stop 2 + 9cm Extension + 9cm Extension 93cm - 98cm Open N Stop 2 + 9cm Extension + 21cm Extension 105cm - 110cm Open N Stop 2 + 21cm Extension + 9cm Extension...
  • Page 26 21cm 21cm 21cm 21cm 21cm 21cm 21cm 21cm...
  • Page 30 Entsorgung ALTPAPIER IM_Open-N-Stop-2_240424_V2...
