Pro-Ject Audio Systems Debut EVO 2 Setup Manual

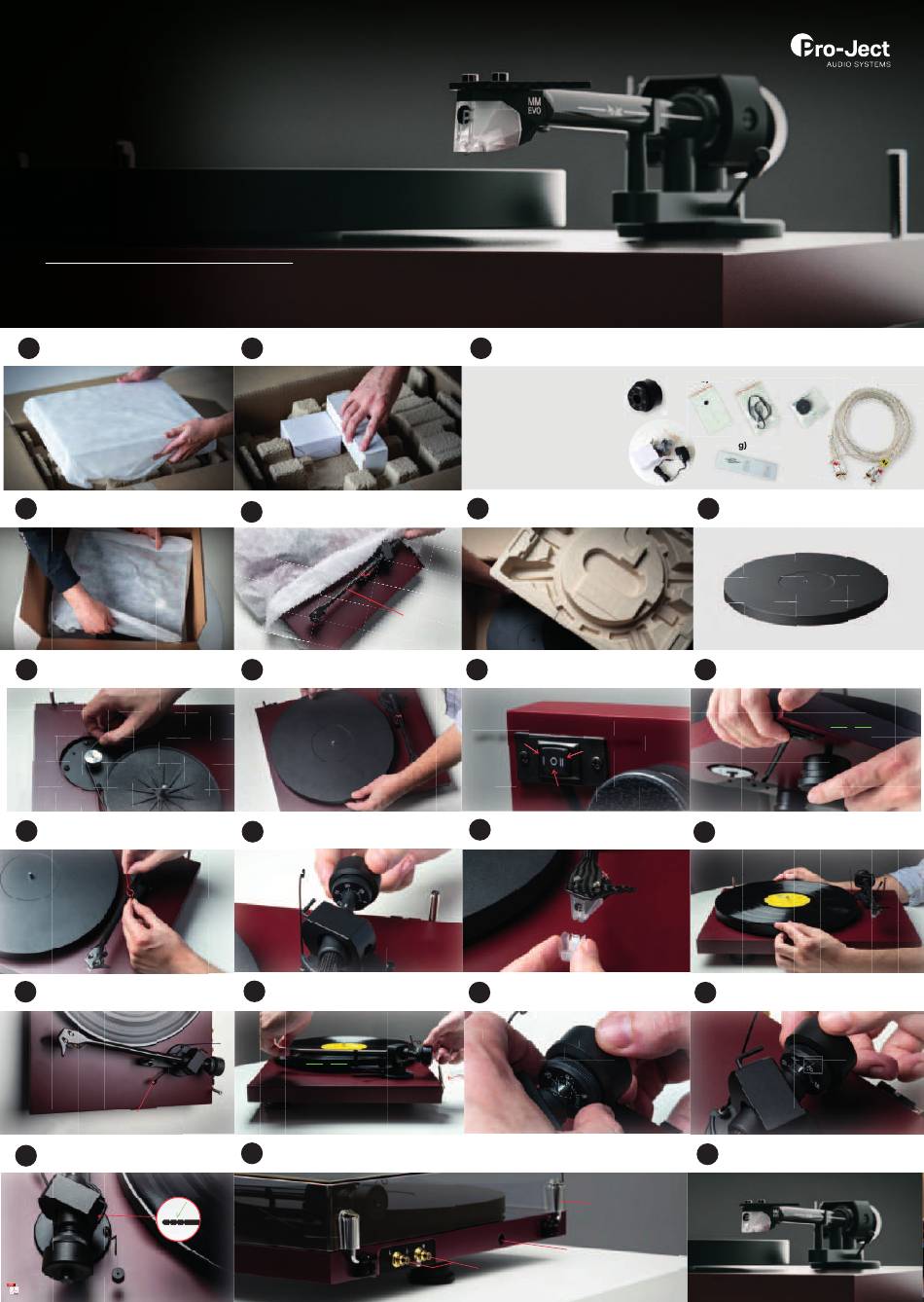

Debut EVO 2
Setup Guide
Getting started:
• Make sure to have enough space to unpack your turntable.
• Always unpack and setup in a clean enviroment.
• Please Do NOT throw away the packaging! If you need a
service or want to return your product, please send them
in the original packaging including all inserts. In case of
any damage in another packaging your dealer cannot
guarantee a full refund.
• complete manual:
www.project-audio.com/en/product/debut-evo-2
1
Remove dust cover from the box.
4
Lift the wrapped turntable out of the box.
Put the drive belt on the pulley
8
and sub-platter.
12
Remove tonearm twist tie.
Place the tonearm between platter
16
and armrest.
Lower the tonearm with the lift.
Put the loop of the Anti Skating Weight in
20
the second groove on the tonearm post.
2
Take the small boxes from the carton.
5 Carefully remove the protection covering.
Tonearm is fragile!
9
Put the platter on the turntable.
13
Put the counterweight in place.
Balance the tonearm so it stays level by
17
turning the counterweight forwards and
backwards on the rod.
0°
21
Plug in the RCA and the power cable. Unpack Dust Cover and put it on the turntable.
3
Unpack all items that are packed in the accessorie boxes.
a) Counterweight
b) Anti Skating Weight
c) Drive belt
d) Adapter for 7" singles & allen key
e) Connect it E RCA cable
f) Power supply
g) Cartridge alignment tool
6
Remove the bottom carton inlay.
Use the rocker switch to select the
10
playback speed.
LEFT: 33 RPM
RIGHT: 45 RPM
STOPS THE MOTOR
14
Remove the needle protection cover.
Turn the front dial of the counterweight
18
(not the whole weight) so the '0' is in line
with marker at the back of the tonearm.
Balance the tonearm so it stays level by
turning the counterweight forwards and
backwards on the rod.
Dustcover
Power cable
RCA cable
a) b) c) d)
f)
g)
7
Unpack the platter.
If necessary, level the turntable
11
by adjusting the feet.
15
Put a record on the turntable.
Turn the whole counterweight counter-
19
clockwise until the scale reads 18.
Connect to your hifi-system &
22
enjoy your music!
e)
0°
