Office Star Products worksmart KH81391 Operating Instructions

ÉTAPE 1 ÉTAPE 2
9
5
5
3
1
ÉTAPE 4 ÉTAPE 5
13
14
Enlever toutes les pièces du carton, les organiser selon les numéros de pièce indiqués sur la liste et vérifier que les quantités des pièces
reçues sont correctes.

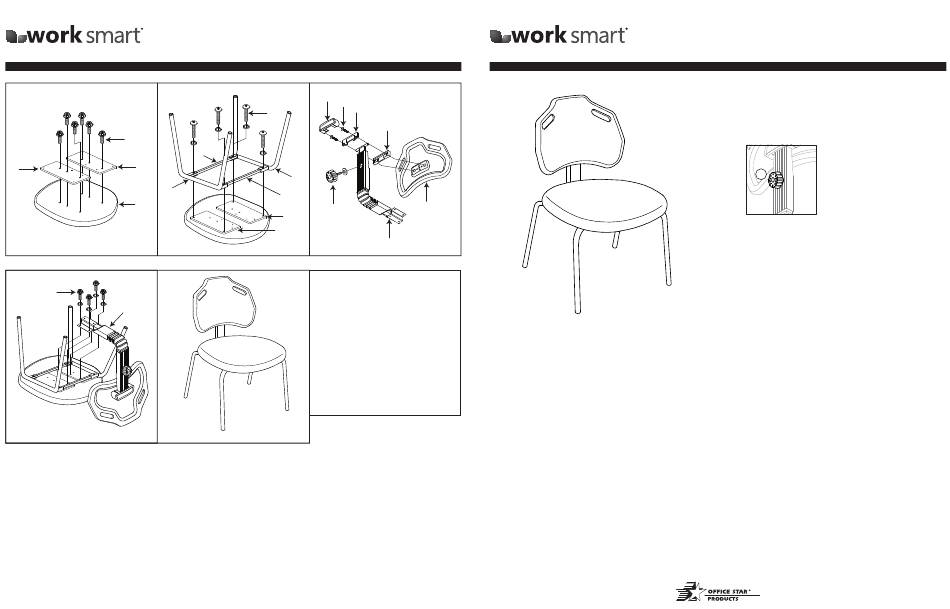

ÉTAPE 1 Fixez les supports (5) au bas du siège à l'aide de trois vis de support (9) pour chaque support (5). SERREZ COMPLÈTEMENT TOUTES LES VIS À
L'AIDE DE LA CLÉ ALLEN (15).
ÉTAPE 2 Fixez les barres transversales (4) entreles cadres (3) et fixez-le aux supports (5) à l'aide des vis de siège avec rondelles (10). NE SERREZ PAS
COMPLÈTEMENT LES VIS.
ÉTAPE 3 Fixer le support du dossier (14) au dossier (2) avec support en plastique (8), plaque d'acier (7) et les vis du dossier (12).SERREZ COMPLÈTEMENT
TOUTES LES VIS À L'AIDE DE LA CLÉ ALLEN (15). Fixez le couvercle en plastique (6) au dossier (2). Insérer le bouton de réglage du dossier (11) dans le sup-
port du dossier (14). RESSERRER COMPLÈTEMENT LE BOUTON DE RÉGLAGE DU DOSSIER (11).
ÉTAPE 4 Fixez le support du dossier (14) à l'ensemble à l'aide les vis avec rondelles (13). SERREZ COMPLÈTEMENT TOUTES LES VIS À L'AIDE DE LA CLÉ
ALLEN (15). TOURNER AVEC PRÉCAUTION À LA POSITION VERTICALE. APPLIQUEZ UNE FORTE PRESSION POUR ALIGNER ET SERRER TOUTES LES
VIS DE L'ÉTAPE 2.
ATTENTION: AVANT D'UTILISER LE FAUTEUIL, S'ASSURER D'AVOIR SERRÉ COMPLÈTEMENT TOUTES LES VIS.
KH81391
CHAISE D'INVITÉ SANS BRAS
INSTRUCTIONS DE MONTAGE
ÉTAPE 3
6
12
7
10
4
3
4
11
5
5
PIÈCE
1. Siège . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Dossier. . . . . . . . . . . . . . . . . . . . . . . . . .1
3. Cadre. . . . . . . . . . . . . . . . . . . . . . . . . . .2
4. Traverse. . . . . . . . . . . . . . . . . . . . . . . . .2
5. Support . . . . . . . . . . . . . . . . . . . . . . . . .2
6. Couvercle en plastique . . . . . . . . . . . . . .1
7. Plaque d'acier . . . . . . . . . . . . . . . . . . . .1
8. Support en plastique . . . . . . . . . . . . . . . .1
9. Vis de support . . . . . . . . . . . . . . . . . . . .6
10. Vis de siège avec rondelles . . . . . . . . . .4
11. Bouton avec rondelles . . . . . . . . . . . . . .1
12. Vis du dossier . . . . . . . . . . . . . . . . . . . .2
13. Vis avec rondellees . . . . . . . . . . . . . . . .4
14. Support du dossier . . . . . . . . . . . . . . . .1
15. Clé Allen (non montré). . . . . . . . . . . . . .1
© Office Star Products juillet, 2024
8
2
14
QTÉ
WORK SMART LIMITED WARRANTY
Work Smart chairs are warranted from the date of purchase against failure due to material and workmanship as follows:
• 15 Years on all non-moving metal parts.
• 5 Years on component parts including Control mechanisms, pneumatic cylinders, wood, plastic parts, base and casters.
• 3 Years on upholstery fabric and foam against wear and deterioration.
• Leather is not warranted against routine scratching and scuffing, as leather is subject to minor blemishes in use.
To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and obtain return authorization. At it's
option Office Star Products will:
(a) Supply compatible components of current manufacture.
(b) Repair the customer's component. The customer must prepay freight on any components returned to the factory. Return freight on
components still in warranty will be paid by Office Star Products.
*All warranties are limited to the original purchaser for normal commercial usage defined as a standard forty hour work week by persons weighing 275 lbs. or less.
The BC9601 is for persons weighing 300 lbs. or less. The BC9602 is for persons weighing 400 lbs. or less. The BC9603 is for persons weighing 500 lbs. or less.
EX1098, EC1283C & ECH12801 are for persons weighing 350 lbs. or less. This warranty will not cover labor, freight or damage from misuse, abuse, negligence,
alteration, accident, vandalism, rusting, acts of nature or any other event beyond the control of Office Star Products. The warranty does not cover cosmetic
damage that may result from normal use. Liability for incidental or consequential damages is excluded. The user assumes all risk of injury resulting from use of
this product. When usage is more than 40 hours per week, a two year warranty on all parts applies. Fabric is warranted for one year. This warranty gives you
specific legal rights, and you may also have other rights which vary from state to state.
All Work Smart chairs are built to meet or exceed ANSI BIFMA standards.
Our quality standards are among the highest in the industry. Sometimes, no matter how hard we try, there are times when parts are damaged or missing. Our
Parts Department will do everything possible to promptly remedy the problem. Contact us via e-mail parts.department@officestar.net, by Fax 1-909-930-5629, or
toll free parts number 1-800-950-7262, Monday through Friday 8:00 a.m. - 3:30 p.m. Pacific Time.
KH81391
ARMLESS GUEST CHAIR
OPERATING INSTRUCTIONS
FEATURES
• BACK HEIGHT ADJUSTMENT
Loosen knob (1) on Backrest post to raise or lower the height of
Backrest, tighten knob (1) once desired height is reached.
TIGHTEN KNOB COMPLETELY!
1
WARNING
1. Use this product only one person at a time.
2. Do not use unless all bolts, screws and knobs are securely tightened.
3. Check that all bolts, screws and knobs are tight every three months or
as needed.
4. Dispose of packing material properly. Do not use plastic cover as head
covering. It may cause suffocation.
5. Do not use as a stepladder.
6. Use this product for its intended purpose only.
7. Use mild detergent only for cleaning.
