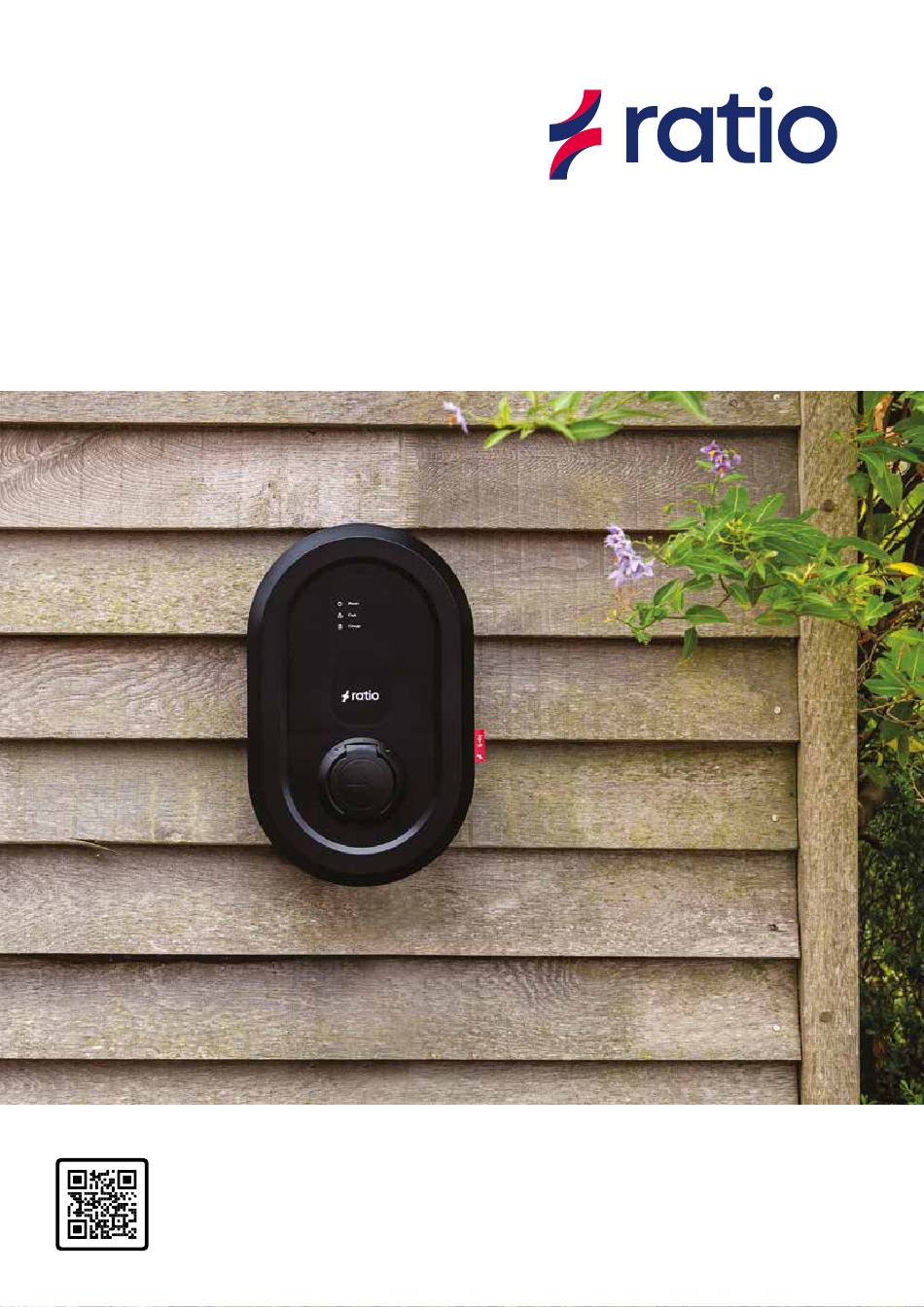

- Page 1 & io6 Quick Installation Guide Scan for full installation guide Installation +44 (0) 1527 396900 / info@ratioev.uk / www.ratioev.uk...
- Page 2 2. Install the cables into the terminal block using a 6mm cable unless otherwise stated This is a quick installation guide for the Ratio io5 and io6 charger, developed for qualified and experienced technicians. by the Electrical Designer/Engineer. For more detailed information, see the online installation manuals.
- Page 3 1. If using hardwired Ethernet cable please ensure the black RJ45 socket is used 1. Power the charger 2. Download the Ratio app 3. Create an account in the Ratio app Installation of Sensor Box: 1. Prepare the cable using the supplied connectors ensuring both ends of cables are the same 2.
- Page 4 7. Select charger 8. Add the unique 9. Your charger has now 13. Update both Home connection and 14. If using a back-end Bluetooth passcode been linked to your app Charger connection settings (please note software provider enter which can be found in the Home Connection is the building supply) OCPP settings and toggle provided accessory pack.
- Page 5 18. Return back to 19. Ensure maximum Advanced settings page charging current is 32A and connect available Wi-Fi network if not using a wired ethernet cable. Basic: Stand alone charger setting Smart: A set-up using dynamic load management using the Sensor box Smart Solar: A set up using available solar power topped up with...
