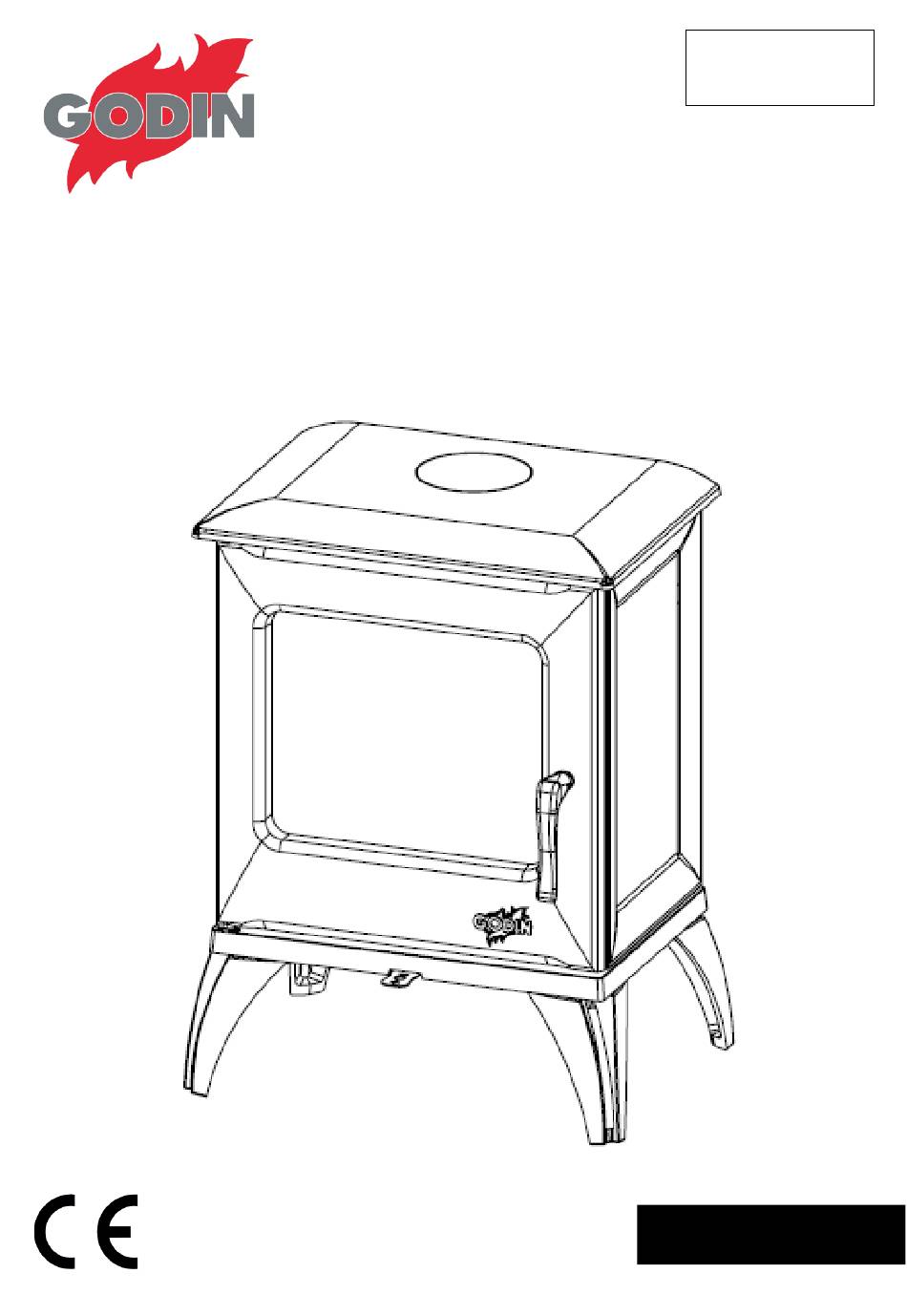

- Page 1 Record ref : 4596 – 16 Index : A Date : 25/03/2025 SERIS WOOD STOVE REF : 388146 Documentation for users and installers...
- Page 2 Foreword: You have just acquired a Seris wood stove and we thank you for this choice, thus showing your trust. This stove has been studied, designed and built in France, with care to give you complete satisfaction. It is important to read this entire manual carefully before installing your stove.
- Page 3 In the case of a traditional stove, the ceiling should be at least 80 cm above the top of the appliance. • The appliance radiates naturally and we advise you to move any combustible material (wooden chairs, sofas, etc.) facing the front of the appliance away by at least 150 cm. Page 3 388146 Seris...
- Page 4 To help ignite, it is possible to leave the door ajar for a few minutes, under constant supervision. • When the fire is well set, load the desired quantity and adjust the combustion using the air damper. Page 4 388146 Seris...
- Page 5 Check the appliance and make sure the door seals are in good condition, replace them if necessary. • Clean the inside of the appliance completely, without forgetting the flues where the smoke passes. Clean the porthole with the GODIN NET special window (ref. 0009). • •...
- Page 6 In possession of the bills of materials and all the technical documentation relating to our manufacture, he will be able to quickly provide you with any replacement parts and carry out the necessary repairs. Never use replacement parts that have not been supplied by GODIN S.A. Never make modifications to the device without authorization.
- Page 7 Stuck to the top of the home the vent to fit it together SETTING UP THE PAD The Ø125 pad is attached from the inside of the stove with the fixed pad, the washer and a TH M6x20 screw. Page 7 388146 Seris...
- Page 8 Burst from the 388146 Seris stove: DESIGNATION CODIFICATION Heating element See below Feet See below Door See below Ashtray See below Page 8 388146 Seris...
- Page 9 Right side grille 10262388112 Skid plate support 10195388146 Left side grille 10261388112 Air adjustment flap 13909388112 098 Andiron 10306388112 30mm rock wool panel 18626388146 Valve 24166388112 Side protection plate 10173388146 flapper seat 14128388112 Vermiculite baffle 00001311246 Page 9 388146 Seris...
- Page 10 Handful 12878388112-098 Tresse ø 7 autocollant lg1250mm 00001304860 Tresse ø 10.5 lg1700mm 00001304691 EP4 Glass 313x333 00001307902 6x40 spline pin 00001305127 Fixed glass 12071660101 HC M5x8 needle screw 00001306744 Godin badge stainless steel brushed 00001308707 aluminium Page 10 388146 Seris...
- Page 11 ° Exploded from the Ashes Drawer: DESIGNATION CODIFICATION Ashtray 13316388112-096 T10 Loop Glove 00001307770 Hook wrench 141013720 Page 11 388146 Seris...
- Page 12 S.A. GODIN. Consequently, S.A. GODIN cannot be held liable for material damage or personal accidents resulting from an installation that does not comply with the legal and regulatory provisions as well as non-compliance with the recommendations in the appliance instructions (for example, lack of connection to an earthing connection, poor chimney draught, etc.).
- Page 13 INSTALLAZIONE/MANUTENZIONE : VEDI MANUALE - INSTALLATION/MAINTENANCE WORK : SEE MANUAL - INSTALLATION/INSTANDHALTUNG : SIEHE HANDBUCH - INSTALACION/MANTENIMIENTO : VEASE MANUAL GODIN – 02120 GUISE - FRANCE Public limited company with a capital of VAT N°FR 82 835 480 294 Internet: http://www.godin.fr...
