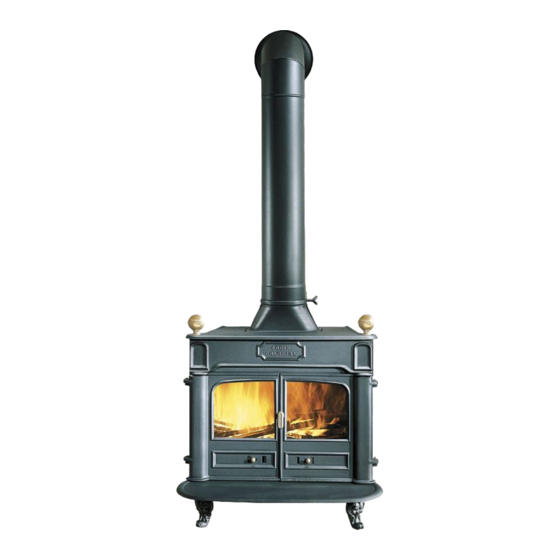

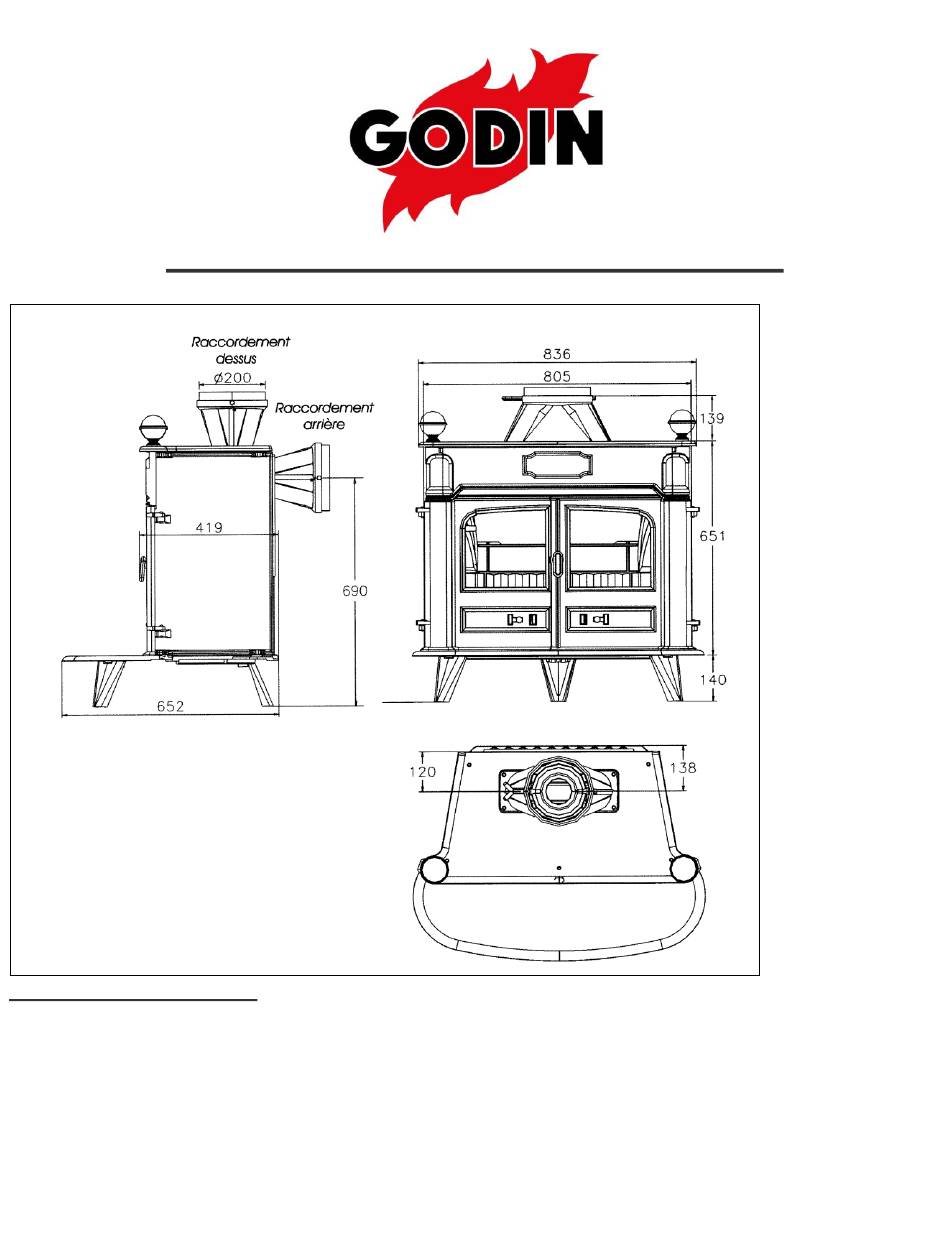

- Page 1 The Colonial Wood Stove Ref: 325101 Technical Specifications: 55L x 35H X30D (cm) Adjusting the pace: thermostatically Weight: 130kg Power: 9.5kW * With a load of 4.8kg of wood moisture of 12% and a calorific value of 15.7MJ/kg...
- Page 2 Instructions for the Installer - Always respect the rules in force in the country in which the device is installed. In France, the drainage systems of the combustion products is in conformity with the DTU 24.1 in February 2006. - Make sure the flue is in a good condition. Its role is crucial. It will influence the final result by ensuring the supply of primary air in homes and extracting the gas combustion.
- Page 3 Important: if the floor is made of flammable materials, it is necessary to protect it with some insulation e.g. tiles, up to at least 40cm in front of the heater. Preferably use enameled flue pipes – as they resist corrosion very well. Their length should be as short as possible, so that the heated fumes are used to make a draught.
- Page 4 Connection to the chimney: Example of connection of the chimney pipe It should connect the device in accordance with the DTU 24.1. The safety distances between outer walls of the flue pipe and chimney pipe of any combustible materials. (A) must conform to the requirements of this standard.
- Page 5 -Do not use the heater if the glass is broken or cracked. First do all necessary replacements. -After a long period in which the unit has not been used, make sure that there are no obstructions in the chimney. Caution: -Operating at a normal pace, the handle must not be handled manually.
- Page 6 Maintenance: Have your appliance checked by a qualified person at least once a year. Never clean the glass while the unit is still hot. Caution: When using your heater for the first time, it is necessary to run a low fire, allowing parts to expand normally.
- Page 8 WARRANTY CONDITIONS Any warranty is subject to: correct installation, use and maintenance of the unit. Parts that are in direct contact with high temperatures and that could undergo distortions caused by wear and tear are guaranteed for 1 year. This includes: 1.
