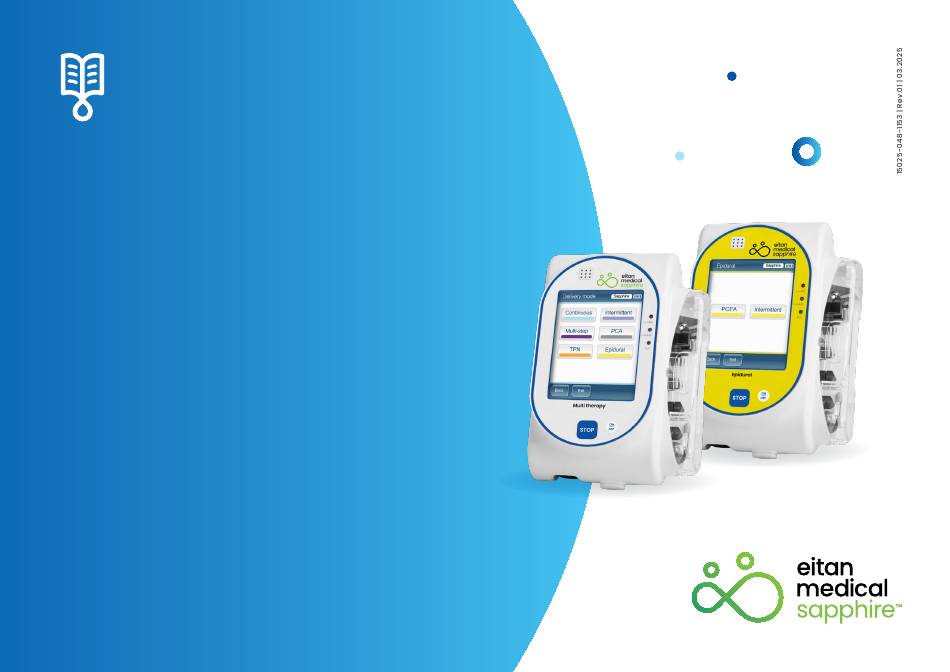

  • Page 1 Sapphire ™ Manual Configuration Settings Software Revision 16.50...
  • Page 2 Configuration Settings Table of Contents Pump Configuration Alarms ..............................4 Audio Settings ..........................5 General Settings ......................... 6 Regional ............................8 Mode Specific Options PCA Options ........................... 9 PCEA Options ..........................10 Epidural Intermittent (Epi. Int) Options ................ 11 Technician Options Pump Settings | Set Hard Limits ..................
  • Page 3 Configuration Settings Please set the authorization level to: "Technician" Prior to configuring the pump, the authorized technician must read the Sapphire™ Infusion Pump Service Manual. Mode specific settings will only be visible when in that selected mode. The pump configuration is set by the drug library, but local changes on the pump can be temporarily made.
  • Page 4 Configuration Settings Pump Configuration | Alarms Alarms Modes Parameter Options/Range Default Setting Facility Setting Parameter Description Occlusion Units BAR, PSI, mmHg The format of occlusion units. 0.1-1.2 (BAR) The minimum downstream pressure that triggers Occlusion Pressure 1.5-17.4 (PSI) 0.4 (BAR) an occlusion alarm.
  • Page 5 Configuration Settings Pump Configuration | Audio Settings Audio Settings Modes Parameter Options/Range Default Setting Facility Setting Parameter Description Sets the speaker volume for the auditory signal Keys Volume Low, High, Off High generated when users select functions and press keys on the pump.
  • Page 6 Configuration Settings Pump Configuration | General Settings General Settings Modes Parameter Options/Range Default Setting Facility Setting Parameter Description Start Up Allows the user to start infusions, using the same Configuration: infusion parameters for the same patient. When the On, Off Repeat Last option is enabled, the "Repeat Last Infusion"...
  • Page 7 Configuration Settings Pump Configuration | General Settings General Settings (Cont.) Modes Parameter Options/Range Default Setting Facility Setting Parameter Description Enables a reminder for the user to prime the Prime Reminder On, Off administration set before starting an infusion. Allows users to program a bolus by entering rate, amount and time.
  • Page 8 Configuration Settings Pump Configuration | General Settings General Settings (Cont.) Modes Parameter Options/Range Default Setting Facility Setting Parameter Description When turned On, entering a password is required to P. Lockout Code On, Off activate Patient Lockout. When turned On, user must enter a password before Password request On, Off modifying settings.
  • Page 9 Configuration Settings Pump Configuration | Regional Regional Modes Parameter Options/Range Default Setting Facility Setting Parameter Description dd/mm/yr Date mm/dd/yr mm/dd/yr* Time Current Time 12 hour clock The regional menu controls date, time, language and US format settings. Language English English US Format On, Off * When US format is enabled.
  • Page 10 Configuration Settings Mode Specific Options | PCA Options PCA Options Modes Parameter Options/Range Default Setting Facility Setting Parameter Description The rate at which a bolus (patient bolus, clinician bolus Bolus Rate 1-600 mL/h 125 mL/h and loading dose) is delivered. Enables the user to program a loading dose (starting Allow Loading Dose On, Off...
  • Page 11 Configuration Settings Mode Specific Options | PCEA Options Epidural PCEA Options Modes Parameter Options/Range Default Setting Facility Setting Parameter Description 125 mL/h 200 mL/h The rate at which a bolus (patient bolus, clinician bolus Bolus Rate 300 mL/h 125 mL/h and loading dose) is delivered.
  • Page 12 Configuration Settings Mode Specific Options | Epidural intermittent (Epi. Int) Options Epidural Intermittent Options Modes Parameter Options/Range Default Setting Facility Setting Parameter Description 125 mL/h 200 mL/h Dose Rate 300 mL/h 125 mL/h The rate at which an intermittent dose is delivered. 400 mL/h 500 mL/h Enables a safety feature that requires a high...
  • Page 13 Configuration Settings Technician Options | Pump Settings | Set Hard Limits Set Hard Limits: Mode Specific Modes Parameter Options/Range Default Setting Facility Setting Parameter Description The total amount of fluid to be infused in a primary Primary VTBI 1-9,999 mL 9,999 mL infusion.
  • Page 14 Configuration Settings Technician Options | Pump Settings | Set Hard Limits Set Hard Limits: Mode Specific (Cont.) Modes Parameter Options/Range Default Setting Facility Setting Parameter Description VTBI 1-9,999 mL 9,999 mL The total amount of fluid to be infused. Rate 0.1-999 mL/h 999 mL/h The speed at which the fluid is infused.
  • Page 15 Configuration Settings Technician Options | Pump Settings | Set Hard Limits Set Hard Limits: Mode Specific (Cont.) Modes Parameter Options/Range Default Setting Facility Setting Parameter Description VTBI 1-9,999 mL 9,999 mL The total amount of fluid to be infused. VTBI 1-9,999 mL 9,999 mL The total amount of fluid to be infused.
  • Page 16 Configuration Settings Technician Options | Pump Settings | Set Hard Limits Set Hard Limits: Mode Specific (Cont.) Modes Parameter Options/Range Default Setting Facility Setting Parameter Description VTBI 1-9,999 mL 9,999 mL The total amount of fluid to be infused. Continuous Rate 0, 0.1-25 mL 25 mL The speed at which the fluid is infused.
  • Page 17 Configuration Settings Technician Options | Pump Settings | Set KVO Set KVO Modes Options/Range Default Setting Facility Setting Parameter Description Continuous 0-20 mL/h 3 mL/h Multi-step 0-20 mL/h 3 mL/h The KVO screen of each delivery mode provides access to setting KVO* rates for all other delivery modes, with the exception 0-20 mL/h 0 mL/h...
  • Page 18 Configuration Settings Technician Options | Pump Settings | Set Air Detector Set Air Detector Modes Parameter Options/Range Default Setting Facility Setting Parameter Description 0.02 mL, 0.04 mL, In this mechanism, when a single bubble, equal to or 0.05 mL, 0.1 mL, Single Air Detector larger than a user-selected size, passes through the 0.2 mL, 0.5 mL,...
  • Page 19 Modes Parameter Options/Range Default Setting Facility Setting Parameter Description To help ensure patient safety, the Sapphire™ High Level 1000-7000 **** pump can be set to one of four authorization levels. Only a Technician authorization level may set the customized default setting.
  • Page 20 PCEA On, Off Epidural On, Off Intermittent The Sapphire™ pump allows you to associate infusions to a specific patient. When "New Patient" feature is enabled, the "New Patient" screen appears. The pump New Patient On, Off calculates the accumulated volume infused and accumulated bolus history and zeroes them out when "New Patient"...
  • Page 21 Configuration Settings Technician Options | Pump Settings | General General: Mode Specific (Cont.) Modes Parameter Options/Range Default Setting Facility Setting Parameter Description Set Secondary On, Off Allows users to program a Secondary infusion. (Piggyback) Allows users to program a bolus during a Continuous infusion.
  • Page 22 Configuration Settings Technician Options | Pump Settings | General Sapphire™ PreSet Programs Mode Program Name Content Approver's Name SW 16 22 of 25...
  • Page 23 Configuration Settings Technician Options | Pump Settings | General Sapphire™ PreSet Programs Mode Program Name Content Approver's Name SW 16 23 of 25...
  • Page 24 Configuration Settings Technician Options | Pump Settings | General Sapphire™ Configuration Settings Defined And Agreed Name Date Signature SW 16 24 of 25...
