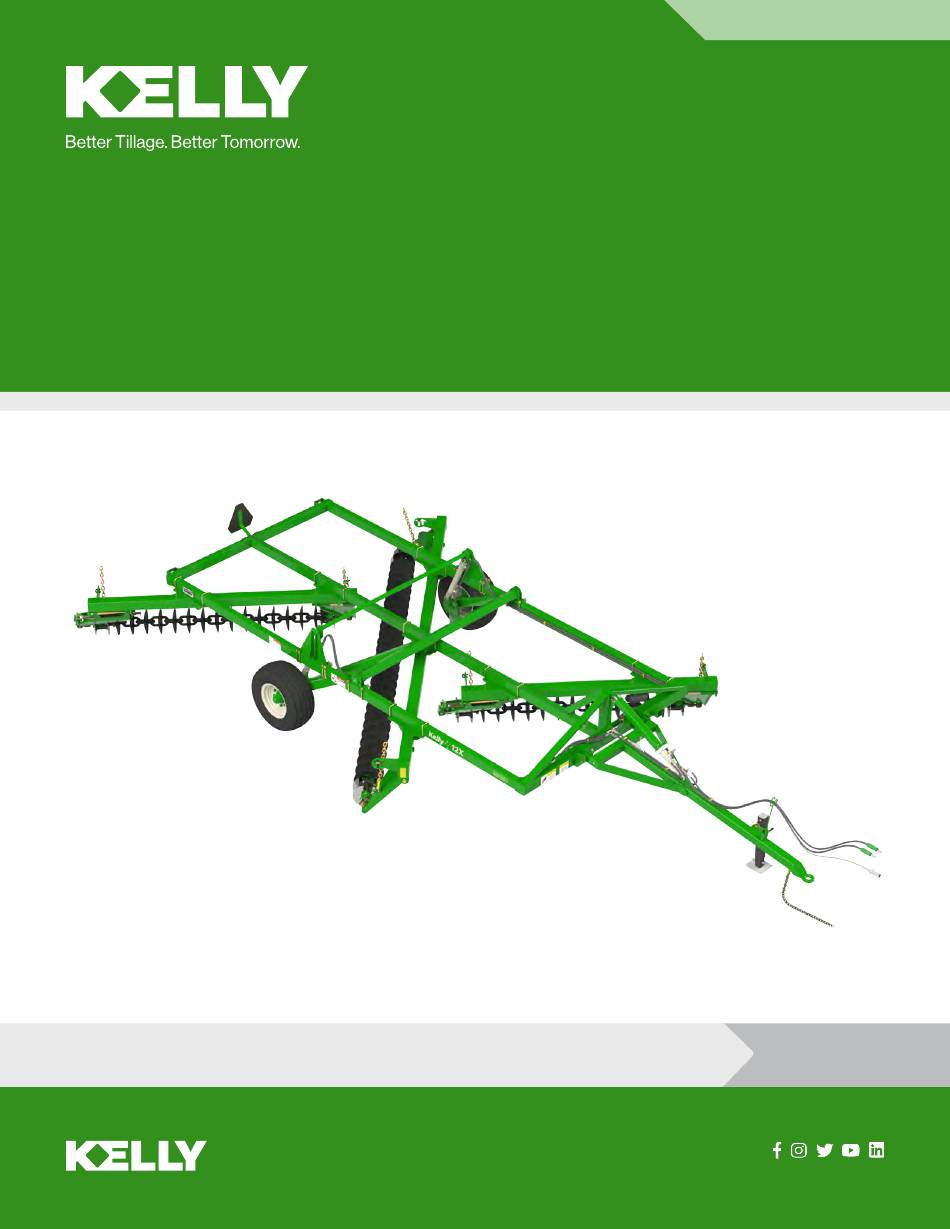

- Page 1 12X OPERATING MANUAL Operating Instruction Manual KELLY TILLAGE SYSTEM 12X KEOPM–I–01052024 SERIAL NUMBER: Phone +61 8 8667 2253 Booleroo (Head Office) Adelaide Office Email sales@kellytillage.com 684 Kelly Road, 28 Greenhill Road, Booleroo Centre SA 5482 Wayville SA 5034 kellytillage.com...
- Page 2 Spare parts can be purchased, as required, through your local dealer or by contacting KELLY directly. The KELLY team values your feedback. Should you have any difficulties that you wish to raise, suggestions for improvement or modifications that you feel would enhance our products we look forward to hearing from you.
-
Page 3: Table Of Contents
Disc chain lengths and quantities Section 6 - Pre-delivery checklist Pre-delivery checklist Notes Register within 2 months of purchasing your machine to receive an additional 36 months warranty. Find the registration information on page 6 KEOPM–I–01052024 © KELLY TILLAGE. BOOLEROO CENTRE, SOUTH AUSTRALIA... -
Page 4: Safety Information
Never allow anyone within the immediate area when • Good maintenance is your responsibility. operating machinery. • Regular maintenance and inspection is imperative • Stand clear when raising or lowering wings. Maintenance guidelines can be found in section 4. KEOPM–I–01052024 © KELLY TILLAGE. BOOLEROO CENTRE, SOUTH AUSTRALIA... -
Page 5: Section 1 - Warranty
If further information is requested If the machine is registered within 2 months of delivery to the by KELLY, an additional period of 30 days will be allowed to customer and all documentation is returned as per the Terms provide the requested information. -
Page 6: Machine Registration
Purchasing Details Name: Date of Purchase: Address: Place of Purchase: Email Address: Model Purchase: Contact number: Serial Number: Occupation: What brought KELLY Tillage products to your attention? Field Day Family Magazine/Newspaper: Dealer Website Demonstration: Friend/Neighbor Radio Referral Source: On a scale of 1 to 10 (10 being highest) how likely are you to recommend us to friends and family? -
Page 7: Section 2 - Operation
Stickers and warning signs are in place Hydraulic fittings are tight and have no leaks Chains are adjusted so that all springs are compressed to 330mm/ 1’ 1” Check swivel bearings are not seized and still turning freely KEOPM–I–01052024 © KELLY TILLAGE. BOOLEROO CENTRE, SOUTH AUSTRALIA... -
Page 8: Section 3 - Chain Operation & Correct Setup
Spring length of 330mm / 1’ 1” . 3. If more than 150mm / 5-29/32” of tensioner thread is visible, then remove one link from the chainset to maintain correct chain tension. 4. Retighten the lock nut. KEOPM–I–01052024 © KELLY TILLAGE. BOOLEROO CENTRE, SOUTH AUSTRALIA... - Page 9 SECTION 3 - OPERATION KEOPM–I–01052024 © KELLY TILLAGE. BOOLEROO CENTRE, SOUTH AUSTRALIA...
-
Page 10: Chain Curve
The wear rate between each link is greatly accelerated and can lead to premature failure. The chain should not wear out before the discs are worn down. ONLY POOR ADJUSTMENT CAUSES PREMATURE WEAR Indicator line shows acceptable curvature when operating. KEOPM–I–01052024 © KELLY TILLAGE. BOOLEROO CENTRE, SOUTH AUSTRALIA... -
Page 11: Chain Mount Arm Height Adjustment
This will raise or lower the chain mount plate by half a link depending on which slot the chain started in. Any excess chain can be fed back through the second slot. 4. Install retaining clip. Remove stand. KEOPM–I–01052024 © KELLY TILLAGE. BOOLEROO CENTRE, SOUTH AUSTRALIA... -
Page 12: Frame Height Adjustment
Check the length of the height adjusting chains on the two front chain mount plates. There should be no slack in the chain and about 25-51mm /1/12’-1/6’ of gap between the ground and the bottom of the first disc machine near the centre line. KEOPM–I–01052024 © KELLY TILLAGE. BOOLEROO CENTRE, SOUTH AUSTRALIA... -
Page 13: Section 4 - Maintenance
Where replacement parts are necessary for periodic maintenance and servicing, genuine factory parts must be used. Kelly Engineering will not guarantee the use of unapproved parts and other damages as a result of their use and will not be liable for injury or warranty if equipment has been altered in any way •... -
Page 14: Recommended Maintenance Checklist
Chain is tensioned correctly Lights are working correctly Warning signs are attached Grease wheel bearings Grease drawbar pivot Grease wheel lift bush We recommend that swivel units are covered for storage to prevent water penetration. KEOPM–I–01052024 © KELLY TILLAGE. BOOLEROO CENTRE, SOUTH AUSTRALIA... -
Page 15: Chain Inspection
This is the most important check and adjustment to ensure a long working life for the disc chain. Trouble Shooting The majority of the Kelly Tillage System operating problems are due to incorrect adjustment. This trouble shooting section will help you by providing solutions to common problems. Symptom... -
Page 16: Section 5 - Specifications
Tire pressure Tire size 31/13.5-15 12X specifications Model Operating width 14’ 9-1/2” / 4.51m Transport width 14’ 9-4/5” / 4.52m Transport height 6’ 3-22/25” / 1.93m Transport length 30’ 9-23/25” / 9.40m KEOPM–I–01052024 © KELLY TILLAGE. BOOLEROO CENTRE, SOUTH AUSTRALIA... -
Page 17: Bolt Torque Settings
Bolt Torque Settings table. Torque values are for dry threads and surfaces however it is permissible to apply a small amount of anti-corrosive oil to the threads. KEOPM–I–01052024 © KELLY TILLAGE. BOOLEROO CENTRE, SOUTH AUSTRALIA... -
Page 18: Disc Chain Lengths And Quantities
W36 Disc Chain - cut a disc chain link from the end of the disc chain K4 Disc Chain - unhook disc chain link/s from end of the disc chain Scan the following QR code to open the removing a welded disc chain video. KEOPM–I–01052024 © KELLY TILLAGE. BOOLEROO CENTRE, SOUTH AUSTRALIA... - Page 19 SECTION 5 - SPECS FRONT CHAINSET CENTRE CHAINSET REAR CHAINSET KEOPM–I–01052024 © KELLY TILLAGE. BOOLEROO CENTRE, SOUTH AUSTRALIA...
-
Page 20: Section 6 - Checklist
SECTION 6 - CHECKLIST Section 6 - Pre-Delivery Checklist KEOPM–I–01052024 © KELLY TILLAGE. BOOLEROO CENTRE, SOUTH AUSTRALIA... - Page 21 Customer has been shown the website and how to access parts information Operator's manual has been provided with the machine Completed Pre-Delivery Checklist to be returned to warranty@kellytillage.com within 7 days of delivery to the customer. Name: Signature: Date: KEOPM–I–01052024 © KELLY TILLAGE. BOOLEROO CENTRE, SOUTH AUSTRALIA...
-
Page 22: Notes
NOTES Notes KEOPM–I–01052024 © KELLY TILLAGE. BOOLEROO CENTRE, SOUTH AUSTRALIA... - Page 23 NOTES KEOPM–I–01052024 © KELLY TILLAGE. BOOLEROO CENTRE, SOUTH AUSTRALIA...
- Page 24 KEOPM–I–01052024 Phone +61 8 8667 2253 Booleroo (Head Office) Adelaide Office Email sales@kellytillage.com 684 Kelly Road, 28 Greenhill Road, Booleroo Centre SA 5482 Wayville SA 5034 kellytillage.com...
