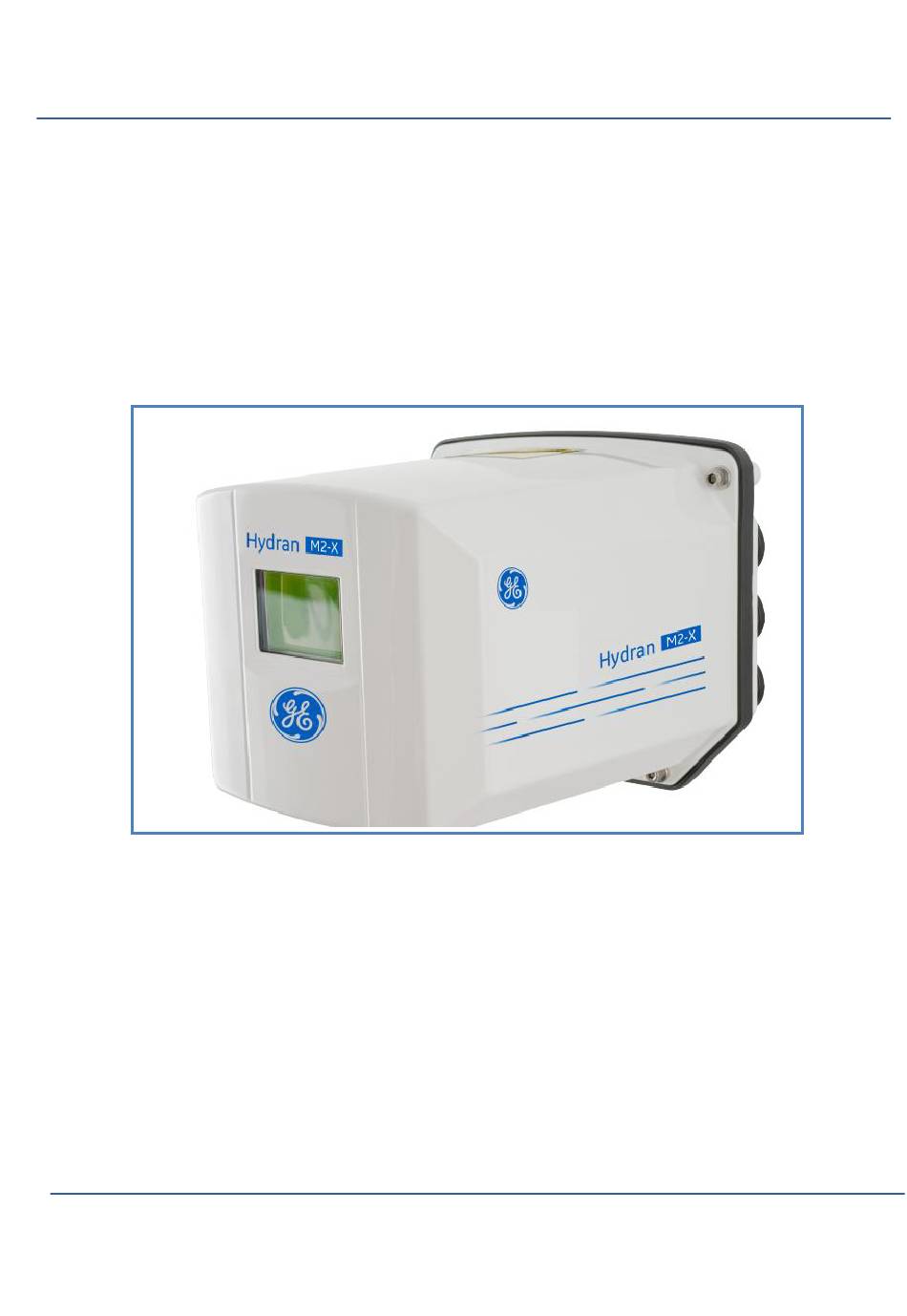

Page 1 Hydran* M2-X Transformer Gas Monitoring System Instruction Manual GE Grid Solutions (UK) Ltd Lissue Industrial Estate East, Unit 1, 7 Lissue Walk, Lisburn, United Kingdom BT28 2LU Email: GA.support@ge.com MA-029 Rev. 3.0, 29-Jun-23 Web: www.gegridsolutions.com/MD.htm...
Page 2: Copyright Notice And Proprietary Rights
GE, except as otherwise indicated. You may not disclose, reproduce, publish, license, post, transmit or distribute this manual, in whole or in part, without the prior written permission of GE or except as permitted by written license agreement with GE.
Page 3: Table Of Contents
1.2 Safety Symbols Description ..................14 1.3 Preface ......................... 15 1.4 Standard GE Warranty ....................16 GENERAL CAUTIONS & WARNINGS ..............18 INTRODUCTION TO THE HYDRAN M2-X ............. 25 3.1 Overview ........................25 3.1.1 Gas Detection ....................26 3.1.2 Moisture Detection ..................26 3.1.3 Optional I/O Interfaces ...................
Page 4 Hydran* M2-X Instruction Manual 3.4.2 Measurements Performed by the Sensor ............35 3.4.3 Sensor Temperature ..................36 3.5 Heater Plate (Dynamic Oil Sampling System) .............. 36 USER INTERFACE & SOFTWARE ................ 37 4.1 Using the Keypad Keys ....................38 4.1.2 Operating Modes .................... 39 4.1.3 Changing the Value of a Parameter ..............
Page 5 Conclusion ....................75 5.2.11 5.3 Installation ........................75 5.3.1 Overview ......................75 5.3.2 Tools and Materials Required ................ 76 5.3.3 Mounting Location of the Hydran M2-X ............76 5.3.4 Verifying the Serial Numbers ................. 80 MA-029 Rev. 3.0, 29-Jun-23 Page 5...
Page 6 Hydran* M2-X Instruction Manual 5.3.5 Preparing the Valve ..................81 5.3.6 Separating the Sensor from the Hydran M2-X ..........81 5.3.7 Installing the Sensor onto the Valve ............... 83 5.3.8 Opening the Valve and Purging Air from the Sensor ........86 5.3.9 Installing the Hydran M2-X on the Sensor .............
Page 7 6.2.1 Installing the RS-485 Network Link .............. 104 6.2.2 Configuring the Hydran M2-X’s Communication Parameters ..... 105 6.2.3 Installing and Configuring a Laptop Computer ..........105 6.2.4 Connecting a Hydran M2-X to the Hydran 201i Controller ......106 ALARMS ..................... 108 7.1 Introduction ....................... 108 7.1.1 Setting Alarm Parameters ................
Page 8 9.2.3 No Communication between the Host Computer and the Network of Hydran 201Ci Systems......................... 133 9.2.4 No Communication via Ethernet ..............133 9.3 Hydran M2-X and Hydran 201Ci Controller’s Analog Outputs at Zero ...... 134 9.4 Alarms ......................... 135 9.4.1 Intermittent Gas Alarms ................135...
Page 9 9.4.2 An Alarm Relay does not Reset, even if the Alarm Condition has Disappeared 9.4.3 Irregular Gas Readings ................. 135 9.4.4 Inaccurate Gas Readings ................136 9.4.5 Moisture Reading of the Hydran M2-X does not correspond with that of a Validation Method ......................136 9.4.6 Moisture Readings Remain at 0% ..............137 9.4.7 Irregular Readings (Moisture and Temperature) .........
Page 10 Hydran* M2-X Instruction Manual A.1 General ........................148 A.2 Dimensions ......................... 152 APPENDIX B : FUNCTIONAL BLOCK DIAGRAM ............156 APPENDIX C : EXTERNAL CONNECTIONS ..............157 C.1 TDM and RS-485 Network Link Terminal Block ............157 C.2 Analog Input Terminal Block ..................161 C.3 Analog Output Terminal Blocks ..................
Page 11 Hydran* M2-X Instruction Manual N.2 Required Training / Qualification – ................256 N.3 N.3 Process Description ..................... 256 N.4 Ethernet Card Installation ..................258 N.5 Ethernet Cable Connection Configuration ..............259 N.6 HM2-X Ethernet Plug-in Detection ................260 N.7 HM2-X Ethernet Plug-In Configuration ..............261 N.8 Hydran M2 Ethernet Plug-in Communication parameters and IP address configuration ........................
Page 12: Preliminary Information
Hydran M2-X, and could lead to property damage, personal injury and/or death. • Installation and maintenance of the Hydran M2-X must be carried out by qualified personnel only. Please advise station operator prior to maintenance. Working inside the Hydran M2-X may trigger unwanted alarms due to parameter changes, power shutdown, and system rebooting or electrostatic discharge.
Page 13: In German) Warnung
Hydran* M2-X Instruction Manual • La instalación y mantenimiento del equipo Hydran M2-X se reserva únicamente al personal perfectamente cualificado. Aconseje por favor a operador de la estación antes del mantenimiento. El trabajo dentro del Hydran M2-X puede accionar alarmas indeseadas debido a los cambios del parámetro, parada de la energía, sistema que...
Page 14: Safety Symbols Description
övervakade transformatorn och/eller på Hydran M2-X samt leda till egendomsförlust, personskada och/eller livsfara. • Installation och underhåll av Hydran M2-X måste utföras av behörig personal. Råd var god posterar operatören före underhåll. Funktionsduglig insida Hydran M2-X kan starta oönskade parameterändringar för larm tack vare, driver avstängning, systemomstart eller elektrostatisk urladdning.
Page 15: Preface
Hydran* M2-X Instruction Manual Preface This manual provides a complete reference for the Hydran M2-X, which is a unique, continuous, on-line monitor of combustible gases and moisture in dielectric oils. The information in this manual may be used by: • Purchaser or specifier •...
Page 16: Standard Ge Warranty
GE and its direct customer. Specifically, in GE’s terms and conditions “Form EM104 (Global) Grid Solutions 28Oct2015” the warranty periods stated in Clause 5.2 for “Products” shall be replaced by the above statement All other elements of Clause 5.2 and all other elements of “Form EM104 (Global) Grid...
Page 17 Warranty Period. These records shall be kept in the form of log sheets and copies shall be submitted to GE upon its request in connection with a warranty claim by the Buyer. GE does not warrant any products or services of others designated by the Buyer where such products or services are not normally supplied by GE.
Page 18: General Cautions & Warnings
CAUTION Hazardous location (HazLoc) certification pertains to units with part number M2-X-HZ only. The Hydran M2-X carrying the “HZ” designation is certified for use in hazardous locations as identified by the branding on the product casing including the serial number label as shown in Figure 2-1 and Figure 2-2. Once a HazLoc product is in location, do not: •...
Page 19 Figure 2-2: Hazardous location label Note: In the case of a HazLoc certified product, please ignore additional appendices in this document as they relate to a standard Hydran M2-X regarding servicing of parts, and therefore are not applicable for a HazLoc certified product.
Page 20 Hydran* M2-X Instruction Manual Table 2-1 lists other HazLoc relevant materials for the Hydran M2-X / Hydran M2-X H2 that are in contact with oil under normal-use operations. Table 2-1: List of product materials in oil contact Material Description Free Machining Brass This is the constituent material of the sensor body.
Page 21 Hydran* M2-X Instruction Manual 3. Do not touch the membrane located inside the threaded extremity of the sensor with a finger or an object (see Figure 2-4). The membrane is easily impaired; impairing the membrane damages the sensor permanently, thus voiding the warranty. Figure 2-4: Do Not Touch the Sensor’s Membrane with a Finger or an Object 4.
Page 22 Figure 2-6: Do Not Install the Hydran M2-X at an Angle, Vertically or Using an Elbow 6. Do not install the Hydran M2-X on elbows or fitting boxes (see Figure 2-7). Elbows may cause turbulence that can affect the accuracy of gas level readings.
Page 23 Hydran* M2-X Instruction Manual 7. Do not install the Hydran M2-X on the inlet side of the radiator pump (see Figure 2-8). Figure 2-8: Do Not Install the Hydran M2-X on the Inlet Side of the Radiator Pump 8. Do not subject the Hydran M2-X or its sensor to high-pressure water streams (see Figure 2-9).
Page 24 12. Do not separate the Hydran M2-Xs from their respective sensor. The Hydran M2-X is set at the factory for a specific sensor. To verify if the sensor and Hydran M2-X are paired correctly, consult the serial numbers indicated on the shipping box and/or the Test Certificate and Data Sheet (for an example, see Figure 4-12).
Page 25: Introduction To The Hydran M2-X
The Hydran M2-X’s user interface (Figure 3-2) consists of an eight-key membrane keypad and a 128 x 64 pixels, backlit liquid crystal display (LCD) to use the Hydran M2-X as a stand- alone unit. For more information on the user interface, see Chapter 4.
Page 26: Gas Detection
3.1.1 Gas Detection The Hydran M2-X’s sensor is equipped with a gas detector that is sensitive to the four gases that are the primary indicators of incipient faults in oil-filled electrical equipment: • Hydrogen (H •...
Page 27: Optional I/O Interfaces
Any combination is allowed. For more information, see item 3 on page 31. 3.1.4 Possible Configurations The Hydran M2-X can be used in three configurations: • As a stand-alone unit (using its keypad and display, or the Perception software running on a laptop computer).
Page 28: External Components
A very wide temperature range for all-weather outdoor operation. For more details, see Appendix A : Technical Specifications. External Components For detailed information on the dimensions of the Hydran M2-X’s enclosure, see Section A.2.1. Figure 3-3: External Pats of the Hydran M2-X The enclosure is composed of the following parts (see Figure 3-3): 1.
Page 29 5. Membrane vent: Air penetrates through the watertight membrane vent and inside the Hydran M2-X. The gas detector requires air to function properly. 6. Conduit: Up to six watertight, non-conducting conduit fittings can be mounted on the heater plate.
Page 30: Electronic Card Cage
The Hydran M2-X’s user interface (see Figure 3-2) consists of an eight-key membrane keypad and a 128 x 64 pixels, backlit liquid crystal display (LCD) to use the Hydran M2-X as a stand-alone unit. For more information on the user interface, see Chapter 4.
Page 31 Note: Each I/O interface is identified by a label on its connector. Note: When ordered with the Hydran M2-X, optional I/O interfaces are added to the Hydran M2-X at the General Electric’s plant before shipping. To add an I/O interface after the assembly of the Hydran M2-X is completed, see Appendix D : Installing I/O Modules.
Page 32: Left Side - Terminal Blocks
For wiring details, see Appendix C.7. Note: The external ac power supply range is 100-120Vac or 200-240Vac, 50/60 Hz. 3. AC power supply fuse: The Hydran M2-X includes one fuse holder. For the technical specifications, see section 10.2. 4. Alarm contacts terminal block: This terminal block is used to connect the Hydran M2-X’s five SPDT (single pole double throw) alarm relays to a SCADA...
Page 33: Inside
3.3.4.1 Battery The Hydran M2-X’s battery is used to keep the real-time clock functioning and to retain the parameter values and data of the history files when the ac power is not available. For the specifications, see Section 10.3.1; should you need to replace the battery, see Appendix F : Replacing the Battery.
Page 34: Hydran M2-X Sensor
The Hydran M2-X sensor is composed of a permeable-membrane gas detector and a thin-film capacitive humidity sensor. The Hydran M2-X sensor (see Figure 3-7) is made of brass. It consists of the following parts: Figure 3-7: Parts of the Hydran M2-X Sensor...
Page 35: Measurements Performed By The Sensor
Analysis (DGA). The oil sampling procedure is described in Appendix I : Extracting an Oil Sample. 4. 1.5-in NPT male threads: They are used to mount the Hydran M2-X directly on an open-bore valve of a transformer or any other oil-filled electrical equipment. The gas detector and moisture sensor are both mounted inside the sensor’s threaded...
Page 36: Sensor Temperature
Hydran* M2-X Instruction Manual Note: The Hydran M2-X also measures the heater plate temperature using thermistors mounted inside the heater plate; see Section 3.5. 3.4.3 Sensor Temperature For the recommended operating temperature range of the sensor, see the technical specifications in Appendix A. The sensor temperature is controlled by the dynamic oil sampling system of the heater plate (see Section 3.5).
Page 37: User Interface & Software
To access it, remove the cover. Figure 4-1: User Interface The user interface allows the use of the Hydran M2-X as a stand-alone unit. It consists of a 128 x 64 pixels, backlit liquid crystal display (LCD) and an eight-key membrane keypad.
Page 38: Using The Keypad Keys
Hydran* M2-X Instruction Manual Note: It is recommended to use the Perception software rather than the Hydran M2-X’s user interface (keypad and display; see Figure 4-1); Only the analog I/O calibration and communication parameters cannot be accessed with the Perception software. All other parameters and commands can be accessed both with the Hydran M2-X’s user interface and...
Page 39: Operating Modes
– Readings of the optional analog inputs (present only if one or more analog inputs are installed). – List of active alarms. Note: The Hydran M2-X automatically returns to the Main Display mode if the keypad is not used for five minutes. 4.1.2.1 Unacknowledged Alarms Mode Note: Alarms are explained in detail in Chapter 7.
Page 40 Menu context key. Each option of the Main Menu is described in detail in Section 4.3 to Section 4.6. Note: The Hydran M2-X automatically returns to the Main Display mode if the keypad is not used for five minutes. 4.1.2.3 Main Display Mode This mode is displayed automatically if there are no unacknowledged alarms and the keypad is unused for more than five minutes.
Page 41 Hydran* M2-X Instruction Manual In the Main Display mode, the Hydran M2-X displays four screens of messages: • Screen 1 (below) displays gas-related information (for more information, see Section 4.2.8.1): • Gas Level: The gas level in ppm. • Gas Hourly Tr.: The gas hourly trend in ppm/x hours.
Page 42: Changing The Value Of A Parameter
Hydran* M2-X Instruction Manual Figure 4-6: Screen 3 of Main Display Mode - Analog Input Readings Screen Note: The readings of screens 1, 2 and 3 can also be accessed in View Readings > Current Readings (see Section 4.4.1). • Screen 4 (see below) displays the list of active alarms. Alarm conditions are listed in this screen only if an alarm occurred, if it was acknowledged and if the alarm condition is still present.
Page 43 Hydran* M2-X Instruction Manual Figure 4-8: Typical Screen for Changing Numeric Parameters • For alphanumeric parameters, a screen similar to the one shown in Figure 4-9 is displayed. This screen indicates the following information: • Current Value: Current expression of this parameter. •...
Page 44: Scrolling Indicators
If the word Change is not displayed, this item cannot be changed. 4.1.4 Scrolling Indicators The Hydran M2-X’s display can show up to seven lines of text at a time; if a screen contains more lines, scrolling indicators are displayed in the bottom right corner: •...
Page 45: Passwords
4.1.5 Passwords The Hydran M2-X’s user interface is protected by two passwords. A password is required to modify parameters: • Password No. 1 (first level): The password No. 1 is 1253. It gives access to most variable adjustment functions.
Page 46: Date & Time
Hydran* M2-X Instruction Manual 4.2.2 Date & Time The Date & Time function is used to change the date and time of the Hydran M2-X. The internal clock (see Section 3.3.4.2) provides the date and time unless the battery (see Section 3.3.4.1) is disconnected.
Page 47: History Setup
• The thermistors in the heater plate. This function is used only for service purposes. Misuse of this CAUTION function will render the Hydran M2-X inoperative. 4.2.6 History Setup The History Setup function is used to: • Set the logging rate parameters of the Short Term and Long Term history files.
Page 48: Comm Setup
• Monitor ID: Hydran M2-X’s identification number, ranging from 1 to 254. An exclusive identification number must be assigned to each Hydran M2-X in a local network. If two Hydran M2-Xs share the same number in a local network, they will not be able to communicate properly with the Perception software.
Page 49 Hydran M2-X Monitor ID Parameter Reserved T1AS a. At least one Hydran M2-X in a local network must be set to an identification number between 1 and 5 (inclusively). Table 4-3: Setting Example for Identification Numbers Both identification numbers must be identical to those assigned to the same Hydran M2- Xs and power station in the Perception software.
Page 50: Readings Setup
Modem Dial String: When an alarm condition is detected and the Call on Alarm mode is selected, the Hydran M2-X will send the Modem Dial String to the modem. The default string sent is: ATDS0. For information on how to change an alphanumeric parameter, see Section 4.1.3.
Page 51: I/O Setup
Hydran* M2-X Instruction Manual 4.2.8.1 Gas Reading Setup • Daily Tr. Period: Period of the daily trend (number of days used to calculate the gas daily trend). Increasing the period decreases the normal fluctuations of the readings, but increases the response time. •...
Page 52 The An. Output Setup function is used to set up the optional analog output signal. • Analog State: Displays the state of the Hydran M2-X’s analog output as a percentage of the maximum electric current. The analog output provides the gas level being measured;...
Page 53: Alarms Menu
Each displayed screen corresponds to one alarm condition. If two or more alarm conditions are present, the Hydran M2-X scrolls through the screens, each one being displayed for five seconds. A screen example is shown below.
Page 54: Alarms Setup
Hydran* M2-X Instruction Manual Each screen contains the following information: • The name of the parameter responsible for the alarm. • Alarm Status: The status of this alarm, which can be Not ack., On or Off. • Alarm SP: The set point of this alarm. •...
Page 55 Temp. Alarm in Section 4.3.2.3. Note: Each alarm of the Hydran M2-X can be assigned to any one of the four relays (1 to 4). More than one alarm can be assigned to a same relay. Appendix H presents the list of all alarm messages that can appear in the Perception software.
Page 56 Hydran* M2-X Instruction Manual – Alarm Delay: Alarm delay for both set points. T his delay is calculated using parameter %RH Average in Setup > Reading Setup > H2O Reading Setup; see Section 4.2.8.2. – Alarm Hi Relay: Relay activated when a relative humidity average High alarm condition is detected.
Page 57 Note: Appendix H presents the list of all alarm messages that can appear in the Perception software. For explanations pertaining to the Hydran M2-X’s battery, see Section 3.3.4.1; for the battery specifications, see Section 10.3.1; to replace the battery, see Appendix F.
Page 58: Alarm History
Hydran* M2-X Instruction Manual • Alarm Low-Low SP: Set point of the Low-Low alarm condition. • Alarm Low SP: Set point of the Low alarm condition. • Alarm Hi SP: Set point of the High alarm condition. • Alarm Hi-Hi SP: Set point of the High-High alarm condition. •...
Page 59: View History Data
O Cell mV: Voltage of the electrical signal currently sent by the moisture sensor. 4.4.2 View History Data The Hydran M2-X has an internal function that automatically records information such as gas and moisture levels, trend values, alarm messages and setup parameters. This information is stored in four sections, which are collectively referred to as history files.
Page 60 Hydran* M2-X Instruction Manual 4.4.2.1 Short Term History The Short Term History function gives access to the Short Term history file. From 1 to 360 minutes (adjustable; see parameter Short Term Rate in Setup > History Setup > History Log Rate [see Section 4.2.6.1]), the date and time plus several values are logged in this file.
Page 61 The Service History function gives access to the Service history file. The Hydran M2-X performs a self test of its sensor on the first and fifteenth days of each month at midnight (fixed logging rate, non adjustable). After each test, the date and time of the test plus several variables are recorded in the Service history file.
Page 62: Date & Time
Hydran* M2-X Instruction Manual 4.4.3 Date & Time This function is identical to the one in Setup > Date & Time. See Section 4.2.2. Test Menu 4.5.1 Sensor Test The Sensor Test function is an internal diagnostic test that is initiated automatically for approximately 5 seconds, twice per month (on the 1st and 15th) to characterise the sensor performance.
Page 63: Relay Test
Test Certificate and Data Sheet (for an example, see Figure 4-12) supplied with the Hydran M2-X. These options do not allow you to modify the displayed values. To change the values, use Install New Sensor (see Section 4.6.2).
Page 64 O Param CkSum: Checksum of the above values. This value is added to the list to avoid erroneous values from being entered. Note: The Hydran M2-X uses the proven technology of the Hydran M2-X sensor. For a complete description, see Section 3.4.
Page 65: Install New Sensor
Hydran* M2-X Instruction Manual Figure 4-12: Test Certificate 4.6.2 Install New Sensor 4.6.2.1 New Gas Sensor This function is very similar to Gas Sensor Param (see Section 4.6.1.1), except that New Gas Sensor allows to change the values of the gas sensor parameters. Enter the new value of each parameter and press the Change context key.
Page 66: Sensor Test
4.5.1). 4.6.4 View Service Data This function is used to read the value of internal parameters used by the General Electric personnel during the Hydran M2-X maintenance or troubleshooting procedures. 4.6.5 System Config 4.6.5.1 Current Config • Comm#1: There is no device currently connected to the communication port #1 of the controller board.
Page 67: Service History
This function is identical to View Readings > View History Data > Service Hist. (see Section 4.4.2.4). 4.6.7 Software Version • HM2-X Version: Version number of the Hydran M2-X software • Sensor Card#1: Version number of the sensor card 1 software • Sensor Card#2: Version number of the sensor card 2 software •...
Page 68: Verification, Installation & Configuration
Note: Keep the packing material for storage or further shipment of the Hydran M2-X. 5.1.2 Shipping List This Section lists all items included in the shipment of a Hydran M2-X. If any item is missing, contact the General Electric Customer Service (the coordinates can be found at the bottom of page 2).
Page 69: Inspection
• Serial number of the Hydran M2-X (located on the heater plate). Note: Each Hydran M2-X is configured for a specific sensor. If several Hydran M2-Xs are received, take the necessary precautions not to swap the sensors and Hydran M2-Xs.
Page 70: Storage
Hydran* M2-X Instruction Manual 5.1.4 Storage If the Hydran M2-X is to be stored (or unpowered), it is recommended to keep the product in its original shipping box. The plastic cap must be left on the adaptor to protect its threads and the membrane. The product can be stored (or unpowered) for up to six months in a fully enclosed building that is free from damp and extremes in ambient temperature.
Page 71: Setting The Date And Time
• Try each arrow key and verify if the “cursor” moves in the corresponding direction. 10. Make a shadow over the Hydran M2-X’s display and verify the backlighting is functioning. The display should be readable under all ambient lighting conditions.
Page 72: Verifying The State Of The Gas Detector
1. Access Service > Sensor Test > H2 Sensor Test and press Enter. 2. Press Ok to start the test. 3. Wait for a few seconds; the Hydran M2-X’s display should indicate the message Good. If another message is displayed, see Section 9.1.
Page 73: Verifying The Standard Tdm Signal (If Used)
Hydran* M2-X Instruction Manual • The NC contacts of relays #1 to #4 are closed. • The NO contact of the system fault relay is closed. • The NC contact of the system fault relay is still open. 6. If necessary, set parameters Relay #1 Mode to Relay #4 Mode and SysOK Relay Mode to their initial mode.
Page 74: Verifying The Analog Output(S) (If Used)
5.2.10 Verifying the RS-232 Communications (If Used) This verification procedure requires Perception software. 1. With the supplied RS-232 cable, connect the Hydran M2-X to a laptop computer through their DB-9 connector. 2. Access Setup > Comm Setup > Identification.
Page 75: Conclusion
5.3.1 Overview The Hydran M2-X is installed on a single transformer valve. The valve should have no internal restrictions, recommended to be installed full-bore gate valve or ball valve. GE recommends that all cables carrying; Power, Communications, analogue inputs and outputs, be run in either rigid steel conduit or flexible steel liquid tight armored conduit.
Page 76: Tools And Materials Required
5.3.2 Tools and Materials Required In addition to the supplied tools and accessories (see the shipping list in Section 5.1.2), you will need the following ones to install the Hydran M2-X (see Figure 5-2): • 3-mm (1/8-in) flat-blade screwdriver. • #2 Phillips screw driver.
Page 77 Our tests have indicated that if a 1-in pipe is used to install the Hydran M2-X to a distance exceeding 63 mm (2.5 in), the pipe may break under certain conditions.
Page 78 Setup > Temp. Setup; see Section 4.2.4) of the sensor to 45 °C (113 °F). 5.3.3.3 Typical Locations Figure 5-1 illustrates some typical valve locations to install the Hydran M2-X. These locations vary between transformers, but there are some valve locations on a transformer where the oil circulation is much better due to the nature of a transformer’s operation.
Page 79 It allows for easy access for installation and taking oil samples directly from the Hydran M2-X. Note: If a pump is part of the cooling system, it is recommended that the Hydran M2-X be installed on the discharge side of the pump.
Page 80: Verifying The Serial Numbers
Hydran* M2-X Instruction Manual 5.3.4 Verifying the Serial Numbers Ensure step 5 on page 69 has been performed. SUPPLIED WITH THE HYDRAN M2-X 3/16-in Hex Key with 9-in 1/16-in and 5-32-in standard Spanner wrench Blade & Cushion Grip T- Hex (Allen) L-Keys...
Page 81: Preparing The Valve
5.3.6 Separating the Sensor from the Hydran M2-X Separate the sensor from the Hydran M2-X. Proceed as follows (see Figure below): 1. Remove the set screw (arrow 1 on Figure 5-3 that secures the Hydran M2-X and its sensor together.
Page 82 3. Carefully pull out sensor. Oil on sensor CAUTION Sensor cable Figure 5-3: Separating the Sensor from the Hydran M2-X 2. Remove the sensor clamp using the spanner wrench. 3. Carefully pull the sensor a few centimeters from the enclosure. CAUTION A cable connects the sensor to the electronic card cage.
Page 83: Installing The Sensor Onto The Valve
Hydran* M2-X Instruction Manual 1. Rotate sensor connector anti-clockwise (approximately 1/8 turn). 2. Pull connector from sensor. Figure 5-4: Disconnecting the Sensor Cable 6. Inspect the membrane inside the sensor by looking at it; its surface must be flat, without cut or tear (a small curl is normal). 7.
Page 84 Hydran* M2-X Instruction Manual 3. Screw the adaptor onto the valve and tighten it using an adjustable wrench. CAUTION Never use a wrench with jagged jaws. 4. Wrap PTFE tape on the sensor’s threads. See Figure 5-5. CAUTION Use only PTFE tape to seal the sensor’s threads. Wrap at least four to five layers of tape around the threads.
Page 85 Hydran* M2-X Instruction Manual 1. Install clamp around sensor. 2. Install sensor on valve. 3. Tighten using adjustable wrench. Figure 5-6: Mount the Sensor Manually onto the Valve and Tighten it, Using an Adjustable Wrench 7. Screw the sensor manually onto the valve. 8.
Page 86: Opening The Valve And Purging Air From The Sensor
Hydran* M2-X Instruction Manual Bleed screw must be on top, at the “12 o’clock” position when sensor is installed horizontally. O-ring Figure 5-7: The Bleed Screw Must Be on Top, at the 12 O’clock Position 5.3.8 Opening the Valve and Purging Air from the Sensor Perform this step according to company regulations.
Page 87: Installing The Hydran M2-X On The Sensor
Hydran* M2-X Instruction Manual Note: Prior to installing the Hydran M2-X onto the transformer valve, it is recommended to drain approximately 2-4 liters of oil from the valve. This clears any contaminants and moisture that may have accumulated inside the transformer valve.
Page 88: Grounding The Hydran M2-X Enclosure
6. Tighten the set screw using the 1/16-in Allen key. 5.3.10 Grounding the Hydran M2-X Enclosure 1. Connect a ground wire to the Hydran M2-X’s external ground lug (see Figure 5-10 ), using a 10-6 AWG copper wire. 2. Ground the other end of this cable by connecting it to the transformer ground grid.
Page 89: Installing The Cable Conduits And Gland Fittings
• Using flexible steel armoured conduit makes it easier during installation and servicing of the Hydran M2-X. • All terminating connecting gland fittings to the Hydran M2-X must be liquid tight or at a minimum have an IP56 rating, with locknuts and sealing gaskets.
Page 90 Alarm contacts cable (connected to a SCADA system) – • Hydran M2-X’s right side: Input cable of the RS-485 link (connected to another Hydran M2-X). – Output cable of the RS-485 link (connected to another Hydran M2-X or to a – Hydran controller). Page 90 MA-029...
Page 91 Figure 5-12: Installing Cable Conduits WARNING Failure to use GE recommended style of cable conduit and connecting gland fitting, plus their associated installation requirements, will void all product warranty should the Hydran unit become damaged from external elements such as Water Ingress via cables...
Page 92: Installing The Cables
For installation of the RS-485 network link cable, see Section 6.2.1. 5.3.12.2 Alarm Cable (if Used) Proceed as follows: 1. Run the alarm cable through a conduit, from the Hydran M2-X to the SCADA or annunciator system. 2. Verify all wires are identified at both ends.
Page 93 Hydran* M2-X Instruction Manual 5.3.12.4 Analog Input Cable (if Used) Proceed as follows: 1. Run the cable through a conduit, from the Hydran M2-X to the sensor that supplies the analog signal. 2. Verify all wires are identified at both ends.
Page 94: Verifying The Hydran M2-X Operation
Hydran* M2-X Instruction Manual Note: Fuses or an external circuit breaker must be installed and duly identified near the Hydran M2-X, in accordance with the IEC* 947-1 and 947-3 standards, the local building codes or the current edition of the National Electrical Code.
Page 95: Setting The Date And Time
4. Erase the content of the history files by selecting each option and pressing Ok. 5.4.3 Setting the Alarm Parameters 1. Wait at least 30 minutes after powering up the Hydran M2-X or until the gas and moisture levels read by the Hydran M2-X are stable.
Page 96: Setting The Dynamic Oil Sampling System Parameters
5.4.7 Configuring the Analog Input(s) (If Used) 1. Access Service > System Config > Current Config. Verify that the displayed list corresponds to the Hydran M2-X configuration. If not, access Service > System Config > Detected Config; the Hydran M2-X detects the installed configuration.
Page 97: Verifying The Sensor
5.4.9 Verifying the Sensor 1. Access Service > Sensor Test (see Section 4.5.1). 2. Press Ok to start the test. After a few seconds, the Hydran M2-X’s display should show message Testing Success. If another message is displayed, see Section 9.1.
Page 98: Resetting The Hourly Trend, Daily Trend And Period B
1. Access Setup > Comm Setup (see Section 4.2.7.2). 2. Disconnect the RS-232 link from the Hydran M2-X’s DB-9 connector. 3. Put the Hydran M2-X’s cover back in place (see Figure 5-13). Ensure the gasket is properly positioned between the heater plate and the cover.
Page 99 Hydran* M2-X Instruction Manual • Put cover back in place. • Insert the four (4) screws with flat washers and split lock washers. Using supplied Hex key tool, tighten the screws one by one in an diagonal pattern, ensuring to only tighten each bolt a third at a time. CAUTION Gasket must be properly in place...
Page 100: Commissioning
Commissioning 1. Wait at least two hours for the Hydran M2-X to stabilize. 2. To verify the reading accuracy of the Hydran M2-X, compare the reading(s) with a recent dissolved gas analysis (DGA). 3. Log the following information and keep it in a safe place: •...
Page 101: Communications & Networking
Hydran* M2-X Instruction Manual COMMUNICATIONS & NETWORKING The Hydran M2-X can be used as a stand-alone unit or within a network of up to 32 Hydran M2-Xs. Both configurations can be connected locally to a laptop computer, or remotely to the host computer through a modem or Ethernet (via copper wires or fiber optic).
Page 102: Local Communications With A Laptop Computer
Perception software. 6.1.2.1 Communications Modes When using a modem, each Hydran M2-X in the network can be set to one of the following modes: Call on Alarm and Answer Only. For more information, see parameter Comm Mode in Setup >...
Page 103: Remote Ethernet Communications With A Host Computer (Via Copper Wires Or Fibre Optic)
(see Figure 6-3 below) running the Perception software. To do this, one Hydran M2-X in the daisy chain must be linked to the host computer using an Ethernet cable to the Ethernet port, or a fiber optic cable to the fiber optic port.
Page 104: Installing A Network
Note: For information on the recommended type of cable and for wiring details, see Appendix C.1. Proceed as follows: 1. Run the RS-485 cables through a conduit, from one Hydran M2-X to the next, to form a daisy chain. Note: For notes and procedures regarding conduits, see Section 5.3.11. The total maximum length for all RS-485 cables in a network is 1,200 m (4,000 ft).
Page 105: Configuring The Hydran M2-X's Communication Parameters
6.2.3.1 Connecting a Laptop Computer Proceed as follows: 1. Remove the Hydran M2-X cover. Any Hydran M2-X in the network can be connected to a laptop computer. 2. Connect the supplied RS-232 cable to the Hydran M2-X’s DB-9 connector (located on the right side of the electronic card cage).
Page 106: Connecting A Hydran M2-X To The Hydran 201I Controller
ID and baud rate. Confirm good communications in the Relays/Analog window of the Perception software, change the Relay Mode of each relay from Force Off to Force On and back; this should toggle the state of the Hydran M2-X’s alarm relays.
Page 107 4. Connect the other end of the cable to the Hydran 201Ci Controller. For wiring details, see the Hydran 201i System Instruction Manual. The Hydran M2-X’s operation may be affected if wires are not CAUTION connected correctly. Be careful when installing and inserting each wire.
Page 108: Alarms
Hydran* M2-X Instruction Manual ALARMS This Chapter explains in detail the alarm features of the Hydran M2-X from an operator’s point of view. The Hydran M2-X is a microprocessor-based instrument with sophisticated alarm features. Note: Appendix H presents the list of all alarm messages that can appear in the Perception software.
Page 109: Alarm Conditions
Either one of the following cables (or connectors in the connection link): sensor, sensor thermistor or heater plate thermistor. 7.1.4 Alarm Interface The alarm interface between the Hydran M2-X and the user can take different forms. When an alarm is triggered, the following actions are generated: MA-029 Rev.
Page 110: Gas And Moisture Alarm Conditions
Hydran* M2-X Instruction Manual 1. An alarm message flashes on the Hydran M2-X’s display. For the list of all alarm messages that can be displayed by the Hydran M2-X, see Appendix H. For details on the display of alarm messages, see Section 4.1.2.1.
Page 111: High And High-High Conditions
1 to 100 days. The daily trend is updated every five minutes. • Moisture sources: − Relative humidity (%RH) level: This value is measured by the Hydran M2-X moisture sensor. − Relative humidity (%RH) hourly average: This value is calculated based on the relative humidity calculations made during a period of time ranging from 1 to 170 hours.
Page 112: Setting The High Alarm Condition
Before setting the gas or moisture level High alarm condition, the gas and moisture level readings should be monitored over a minimum period of two weeks. A simple method to monitor this value is to consult the Hydran M2-X’s history files using its keypad (see Section 4.4.2).
Page 113: Gas Hourly And Daily Trend Alarm Conditions
Hydran* M2-X Instruction Manual Table 7-2: Suggested Guidelines for Setting the Gas Level High Alarm Condition 7.2.5 Gas Hourly and Daily Trend Alarm Conditions 7.2.5.1 Purpose of Gas Hourly and Daily Trends Detection of hourly and daily trend alarm conditions is a unique feature of the Hydran M2-X that provides early warning of slowly increasing gas levels.
Page 114 Table 7-4: Evolution of the Gas Daily Trend Note the following points: • If the Hydran M2-X undergoes a power failure that lasts less than 1/6 of the trend period, the corresponding trend reading remains unchanged when the Hydran M2-X is powered up again.
Page 115: System Fault Conditions
10 to 20 % of the period. System Fault Conditions An alarm due to system fault conditions warns the operator that the Hydran M2-X is not functioning properly. Such an alarm must therefore be verified and solved rapidly because it indicates that the monitoring system (the Hydran M2-X) of the transformer is faulty.
Page 116 Hydran* M2-X Instruction Manual • Display a message on the Hydran M2-X screen. The alarm message is displayed only if the corresponding alarm set point is adjusted to a value; if not, it is set to Off. • Trigger the relay for the alarm due to the system fault condition, if the corresponding system fault trigger is turned On in Alarms >...
Page 117 Hydran* M2-X Instruction Manual 7.3.2.2 Base Plate Temperature Alarm Conditions The parameters pertaining to these alarm conditions are presented in Table 7-6 below. The heater plate temperature is measured using two thermistors in the heater plate. Priority Alarm Set Point Fault Trigger Description Low-Low base plate...
Page 118: Alarm Cancellation
Table 7-8: Sensor Operation and Connections Alarm Conditions Alarm Cancellation Proceed as follows: 1. Find and solve the problem. For gas alarm conditions, the Hydran M2-X’s reading generally must be verified by sampling the transformer’s oil and performing a dissolved gas analysis (DGA).
Page 119: Alarm Contacts
Hydran* M2-X Instruction Manual • Relay 4 to moisture High-High alarm conditions • Relay 5 to system fault conditions (this relay cannot be reassigned) Note: Several conditions can be assigned to one alarm relay. 7.5.1 Alarm Contacts Each relay has: •...
Page 120: Operation Modes Of The Alarm Relays
• Latch • Force On • Force Off The Hydran M2-X’s five alarm relays are independent. A relay can therefore be set to any operation mode regardless of the mode of the other relays. 7.5.3.1 Normal Mode In this mode, the relay state changes if an alarm condition is detected for a period of time exceeding the corresponding alarm delay;...
Page 121 Hydran* M2-X Instruction Manual • Alarm relays 1 to 4 are energized when an alarm condition is detected. • The system fault relay 5, however, is de-energized when an alarm condition is detected. The system fault relay is thus energized (NO contacts closed and NC contacts open) if there is no alarm condition.
Page 122: Operation
Operating Methods The Hydran M2-X can be operated using several methods. Each of these methods is explained in the following pages, from the simplest to the most powerful one: • Periodic, visual monitoring (see Section 8.1.1) •...
Page 123: Analog Outputs Monitoring
• Connecting the Hydran M2-X’s optional analog outputs to a SCADA system. The Hydran M2-X has analog outputs that allow you to monitor the gas and moisture level evolution.
Page 124: Combined Alarm And Analog Outputs Monitoring
• Accessing the Hydran M2-X is still required to modify operation parameters. • The amount of cabling required is high. For each Hydran M2-X, a minimum of seven pairs of wires is required to connect the analog outputs and the four sets of alarm contacts.
Page 125: Remote Monitoring With A Host Computer
8.2.1 Direct Data Reading Data can be read directly as follows: • With the Hydran M2-X: Its user interface includes a keypad and a display. For details, see Chapter 4. • With the Perception software: A host computer running the Perception software remains the easiest way to read data.
Page 126: History Files Data Reading
History files can be read as follows: • With the Hydran M2-X: Simply access the History submenu with the Hydran M2-X’s keypad. For details, see Section 4.4.2. • With the Perception software: The Hydran M2-X’s history files can be accessed easily using the Perception software.
Page 127: Troubleshooting
The following useful references help to understand the instructions given in this Chapter: • Alarms operation (see Chapter 7). • Display of Hydran M2-X’s alarm messages (see Section 4.1.2.1). Alarm Messages that can be Displayed due to System Fault Conditions Appendix H presents the list of all alarm messages that can be displayed by the Hydran M2-X.
Page 128: Temp Hi Alarm
Hydran* M2-X Instruction Manual • Parameter(s) involved: Batt. L; SysOK Relay;FaultTrig. submenu; see Section 4.2.3. Batt.Alr L (alarm set point); Service;VoltPile submenu; see Section 4.3.2.4. BattAlr Delay; Service;VoltPile submenu; see Section 4.3.2.4. • Alarm cause(s): Battery voltage below the Alarm Low SP alarm set point. Replace the battery within the next nine months.
Page 129: Gas C.open Alarm
2. Locate the corresponding cable and connectors in the Hydran M2-X (see Section 3.3). 3. Verify thoroughly the chain of connections for this cable, including the connectors. 4. Once the problem is fixed, perform another sensor test to reset the Hydran M2-X and cancel the alarm.
Page 130: Gas Sens. Bad Alarm
Replace the sensor as soon as possible. Note: The Hydran M2-X’s sensor is verified twice a month (the first and fifteenth days of the month at midnight); the relevant parameters are recorded in the Service history file. This test can also be performed manually using the Force Sensor Test command (in the Service submenu), but no results are recorded.
Page 131: Temp C. Open Alarm
TempoAlr Delay; Temperature submenu; see Section 4.3.2.1. • Alarm cause(s): Temperature of the sensor below the Alarm Lo-Lo SP alarm set point The sensor sensitivity is very low; repair the Hydran M2-X’s dynamic oil sampling system. 9.1.12 S. Temp Hi Alarm •...
Page 132: And Rs-485 Communications
Proceed as follows: 1. The oil is probably too hot at the location where the sensor is installed; install the Hydran M2-X at another location on the transformer tank, preferably at the bottom. For details on typical installations, see Section 5.3.1.
Page 133: No Communication When The Host Or Laptop Computer Is Connected
Perception software. 3. Ensure the H201Ti ID and PowerStat. ID parameters (identification numbers of the Hydran M2-X and the power station; Communication submenu) of all Hydran M2-Xs connected to the H201Ci Controller are identical to the ones indicated in the Perception software.
Page 134: Hydran M2-X And Hydran 201Ci Controller's Analog Outputs At Zero
M2-X’s display to identify the cause of the alarm. Then see Section 9.1. 2. Verify the fuses and power supply of the H201Ci Controller and the Hydran M2-X. 3. Verify the connections of the TDM signal at both ends of the cable.
Page 135: Alarms
Hydran* M2-X Instruction Manual Alarms 9.4.1 Intermittent Gas Alarms 1. Alarm set points are too low. Consult the Hydran M2-X’s Short Term and Long Term history files, and compare the set points with the variations of gas level, hourly trend and daily trend.
Page 136: Inaccurate Gas Readings
1. Verify the transformer’s level of fault gases-in-oil immediately by performing a dissolved gas analysis (DGA; see Section 10.4.2. 2. Ensure the valve (on which the Hydran M2-X is installed) is fully open. 3. Confirm the valve type is acceptable (full bore, gate or ball, no restriction between valve and tank).
Page 137: Moisture Readings Remain At 0
9.4.6 Moisture Readings Remain at 0% Probable causes: 1. If there is no display (see Figure 4-1), the 24-Vdc power supply of the Hydran M2-X has failed. Verify the wiring at both ends of the dc power supply cable. 2. The analog output cable is disconnected or broken.
Page 138: Maintenance
Do not use cleaning agents or chemicals, as they may damage CAUTION the plastic parts or lettering. 10.2 Replacing the Fuse In case the fuse of the Hydran M2-X has blown off, remove the fuse holder and replace the fuse. Page 138 MA-029...
Page 139: Replacing The Battery
WARNING service personnel only. Refer to Appendix F for the procedure. 10.3.1 Battery Specification For Hydran M2-X units built as from 2013 (S/N: 13xxxxxxxx), the battery specifications are the following: • GE part number: 18670. • Battery size and type: 1/2AA, Lithium 3.6 V, 1.2 Ah.
Page 140: Battery Life
The shelf life of the battery in the Hydran M2-X is 2.5 years when the unit is stored at 25 °C (77 °F). If the Hydran M2-X has been stored for more than one year, it is strongly recommended to replace the battery before installation and powering-up.
Page 141: History Files Verification
Verification of sensor (see Section 10.5.6) Table 10-1: Maintenance Routines and their Frequency a. The Hydran M2-X sensor is tested automatically twice a month, and the results are stored in the Service history file. 10.4.1 History Files Verification Frequency: Annually or on alarm In addition to the annual or on-alarm verification, the user must also read and save regularly the Hydran M2-X’s history files, using the Perception software.
Page 142: Dissolved Gas Analysis (Dga)
• Nitrogen (N • Oxygen (O The Hydran M2-X gives a composite reading of the first four gases in the above list, in other words the gases generated by transformer incipient faults. This reading can be compared to the DGA results using the following formula:...
Page 143: Maintenance Verification
Reading Monoxide (CO) (ppm) 1,000 Table 10-2: Gas Reading Comparisons Between DGA and Hydran M2-X 10.5 Maintenance Verification Frequency: Annually or on alarm due to system fault conditions. Please advise the station operator prior to maintenance. Working inside the Hydran M2-X may trigger unwanted alarms...
Page 144: Heater, Display And Keypad Verification
10.5.2 Heater, Display and Keypad Verification 1. Touch the heater plate. If warm, this indicates that the Hydran M2-X is being heated to maintain the temperature of the sensor close to the corresponding set point. 2. Ensure the Hydran M2-X is in Main Display mode. For details, see Section 4.1.2.3.
Page 145: Analog Outputs Verification (If Connected)
Note: Skip this step if a laptop is used for the present verification process. 10.5.9 RS-485 Communications Verification (for a Network) If the Hydran M2-X is not polled regularly or if the last monitoring indicates that one or more units do not answer, follow the procedure described in Section 6.2.3.3.
Page 146: Decommissioning The Hydran M2-X
The decommissioning of the Hydran M2-X must be executed by trained service personnel only. 1. Switch OFF the circuit breaker to which the power cable of the Hydran M2-X unit is connected. 2. Verify, with a voltmeter, there is no AC or DC voltage on the power cable.
Page 147: Removing The Hydran M2-X
Use a bucket to collect oil. 2. Close the valve to which the Hydran M2-X is mounted. 3. Remove the sensor clamp using the spanner wrench. Refer to Figure 5-3. 4. Carefully separate the sensor from the enclosure. Put aside the electronic enclosure.
Page 148: Appendix A : Technical Specifications
Hydran* M2-X Instruction Manual Appendix A : Technical Specifications General GENERAL Description Continuous, on-line, intelligent gas-in-oil moisture transmitter with optional, external sensors monitoring Components Combined dual-function sensor and electronic enclosure Response Hydrogen (H ), carbon monoxide (CO), acetylene (C ), ethylene ), relative humidity in oil (%RH) Medium Mineral, insulating oil for transformers Application Transformer monitoring, moisture level measurement (for the...
Page 149 2000ppm the device continues to provide trending to 5000ppm, but potentially outside the published accuracy specification. This is because the Hydran M2-X H2 calibration and performance is optimised and tested in the factory in the key range of concentrations for Transformer diagnostics.
Page 150 Hydran* M2-X Instruction Manual Relay contact maximum operating current: • Resistive load: 3 A (ac/dc) Communications • One RS-232 port for local laptop computer connection Ports • One RS-485 port for connection to local Hydran network or remote communication Optional 1 of the following to be specified when ordering: Communications •...
Page 151 Hydran* M2-X Instruction Manual • Note: for units designated as Class I Div II Hazardous Locations working oil pressure 2 bar absolute (1 bar gauge) Power Supply • 100-120 Vac, 200-240 Vac, 50/60 Hz, 650 VA maximum Meets standards EN 55022, IEC/EN 60255-22-1, IEC/EN 61000-3-2, Compatibility IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-1...
Page 152: Dimensions
Hydran* M2-X Instruction Manual Dimensions A.2.1 Enclosure Dimensions Figure A - 1: Dimensions of the Hydran M2-X Enclosure Front View Page 152 MA-029 Rev. 3.0, 29-Jun-23...
Page 153 Hydran* M2-X Instruction Manual Figure A - 2: Dimensions of the Hydran M2-X Enclosure - Top View Figure A - 3: Bottom Clearance MA-029 Rev. 3.0, 29-Jun-23 Page 153...
Page 154: Optional Adaptors Dimensions
Hydran* M2-X Instruction Manual A.2.2 Optional Adaptors Dimensions Figure A - 4: Dimensions of the 2in NPT Reducing Bushing (Optional: Part Number 16296) Figure A - 5: Dimensions of the 1in to 1.5in Adaptor (Optional; Part Number 16480) Page 154 MA-029 Rev.
Page 155: Maximum Distance
Hydran* M2-X Instruction Manual Figure A - 6: Dimensions of the 1.5in NPT Finned, High Temperature Adapter (Optional; Part Number 16290) A.2.3 Maximum Distance Figure A - 7: Maximum Distance Reference MA-029 Rev. 3.0, 29-Jun-23 Page 155...
Page 156: Appendix B : Functional Block Diagram
Hydran* M2-X Instruction Manual Appendix B : Functional Block Diagram Figure B - 1: Functional Block Diagram of the Hydran M2-X Page 156 MA-029 Rev. 3.0, 29-Jun-23...
Page 157: Appendix C : External Connections
To RS-485 In of From RS-485 other Hydran M2- Out of other Hydran M2-X or Hydran 201Ci Figure C - 1: General Wiring of the RS-485 Terminal Block The RS-485 link requires instrumentation grade or armored cables (shielded triad). MA-029 Rev.
Page 158 The shield at this terminal is internally connected to ground through a spark gap and capacitor. The other end of the cable must be connected to the In terminal of the next Hydran M2-X or to the Hydran 201Ci Controller.
Page 159 Figure C - 2: Wiring Details of the RS-485 between 3 or more Hydran M2-Xs Figure C - 3: Wiring of the Supervisory Link between a Hydran M2-X and a Hydran 201Ci-1 Controller Note: The Hydran 201Ci-1 Controller can only display the gas level measured by the Hydran M2-X, not the moisture level.
Page 160 Hydran* M2-X Instruction Manual Figure C - 4: Wiring of the Supervisory Link between a Hydran M2-X and a Hydran 201Ci-C Controller Note: The Hydran 201Ci-1 Controller can only display the gas level measured by the Hydran M2-X, not the moisture level.
Page 161: Analog Input Terminal Block
Hydran* M2-X Instruction Manual Figure C – 6: Wiring of the RS-485 Network Link between a Hydran M2-X and a serial convertor for communication direct to a laptop (used for serial or set-up applications) Analog Input Terminal Block Table C-2 describes the connections for the analog input terminal block. This terminal block is located on the right side of the electronic card cage (see Figure C-8).
Page 162 Hydran* M2-X Instruction Manual Note: This optional Analog Input board can be installed at any of the four I/O locations. Figure C - 7: General Wiring of the Analog Input Terminal Block Active 2-wire 4-20mA Sensor Figure C - 8: Wiring of Self-Powered, Analog Inputs 2-wire 4-20mA Loop-powered Sensor...
Page 163: Analog Output Terminal Blocks
Hydran* M2-X Instruction Manual Figure C - 10: Wiring of Three-Wire, Loop-Powered, Analog Inputs 3-wire, 4-20mA Loop-powered Sensor Analog Output Terminal Blocks These terminal blocks are located on the right side of the electronic card cage (see Figure C-11). Figure C - 11: General Wiring of the Analog Output Terminal Block Note: This optional Analog Output board can be installed at any of the four I/O locations.
Page 164: Limitations
Hydran* M2-X Instruction Manual “4-20” mA Terminal Description From (External) Comments 4-20 mA = 0-2,000 ppm; Configuration 500-Ω maximum load; 4-20 mA analog input- 2,500V rms isolation 4-20 mA analog input+ SCADA system level; for either ppm gas level. %RH or oil Shield temperature monitoring...
Page 165: Converting Current To Voltage
Hydran* M2-X Instruction Manual Converting Current to Voltage Recording devices with voltage inputs can be converted to current inputs by shunting their input terminals with an appropriate resistor. The resistor value is calculated as follows: Resistor ( ) = 50 x Input voltage range of recording device. For example, a chart recorder with an input range of 1 V uses a 50- (1 %, 1 W) resistor across the recorder input.
Page 166: Alarm Contacts Terminal Block
Alarm Contacts Terminal Block The Hydran M2-X is equipped with five SPDT (single pole double throw) alarm relays. The alarm contacts of these relays are located on the left side of the electronic card cage (see Figure D-15). The connections are described in Table C - 5.
Page 167 Hydran* M2-X Instruction Manual − Five (5) alarm relays − Software configurable − SPDT (Form C) contacts: 1. Normally Open 2. Common 3. Normally closed Figure C - 14: Wiring of the Alarm Contacts Terminal Block The recommended alarm cable has multi-stranded copper*, 600-V multi-conductors, as well as an inner shield, a steel armor and a PVC overall jacket.
Page 168 Hydran* M2-X Instruction Manual To (External) Comments Terminal Relay Description SCADA system, Hydran User-configurable; 201Ci-1 normally assigned to Common gas High alarms User-configurable; normally assigned to Common gas High-High alarms User-configurable; normally assigned to Common moisture High alarms User-configurable; normally assigned to Common moisture High-High alarms...
Page 169: Appendix D : Installing I/O Modules
Note: Installing I/O modules requires only a Phillips screwdriver. Proceed as follows: 1. Remove the four screws holding in place the Hydran M2-X cover and remove this cover. See Figure 5-11: Removing the Hydran M2-X Cover. 2. Remove the four screws holding in place the cover plate of the electronic card cage and remove this plate.
Page 170 10. Put back and tighten the four screws holding in place the cover plate of the electronic card cage. See Figure D-1 to D-3 above. 11. Put back the Hydran M2-X cover. 12. Put back and tighten the four screws holding the cover in place. See Figure 5-11 The hardware installation of the I/O interface(s) is now complete.
Page 171: Appendix E : Upgrading The Embedded Programs (Firmware)
• The sensor interface board program. Both programs can be upgraded locally. The controller board program can also be upgraded, locally only, and one Hydran M2-X at a time, using a program called BootDownloader; proceed as follows: 1. Ensure you have the CB.APP file, which contains the upgrade for the controller board program.
Page 172 • Click Download to start the program upgrade. Figure F - 1: Upgrading the Embedded Program Using BootDownloader.exe 7. The Hydran M2-X now displays the screen below. The HM2-X Downloader for Boot Mode screen now displays status messages in the Status: area as well as...
Page 173 Upgrade Completed in its Status: area. 8. Once the upgrade is completed, the Hydran M2-X reboots automatically and then resumes normal operation. Ensure the upgrade process has been successful by verifying the version number of the controller board program.
Page 174: Appendix F : Replacing The Battery
• View Readings > View History Data To replace the battery, proceed as follows: Note: Step 1 below can be skipped if the Hydran M2-X was never put in service and if the Hydran M2-X’s default parameter values have not been changed.
Page 175 9. Put back in place the cover of the electronic card cage and fasten it using the two screws removed during step 4. 10. Reconnect the Hydran M2-X’s power supply, reinstall the cover and power on the Hydran M2-X. Note: Except for the sensor and calibration parameters, all Hydran M2-X’s parameters are now reset to their hardware default values.
Page 176: Appendix G : History File Messages
Hydran* M2-X Instruction Manual Appendix G : History File Messages This Appendix complements Section 4.4.2. The messages are sorted in alphabetical order: Event Message Description AnalogMode chg Modification of the analog output’s operation mode Batt.Alr Ack Battery voltage alarm has been acknowledged BattAlr L chg Modification of the Low battery voltage alarm’s set point BattAlr L OFF...
Page 177 Gas level Low-Low alarm turned on GasDelay chg Modification of a gas level alarms’ delay H201 ID chg Modification of the Hydran M2-X identification number HistoEvent Clr Events history file has been cleared (erased) HistoLogRate c Modification of the logging rate of the Short Term history...
Page 178 InternalErr 5 Internal error No. 5 NewSensor Installation of a new sensor Period A chg Modification of the Period A parameter Period B chg Modification of the Period B parameter PowerDown Power-down of Hydran M2-X Page 178 MA-029 Rev. 3.0, 29-Jun-23...
Page 179 Setup lost alarm turned off Set-up Lost ON Setup lost alarm turned on Soft WatchDog Reset of Hydran M2-X induced by the software watchdog Sp Span chg Modification of the sensor temperature set point’s range STempAlr Ack Sensor temperature fail alarm has been acknowledged STempAlr H chg Modification of the sensor temperature High alarm’s set point...
Page 180 Calibration of Hydran M2-X TDM Mode chg Modification of the TDM signal’s operating mode Unit in Service Hydran M2-X back in service after the battery was disconnected Watchdog Reset of Hydran M2-X induced by the hardware watchdog Page 180 MA-029...
Page 181: Appendix H : Alarm Messages
Hydran* M2-X Instruction Manual Appendix H : Alarm Messages Table I-1 below presents the list of all alarm messages that can be displayed by the Hydran M2-X and that can appear in the Perception software. Alarm Name Alarm Message on the...
Page 182 Hydran* M2-X Instruction Manual Alarm Name Alarm Message on the Alarm Message in the Hydran M2-X Display Perception Software Base Plate Temperature B.P. Tmp C.Open Alr Base Plate Temp Cable Low-Low Alarm Open Base Plate Temperature B.P. Temp Low Alarm...
Page 183 H2 Sensor Test Bad Now Alarm Sensor Card #1 Comm. S.Card Comm Err Alr Sensor Comm. Failure Error Alarm Table H - 1: Alarm Messages on the Hydran M2-X Display and on the Perception Software MA-029 Rev. 3.0, 29-Jun-23 Page 183...
Page 184: Appendix I : Extracting An Oil Sample
9. Repeat steps 2 to 7 to extract the oil sample. 10. Purge all air bubbles from the syringe. 11. Fill an identification card for this sample. Indicate the relative humidity and temperature readings performed by the Hydran M2-X at the time of extraction. Page 184 MA-029...
Page 185: Appendix J : Unit Conversions
× 100 (�� 1) �� where PPM and PPMs are in weight/weight In Equation 1, RS is measured by the Hydran M2-X. We need to know the PPMs in order to calculate the PPM. MA-029 Rev. 3.0, 29-Jun-23 Page 185...
Page 186 (Equation 3) 273+�� This is the equation used by the Hydran M2-X to convert the RS into PPM, and the resulting PPM value can be read on the display. It is important to note that the value displayed by the Hydran M2-X is accurate only for the new Voltesso 35 oil .
Page 187 Table J - 1: Water Solubility as a Function of the Oil Composition and Temperature Figure J - 1: Water Solubility Curves According to Different Sources The Hydran M2-X measures the relative saturation of water in the oil, which gives the following information: Relative saturation of the oil at the operation temperature •...
Page 188: Appendix K : Address Mapping
Hydran* M2-X Instruction Manual Appendix K : Address Mapping The Appendix contains tables that present the address mapping for the following: • Binary Inputs • Binary Outputs • Analog Inputs • Analog Outputs • Strings • Unicode strings Mapping for Binary Inputs The table below contains the address mapping for the Binary Inputs.
Page 189 Hydran* M2-X Instruction Manual 001D 201D Sensor #1 Hydran Sensor Cable Short Alarm Active F1001 0 (Off) Sensor #1 Hydran Sensor Cable Short Alarm 001E 201E Pending F1006 0 (Acknowledged) 001F 201F Sensor #1 Hydran Sensor Caution Alarm Active F1001 0 (Off) Sensor #1 Hydran Sensor Caution Alarm Alarm 0020...
Page 190 Hydran* M2-X Instruction Manual 0067 2067 An. User Defined #1 Input Fault Alarm Active F1001 0 (Off) 0068 2068 An. User Defined #1 Input Fault Alarm Pending F1006 0 (Acknowledged) 0069 2069 An. User Defined #2 Low-Low Alarm Active F1001 0 (Off) 006A 206A...
Page 191 Hydran* M2-X Instruction Manual OLTC Long Term Temperature Differential Hi-Hi 0096 2096 Alarm Pending F1006 0 (Acknowledged) Number of operations since last Maintenance 0097 2097 Alarm Active F1001 0 (Off) Number of operations since last Maintenance 0098 2098 Alarm Pending F1006 0 (Acknowledged) 0099...
Page 192 Hydran* M2-X Instruction Manual 00D1 20D1 Bearing Gripping in Cooling Bank 1 Alarm Active F1001 0 (Off) 00D2 20D2 Cooling Deficiency in Bank 1 Alarm Pending F1006 0 (Acknowledged) 00D3 20D3 Bearing Gripping in Cooling Bank 1 Alarm Pending F1006 0 (Acknowledged) 00D4 20D4...
Page 193 Hydran* M2-X Instruction Manual 0104 2104 Tank #2 H2O PPM Level Hi-Hi Alarm Pending F1006 0 (Acknowledged) 0105 2105 Tank #2 %RH Hourly Average Hi Alarm Active F1001 0 (Off) 0106 2106 Tank #2 %RH Hourly Average Hi-Hi Alarm Active F1001 0 (Off) 0107...
Page 194 Hydran* M2-X Instruction Manual 0133 2133 Auxiliary #1 Hydran Hourly Trend Hi Alarm Pending F1006 0 (Acknowledged) Auxiliary #1 Hydran Hourly Trend Hi-Hi Alarm 0134 2134 Pending F1006 0 (Acknowledged) 0135 2135 Auxiliary #1 Hydran Daily Trend Hi Alarm Active F1001 0 (Off) 0136...
Page 195 Hydran* M2-X Instruction Manual 0166 2166 Auxiliary #3 %RH Level Hi-Hi Alarm Active F1001 0 (Off) 0167 2167 Auxiliary #3 %RH Level Hi Alarm Pending F1006 0 (Acknowledged) 0168 2168 Auxiliary #3 %RH Level Hi-Hi Alarm Pending F1006 0 (Acknowledged) 0169 2169 Auxiliary #3 H2O PPM Level Hi Alarm Active...
Page 196 Hydran* M2-X Instruction Manual 0193 2193 Sensor #3 Hydran Sensor Temp Input Fault Active F1001 0 (Off) 0194 2194 Sensor #3 Hydran Sensor Temp Low Alarm Pending F1006 0 (Acknowledged) 0195 2195 Sensor #3 Hydran Sensor Temp Hi Alarm Pending F1006 0 (Acknowledged) 0196...
Page 197: Mapping For Binary Outputs
Hydran* M2-X Instruction Manual Mapping for Binary Outputs The following presents the address mapping for the Binary Outputs. The columns contain the following information: • DNP3 Address: DNP3 register address of the variable • Modbus Address: Modbus register address of variable •...
Page 198 Hydran* M2-X Instruction Manual 1023 3023 Sensor #1 Hydran Sensor Caution Alarm Pending Lvl 1 F1006 (Acknowledged) 1025 3025 Sensor #1 Hydran Replace Sensor Now Alarm Pending Lvl 1 F1006 (Acknowledged) 1026 3026 Sensor #1 Hydran Sensor Test Lvl 1 F2001 0 (Off) 1027...
Page 199 Hydran* M2-X Instruction Manual 1077 3077 An. User Defined #1 Hi Alarm Pending Lvl 1 F1006 (Acknowledged) 1078 3078 Analog User defined #1 Hi-Hi Alarm Enabled Lvl 1 F1002 0 (Disabled) 1079 3079 An. User Defined #1 Hi-Hi Alarm Pending Lvl 1 F1006 (Acknowledged)
Page 200 Hydran* M2-X Instruction Manual 10A0 30A0 Winding Hot-Spot Temperature Hi-Hi Alarm Enabled Lvl 1 F1002 1 (Enabled) 10A1 30A1 Winding Hot-Spot Temperature Hi-Hi Alarm Pending Lvl 1 F1006 (Acknowledged) 10A2 30A2 OLTC Short Term Temperature Differential Hi Alarm Pending Lvl 1 F1006 (Acknowledged) 10A3...
Page 201 Hydran* M2-X Instruction Manual 10D2 30D2 Sensor #1 Base Plate Temperature Input Fault Pending Lvl 1 F1006 (Acknowledged) 10D3 30D3 Long Term History Log Point #2 Enabled Lvl 1 F1002 1 (Enabled) 10D4 30D4 Long Term History Log Point #3 Enabled Lvl 1 F1002 1 (Enabled)
Page 202 Hydran* M2-X Instruction Manual 1113 3113 Service Analog User Defined Input #3 F1002 0 (Disabled) 1114 3114 Service Analog User Defined Input #3 Alarm&Relays F1002 0 (Disabled) 1115 3115 Service Analog User Defined Input #4 F1002 0 (Disabled) 1116 3116 Service Analog User Defined Input #4 Alarm&Relays F1002 0 (Disabled)
Page 203 Hydran* M2-X Instruction Manual 1146 3146 Service Historic Max for Highest Winding Hot-Spot Temp. F1002 0 (Disabled) 1147 3147 Service Historic Max for Winding H Hot-Spot Temp. F1002 0 (Disabled) 1148 3148 Service Historic Max for Winding X Hot-Spot Temp. F1002 0 (Disabled) 1149...
Page 204 Hydran* M2-X Instruction Manual 1192 3192 Service Analog User Defined Input #2 RTD Cond. 0 (Disabled) 1193 3193 Service Analog User Defined Input #3 Ext. Cond. F1002 0 (Disabled) 1194 3194 Service Analog User Defined Input #3 RTD Cond. 0 (Disabled) 1195 3195 Service Analog User Defined Input #4 Ext.
Page 205 Hydran* M2-X Instruction Manual 11D0 31D0 Cooling Deficiency in Bank 1 Alarm Pending Lvl 1 F1006 (Acknowledged) 11D1 31D1 Bearing Gripping in Cooling Bank 1 Alarm Pending Lvl 1 F1006 (Acknowledged) 11D2 31D2 Cooling Bank 2 Deficiency Alarm Enabled Lvl 1 F1002 0 (Disabled) 11D3...
Page 206 Hydran* M2-X Instruction Manual 1206 3206 Digital User defined #2 Alarm Enabled Lvl 1 F1002 0 (Disabled) 1207 3207 Dg. User Defined #2 Alarm Pending Lvl 1 F1006 (Acknowledged) 1208 3208 Digital User defined #3 Alarm Enabled Lvl 1 F1002 0 (Disabled) 1209 3209...
Page 207 Hydran* M2-X Instruction Manual 124D 324D Service Tank #2 %RH Level Hr. Avg. Alarm&Relays F1002 0 (Disabled) 124E 324E Service Tank #2 H2O PPM Level Hr. Avg. Alarm&Relays F1002 0 (Disabled) 124F 324F Service Tank #2 %RH Adv. Model F1002 0 (Disabled) 1250 3250...
Page 208 Hydran* M2-X Instruction Manual 1282 3282 Service Auxiliary #3 %RH Level Alarm&Relays F1002 0 (Disabled) 1283 3283 Service Auxiliary #3 H2O PPM Level Alarm&Relays F1002 0 (Disabled) 1285 3285 Service Sensor #2 F1002 0 (Disabled) 1286 3286 Service Sensor #2 Hydran Level F1002 0 (Disabled) 1287...
Page 209 Hydran* M2-X Instruction Manual 12B6 32B6 Service Sensor #4 Base Plate Temp. F1002 0 (Disabled) 12B7 32B7 Service Sensor #4 Base Plate Temp. Modulation F1002 0 (Disabled) 12B8 32B8 Service Sensor #4 Base Plate Temp. Alarm&Relays F1002 0 (Disabled) 12B9 32B9 Service Sensor #4 Hydran Sensor Temp.
Page 210 Hydran* M2-X Instruction Manual 12EF 32EF Tank #2 %RH Level Hi-Hi Alarm Pending Lvl 1 F1006 (Acknowledged) 12F0 32F0 Tank #2 H2O PPM Level Hi Alarm Pending Lvl 1 F1006 (Acknowledged) 12F1 32F1 Tank #2 H2O PPM Level Hi-Hi Alarm Pending Lvl 1 F1006 (Acknowledged)
Page 211 Hydran* M2-X Instruction Manual Auxiliary #2 Hydran Hourly Trend Hi Alarm Pending 1313 3313 Lvl 1 F1006 (Acknowledged) Auxiliary #2 Hydran Hourly Trend Hi-Hi Alarm Pending 1314 3314 Lvl 1 F1006 (Acknowledged) Auxiliary #2 Hydran Daily Trend Hi Alarm Pending 1315 3315 Lvl 1...
Page 212 Hydran* M2-X Instruction Manual Sensor #3 Hydran Sensor Temp Low Alarm Pending 1338 3338 Lvl 1 F1006 (Acknowledged) Sensor #3 Hydran Sensor Temp Hi Alarm Pending 1339 3339 Lvl 1 F1006 (Acknowledged) Sensor #3 Hydran Sensor Temp Input Fault Pending 133A 333A Lvl 1...
Page 213 Hydran* M2-X Instruction Manual Tank #3 Hydran Level Hi-Hi Alarm Enabled 1364 3364 Lvl 1 F1002 1 (Enabled) Tank #3 Hydran Hourly Trend Hi Alarm Enabled 1365 3365 Lvl 1 F1002 1 (Enabled) Tank #3 Hydran Hourly Trend Hi-Hi Alarm Enabled 1366 3366 Lvl 1...
Page 214: Mapping For Analog Inputs
Hydran* M2-X Instruction Manual Sensor #4 Hydran Sensor Temp Hi Fault Trigger Enabled 1397 3397 Lvl 1 F1001 1 (On) Sensor #4 Hydran Sensor Temp Input Fault Alarm Enabled 1398 3398 Lvl 1 F1002 1 (Enabled) Sensor #4 Base Plate Temperature Low Alarm Enabled 1399 3399 Lvl 1...
Page 215 Hydran* M2-X Instruction Manual • Register Description: Name of the variable • Range: Minimum & maximum values of the variable • Unit: Measurement in which the variable is expressed • Precision: Precision of the data • Divis. Factor: Division factor to be applied to the data that is rad only in this case •...
Page 216 Hydran* M2-X Instruction Manual Per Unit load on the 001C 3038 401C most loaded winding 0 to 5 p.u. 0.001 1000 F0004 Per Unit load on the most loaded winding 001D 303A 401D source 0 to 4 F1017 0 (None) Historic Max for Highest Winding -999999 to...
Page 217 Hydran* M2-X Instruction Manual Historic Max Timestamp for Winding X Hot-Spot 0 to 0035 306A 4035 Temperature 2147483647 F0006 Winding Hot-Spot Temperature in 0036 306C 4036 Winding Y -75 to 200 °C F0002 Historic Max for Winding Y Hot-Spot -999999 to 0037 306E 4037...
Page 218 Hydran* M2-X Instruction Manual Permanent Transition Count for 0 to 004C 3098 404C Position 5 999999999 F0001 Permanent Transition Count for 0 to 004D 309A 404D Position 6 999999999 F0001 Permanent Transition Count for 0 to 004E 309C 404E Position 7 999999999 F0001 Permanent...
Page 219 Hydran* M2-X Instruction Manual Permanent Transition Count for 0 to 0063 30C6 4063 Position 28 999999999 F0001 Permanent Transition Count for 0 to 0064 30C8 4064 Position 29 999999999 F0001 Permanent Transition Count for 0 to 0065 30CA 4065 Position 30 999999999 F0001 Permanent...
Page 220 Hydran* M2-X Instruction Manual Resettable Count for 0 to 0080 3100 4080 Position 16 999999999 F0001 Resettable Count for 0 to 0081 3102 4081 Position 17 999999999 F0001 Resettable Count for 0 to 0082 3104 4082 Position 18 999999999 F0001 Resettable Count for 0 to 0083...
Page 221 Hydran* M2-X Instruction Manual Maintenance Count 0 to 009F 313E 409F for Position 6 999999999 F0001 Maintenance Count 0 to 00A0 3140 40A0 for Position 7 999999999 F0001 Maintenance Count 0 to 00A1 3142 40A1 for Position 8 999999999 F0001 Maintenance Count 0 to 00A2...
Page 222 Hydran* M2-X Instruction Manual Historic Max Timestamp for MVA 0 to 00C2 3184 40C2 Winding H 2147483647 F0006 Apparent Power 00C3 3186 40C3 from X Winding 0 to 10000 F0002 Historic Max for -999999 to 00C4 3188 40C4 MVA Winding X 999999 F0002 Historic Max...
Page 223 Hydran* M2-X Instruction Manual Input Plug-in #4 00E6 31CC 40E6 Input State -25 to 100 0.01 F0003 Sensor #1 Hydran Cell Voltage -100 to 00F0 31E0 40F0 (ServiceV) 4000000 µV F0001 Sensor #1 Hydran Level Unfiltered 00F1 31E2 40F1 (ServiceU) 0 to 2700 F0001 Sensor #1 Hydran...
Page 224 Hydran* M2-X Instruction Manual MO150 An. Input #1 0112 3224 4112 Input State -25 to 100 0.01 F0003 MO150 An. Input #2 0113 3226 4113 Input State -25 to 100 0.01 F0003 MO150 An. Input #3 0114 3228 4114 Input State -25 to 100 0.01 F0003...
Page 225 Hydran* M2-X Instruction Manual Tank #3 H2O PPM 0135 326A 4135 Hourly Average 0 to 2700 F0001 Tank #3 %RH Sensor Temperature Hourly 0136 326C 4136 Average -75 to 200 °C F0002 Tank #3 %RH at Standard 0137 326E 4137 Temperature 0 to 100 F0002...
Page 226 Hydran* M2-X Instruction Manual Sensor #2 Hydran Last Sensor Test 015A 32B4 415A Result 0 to 5 F1013 4 (Good) Sensor #2 Hydran Water Loss Model -4000000 to 015B 32B6 415B Minimum (ServiceI) 4000000 0.001 1000 F0004 Sensor #2 Hydran Water Loss Model -4000000 to 015C...
Page 227 Hydran* M2-X Instruction Manual Sensor #4 %RH 0174 32E8 4174 Level 0 to 100 F0002 Sensor #4 %RH 0175 32EA 4175 Sensor Temp -75 to 200 °C F0002 Sensor #4 Hydran Level Unfiltered 0176 32EC 4176 (ServiceU) 0 to 2700 F0001 Sensor #4 Hydran Cell Voltage...
Page 228: Mapping For Analog Outputs
Hydran* M2-X Instruction Manual OverLoad Duration #3 0192 3324 4192 0 to 720 F0001 Load Limiting Factor #3 0193 3326 4193 0 to 7 F1047 0(None) Load #4 0194 3328 4194 1.1 to 2.0 F0002 OverLoad Duration #4 0195 332A 4195 0 to 720 F0001...
Page 229 • Factor: Division factor to be applied to the data when the value is read from the Hydran M2-X With Models, or multiplication factor to be applied to the data when the value is written back to the Hydran M2-X with models...
Page 230 Hydran* M2-X Instruction Manual Tank #1 %RH Hourly Average Hi-Hi Alarm Set 104A 5025 Point Lvl 1 0 to 100 F0001 Tank #1 %RH Hourly 104C 5026 Average Hi-Hi Alarm Relay Lvl 1 0 to 2 F1004 0 (None) Tank #1 %RH Hourly % of 104E 5027...
Page 231 Hydran* M2-X Instruction Manual Analog User defined #2 -999999 to U.Def.#2 10CA 5065 Low-Low Alarm Set Point Lvl 1 999999 Units 0.001 1000 F0004 Analog User defined #2 10CC 5066 Low-Low Alarm Relay Lvl 1 0 to 2 F1004 0 (None) Analog User defined #2 -999999 to U.Def.#2...
Page 232 Hydran* M2-X Instruction Manual Winding Hot-Spot Temperature Hi-Hi Alarm 110E 5087 Set Point Lvl 1 70 to 170 °C F0001 Winding Hot-Spot Temperature Hi-Hi Alarm 1110 5088 Relay Lvl 1 0 to 2 F1004 0 (None) Winding Hot-Spot 1112 5089 Temperature Alarm Delay Lvl 1 0 to 30...
Page 233 Hydran* M2-X Instruction Manual Bubbling Temperature 1140 50A0 Margin Alarm Delay Lvl 1 0 to 30 F0001 Tank #1 Water-Oil Condensation Temperature Alarm 1142 50A1 Setpoint Lvl 1 -40 to 20 °C F0001 Tank #1 Water-Oil Condensation 1144 50A2 Temperature Alarm Relay Lvl 1 0 to 2 F1004...
Page 234 Hydran* M2-X Instruction Manual Sensor #1 Temperature 1184 50C2 Set Point Modulation Lvl 1 0 to 10 °C F0001 Sensor #1 Temperature Set Point Modulation 1186 50C3 Period Lvl 1 1 to 300 F0001 Digital Input Plug-in #1 1188 50C4 Input #1 Output Model Lvl 1 0 to 11...
Page 235 Hydran* M2-X Instruction Manual Analog User Defined #3 1228 5114 Input RTD Probe Type Lvl 1 0 to 0 F1024 (PT100) Analog User Defined #4 -999999 to U.Def.#4 122A 5115 Input Minimum Lvl 1 999999 Units 0.001 1000 F0004 Analog User Defined #4 -999999 to U.Def.#4 122C...
Page 236 Hydran* M2-X Instruction Manual Hydran PPM Filter Period 1270 5138 Lvl 1 0 to 250 F0001 %RH Hourly Average 1272 5139 Period Lvl 1 1 to 170 F0001 (Naphta 1274 513A Type of Oil Lvl 1 0 to 4 F1031 neique) User defined oil type 1000 to...
Page 237 Hydran* M2-X Instruction Manual Load Losses on Top 12B6 515B Cooling Stage Lvl 1 10 to 10000 F0001 No Load Losses at Rated 12B8 515C Voltage Lvl 1 2 to 2000 F0001 Rated Power at Cooling 12BA 515D Stage 0 Lvl 1 1 to 600 F0001...
Page 238 Hydran* M2-X Instruction Manual Sensor #1 Hydran Param -4000000 to 1306 5183 Lvl 2 4000000 F0001 Sensor #1 Hydran Param -4000000 to 1308 5184 Lvl 2 4000000 F0001 Sensor #1 Hydran Param -4000000 to 130A 5185 Lvl 2 4000000 F0001 Sensor #1 Hydran Param -4000000 to 130C...
Page 239 Hydran* M2-X Instruction Manual Configuration Version 0 to 13A0 51D0 Tracking Lvl 1 1000000 0.001 1000 F0004 Casing Heater Periodic 13A2 51D1 Set Point Lvl 1 0 to 50 °C F0001 Casing Heater Periodic 13A4 51D2 Delay Lvl 1 1 to 24 F0001 Casing Heater Primary Set 13A6...
Page 240 Hydran* M2-X Instruction Manual Cooling Bank 1 Rated 13EE 51F7 Current Lvl 1 1 to 200 F0001 Cooling Bank 1 Activation 13F0 51F8 Current Ratio Lvl 1 5 to 20 F0001 Cooling Bank 1 Deficiency 13F2 51F9 Current Ratio Lvl 1 50 to 90 F0001 Cooling Bank 1 Bearing...
Page 241 Hydran* M2-X Instruction Manual Cooling Winding Hot-Spot Temperature Stage 2 Off 1428 5214 Delay Lvl 1 0 to 10 F0001 Cooling Load Current 142A 5215 Stage 1 Set Point (in P.U.) Lvl 1 0.4 to 1 p.u. 0.001 1000 F0004 Cooling Load Current 142C 5216...
Page 242 Hydran* M2-X Instruction Manual 14 (S.#5 MO150 An. Input #6 1462 5231 Output Model Lvl 1 0 to 15 F1020 Level) 15 (S.#5 MO150 An. Input #7 Sens. 1464 5232 Output Model Lvl 1 0 to 15 F1020 Temp) (Bottom MO150 An.
Page 243 Hydran* M2-X Instruction Manual MO150 Current Input #2 1498 524C State Simulation Lvl 3 0 to 100 0.01 F0003 MO150 Current Input #3 149A 524D State Simulation Lvl 3 0 to 100 0.01 F0003 MO150 Current Input #4 149C 524E State Simulation Lvl 3 0 to 100...
Page 244 Hydran* M2-X Instruction Manual Elapsed Time since last 0 to 14E4 5272 Maintenance Setpoint 2147483647 F0009 14E6 5273 System Language Lvl 1 0 to 1 F1037 (English) 0 (Point 14E8 5274 Decimal Separator Lvl 1 0 to 1 F1038 (.)) 0 (Slash 14EA 5275...
Page 245 Hydran* M2-X Instruction Manual Auxiliary #1 %RH Level Hi 1 (Relay 152A 5295 Alarm Relay Lvl 1 0 to 2 F1004 Auxiliary #1 %RH Level Hi- 2 (Relay 152C 5296 Hi Alarm Relay Lvl 1 0 to 2 F1004 Auxiliary #1 H2O PPM 152E 5297 Level Hi Alarm Set Point...
Page 246 Hydran* M2-X Instruction Manual Sensor #2 Temperature 156E 52B7 Set Point Lvl 1 0 to 45 °C F0001 Sensor #2 Temperature 1570 52B8 Set Point Modulation Lvl 1 0 to 10 °C F0001 Sensor #2 Temperature Set Point Modulation 1572 52B9 Period Lvl 1...
Page 247 Hydran* M2-X Instruction Manual Sensor #4 Hydran Param -4000000 to 15B2 52D9 Lvl 2 4000000 F0001 Sensor #4 Hydran Param -4000000 to 15B4 52DA Lvl 2 4000000 F0001 Sensor #4 Hydran Param -4000000 to 15B6 52DB Lvl 2 4000000 F0001 Sensor #4 Hydran Param -4000000 to 15B8...
Page 248 Hydran* M2-X Instruction Manual 15F8 52FC Sensor Card #5 Type 0 to 7 F1019 0 (None) Sensor Card #5 Serial 0 to 15FA 52FD Number 2147483647 F0001 Sensor Card #5 Software 15FC 52FE Version 0 to 100 0.01 F0003 Tank #2 Hydran Level Hi 1604 5302 Alarm Set Point...
Page 249 Hydran* M2-X Instruction Manual Tank #2 H2O PPM Hourly Average Hi Alarm Set 1640 5320 Point Lvl 1 0 to 2000 F0001 Tank #2 H2O PPM Hourly Average Hi-Hi Alarm Set 1642 5321 Point Lvl 1 0 to 2000 F0001 Tank #2 H2O PPM Hourly % of 1644...
Page 250 Hydran* M2-X Instruction Manual Auxiliary #2 %RH Level Hi- 2 (Relay 1678 533C Hi Alarm Relay Lvl 1 0 to 2 F1004 Auxiliary #2 H2O PPM 167A 533D Level Hi Alarm Set Point Lvl 1 0 to 2000 F0001 Auxiliary #2 H2O PPM Level Hi-Hi Alarm Set 167C 533E...
Page 251 Hydran* M2-X Instruction Manual Tank #3 %RH Hourly Average Hi-Hi Alarm Set 16B8 535C Point Lvl 1 0 to 100 F0001 Tank #3 %RH Hourly % of 16BA 535D Average Alarm Delay Lvl 1 0 to 100 Per. F0001 Tank #3 %RH Hourly 16BC 535E Average Hi Alarm Relay...
Page 252 Hydran* M2-X Instruction Manual Auxiliary #3 %RH Level Hi 16F0 5378 Alarm Set Point Lvl 1 0 to 100 F0001 Auxiliary #3 %RH Level Hi- 16F2 5379 Hi Alarm Set Point Lvl 1 0 to 100 F0001 Auxiliary #3 %RH Level 16F4 537A Alarm Delay...
Page 253 Hydran* M2-X Instruction Manual Rated continuous Current 172C 5396 on LV Bushing Lvl 1 10 to 1000 F0001 Rated continuous Current 172E 5397 of LV Winding Lvl 1 10 to 10000 F0001 1000 Rated Current of OLTC 1730 5398 (on-line Load tap changer) Lvl 1 10 to 10000 F0001...
Page 254: Appendix L :Models Activation
Hydran* M2-X Instruction Manual Appendix L :Models Activation If you have purchased a Hydran M2-X models package upgrade – please read the following steps to activate your package: 1. An activation key should be provided to you upon purchase, if not, contact your relevant GE regional services team.
Page 255: Appendix M :User Adjustable Password Instructions
Hydran* M2-X Instruction Manual Appendix M :User Adjustable Password Instructions User Adjustable Level 1 & Level 2 passwords were introduced from Hydran M2-X firmware version 6.00 onwards. The passwords remain as four numerical characters and can only be changed via the unit’s LCD screen. The function to change the password remotely is not yet available.
Page 256: Appendix N : Ethernet Installation & Configuration
IP address is set to 192.168.2.1 with Subnet mask set to 255.255.255.0 and a TCP/IP port number set to 5000 o To communicate with a Hydran M2-X with the IP Address 192.168.2.1, the PC’s address must be 192.168.2.XXX, where XXX must be different from any other device on the network N.3.2 Verifying the PC IP address...
Page 257 Hydran* M2-X Instruction Manual • In the Command line, type cmd and click on ‘OK’ • Type ipconfig and press ‘Enter’ – see example below: N.3.3 Host Computer IP Address Configuration • Select Start > Settings > Network and Dial-up Connections (or depending on Windows Operating System search ‘Control Panel’...
Page 258: Ethernet Card Installation
Hydran* M2-X Instruction Manual • Click on Use the following IP address: and type an address in the IP address: • Type 255.255.255.0 in he Subnet mask: box and then click on ‘OK’ Notes • If you want to communicate with 192.168.2.1, the PC’s address must be 192.168.2.XXX, where XXX must be different from any other device on the network •...
Page 259: Ethernet Cable Connection Configuration
Hydran* M2-X Instruction Manual • Remove the exiting screws and insert the 2 standoffs in the locations shown with the red arrows • Install the ethernet plug-in module • Secure in place with: o Two screws: P/N 16423 (SCR, PAN, 6-32x5/16, SS, PHILIPS) o Two washers P/N 16445 (WASHER, FLAT, #6, ID=.143, OD=.267, SS o Two lock washers P/N 12085 (LOCKWASHER #6 SP/SP W2024) •...
Page 260: Hm2-X Ethernet Plug-In Detection
Figure 49: Wiring required to connect M2-X via a hub, router, or switch N.6 HM2-X Ethernet Plug-in Detection • Turn ON the Hydran M2-X • Use the “Up”, “Down”, “Left” and “Right” arrows of the keypad to navigate through the different screens •...
Page 261: Hm2-X Ethernet Plug-In Configuration
Hydran* M2-X Instruction Manual N.7 HM2-X Ethernet Plug-In Configuration • From the ‘Main Menu’, choose Setup > Comm Setup • In the Comm Setup menu select ‘RS232 Port Speed’ and Press ‘Change’. When prompted, enter first level password and press ‘Accept’ •...
Page 262 Hydran* M2-X Instruction Manual • Set the baud rate to be the same baud raye as of the M2-X. Click ‘OK’ • In the Hyper Terminal session press “ENTER”. Verify that the M2 Ethernet plug-in is responding with a login prompt. If the Ethernet plug-in is not responding with a login prompt entry, verify that the RS-232 baud rate on the HM2 is set to match the RS-232 baud rate on the PC.
Page 263 Hydran* M2-X Instruction Manual • Verify that the M2 Ethernet is responding with an “OK” Note: Consult the Network Manager of your LAN system before selecting an IP address compatible with your LAN. It is not necessary to input the <net mask> mask every time. •...
Page 264 Hydran* M2-X Instruction Manual • In the Tera Term Terminal session press “ENTER” twice. Verify that the M2 Ethernet plug-in is responding with a login prompt. If the Ethernet plug-in is not responding with a login prompt entry, verify that the RS-232 baud rate on the HM2 is set to match the RS-232 baud rate on the PC •...
Page 265 Hydran* M2-X Instruction Manual • TCP/IP port number should stay at 5000. If required, the TCP/IP port number can be changed by typing set serial s0 auto-dial out-port <port number> • Press “ENTER”. Verify that the M2 Ethernet plug-in is responding with an “OK” •...
Page 266: Appendix O : Glossary
Hydran* M2-X Instruction Manual Appendix O : Glossary Ampere Alternating Current ACKnowledge A/D or ADC Analog-to-Digital Converter Alarm Condition when a data point value exceeds a set point Alarm Contact Contact of an alarm relay Analog Output Analog signal proportional to gas or moisture level ANSI American National Standards Institute ASTM...
Page 267 This include Short Term, Long Term, Events and Service data that are stored in the Hydran M2-X’s memory Human/Machine Interface Water Host Computer Computer connected remotely to a Hydran M2-X or a network of Hydran M2-Xs Hourly Trend Variation during a time period (hours) Hydran 201Ci-1...
Page 268 Liquid Crystal Display Light-Emitting Diode LL or Lo-Lo Low-Low alarm Local Network Local network of Hydran M2-X units or Hydran 201i systems using RS-485 link Local Site User location where the data of the remote site is being analyzed milli-Ampere...
Page 269 Ability of an instrument to measure the same input to the same value over a short period of time Response Time Time a system (Hydran M2-X) unit takes to react to a given input (gas concentration change) Radio-Frequency Interference Relative Humidity in % MA-029 Rev.
Page 270 Time Division Multiplexing Teflon polyTEtraFLuOrethyleNe TradeMark Technischer Überwachungs-Verein (Technical Inspection Association) User Person operating the device (Hydran M2-X) User-Friendly An interface application easy to use User Interface Means provided to interface with a device (display, keypad, push button, etc.) µV...
Page 271 Hydran* M2-X Instruction Manual Watchdog Process used periodically to test condition of a micro- controller based system % w/w Percentage Weight by Weight MA-029 Rev. 3.0, 29-Jun-23 Page 271...
Page 272 Hydran* M2-X Instruction Manual GE Grid Solutions (UK) Ltd Lissue Industrial Estate East Unit 1, 7 Lissue Walk, Lisburn, BT28 2LU United Kingdom www.gegridsolutions.com/MD.htm Customer Service Center (24 hours a day, 365 days a year) Tel.: +44 1785-250-070 (United Kingdom) Tel.: +1 800 361 3652 (United States and Canada)

GE Hydran M2-X Instruction Manual

Quick Links

Need help?

Questions and answers

Related Manuals for GE Hydran M2-X

Summary of Contents for GE Hydran M2-X

Table of Contents
