DELL E-Series (Applicable for EXX16, EXX18)
1. Disassemble Procedures

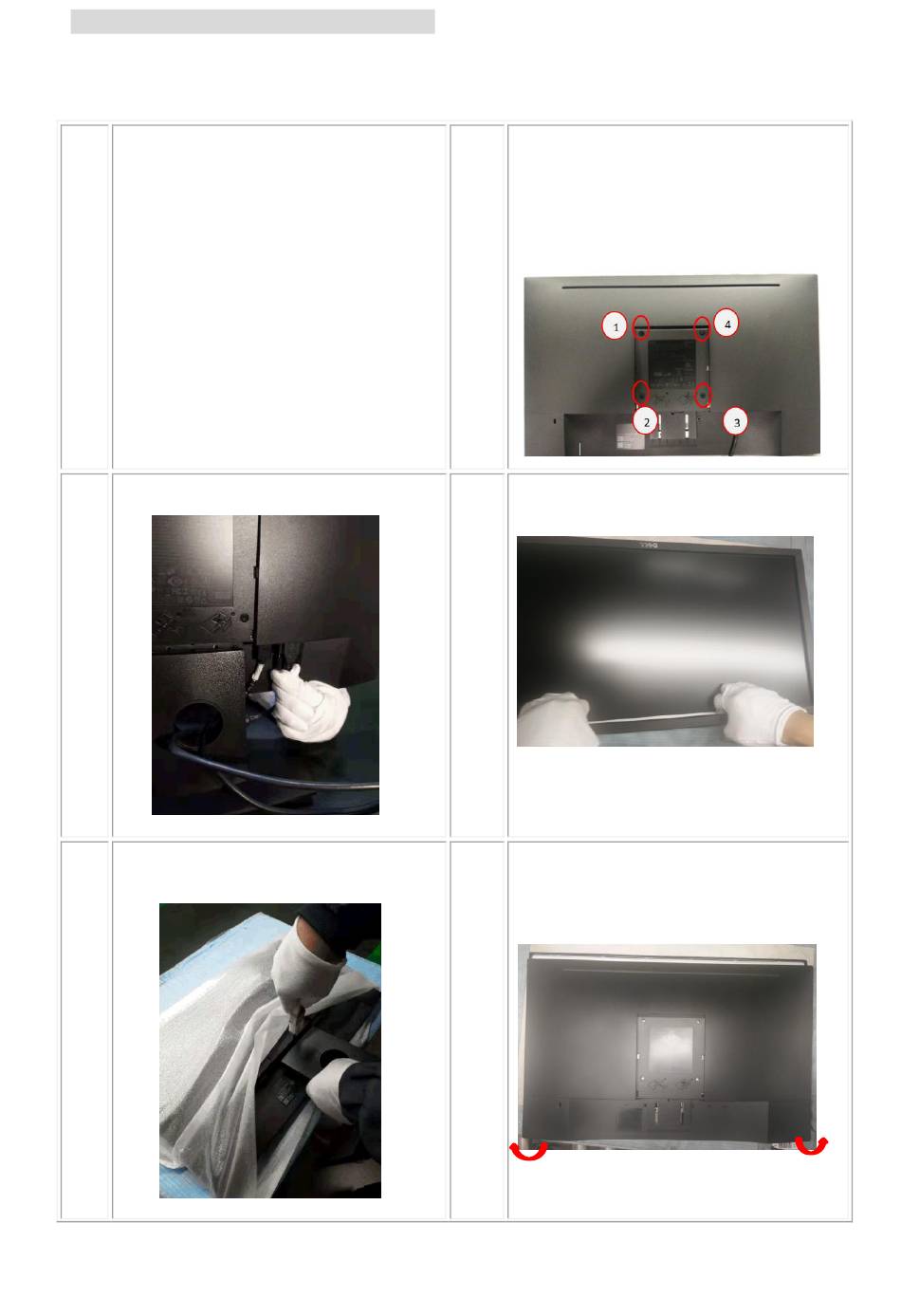

S1
Turn off power
S2
Unplug cables from monitor
S3
Remove stand from monitor release button
(with Philip-head screwdriver)
S4
Use Philips-head screwdriver
remove 4 screws for unlocking.
1-4 screw size M4 x 10, Torque = 11 to
13Kgf.cm
*For VGA connectivity, use Hexgonal
screwdriver to remove 2 VGA screws. Torque
= 0.8 +/- 0.1Kgf.cm
S5
Turn the monitor (panel face up), disassemble
front bezel start from top of monitor.
S6
After front bezel completely removed, turn
the monitor (panel face down) and remove
the back cover.
(
Φ5 mm) to
1
Advertisement
Related Manuals for Dell E 16 Series
Summary of Contents for Dell E 16 Series
- Page 1 DELL E-Series (Applicable for EXX16, EXX18) 1. Disassemble Procedures Turn off power Use Philips-head screwdriver Φ5 mm) to remove 4 screws for unlocking. 1-4 screw size M4 x 10, Torque = 11 to 13Kgf.cm *For VGA connectivity, use Hexgonal screwdriver to remove 2 VGA screws. Torque = 0.8 +/- 0.1Kgf.cm...
- Page 2 DELL E-Series (Applicable for EXX16, EXX18) Remove 4 black tape Use Philips-head screwdriver Φ3 mm) to Remove cables: Keypad cable (5) and remove 3 screws from Keypad board Backlight Cable (6) T2 *3. Torque: 1.0 +/- 0.1Kgf.cm Remove LVDS Cable from panel Remove electrolyte capacitor >25mm height...
- Page 3 DELL E-Series (Applicable for EXX16, EXX18) 2. Product Material Information The following substances, preparation, or components should be disposed of or recovered separately from other WEEE in compliance with Article 4 of EU Council Directive 75/422/EEC. Capacitors / Condensers (containing PCB/PCT)
