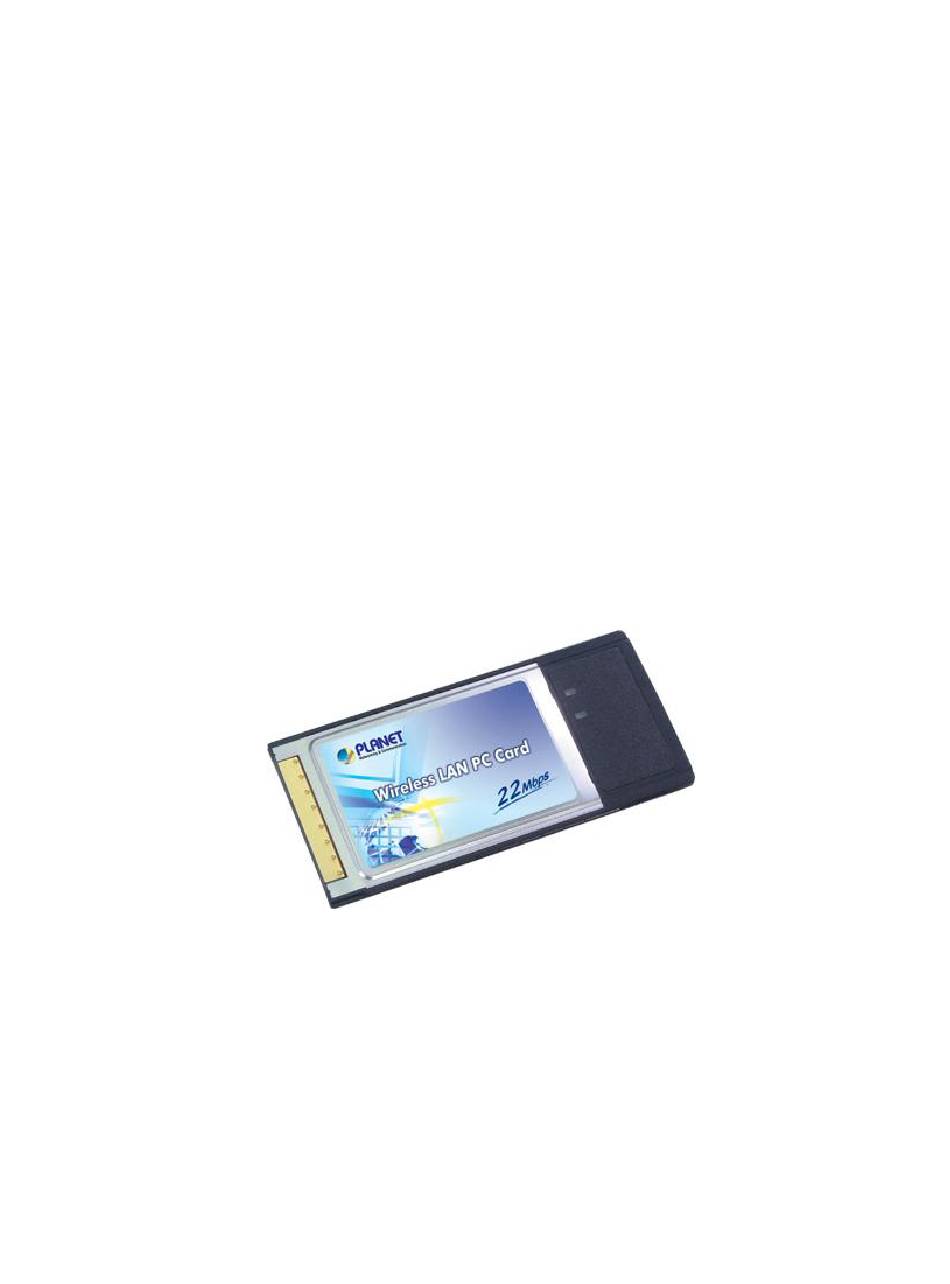

- Page 1 Wireless PCMCIA Card WL-3555 User Manual...
-
Page 2: Federal Communication Commission Interference Statement
Further, PLANET reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. -
Page 3: Eu Countries Not Intended For Use
The ETSI version of this device is also authorized for use in EFTA member states Iceland, Liechtenstein, Norway and Switzerland. Potential restrictive use France: Only channels 10,11,12 and 13 Revision User’ s Manual for PLANET Wireless PCMCIA Adapter Model: WL-3555 Rev: 1.0 (October, 2002) Part No. EM-WL3555V1... -
Page 4: Table Of Contents
Table of Contents CHAPTER 1 INTRODUCTION .........................2 1.1 F ............................2 EATURES 1.2 A ..........................2 PPLICATIONS 1.3 S ..........................4 PECIFICATION 1.4 P ........................5 ACKAGE ONTENTS 1.5 M ....................5 INIMUM YSTEM EQUIREMENTS 1.6 I .......................5 NSTALLATION ONSIDERATIONS CHAPTER 2 INSTALLATION PROCEDURE ...................6 2.1 W 98/ME/2000 D .................6... -
Page 5: Chapter 1 Introduction
LAN is called an Infrastructure configuration. A group of WL-3555 PC users and an Access Point compose a Basic Service Set (BSS). Each WL-3555 PC in a BSS can talk to any computer in the wired LAN infrastructure via the Access Point. - Page 6 WL-3555 used in the BSS. Check your WL-3555 for its BSS ID or use the Site Survey function on Configuration Utility program to determine the BSS ID. The Infrastructure Wireless LAN configuration is appropriate for enterprise-scale wireless access to a central database, or as a wireless application for mobile users.
-
Page 7: Specification
7. High security connection The wireless security network installs quickly and provides the flexibility to reconfigure easily. 1.3 Specification Product Wire Free – 22Mbps Wireless PCMCIA Adapter Model Name WL-3555 Attach Interface PCMCIA Type II LED Indicators Power, Act Operating Frequency / Channel 2.412~2.462GHz (FCC, Canada) / 11 Channels... -
Page 8: Package Contents
1.4 Package Contents Before installation, please check the items of your package. The package should include the following items: WL-3555 Quick Installation Guide Drivers and User’ s Manual CD If any of the above items are missing, contact your supplier as soon as possible. -
Page 9: Chapter 2 Installation Procedure
Note: The following installation operates under Window 2000. Procedures will be similar to Window 98/ME. About Windows XP driver installation, please refer to next section. Plug WL-3555 into your PC’ s PCMCIA slot. Power on the PC and insert Drivers and User’ s manual CD into CD-ROM drive. - Page 10 You can click “Browse” to find the driver location. (Assume "E" is your CD-ROM drive, the driver can be found in E:\Drivers\WL-3555). Please click “OK” to continue. Windows will show this screen to prompt you that it found a driver for the device you are...
-
Page 11: Windows Xp Driver Installation
Plug WL-3555 into your PC’ s PCMCIA slot. Power on the PC and insert Drivers and User’ s manual CD into CD-ROM drive. Windows XP will detect WL-3555 and ask you to install driver. Please select the second option and click “Next”. - Page 12 Please select “Include this location in the search” and then click “Browse” to find out WL-3555 driver location to install driver. (Assume "E" is your CD-ROM drive, you can find out WL-3555 driver in E:\Drivers\WL-3555). Please click “Next” to continue.
-
Page 13: Configuration Utility Installation
Please click “Finish” to complete the driver installation. 2.3 Configuration Utility Installation Run “setup.exe” under “E:\Utility\WL-3555\” directory, or click the “Start” button and choose “Run”. When the dialog box appears, enter “E:\Utility\WL-3555\setup.exe” (Assume “E” is your CD-ROM drive). You will see the dialog box as the picture. Please click “Next” to continue. - Page 14 When installation completed, please click “Finish” to restart your PC. Note: If the card is not working properly after the restart procedure, you should make sure that your system has free resources since it may show them as being available, although this may not be true.
-
Page 15: Chapter 3 Configuration Utility
Following details the configuration options. 3.1 Link Info. In screen above, you can check the status when WL-3555 is working. You can also press “Radio Off” button to let the WL-3555 stop working. When WL-3555 stops working, the button will rename to “Radio On”. -
Page 16: Security
In this option, you can configure the settings of WL-3555 for the AP it will connect to. After configuration, please press ”Apply” to save settings or “Cancel” to set again. SSID: Shows and can be configured the SSID of the BSS that willing to join. -
Page 17: Site Survey
WEP Key1 and key value (AAAAA), please ensure WL-3555 is using the same settings to work to this Access Point. 3.4 Site Survey This screen shows the APs or Adapters which available for WL-3555 to connect. When operating in... -
Page 18: About
If you wish to connect to any device on the “ Available Network” list, select the device on the list and click “Connect”, then WL-3555 will connect to the selected device and create a profile for the selected device automatically. -
Page 19: Appendix
Appendix This section provides some technology document of IEEE802.11b. Read the description below to know the standards about IEEE802.11b. ü What is the IEEE 802.11b standard? The IEEE 802.11b Wireless LAN standards subcommittee, which is formulating a standard for the industry. The objective is to enable wireless LAN hardware from different manufactures to communicate. - Page 20 algorithm, as described in the IEEE 802.11b standard. ü Can Wireless products support printer sharing? Wireless products perform the same function as LAN products. Therefore, Wireless products can work with Netware, Windows NT/2000/XP, or other LAN operating systems to support printer or file sharing.
