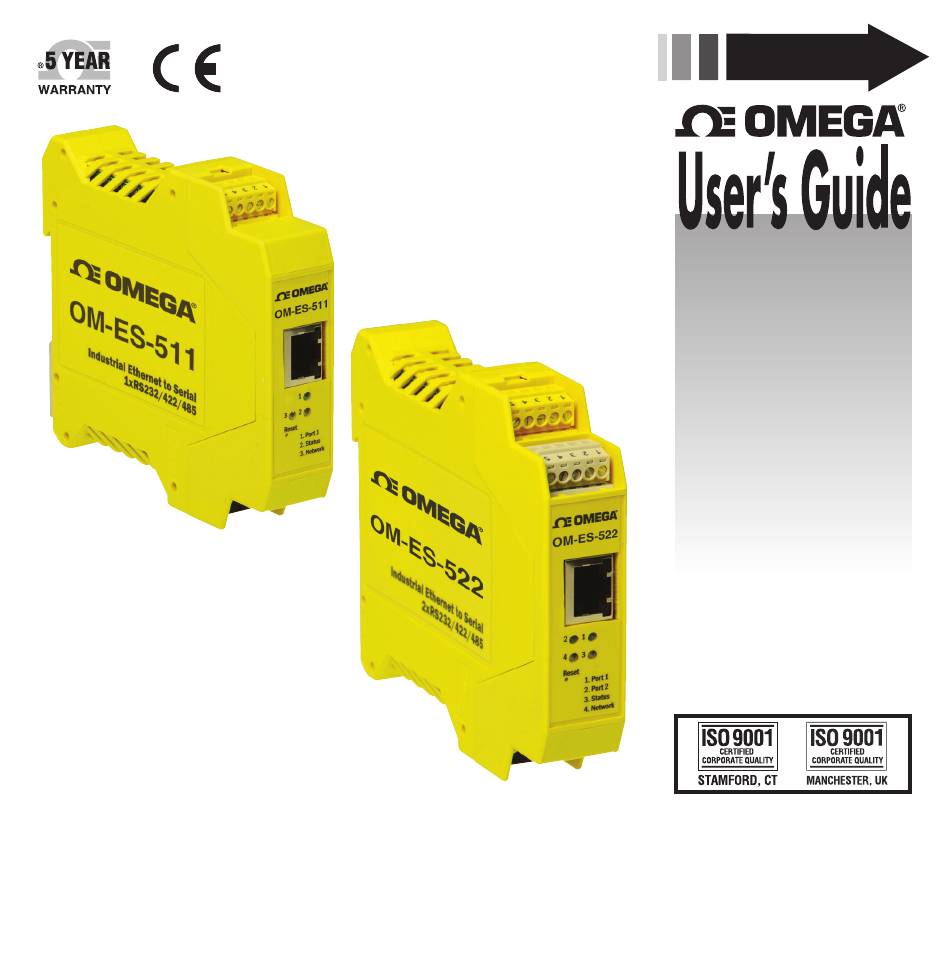

- Page 1 QUICK START OM-ES-511 Shop online at omega.com ® e-mail: info@omega.com For latest product manuals: omegamanual.info OM-ES-522 OM-ES-500 SERIES Industrial Ethernet-to-Serial Device Servers This datasheet has been downloaded from http://www.digchip.com at this page...
- Page 2 OMEGA will add the CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Table Of Contents
1. Box Contents Check List 2. Hardware 3. Network IP Addressing 4. Connecting your OM-ES-500 Series Device 5. Installing your OM-ES-500 Series Device on Windows 6. Configuring your OM-ES-500 Series Device 7. Default Settings 8. Pin outs 9. LED information... -
Page 4: Box Contents Check List
© COPYRIGHT 2013 OMEGA ENGINEERING, INC. Ethernet to Serial Quick Start Guide Product CD Device NB: Image shown is an OM-ES-522 1x RS232/422/485 and is an example. The same steps can be applied to all other products in the OM-ES-500 Series... -
Page 5: Hardware
2. Hardware Port 1 - Yellow removable screw Ethernet Port LED terminal block Status LED Port 2 - Grey removable screw Reset button (use unfolded paperclip terminal block (OM-ES-522) to press) Power Input - Black removable IP-30 rated non-conducting screw terminal block +5VDC to polyamide case +30VDC DIN Rail mount... -
Page 6: Network Ip Addressing
• If no DHCP Server is detected (e.g. you are using a direct cable connection to the PC), the OM-ES-500 Series device will default to an IP address of 192.168.127.254 within 60 seconds. Please ensure the PC you’re using for configuration can communicate... -
Page 7: Connecting Your Om-Es-500 Series Device
4. Connecting your OM-ES-500 Series Device 1. Connect the OM-ES-500 Series device to your local network or use a direct cable connection using a standard straight-through or crossover Ethernet cable and plugging into the Ethernet port connection. 2. Connecting to Power: Connect the power adapter or a DC power line (+5 to +30VDC) to the OM-ES-500 Series power terminal block or jack connection. -
Page 8: Installing Your Om-Es-500 Series Device On Windows 8
5. Installing your OM-ES-500 Series Device on Windows 1. Insert the CD into your PC. This should launch the Boost.LAN Navigation Page automatically. Note: If the navigation page does not auto load, go to Start gMy Computer gRight Click the CD and select Explore. Locate the “Setup.exe” program on the CD and double click to launch. - Page 9 5. Click on the “File -> Find Devices” button in the top left hand side of the window. 6. You can find your Omega OM-ES-500 Series device by selecting a device and matching it with the corresponding MAC address available on the left hand panel.
-
Page 10: Configuring Your Om-Es-500 Series Device
Select “RS422 full-duplex mode” for RS422 or RS485 Full Duplex communications. • Select “RS485 half-duplex autogating mode” for RS485 Half Duplex communications When setting RS422 or RS485 mode, as well as configuring the software, the case of the OM-ES-500 Series device needs opening and... - Page 11 CD which came with your ES device. Firewall Exceptions and Port Numbers When using the OM-ES-500 Series devices with a firewall you may need to manually add the exception entries and port numbers to the firewall list. Listed below are the default port numbers and the firewall exceptions.
-
Page 12: Default Settings
7. Default Settings Network Settings Device Network DHCP mode Address Web Server Port Port Settings RS232 RS422/485 Baudrate 115200 115200 Databits Stop Bits Parity Flow Control None None Duplex Mode Full Duplex Protocol Settings Telnet Mode (Server) Telnet Mode (Server) TCP/UDP Port Numbers Device Web Server 80 (TCP) -
Page 13: Pin Outs
8. Pin Outs Port 1 - Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Yellow RS232 Sig GND RS485 FD Sig GND RxD- RxD+ TxD+ TxD- RS485 HD Sig GND Data+ Data- Power Input - Power Power +Vin A +Vin B Func GND Black... -
Page 14: Led Information
Green light on Port Open Flashing light on Data RX/TX Ethernet LED Green light on Link established Flashing Green Data RX/TX For further configuration details, or technical information on the OM-ES-500 Series product, please refer to Product Manual on CD... - Page 15 Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
- Page 16 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA... Of Course! Shop online at omega.com TEMPERATURE DATA ACQUISITION Thermocouple RTD & Thermister Probes Data Acquisition & Engineering Software Connectors, Panels & Assemblies ...
