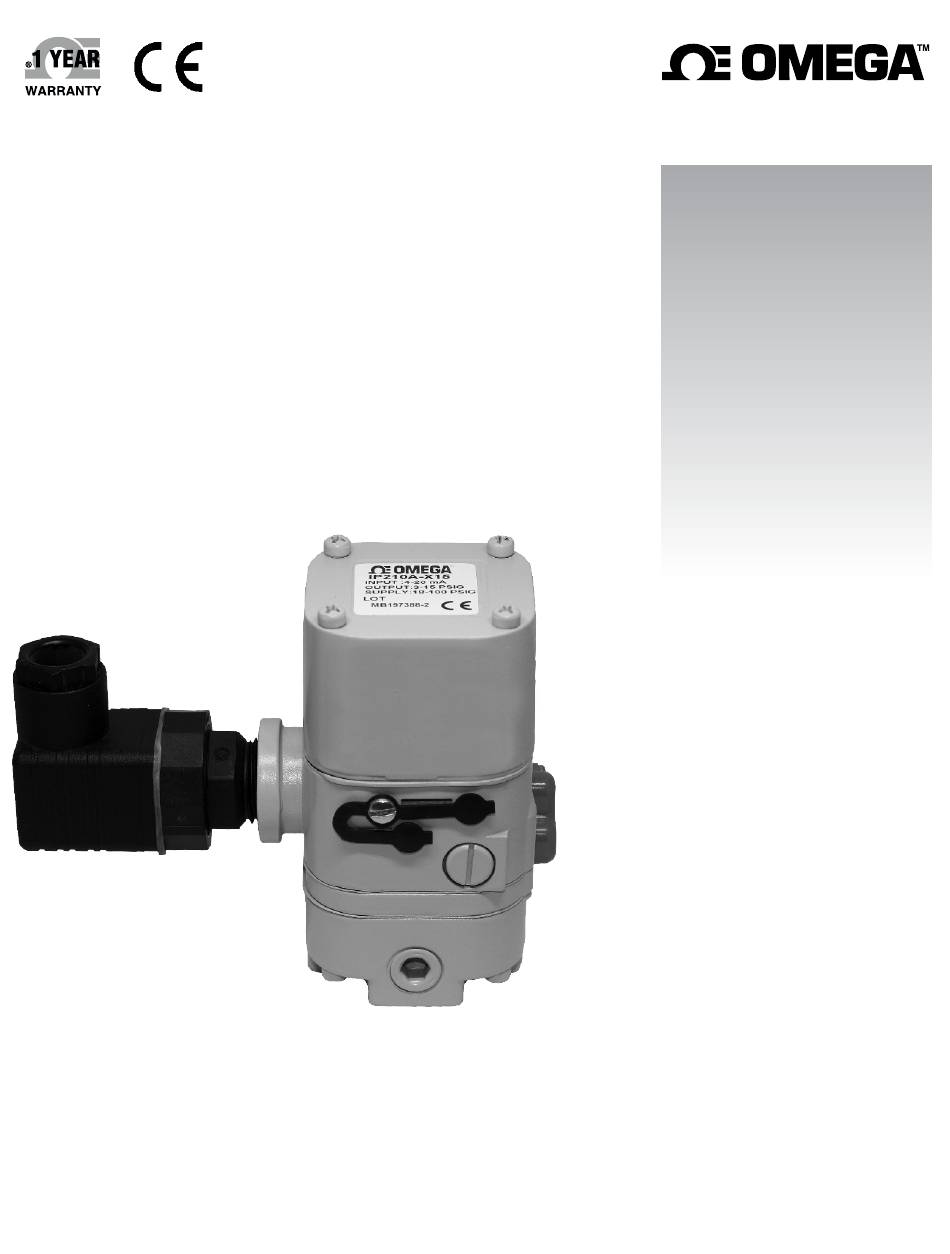

- Page 1 User’ s Guide Shop online at omega.com e-mail: info@omega.com For latest product manuals: www.omegamanual.info IP210A SERIES ELECTROPNEUMATIC CONVERTERS...
- Page 2 For Other Locations Visit omega.com/worldwide California Proposition 65 WARNING: Cancer and Reproductive Harm www.p65Warnings.ca.gov The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
- Page 3 M5736/0619 IP210A SERIES PRINCIPLE OF OPERATION The transducer is a force balance device in which a coil is suspended in the field of a magnet by a flexure. Current flowing through the coil generates axial movement of the coil and flexure. The flexure moves against the end of a nozzle, and creates a back pressure in the nozzle by restricting air flow.
-
Page 4: Electrical Connections
M5736/0619 IP210A SERIES INSTALLATION OF THE DIN 43650A CONNECTOR Included with the unit: Instructions & 3-Prong Connector Tools Required: Solder, Soldering Iron & Wire Cutter/Stripper 1. Remove the outer locking ring from the male portion of the DIN 43650A connector and disassemble. - Page 5 M5736/0619 IP210A SERIES CALIBRATION Once the transducer has been mounted, and air supply connections finished, the unit's calibration must be checked before placing into service. Remove rubber plugs to gain access to “ZERO” and “SPAN” adjusting screws. See Figure 3 for “ZERO” and “SPAN” locations. Re- install rubber plugs after calibration is complete.
-
Page 6: Troubleshooting
“OUT”. Note: If you experience an unusual problem that is not described in this section, or if troubleshooting procedures will not restore the unit to normal operation, please contact Omega. Figure 3 IP210A Unit shown without female 43650A connector. - Page 7 CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s)
- Page 8 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at omega.com TEMPERATURE Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies Wire: Thermocouple, RTD & Thermistor Calibrators & Ice Point References Recorders, Controllers & Process Monitors...
