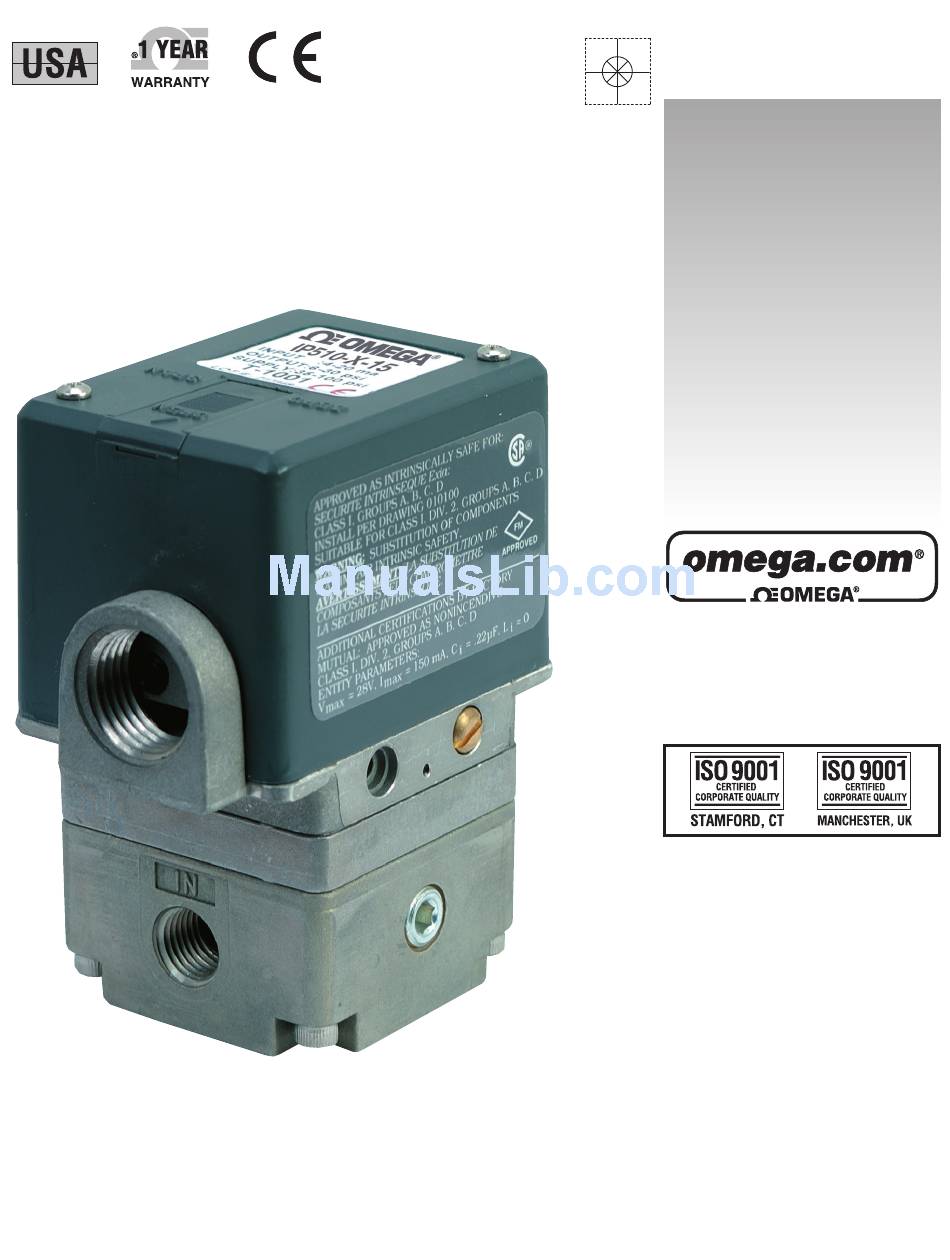

- Page 1 User’ s Guide MADE IN Shop online at omega.com e-mail: info@omega.com For latest product manuals: omegamanual.info EP510, IP510, EP511, IP511 SERIES Electroneumatic Converters...
- Page 2 OMEGAnet Online Service ® omega.com Servicing North America: U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047 ISO 9001 Certified Stamford, CT 06907-0047 USA Toll Free: 1-800-826-6342 FAX: (203) 359-7700 Canada: 976 Bergar Laval (Quebec), H7L 5A1 Canada Toll-Free: 1-800-826-6342 FAX: (514) 856-6886 For immediate technical or application assistance: U.S.A.
-
Page 3: Table Of Contents
See “CALIBRATION” section of instructions for more information. TABLE 1: SUPPLY PRESSURE REQUIREMENTS Standard Output Calibration Transducer 20-45 20-45 Supply Pressure M-4109/1104 IP510, EP510, IP511, EP511 SERIES 0-30 0-60 0-100 0-120 50-90 80-120 110-130... -
Page 4: Mounting
M-4109/1104 IP510, EP510, IP511, EP511 SERIES OUNTING GENERAL NEMA 1 and NEMA 4X transducers can be mounted in any position. DIRECT MOUNTING PIPE • Any NEMA 1 transducers may be supported by its own plumbing for air supply and output. NEMA 4X transducers may also be supported using 1/2"... -
Page 5: Electrical Connections
Reinstall the cover tightly using all o-rings and locking devices to insure compliance with Agency Approvals. TERMINAL BLOCK POSITION # 1 POSITION # 2 POSITION # 3 CALIBRATION M-4109/1104 IP510, EP510, IP511, EP511 SERIES TABLE 2: ELECTRICAL CONNECTIONS I / P TRANSDUCER MODELS ( -- ) NEGATIVE SIGNAL NOT USED ( + ) POSITIVE SIGNAL... -
Page 6: Maintenance
M-4109/1104 IP510, EP510, IP511, EP511 SERIES WARNING: In explosive atmospheres, electrical power must be removed from the transducer before attempting to remove the cover and until the cover is fully reinstalled. Failure to do so may result in electrical spark or explosion. -
Page 7: Agency Approvals, Special Notes, And Cautions
A barrier is not necessary when these transducers are in these locations. ENCLOSURES Compliance with NEMA 4X and CSA ENC4 enclosure ratings require that the screw-on cover has the O-ring installed. In case of a need for replacement parts, see TABLE 3. M-4109/1104 IP510, EP510, IP511, EP511 SERIES... - Page 8 M-4109/1104 IP510, EP510, IP511, EP511 SERIES EXPLOSION & DUST-IGNITION PROOF CERTIFICATIONS FACTORY MUTUAL and CANADIAN STANDARDS ASSOCIATION WARNING: The following ratings are valid ONLY WHEN the cover is installed for FM and CSA. BOTH the cover and the locking device, using tamper resistant screws must be installed. Screws are to be removed and installed with a special driver bit (supplied).
-
Page 9: Kits
12. Pressure Gauge Kit, 30 PSI 13. Pressure Gauge Kit, 60 PSI 14. Pressure Gauge Kit, 160 PSI EP511 AND IP511 SIDE VIEW TOP VIEW M-4109/1104 IP510, EP510, IP511, EP511 SERIES TABLE 5: KITS KIT NAME SIDE VIEW TABLE 1: WIRING TERMINATION PWB Terminal Block... - Page 10 M-4109/1104 IP510, EP510, IP511, EP511 SERIES 510 and 511 Series I/P AND E/P TRANSDUCER SPECIFICATIONS Accuracy: Hysteresis: Dead Band: Repeatability: Ambient Temperature Effect Zero: Span: Compensated Temperature Range: Operating Temperature Range Buna-N elastomers: Viton elastomers: Storage Temperature Range Buna-N elastomers:...
