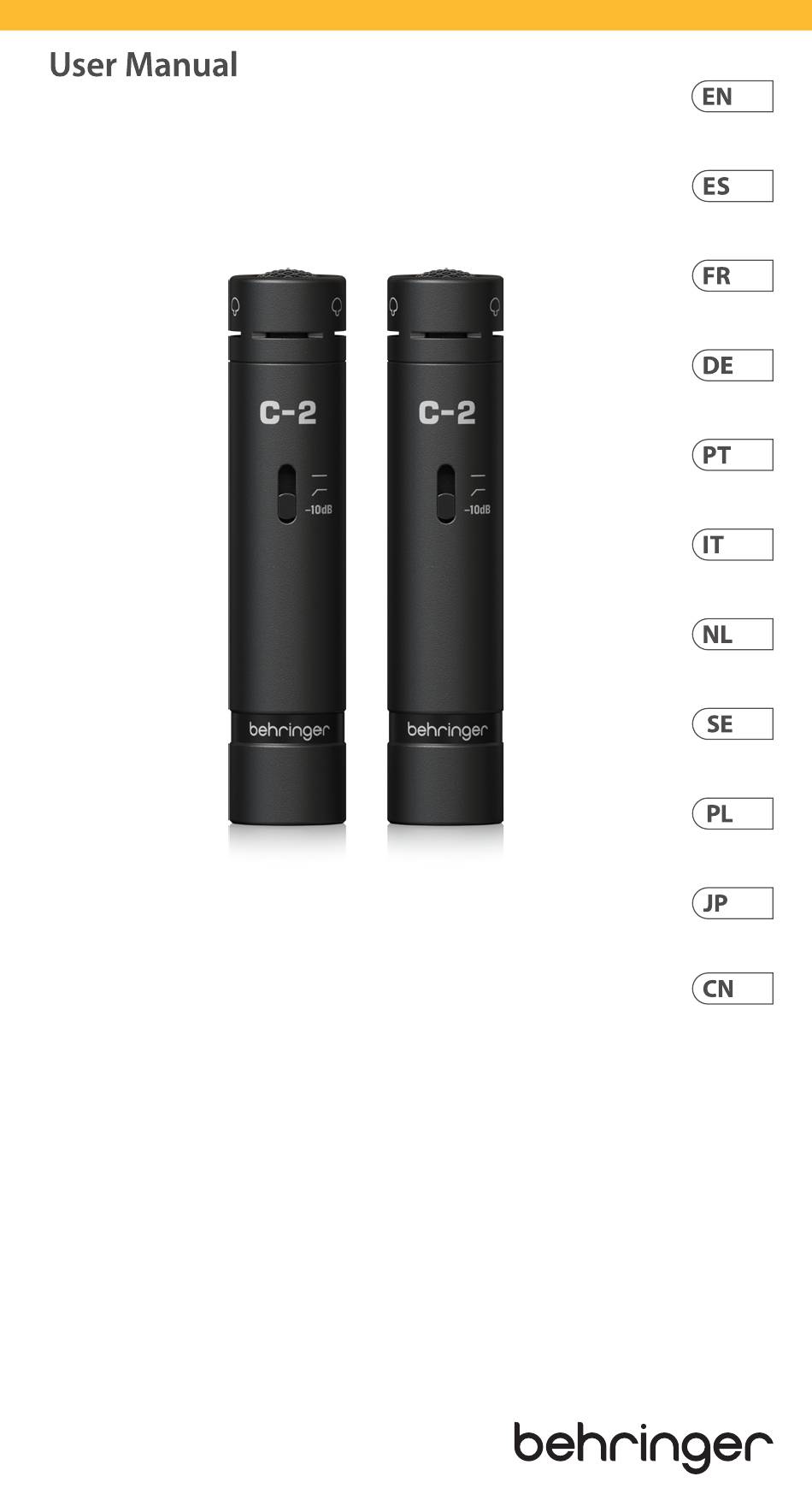

- Page 1 STUDIO CONDENSER MICROPHONES C-2 / C-2 DARK EDITION 2 Matched Studio Condenser Microphones V 3.0...
- Page 2 (EN) Safety Instruction 1. Please read and follow all instructions. 2. Keep the apparatus away from water, except for outdoor products. 3. Clean only with a dry cloth. 4. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
-
Page 3: Power Supply
2. Power Supply Phantom power (+48 V) is required to operate your microphone. We assume no liability for damage caused to your C-2 through deffective phantom power. Before activating phantom power, mute your playback system and connect the C-2 to the microphone input of your mixing console. After activating phantom power, the C-2 requires several seconds to stabilize itself. -
Page 4: Microphone Installation
Use a balanced XLR microphone cable with the following pin assignment: pin 1 = shielding; pin 2 = +; pin 3 = -. Since your C-2 features gold-plated contact points throughout, we recommend that you use only microphone cables with gold- plated connectors. - Page 5 250 Hz 500 Hz 4 kHz 1 kHz 8 kHz 2 kHz 16 kHz Polar pattern Frequency response...
-
Page 6: Specifications
9. Specifications Transducer type condenser, 16 mm (0.63") Operating principle pressure gradient Polar pattern cardioid Connector gold-plated balanced XLR connector Open circuit sensitivity (@ 1 kHz) −41 dBV (0 dBV = 1 V/Pa) Frequency response 20 Hz to 20 kHz level attenuation −10 dB, switchable Low-cut filter... - Page 7 EU, Directive 2011/65/EU and Amendment 2015/863/EU, Directive 2012/19/EU, Regulation aparecen aquí son propiedad de sus respectivos dueños. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Aston Microphones y Coolaudio son marcas 519/2012 REACH SVHC and Directive 1907/2006/EC.
