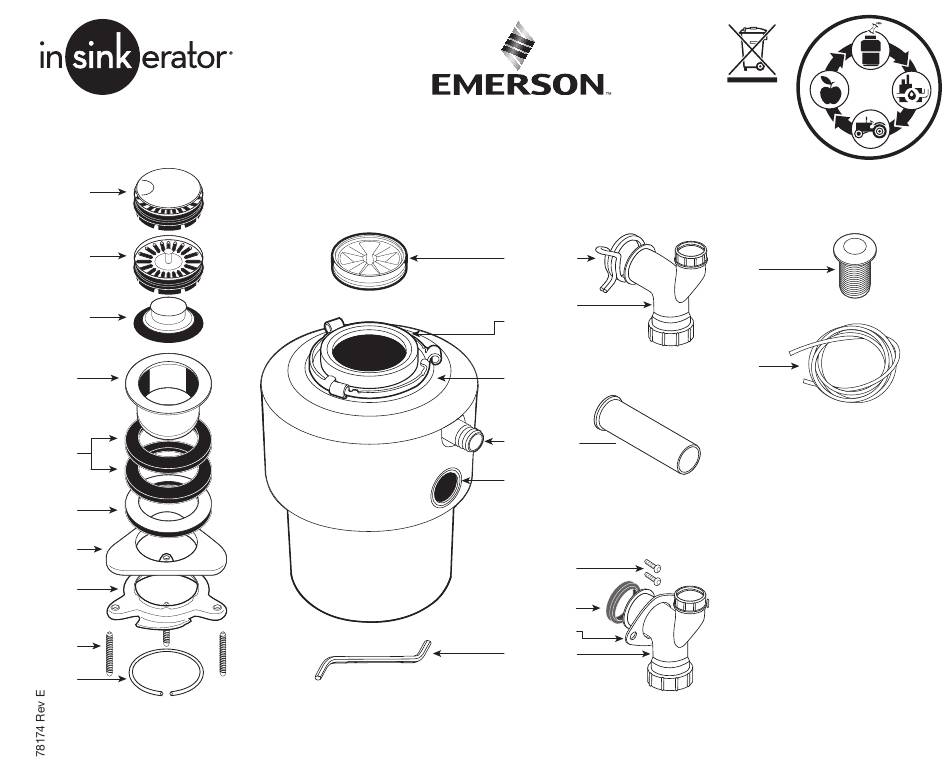

- Page 1 FOOD WASTE DISPOSER INSTALLATION AND USE MANUAL www.insinkerator.com 220-240V, 50-60Hz ©2020 InSinkErator, a business unit of Emerson Electric Co. All Rights Reserved.
- Page 2 (Evolution) 200-3B, 250-3 33.0 cm 18.5 cm 6.4 cm 23.4 cm 16.8 cm 31.1 cm 17.1 cm 6.4 cm 22.2 cm 16.8 cm (Evolution) 100-3B, -11B, 150-3 31.8 cm 16.6 cm 6.5 cm 20.0 cm 13.1 cm Model 66-3, -10, E75-3 Model 56-3, -10, -11 30.8 cm 16.6 cm 6.5 cm...
- Page 6 EVOLUTION MODELS, BW5 66, 56, 46, BW4, BW3, BW2, E75...
- Page 7 M O D E L X X – X X S /N X X X X X X X X X X PU SH RE D BU TT ON TO RE SE T...
- Page 8 MODEL XX – XX S/N XXXXXXXXXX 10.1 10.2...
- Page 9 11.1 11.2 11.3 33 mm 11.4 11.5...
- Page 10 12.1...
- Page 11 12.2...
- Page 12 12.3...
- Page 13 12.4...
- Page 14 MODEL XX – XX S/N XXXXXXXXXX MODEL XX – XX S/N XXXXXXXXXX PUSH RED BUTTON PUSH RED BUTTON TO RESET TO RESET 12.5 12.6...
- Page 15 Models Evolution ® Evolution ® 46/56/66/BW2/ 100/150 200/250 BW3/BW4/E75 Model BW5 Everyday √ √ √ food waste Vegetable √ √ √ peels Plant fibre, Avoid grinding animal large amounts at √ skins once Avoid grinding Bones √ √ large bones...
- Page 16 Bayswater Vic 3153, Australia Auckland, New Zealand 0610 4700 21st Street Sales Tel: 61 03 9720 5599 Service and Sales Tel: Racine, WI 53406-5093 Service Tel: 1 300 136 205 0800 200 510 www.insinkerator.com.au Website: www.insinkerator.co.nz Sales/Service Tel: 262-554-3652 www.insinkerator.com/worldmap.html...
- Page 17 NOTE: The sink hole may have to be enlarged to accept the disposer sink flange. Sink hole enlargement tools are available from your InSinkErator dealer. CLEAN SINK DRAIN Failure to clean sink waste pipe line may result in waste pipe blockage.
-
Page 18: Remove Existing Disposer
REMOVE EXISTING DISPOSER PERSONAL INJURY To avoid personal injury, do not position your head or body under disposer; the unit could fall during installation. ELECTRICAL SHOCK • To avoid electrical shock, disconnect power before removing any existing disposer. Turn off electrical power at fuse box or circuit breaker or if equipped unplug disposer electrical power plug from wall outlet. - Page 19 DISASSEMBLE NEW DISPOSER MOUNTING ASSEMBLY 1. Turn mounting assembly over (see Figure 4.1) and loosen three mounting screws (1) until you can access snap ring (2). 2. Use screwdriver to pry snap ring off of sink flange. Mounting assembly can now be disassembled.
-
Page 20: Property Damage
REMOVAL OF KNOCKOUT PLUG FOR DISHWASHER CONNECTION In Australia, removal of knockout plug does not apply. It is suggested that the dishwasher units be connected to IPLEX/ COROMA dishwasher spigot for maximum efficiency. Wastewater from a dishwasher can be plumbed into the disposer through the inlet access on the upper part of the disposer. - Page 21 ATTACH DISCHARGE TUBE TO WASTE DRAIN PIPE NOTICE PROPERTY DAMAGE • All Evolution Models and Model BW5 must be connected to the supplied tailpipe with the supplied spring type hose clamp (See Figure 7.1). In Australia it is required to use the supplied straight discharge tube with supplied spring type hose clamp.
- Page 22 DISCHARGE TUBE INSTALLATION (Evolution Models and Model BW5) Place discharge tube (2 or 3) into Anti-Vibration Tailpipe Mount . Secure with ™ spring type hose clamp (1). (See Figure 7.1) DISCHARGE TUBE INSTALLATION (MODELS 66, 56, 46, BW4, BW3, BW2, E75) 1.
-
Page 23: Connect Disposer To Mounting Assembly
CONNECT DISPOSER TO MOUNTING ASSEMBLY PERSONAL INJURY To avoid personal injury, do not position your head or body under disposer; the unit could fall during installation. Clear any objects from inside the disposer grind chamber before mounting the disposer to the sink. 1. - Page 24 ATTACH SPECIFICATION LABEL This specification label contains important information the owner will need to know in the event service is required. Place the portion of the specification label removed in Step 8.1 somewhere easily visible to the user. IF YOU ARE NOT CONNECTING A DISHWASHER TO DISPOSER, SKIP AHEAD TO INSTRUCTION 11.
- Page 25 CONNECT DISPOSER TO ELECTRICAL SUPPLY ELECTRICAL SHOCK • If three-prong, earth (grounded) plug is used, plug must be inserted into three-hole, earth (grounded) receptacle. • Do not modify plug provided with unit (if applicable). • Improper connection of equipment earth (grounded) conductor can result in electric shock.
-
Page 26: Air Switch
AIR SWITCH (Evolution Models, MODELS 66, 56, BW5, BW4, BW3 and E75) The Evolution Models, Model 66, Model 56, Model BW5, Model BW4, Model BW3 and Model E75 disposers include a built-in air switch. An air switch activates/ turns off the unit by sending a pulse of air to the control box. AIR SWITCH INSTALLATION If you wish to change the button finish (optional), simply pry off the existing button and snap the other button finish onto the bellows. -
Page 27: Important Safety Information
IMPORTANT SAFETY INFORMATION When using electronic appliances, basic precautions are always to be followed, including: • In Australia, product may require approval of the relevant regulator and/or the sewerage system operator. • If the air switch or wall switch fails to shut off or turn on disposer, unplug power cord plug and contact your qualified trade person. - Page 28 appliance in a safe way and under stand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. • When attempting to loosen a jam in the food waste disposer, switch off or unplug the appliance before attempting to free a jammed rotor.
- Page 29 • Replace sound baffle/mounting gasket/ splash baffle when worn to help prevent entry or ejection of material and water. • When not using disposer, leave stopper in place to reduce risk of objects falling into disposer. Make sure disposer power switch is turned off. •...
- Page 30 OPERATING INSTRUCTIONS (EVOLUTION MODELS, Model BW5) 1. Remove strainer basket and plug from sink opening and run cold water. 2. Turn on wall switch or press air switch (see Figure 12.1) to start disposer. 3. Slowly insert food waste into disposer and position strainer basket and plug in upright position (allowing water to run through) to minimize noise and possible...
- Page 31 4. After grinding is complete, turn disposer off and run water for a few seconds to flush drain line. DO... • First turn on cold water and then turn on the disposer. Continue running cold water for a few seconds after grinding is completed to flush the drain line.
- Page 32 DON’T... • DON’T POUR GREASE, OIL OR FAT DOWN YOUR DISPOSER OR ANY DRAIN. It can build up in pipes and cause drain blockages. Put grease in a jar or can and dispose in the trash. • DON’T use hot water when grinding food waste.
- Page 33 • DON’T waste food. Nearly a quarter of the food we buy is thrown away untouched: salad, bread and cakes and fruit head the list. Three tips to stop waste and save you money: only buy, or cook, the portions you need for the meal;...
- Page 34 Model E75-3: 5 years SERVICE If service is required, contact an InSinkErator Authorized Service Center or your dealer. Guarantees are void if you remove your disposer after installation and attempt to repair it, or if the disposer is used for commercial purposes.
