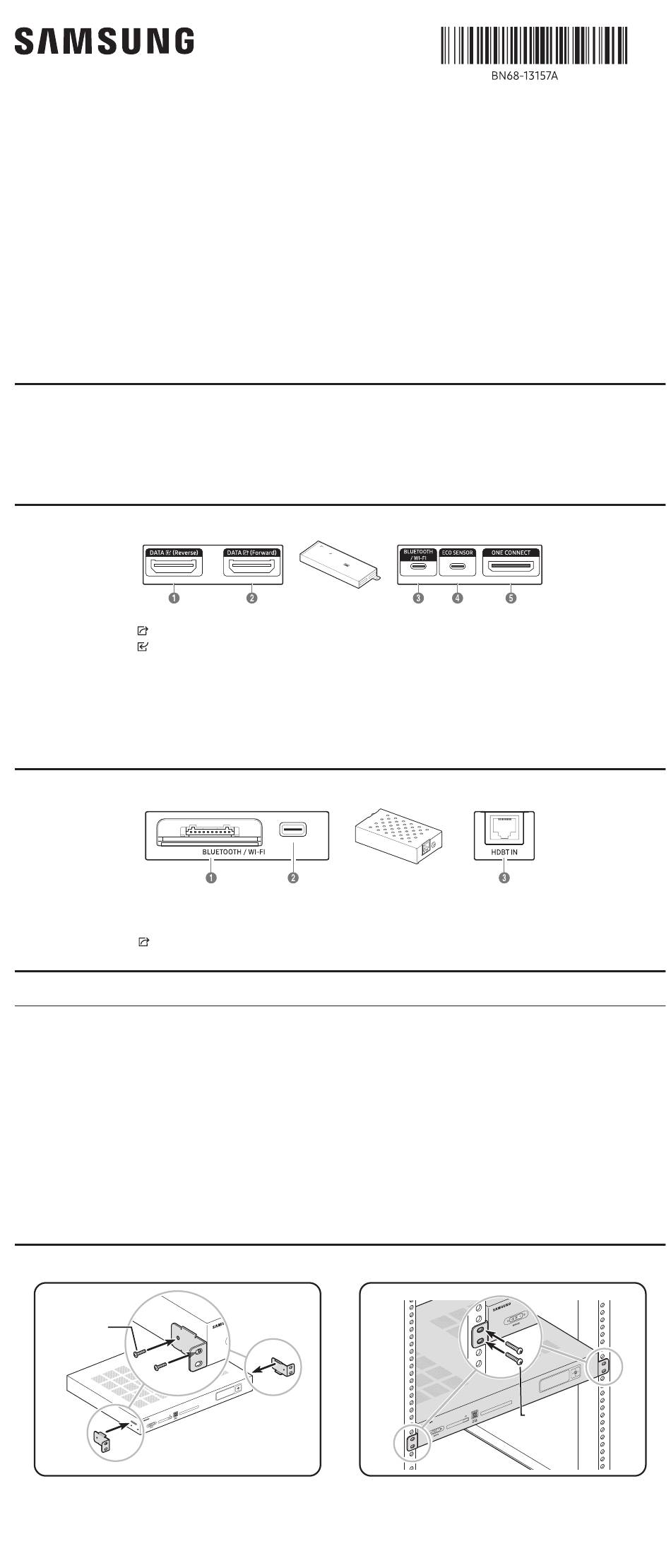

Samsung SNOW-AAE Simple User Manual

Simple User Guide
SNOW-AAE (SBB-SNOWAAEX**)
* The colour and the appearance may differ depending on the product, and the content in the manual is subject to change without
prior notice to improve the performance.
* Download the user manual from the website for further details.
http://www.samsung.com/displaysolutions
Checking the Components
(1) Simple User Guide (2) Warranty card (Not available in some locations) (3) Power cord
(4) Batteries (AAA x 2) (Not available in some locations) (5) Remote Control (6) RS232C adapter (7) AC/DC adapter (8) OCM cable x 4
(9) Sensor (10) Module RX x 2 (11) Bluetooth/Wi-Fi module (12) Bluetooth/Wi-Fi module cable (13) Rack case mounting bracket x 2
(14) Screw (M4 x L8) x 4 (15) Screw (M5 x L12) x 4 (16) USB Type-C cable x 2 (17) Module TX
Contact the vendor where you purchased the product if any components are missing.
Interface Gender Card (I/G Card)
Connects to the DATA
1
Connects to the DATA
2
Connects to the Bluetooth/Wi-Fi module using the Bluetooth/Wi-Fi module cable.
3
Connects an external ambient light sensor to the ECO SENSOR port.
4
Use to connect the optical cable with the ONE CONNECT (Group 1, Group 2, Group 3, Group 4, Group 5, Group 6, Group 7, Group 8)
5
port after connecting the optical RX module for the I/G card.
* See "Connecting a Optical Cable" in "Connecting and using devices"
* The optical cable is not provided.
BRIDGE BOX
Connects to the Bluetooth/Wi-Fi module using the Bluetooth/Wi-Fi module cable.
1
Connects to the BLUETOOTH / WI-FI port on the first cabinet using the enclosed 24 Pin System Cable.
2
Connects to the HDBT
3
Prior to Installation
Precautions for installation
• It is recommended that this device be installed in a 19-inch rack case, rather than under general consumer environment
conditions.
• Make sure that the ambient temperature inside the rack does not exceed 35°C.
• If installing more than one S-Box, ensure that there is a space of at least 1U (approximately 44.45 mm) between the S-Boxes to
prevent the vent on top of each S-Box from being blocked.
• Make sure the vent faces upward. Do NOT install the device in portrait orientation or upside down.
• Make sure the vent on top is not blocked to prevent the device from overheating.
• Exercise caution to ensure that no foreign material enters the vent on top of the device.
• If installing the device close to a wall, make sure that there is a space of at least 10 mm between the wall and the four sides of the
device to ensure good ventilation.
• Make sure that there is a space of at least 50 mm between the wall and the rear ports of the device to gain access for connection
of cables.
Installing S-Box on Rack Case
1
Screw
(M4 x L8)
Attach the brackets to both sides of the S-Box main unit.
1
Fix the S-Box to the rack case.
2
* Use appropriate screws that are compatible with the rack case size.
* For more information about the foregoing rack, please contact Samsung or your system integrator.
port on the last cabinet using an OCM cable.
port on the first cabinet using an OCM cable.
port on the SNOW-AAE by using a LAN cable.
2
-00
Screw
(M5 x L12)
