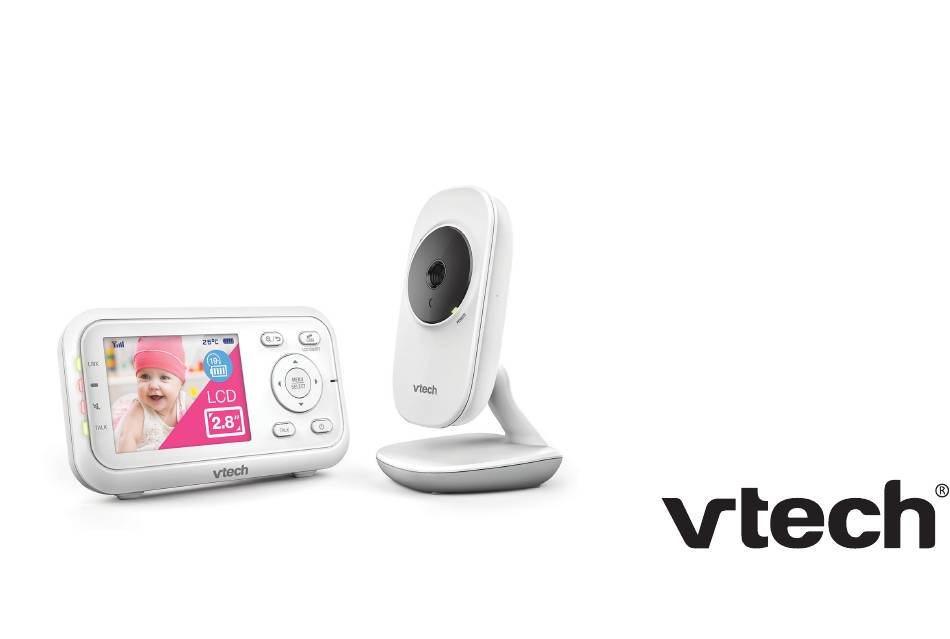

- Page 1 VM3250 VM3250-2 Video Baby Monitor Quick start guide...
-
Page 2: Important Safety Instructions
25. The product is not intended for use by persons Parent unit output: 5V DC 1A (including children) with reduced physical, sensory Vtech Telecommunications Ltd. or mental capabilities, or lack of experience and Model:VT05EUK05100 (UK) / VT05EEU05100 (EU) knowledge, unless they have been given supervision or... -
Page 3: What's In The Box
What’s in the box 1 set for VM3250 2 sets for VM3250-2 Quick start guide Connect the baby monitor NOTES NOTE • The rechargeable battery in the parent unit is built-in. • Use only the power adaptors supplied with this product. - Page 4 Connect the baby monitor (cont’d) Charge the parent unit battery When you have connected and turned on the parent unit, the battery will be charged automatically. Notes NOTES NOTE • Before using the baby monitor for the first time, charge the parent unit battery for 12 hours. When the parent unit battery is fully charged, the battery icon becomes solid •...
-
Page 5: Positioning The Baby Monitor
Positioning the baby monitor Caution • Keep the baby unit out of the reach of your baby. Never place or mount the baby unit inside the baby’s cot or playpen. >1m > < ≥ < Caution • The default volume of your parent unit is level 3, and the maximum volume Note NOTES... -
Page 6: Use The Menu
When finished talking, • Press LCD ON/OFF (VM3250); release the TALK key to hear your baby again. • Press and hold LCD ON/OFF (VM3250-2) to switch off the screen . You can still hear sound from the selected baby unit. - Page 7 Pressing VOL+ / VOL- adjusts the parent • Press to zoom in or out. Adjust parent unit speaker volume Zoom unit speaker volume level received from Pressing VOL+ / VOL- adjusts the parent the baby unit. • Press to zoom in or out. unit speaker volume level received from the baby unit.
-
Page 8: Overview - Baby Unit
Overview - Baby unit Microphone POWER LED light Camera lens Speaker Infrared LEDs Power jack Light sensor Slots for wall mounting... -
Page 9: Status Icons
Patrol mode • Displays when the parent unit is in PATROL mode (For VM3250-2 only). Current view status • Displays the number of the baby unit that is being viewed. -
Page 10: Main Menu Icons
Main menu icons Main Sub-menu Main Sub-menu menu menu Brightness Sound Detection • Adjust the parent unit’s LCD screen brightness level. Sound-activated screen • When turned on, and the baby unit detects no sound, the parent Screen off timer unit screen stays off to save power. Once sound is detected, the parent unit screen and speaker turns on •... - Page 11 • Off when the parent unit selected baby unit. is disconnected from AC power. Monitoring Mode (For VM3250-2 only) Patrol mode • On when the parent unit speaker volume level is set • Monitor your baby in PATROL mode, to zero.
- Page 12 Sound sensitivity and sound activation Adjust the sound sensitivity of the baby unit You can choose to hear sounds from the baby unit continuously, or to hear sounds that exceed the sound sensitivity setting. You can use the parent unit to adjust the microphone sensitivity of your baby unit.
-
Page 13: Dim Mode
Dim mode The parent unit display will dim to conserve energy after 10 minutes of inactivity, when no keys are pressed or alerts are received from the baby unit. 10 min inactivity Press any buttons Note NOTES NOTE While the screen is dimmed, any keypress or alert message will trigger the screen to return •... - Page 14 For VM3250-2 only Status check - Two baby units If you are viewing baby unit , the POWER LED light of baby unit turns on. is not being viewed, its POWER LED light flashes. As baby unit Note NOTES NOTE •...
- Page 15 Mount the baby unit on dry wall (optional) Items to purchase You will need to purchase the following items separately to mount your baby unit: 2 screws 2 wall plugs Note NOTES NOTE • The types of screws and wall plugs you need depend on the composition of the wall.
-
Page 16: Frequently Asked Questions
Frequently asked questions Below are the questions most frequently asked about the baby monitor. Why does the Try the following (in the order listed) for common cure: baby monitor 1. Disconnect the power to the baby units and the parent unit. not respond 2. -
Page 17: General Product Care
General product care To keep this product working well and looking good, follow these guidelines: • Avoid placing it near heating appliances and devices that generate electrical noise (for example, motors or fluorescent lamps). • DO NOT expose it to direct sunlight or moisture. •... -
Page 18: Customer Service And Product Warranty
VTech Electronics Europe Plc (see address below), with proof of purchase, without proof of purchase no replacement will be provided. 3. VTech Electronics Europe Plc will examine the product and if it is found to be defective due to faulty materials or workmanship, will replace the product at their discretion. -
Page 19: Disposal Of Batteries And Product
(2014/53/EU) and the UK’s Radio Regulations 2017 on radio systems and telecommunication equipment. VTech Telecommunications Ltd. hereby declares that this Video Monitor VM3250 is in compliance with the essential requirements and other relevant provisions of EU’s Radio Equipment Directive (2014/53/EU) and UK’s Radio Equipment Regulations 2017. -
Page 20: Technical Specifications
Parent unit: 3.6V, 2600mAh Li-ion, 9.36Wh Li-ion battery Baby unit power adaptor: Output: 6V DC @ 500mA Parent unit power adaptor: Output: 5V DC @ 1A Specifications are subject to change without notice. © 2022 VTech Communications, Inc. All rights reserved. 10/22. VM3250-X_QSG_V1.
