CD RDS RECEIVER
AUTORADIO CD RDS
SINTOLETTORE CD RDS
RECEPTOR DE CD CON RDS
CD RDS-EMPFÄNGER
CD RDS-ONTVANGER
FH-S720BT
Quick start guide
Guide de démarrage rapide
Guida rapida all'uso
Guía de iniciación rápida
Schnellstartanleitung
Snelstartgids
QRD3734-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FH-S720BT and is the answer not in the manual?

Questions and answers

Related Manuals for Pioneer FH-S720BT

Summary of Contents for Pioneer FH-S720BT

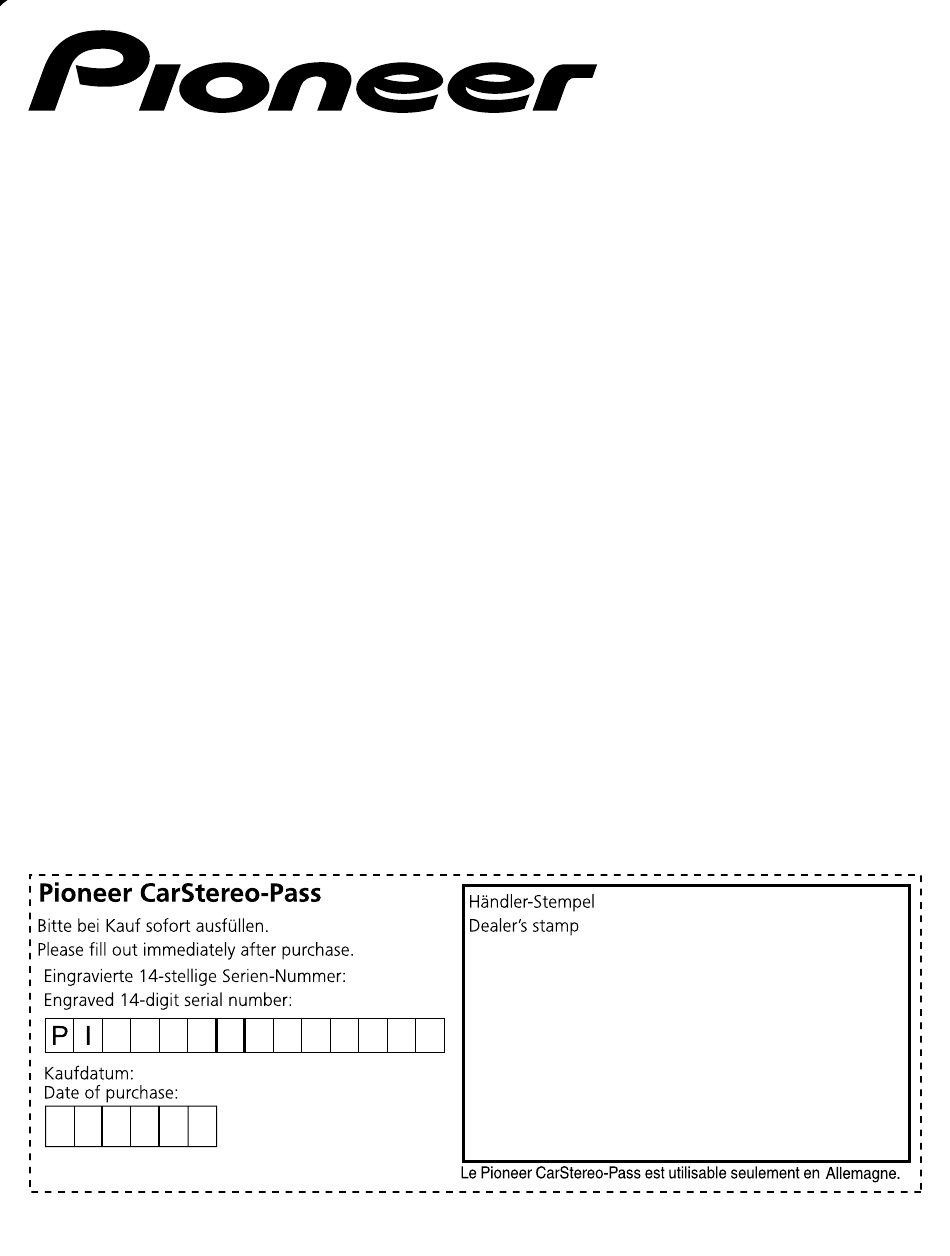

  • Page 1 CD RDS RECEIVER AUTORADIO CD RDS SINTOLETTORE CD RDS RECEPTOR DE CD CON RDS CD RDS-EMPFÄNGER CD RDS-ONTVANGER FH-S720BT Quick start guide Guide de démarrage rapide Guida rapida all’uso Guía de iniciación rápida Schnellstartanleitung Snelstartgids QRD3734-A...
  • Page 2 Pioneer vakuuttaa, että radiolaitetyyppi [*] on direktiivin Español: 2014/53/EU mukainen. Por la presente, Pioneer declara que el tipo de equipo EU-vaatimustenmukaisuusvakuutuksen täysimittainen radioeléctrico [*] es conforme con la Directiva 2014/53/UE. teksti on saatavilla seuraavassa internetosoitteessa: http:// El texto completo de la declaración UE de conformidad www.pioneer-car.eu/compliance...
  • Page 3 - Safety requirements, IEC 60065. CAUTION This product is a Class 1 laser product classified under the safety standard, IEC 60825-1:2014. If you experience problems Should this unit fail to work properly, please contact your dealer or nearest authorized PIONEER Service Station.
  • Page 4 Connections In the following, “NW” represents network mode and “STD” represents standard mode. According to the connections you have established, change the speaker mode to standard mode (STD) or network mode (NW). WARNING Important • When installing this unit in a vehicle without an ACC (accessory) position on the ignition switch, failure to connect the red cable to the terminal that detects operation of the ignition key may...
  • Page 5 − Do not shorten any cables. − Never cut the insulation of the power cable of this unit in order to share the power with other devices. The current capacity of the cable is limited. − Use a fuse of the rating prescribed. −...

  • Page 6: Power Cord

    Power cord To power cord input Depending on the kind of vehicle, the function of may be different. In this case, be sure to connect Yellow Back-up (or accessory) Yellow Connect to the constant 12 V supply terminal. Accessory (or back-up) Connect to terminal controlled by the ignition switch (12 V DC).

  • Page 7: Power Amp (Sold Separately)

    left (NW) Gray: Front right (STD) or high range right (NW) Gray/black: Front right (STD) or high range (NW) right Green: Rear left (STD) or middle range left (NW) Green/black: Rear left (STD) or middle range left (NW) Violet: Rear right (STD) or middle range right (NW) Violet/black: Rear right...

  • Page 8: Installation

    To front output (STD) or high range output (NW) Front speaker (STD) or high range speaker (NW) To subwoofer output Subwoofer Installation Important • Check all connections and systems before final installation. • Do not use unauthorized parts as this may cause malfunctions.
  • Page 9 Dashboard Mounting sleeve • Make sure that the unit is installed securely in place. An unstable installation may cause skipping or other malfunctions. Attach the trim ring. Trim ring When not using the supplied mounting sleeve Determine the appropriate position where the holes on the bracket and the side of the unit match.

  • Page 10: Installing The Microphone

    Removing the unit (installed with the supplied mounting sleeve) Remove the trim ring. Trim ring • Releasing the front panel allows easier access to the trim ring. Insert the supplied extraction keys into both sides of the unit until they click into place.
  • Page 11 To install on the sun visor Fit the microphone lead into the groove. Microphone lead Groove Install the microphone clip on the sun visor. Lowering the sun visor reduces the voice recognition rate. Microphone clip To install on the steering column Slide the microphone base to detach it from the microphone clip.
  • Page 12 Install the microphone on the rear side of the steering column. Double-sided tape...
  • Page 13 Basic operation FH-S720BT SRC (source)/OFF AUX input jack (3.5 mm stereo jack) Disc loading slot USB port Display window (eject) DISP (display) BAND/ BASS (navigation)/LIST M.C. (multi-control) dial About the main menu You can adjust various settings in the main menu.

  • Page 14: Setup Operation

    Frequently used operations Purpose Operation Press SRC/OFF to turn on the Turn on the power power. Press and hold SRC/OFF to turn off the power. Turn the M.C. dial. Adjust the volume Press SRC/OFF repeatedly. Select a source Press DISP repeatedly. Change the display information Press BAND/ Return to the previous display/list...
  • Page 15 Turn the M.C. dial to select the options, then press to confirm. To proceed to the next menu option, you need to confirm your selection. Menu Item Description LANGUAGE Select the language to display the text information from a compressed audio file. [ENG](English), [РУС](Russian), [TUR](Turkish),...

  • Page 16: Tuner Operation

    Tuner operation Receiving preset stations Press SRC/OFF to select [RADIO]. Press BAND/ to select the band. [FM1] [FM2] [FM3] [MW]/[LW] Press a number button (1/ to 6/ ). Best stations memory (BSM) After selecting the band, press the M.C. dial to display the main menu.

  • Page 17: Bluetooth Connection

    USB/iPhone Open the USB port cover. Plug in the USB device/iPhone using an appropriate cable. MTP connection A device installed with Android OS 4.0 or most of later versions can be connected to the unit via MTP, using the cable supplied with the Android device. However, depending on the connected device, OS version or the numbers of the files in the device, audio files/songs may not be able to be played back via MTP.

  • Page 18: Bluetooth Telephone

    To exit the voice recognition mode, press BAND/ Making a connection with Pioneer Smart Sync Pioneer Smart Sync is the application that intelligently brings your maps, messages, and music together in the vehicle. WARNING Do not attempt to operate the application while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the application.

  • Page 19: Listening To Spotify

    − For devices other than the USB-connected Android device, press SRC/OFF to select any source and press and hold the M.C. dial. − For iPhone, launch Pioneer Smart Sync on the mobile device. Listening to Spotify® (Not available when [USB MTP] is set to [ON] in the SYSTEM settings.) Update the firmware of the Spotify application to the latest version before use.
