It is important to read this instruction prior to using your new product

for the first time.

Es importante leer este manual antes de usar por vez primera su equipo.

CLOCK

TIMER

DIMMER

SLEEP

DEMO

AUTO

PROG

BAND

TUNE

SOURCE

PRESET

FOLDER

PROGRAM

SHUFFLE

PLAY MODE

LINE IN

AUX IN

user manual

manual de usuario

DISC SKIP

RS2767i

Table of Contents

Need help?

Do you have a question about the RS2767i and is the answer not in the manual?

Questions and answers

Summary of Contents for RCA RS2767i

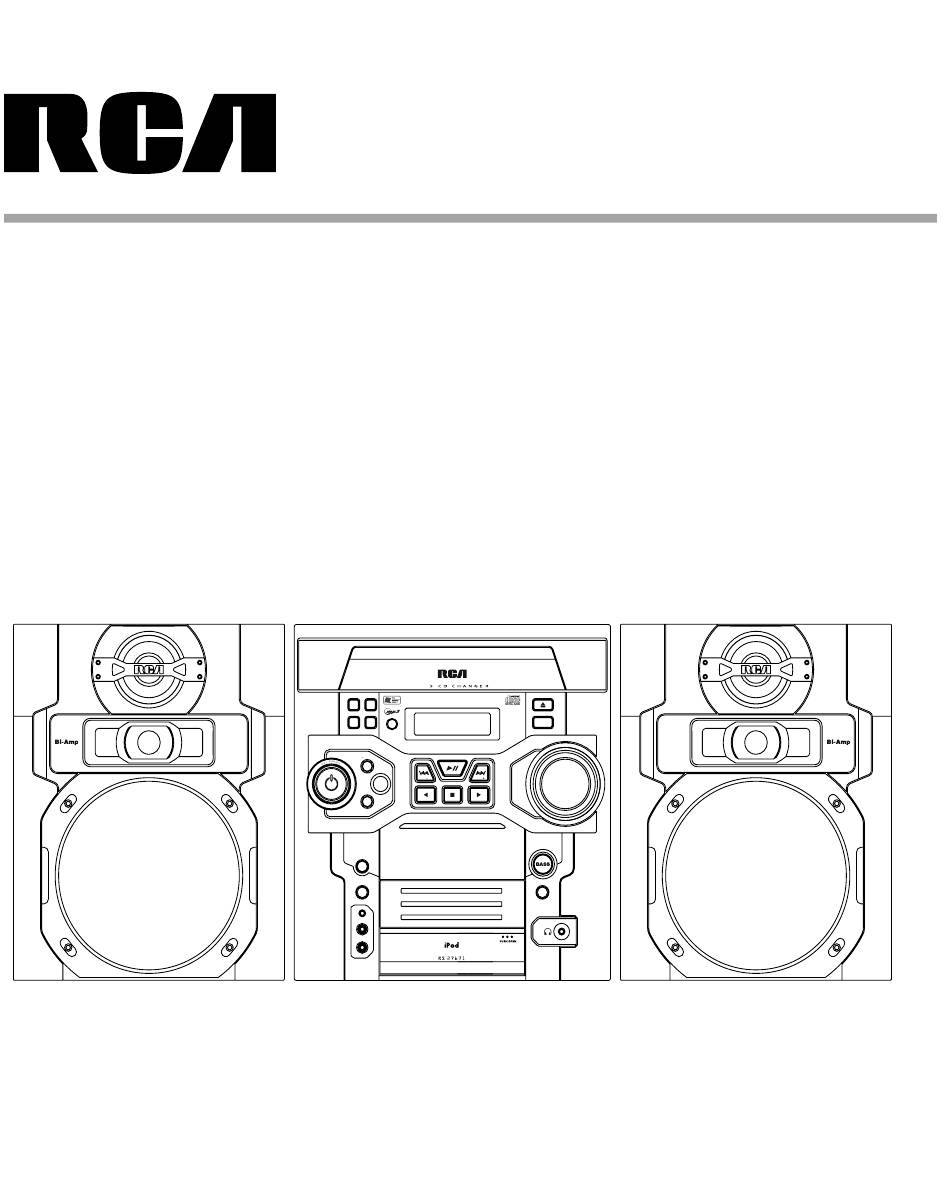

Page 1 RS2767i CLOCK TIMER DIMMER SLEEP DISC SKIP DEMO AUTO PROG BAND TUNE TUNE SOURCE PRESET PRESET FOLDER FOLDER PROGRAM SHUFFLE PLAY MODE LINE IN AUX IN It is important to read this instruction prior to using your new product for the first time.
Page 2: Fcc Information
FCC information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device,...
Page 3: For Your Records
All manuals the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's...
Page 4 Product: Audio System (one blade is wider than the Brand: RCA other) and only fits into AC power Model: RS2767i outlets one way. If the plug won’t Power Supply: 120V ~ 60Hz go into the outlet completely, turn Power Consumption: 240 Watts the plug over and try to insert it the other way.
Page 5 ides.com PLEASE READ AND SAVE THIS FOR FUTURE REFERENCE IMPORTANT SAFETY INSTRUCTIONS nformation blade or the third prong is has been damaged in any way, • Do not at the cabin particular provided for your safety. If such as power-supply cord or Some of the following information does not th any...
Page 6 blade or the third prong is provided for your safety. If the provided plug does not ﬁ t into your outlet, consult an electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from...
Page 7: Additional Safety Information
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. •...
Page 8 • Do not attempt to disassemble the cabinet. This product does not contain customer serviceable components. • Where the main plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. • IF YOUR PRODUCT OPERATES ON BATTERIES, adhere to the following precautions: A.
Page 9 Important informat Important information Precations Headset safety Precations • This compact disc player • Have a Blast- uses a laser to read the Just Not in your • This compact disc player music on the disc. The laser eardrums! Make mechanism corresponds to sure you turn uses a laser to read the...
Page 10: Headset Safety
Headset safety • Have a Blast- Just Not in your eardrums! Make sure you turn down the volume on the unit before you put on headphones. Increase the volume to the desired level only after headphone are in place. • Do not play your headset at high volume.
Page 11: Getting Started
Getting started Unpacking the system You should have the following: • one main unit (with 2 main speakers) • one remote control • one AM loop antenna • one user manual Connections Back view 1. FM pigtail antenna 2. AM loop antenna jack 3.
Page 12 Using FM and AM antennas Before you use your audio system, you’ll want to make sure both the FM and AM antennas are positioned properly. Uncoil the FM antenna at the back of the unit, making sure it is fully extended (you may even want to tape it to the wall behind the unit if possible, the higher the...
Page 13 Connecting main speakers Each speaker has a black/red wire and a black/purple wire. When connecting the speakers, match the red/purple wires to the red/purple jacks and the black wires to the black jacks on the main unit. Push Speaker Release tab to terminal tab lock wire in down to insert...
Page 14: Installation
Installation To ensure sufficient ventilation, keep the spacing shown below free from other surfaces: 4” 4” 4” 4” 2” Side view Front view...
Page 15: General Controls
General controls Main Unit CLOCK TIMER DIMMER SLEEP DISC SKIP DEMO AUTO PROG BAND TUNE TUNE SOURCE PRESET PRESET FOLDER FOLDER PROGRAM SHUFFLE PLAY MODE LINE IN AUX IN ON/STANDBY – To turn power on or off (STANDBY mode). AUTO PROG•BAND – To change between FM and AM tuner bands;...
Page 16 PROGRAM – To enter program mode for CD and tuner. CLOCK – To show time and enter clock setting mode. TIMER – To turn the timer on/ off; press and hold to enter the timer setting mode. DIMMER•DEMO – To turn the feature demonstration on or off;...
Page 17 – To stop CD/iPod playback. FOLDER/PRESET / – to select the previous or next folder in mp3/wma disc mode; to select the previous or next preset stations in tuner mode. SHUFFLE – To turn on/off random CD playback. PLAY MODE – To cycle between different CD play mode.
Page 18: Remote Control
Remote control SOURCE TUNER iPod LINE IN/ DISC SKIP OPEN/CLOSE STOP PLAY MODE SHUFFLE MENU SELECT INTRO FOLDER SLEEP /PRESET RS 2767i – To turn power on or off (STANDBY mode). CD – To select the CD player. TUNER – To select the tuner and change the radio band.
Page 19 General controls INFO – To select among disc display information. FM ST. – To switch between FM stereo and mono modes. DISC SKIP – To skip to next CD. VOL+ / VOL– – To increase/ decrease the volume. – To play and pause the CD/iPod playback.
Page 20 random CD playback. MENU – To display iPod menu; and return to previous menu. SELECT – To confirm iPod menu lists. INTRO – To turn INTRO mode on or off to play the first 10 seconds of each CD track. FOLDER/PRESET –...
Page 21 Display CD tray status: Lights when loaded Flashes for the current disc Animates when playing File format Source indication Folder navigation mode Radio bands Playback mode status Timer activated BASS – bass boost activated PROG – program playback STEREO – FM stereo mode activated mode activated EQ –...
Page 22: Clock And Timer
Clock and timer Setting the clock 1. Press and hold CLOCK until the hour ﬂ ashes on the display. 2. Press to set the hour and then press CLOCK to shift to minute digits. 3. Press to set the minute. 4.
Page 23: Activating The Timer
minute digits. 3. Press to set the minute. 4. Press TIMER to change to OF (timer off time) with hour ﬂ ashing. Repeat steps 2 & 3 for timer off time setting. 5. Press TIMER to select the source. Press to select among TUNER and CD.
Page 24: Sleep Mode
Sleep mode You can select the time interval in minutes before the unit turns off automatically. 1. Press SLEEP to select among OFF, 120, 90, 60, 45, 30, 15, 10 and 5 minutes. The sleep icon lights on the display when sleep mode is activated.
Page 25: Sound Features
Sound features Bass boost Press BASS to turn on/off boosting the bass frequency. The BASS icon lights on the display when it is activated. Muting audio Press on the remote control to cut or restore the sound. Using preset equalizer curves Press EQ on the unit to select among FLAT, ROCK, POP, JAZZ, CLASSIC and CUSTOM.
Page 26 CD playback This unit is compatible CD-R / RW with CD-RW/ CD-R discs for playback. Notes on CD-R/RW Disc: • Do not afﬁ x any type of labels to either side (recordable or labeled side) of a CD-R/RW disc as this may result in the unit malfunctioning.
Page 27 Notes on Simple mp3/WMA Playback: • This unit is compatible with simple mp3/WMA discs. Text information can be shown (e.g. ID3 tags) • It is strongly recommended that you use a single folder structure for simple mp3/WMA discs. If there are more than only layer of folders, the tracks may be rearranged.
Page 28 CD playback Please take care when loading or unloading discs in the disc drawer. Read below for details. • Remove all discs from the disc drawer before moving or transporting the unit. • Do not put discs in the trays of the disc drawer when they are still moving.
Page 29: Loading Discs
Loading discs 1. Press SOURCE repeatedly to select CD mode. 2. Press OPEN/CLOSE or open the drawer. 3. Insert up to ﬁ ve discs with label face up. (Press DISC SKIP to rotate the disc carrier.) 4. Press OPEN/CLOSE or close the drawer.
Page 30 Playing discs • Press to begin or pause playback, and STOP / stop playback. • Press to select a speciﬁ c track. Searching through a CD Press and hold to search through a CD while it is playing. Shufﬂ ing play order Press SHUFFLE to turn on/off the playing of tracks in random order.
Page 31 • Press INFO repeatedly to view elapsed track time, track remain time and disc remain time during playback. • The ﬁ rst 99 tracks of each disc will be played once before any of them is repeated. • You may also press PLAY MODE to select 1 disc or all discs before activating INTRO &...
Page 32 CD program You can program the CD player to play up to any 32 tracks on the CDs in the tray. 1. While the CD player is stopped, press PROGRAM to enter program mode. The system displays the next available program number: “- - P:01,”...
Page 33: Playing A Program List
Playing a program List While in PROGRAM mode, press Displaying the program List 1. While the CD player is stopped, press PROGRAM to enter PROGRAM mode. 2. Press PROGRAM repeatedly to list each track assignment in the program list. Deleting program List While in PROGRAM mode, press and hold STOP / for 3 seconds.
Page 34 mp3/WMA playback sequence • Refer to the diagram below for playback sequence details on multi-level folder structure. • Songs are played before playing songs placed in folders at each level. • Folder playback sequence is indicated by the letters A to G. •...
Page 35: Ipod Playback
iPod playback Installing the iPod Dock Adapter 1. Choose the iPod Dock Adapter that fits your iPod. Adapter no.3 – iPod mini (4GB, 6GB) Adapter no.7 – iPod photo (40GB, 60GB); iPod with color display (60GB) Adapter no.8 – iPod nano (2GB, 4GB) Adapter no.9 –...
Page 36: Listening To Your Ipod
Listening to your iPod Insert your iPod into the connector in the dock. Press iPod to select iPod mode. • Press to begin or pause playback, and STOP/ stop playback. • Press to select a speciﬁ c song. • Press and hold search through a song while it is playing.
Page 37: Selecting Tuner Band
Radio Press SOURCE or TUNER on the remote control to select TUNER. Selecting tuner band Press AUTO PROG•BAND or press and hold TUNER on the remote control to select between AM and FM radio bands. Tuning to a station Press to select frequencies.
Page 38 The most recently accessed program location will be displayed. 3. If a different program location is preferred, press to select to the desired preset number (1-32). 4. Press PROGRAM store the selected frequency at that preset. Auto preset programming (FM only) Press and hold AUTO PROG•...
Page 39: Using Presets
scan by pressing any button, but the erased stations cannot be recovered. Using presets Press FOLDER/PRESET to access the previous or next preset station. The display first shows the preset program number and after a few seconds, the frequency will be displayed.
Page 40 LINE IN / AUX Play external sound through the speaker system Press SOURCE on the unit repeatedily to select LINE IN or AUX mode. Or press LINE IN/AUX on the remote control to change to LINE IN mode form CD, TUNER or iPod mode, press LINE IN/AUX again to change to AUX mode.
Page 41: Troubleshooting Tip
Support Center at 1-866-444-6478, 1-800-252-6123 or speakers. allow limitation on how long an im www.1800customersupport.com/RCA action may be brought, or the exc Hours: Monday–Thursday: 9am–7pm, Friday: 9am–5pm, or consequential damages, so the Saturday: 9am–NOON Eastern time.
Page 42 CD does not play • Check that CD is in the tray. • Check that CD label is facing • Check that PAUSE mode is not on. • Check that CD function is selected. • Use CD lens cleaner. • Clean the disc. •...
Page 43 (TUNER, iPod, LINE IN/AUX) and then back to CD. Remote control does not work • Check that the batteries are properly installed. • Replace weak batteries. • Check the system is plugged into power source. • Point the remote directly at the system’s front panel.
Page 44: Handling Cds
Handling CDs Serial no................... oducts and services, please visit our Invoice no................. • Do not touch the signal omersupport.com/RCA Date purchased ................Dealer name ................surfaces. Hold CDs by the FOR SERVICE AND REPAIR, PLEASE VISIT www.1800customersupport.com/RCA edges, or by one edge and the hole.
Page 45 CDs clean by wiping them gently with a soft cloth from the inner edge toward the outer perimeter. • If a CD becomes dirty, wet a soft cloth in water, wring it out well, wipe the dirt away gently, and then remove any water drops with a dry cloth.
Page 46: Technical Specifications
Technical speciﬁ cations Power supply: 120V~60Hz Dimensions ( H x W x D inches): Unit size - 12 x 11 x 17 Main Speaker - 12.1 x 9.5 x 9 Main unit weight: 13.6 lbs CD player: Response curve (+/- 2dB): 60Hz to 15 kHz Rating Plate: Look for it at the back of the set.
Page 47 Limited warranty AVC MULTIMEDIA (“AVC”) makes the following limited warranty. This limited warranty extend to the original consumer purchaser and is limited to non-commercial use of the product. One Year Parts & Labor Warranty AVC products purchased in the United States are warranted to be free from defects in materials or workmanship for a period of one year from the date of their original retail purchase.
Page 48 Packaging and Shipping Instruction When you send the product to the AVC service facility you must use the original carton box and packing material or an equivalent as designated by AVC. LIMITED WARRANTY Your Responsibility 1) You must retain the original sale receipt to provide proof of purchase.
Page 49 Out of Warranty In the event your product requires repair after the limited warranty period has expired, please contact our Customer Support Center at 1-866-444-6478, 1-800-252-6123 or www.1800customersupport.com/RCA Hours: Monday–Thursday: 9am–7pm, Friday: 9am–5pm, Saturday: 9am–NOON Eastern time. Important: You are responsible for any transportation, shipping or insurance relative to the return of product to our Product Returns Center.
Page 50 For more information on other products and services, please visit our www.1800customersupport.com/RCA web site at...
Page 51 Model no................Product name ................... Type of set ................. Serial no................... Invoice no................. Date purchased ................Dealer name ................FOR SERVICE AND REPAIR, PLEASE VISIT www.1800customersupport.com/RCA Specifications and external appearance are subject to change without notice. Printed in China...
