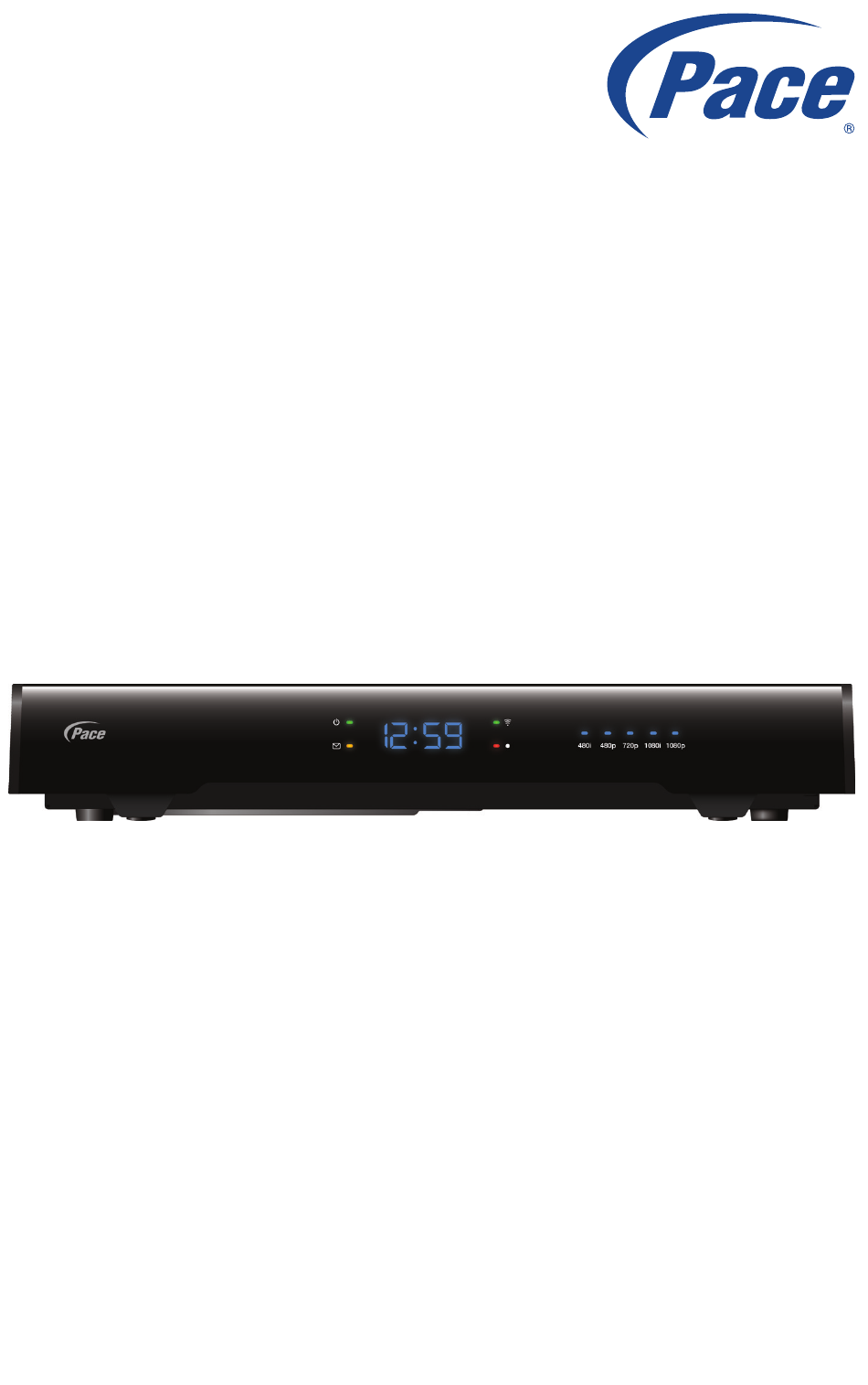

- Page 1 RNG150N / RNG200N High-definition digital set-top Quick Start Guide BRINGING TECHNOLOGY HOME www.pace.com...
- Page 2 WELCOME Connecting your set-top 1 Decide which connections work best with your equipment. Depending on the type of TV and other equipment you have, choose the connections that will provide the best quality video and audio. Refer to your equipment user manuals and the tables provided in this guide. 2. Connect your set-top to your cable service. Connect the cable from your cable wall outlet to the CABLE IN connector on the rear panel of your set-top. 3. Connect our set-top to your TV and other equipment. After you have decided which audio and video connections you need to make, refer to the illustrations in this guide to connect your set-top to your TV and other A/V equipment. 4. Turn on your set-top. Plug the 12-volt cord from the power supply unit into the power input socket (labelled DC IN +12V) on the rear panel of your set-top, then plug the power supply unit into the wall AC outlet using the power cord supplied. Press the POWER button on your remote control - your set-top will turn on. 5. Enjoy digital TV! Use the Pace User Settings menu (see below) to fine-tune your setup. Any problems? Refer to the Troubleshooting section of this guide and to your equipment user manuals. For further information on setting up and operating your set-top, refer to the RNG150N/RNG200N User Guide, available at: www.pace.com/americas/support...
-
Page 3: Important Safety Instructions
The exclamation point within a triangle is intended to alert you to the presence of important instructions in the literature accompanying your set-top. To ensure correct operation, use this set-top only with the Pace-approved power supply unit provided. If you use an unapproved alternative, you will invalidate the warranty. - Page 4 SET-TOP SETUP You can use the PACE USER SETTINGS menu to change your set-top’s setup. The settings you can change are in the table, shown right. 1. Make sure your set-top is turned on (the (power) light is green). 2. Press the POWER button on your remote control, then press the Menu button. The PACE USER SETTINGS menu is displayed on your screen. 3. Use the L, R, U, and D buttons to navigate the menus and the OK/Select button to confirm your choices. See the example below. 4. Press POWER to remove the menu and return to regular viewing. PACE USER SETTINGS TV Aspect Ratio TV Aspect Ratio Select >16:9 TV Display Capability Auto Pillarbox Closed Captions Select Front Panel Settings HDMI Settings Restore Defaults...
- Page 5 PACE USER SETTINGS MENU Menu item Description Options* TV Aspect Ratio Choose your TV screen’ s shape 4:3 or 16:9 1080i, 720p, 480p, 480i, TV Display Choose the screen resolutions your TV is 1080p24 Pass, 1080p30 Pass and Capability capable of displaying 1080p60 If your 16:9 TV doesn’t automatically detect programs transmitted in 4:3, choose to Auto Pillarbox Yes or No have black bars added to the sides of 4:3 programs Choose to display subtitles and alerts on Closed Captions On or Off, and Configure Captions your TV screen Standby Brightness: Low, Std, or High Front Panel Set the brightness level of the front-panel Settings lights (but not the (power) light) Viewing TV Brightness: Low, Std, or High Audio Output Mode: Auto, Choose an Audio Output Mode, and to L-PCM, or Pass Through enable or disable automatic detection of HDMI Settings...
- Page 6 HDTV with optional home theater using a single video and audio connection - OR - HDMI IEEE 1394 RNG150N/RNG200N DIGITAL AUDIO OUT Cable Input IEEE 1394 HDMI HDMI HDTV HDMI Home Theater 1394 HDMI HDMI...
- Page 7 HDTV and home theater using component video and digital audio connections - AND - - OR - L and R audio Component video Digital optical audio L and R audio RNG150N/RNG200N DIGITAL AUDIO OUT Cable Input Component video Digital optical audio HDTV LEFT RIGHT DIGITAL AUDIO AUDIO OPTICAL COMPONENT...
- Page 8 SDTV only using composite video and audio connections or RF connection - AND - - OR - RF connector Composite video L and R audio Composite video L and R audio RNG150N/RNG200N DIGITAL AUDIO OUT Cable Input RF cable SDTV ANTENNA/RF LEFT AUDIO IN RIGHT AUDIO IN VIDEO IN...
- Page 9 SDTV and VCR or DVD recorder using composite video and audio connections or RF connection - AND - - OR - RF connector Composite video L and R audio L and R audio Composite video RNG150N/RNG200N DIGITAL AUDIO OUT Cable RF cable Input SDTV VCR/DVD Recorder LEFT RIGHT VIDEO ANTENNA/RF AUDIO AUDIO LEFT...
- Page 10 HDTV only using separate video and audio connections - AND - - OR - Component video L and R audio HDMI L and R audio RNG150N/RNG200N DIGITAL AUDIO OUT Cable Input Component HDMI video HDTV HDMI COMPONENT VIDEO IN LEFT AUDIO IN RIGHT AUDIO IN...
- Page 11 RNG150N / RNG200N High-definition digital set-top Power light Display Record light Lights green when your set-top is on; not lighted when your Shows the time or the current channel number, Lights red while a program is being set-top is in standby or is disconnected from the power supply...
- Page 12 SDTV, VCR/DVD recorder, and home theater using composite video and audio connections - OR - - AND - Composite video L and R audio RF connector L and R audio Composite video RNG150N/RNG200N DIGITAL AUDIO OUT Cable RF cable Input VCR/DVD RF cable Recorder SDTV ANTENNA/RF TV/RF LEFT RIGHT LEFT...
-
Page 13: Video Out
Standard-definition video connections (SDTV) Video TV video RNG150N / RNG200N Includes quality input video output audio? Standard Composite Video VIDEO OUT High-definition video connections (HDTV) Video RNG150N / RNG200N Includes TV video input quality video output audio? HDMI HDMI ® DVI * HDMI Superior 1394 1394 High Component (YPbPr) COMPONENT VIDEO HDMI adapter required, or use an HDMI-to-DVI cable Alternate audio connections Audio Audio connections quality DIGITAL AUDIO OUT... -
Page 14: Troubleshooting
If you are using the HDMI connection, turned on. make sure it goes directly from your set-top to your TV. Try disconnecting and reconnecting the standard HDMI cable. Make sure the set-top’s TV Display Capability settings are appropriate for your TV. Press the ZOOM button (could be labeled ASPECT) until a picture appears. Is the picture distorted Check that the TV If your TV is a 16:9 TV, you can use Auto YES or too small? Aspect Ratio and TV Pillarbox to add black borders to 4:3 Display Capability, as transmissions, so that the picture is not set on your set-top, stretched. are appropriate for If the set-top’s settings are correct, try your TV. adjusting your TV’s display. Can you display If your TV is connected Change the TV Display Capability NO menus and guides on to the VIDEO OUT resolution settings if necessary. the screen? connector, you will see menus and guides only if the resolution 480i is set to “Yes” and all others are set to “No”. This guide describes some on-screen displays such as menus. These may change in the future. Please check www.pace.com/americas/support for the latest version of the full User Guide. - Page 15 Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. ® HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited. CableCARD™ is a trademark of Cable Television Laboratories, Inc. Open Source Licenses The software contained in this product may be covered by certain components consisting of free software or open source software. A list of these components and a copy of the relevant copyright notices and license term notices that are required by such licenses are available at this web page: http://www.pace.com/opensource/license Pace and are trademarks and/or registered trademarks of Pace plc. Other trademarks listed herein are the property of their respective owners. Service address: Pace Americas Inc. 3701 FAU Boulevard, Suite 200, Boca Raton, Florida 33431 U.S.A. © 2011 Pace plc. All rights reserved. 504-3340003...
