Samsung QB24R Quick Setup Manual

Quick Setup Guide
QB24R QB24R-T
* Recommended hours of use per day of this product is under 16 hours. If the product is used for longer than 16 hours a day, the
warranty may be void.
* The colour and the appearance may differ depending on the product, and the content in the manual is subject to change without
prior notice to improve the performance.
* Download the user manual from the following Samsung Website for further details.
http://www.samsung.com/displaysolutions
Checking the Components
(1) Quick Setup Guide (2) Warranty card (Not available in some locations) (3) Regulatory guide (4) Power cord
(5) Batteries (AAA x 2) (Not available in some locations) (6) Remote Control (7) RS232C adapter
(8) TOUCH OUT cable (Supported model: QB24R-T)
Contact the vendor where you purchased the product if any components are missing.
Components may differ in different locations.

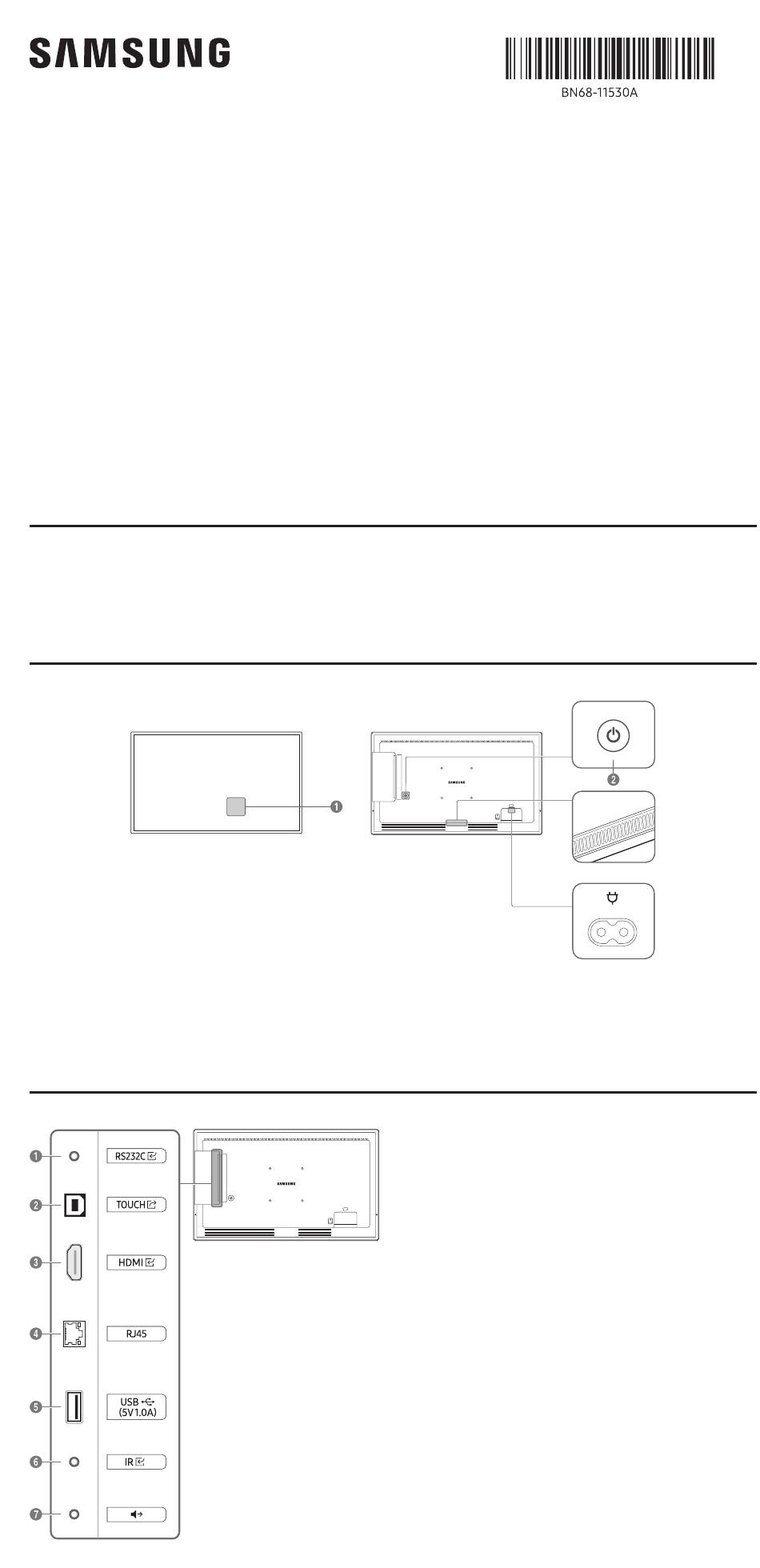

Parts
Remote sensor
1
Press a button on the remote control pointing at the sensor on the front of the product to perform the corresponding function.
* Using other display devices in the same space as the remote control of this product can cause the other display devices to be
inadvertently controlled.
Power button
2
Turns the product on or off.
Ports
Connects to MDC using an RS232C adapter.
1
Connects to a PC using a TOUCH OUT cable to enable touch
2
functions.
* Supported model: QB24R-T
Connects to a source device using a HDMI cable or HDMI-DVI
3
cable.
Connects to MDC and the Internet using a LAN cable. (10/100
4
Mbps)
* Use Cat7(*STP Type) cable for the connection.
- Shielded Twist Pair.
Connect to a USB memory device.
5
* The USB ports on the product accept a maximum constant
current of 1.0A. If the maximum value is exceeded, USB
ports may not work.
Connects to an external IR cable that receives signals from
6
the remote control.
Outputs sound to an audio device via an audio cable.
7
* This model supports a Bluetooth.
-00
Speaker
