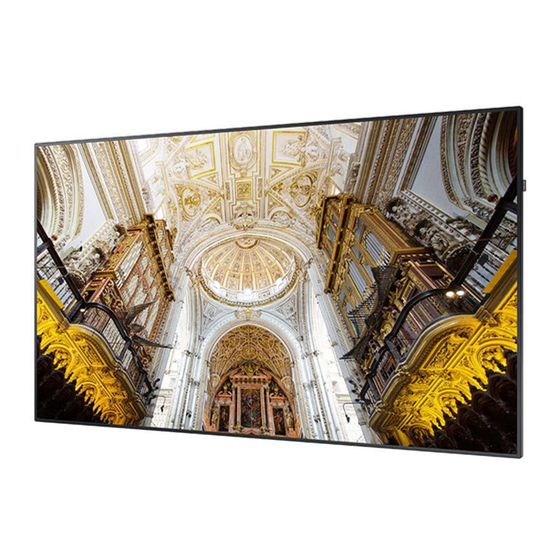

Samsung QR Series Quick Setup Manual

Quick Setup Guide
QB98R
* The colour and the appearance may differ depending on the product, and the content in
the manual is subject to change without prior notice to improve the performance.
* Download the user manual from the website for further details.
http://www.samsung.com/displaysolutions
The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
Checking the Components
Contact the vendor where you purchased the product if any
components are missing.
The pictures may look different from the actual components.
Warranty card
Quick Setup Guide (Not available in Power cord
some locations)
Batteries (AAA x 2)
(Not available in Remote Control RS232C(IN) adapter
some locations)
HOLDER-CABLE
BN68-09716D-00
Troubleshooting Guide
Issues Solutions
The screen keeps Check that the cable between the product
switching on and off. and the PC is connected correctly.
Check that the product is connected
correctly with a cable.
Check that the source device connected to
No Signal is
the product is powered on.
displayed on the
screen.
Depending on the type of external device,
the screen may not display properly. In this
case, connect it with the HDMI Hot Plug
function turned On.
This message is displayed when a signal
from the graphics card exceeds the product's
maximum resolution and frequency.
Not Optimum Mode
is displayed. Refer to the Standard Signal Mode Table
and set the maximum resolution and
frequency according to the product
specifications.
The images on
the screen look Check the cable connection to the product.
distorted.
The screen appears
Check that the resolution and frequency of
unstable and shaky.
the PC and graphics card are set within a
range compatible with the product. Then,
There are shadows or
change the screen settings if required by
ghost images left on
referring to 'Preset Timing Modes' .
the screen.
Ports
1
2
3
4
5
6
! @ #
7
8
9
0
Parts
Speaker
Connects to MDC using a LAN cable. (10/100 Mbps)
1
Connect to a USB memory device.
2
* The USB ports on the product accept a maximum constant
current of 1.0A. If the maximum value is exceeded, USB ports
may not work.
DVI IN: Connects to a source device using a DVI cable or HDMI-
3
DVI cable.
MAGICINFO IN: Connects to a network box using DP-DVI cable to
use Magicinfo.
Connects to MDC using an RS232C adapter.
4
Connects to MDC using an RS232C adapter.
5
Receives sound from a source device via an audio cable.
6
Connects to a source device using a HDMI cable or HDMI-DVI cable.
7
Connects to a source device using a HDMI cable or HDMI-DVI cable.
8
Connects to another product using a HDMI cable.
Connects to a PC using a DP cable.
9
Connects to another product using a HDMI cable.
0
Connect to a USB memory device.
!
* The USB ports on the product accept a maximum constant
current of 0.5A. If the maximum value is exceeded, USB ports
may not work.
Outputs sound to an audio device via an audio cable.
@
Connects to an external IR cable that receives signals from the
#
remote control.
Spacer logo
1
Do not pull on the spacer logo using force. The logo may tear or
break off.
Remote sensor
2
Press a button on the remote control pointing at the bottom of
the product face to perform the function. The remote control
sensor is located on the bottom of the product.
* Using other display devices in the same space as the remote
control of this product can cause the other display devices to
be inadvertently controlled.
Power button
3
