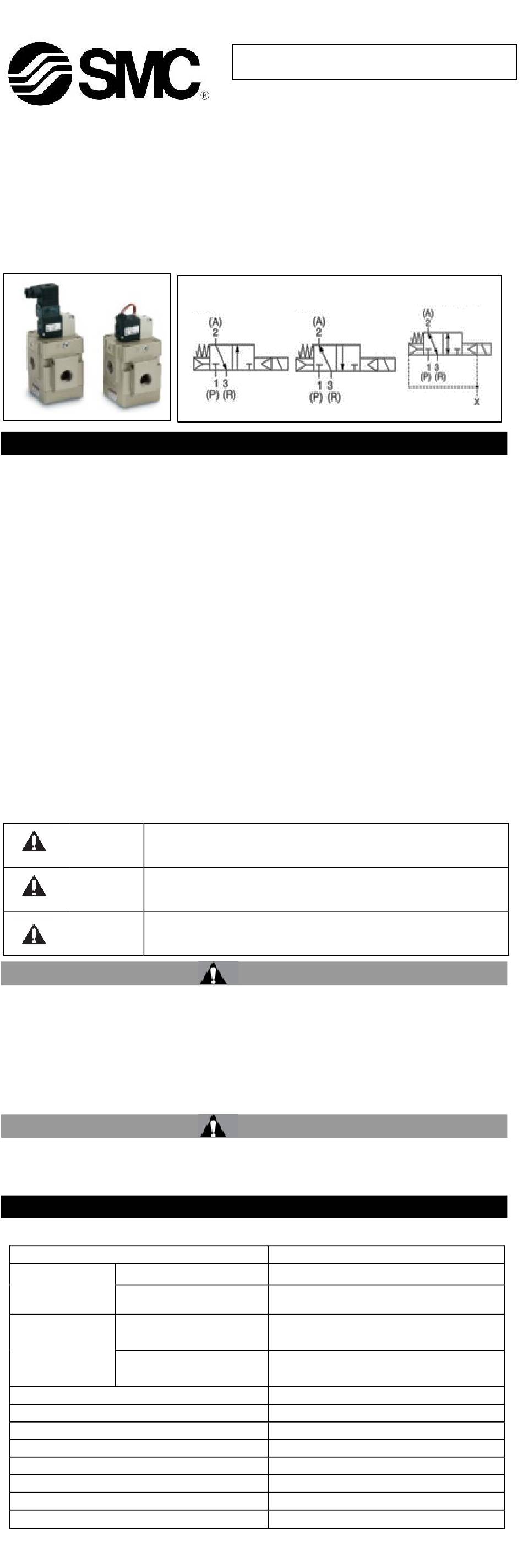

SMC Networks VG342 Series Instruction Manual

VG300-TF2Z264EN
Instruction Manual
3 Port Solenoid Pilot Operated Poppet Type
Valve
Series VG342
The intended use of this valve is to control the movement of an actuator.
1 Safety Instructions
These safety instructions are intended to prevent hazardous situations
and/or equipment damage. These instructions indicate the level of
potential hazard with the labels of "Caution," "Warning" or "Danger."
They are all important notes for safety and must be followed in addition
to International Standards (ISO/IEC)
*1)
ISO 4414: Pneumatic fluid power - General rules relating to systems.
ISO 4413: Hydraulic fluid power - General rules relating to systems.
IEC 60204-1: Safety of machinery - Electrical equipment of machines.
(Part 1: General requirements)
ISO 10218-1: Robots and robotic devices - Safety requirements for
industrial robots - Part 1: Robots.
• Refer to product catalogue, Operation Manual and Handling
Precautions for SMC Products for additional information.
• Keep this manual in a safe place for future reference.
Caution
Warning
Danger
• Always ensure compliance with relevant safety laws and
standards.
• All work must be carried out in a safe manner by a qualified person in
compliance with applicable national regulations.
• If this equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be
impaired.
• The product is provided for use in manufacturing industries only. Do
not use in residential premises.
2 Specifications
2.1 Valve specifications
Fluid
Operating
pressure range
[MPa]
External pilot
pressure [MPa]
Ambient and fluid temperature [°C]
Flow characteristics
Response time [ms]
Duty cycle
Minimum operating frequency
Maximum operating frequency [Hz]
Manual override
Impact / vibration resistance [m/s
N.C.
Caution indicates a hazard with a low level of risk which, if
not avoided, could result in minor or moderate injury.
Warning indicates a hazard with a medium level of risk
which, if not avoided, could result in death or serious injury.
Danger indicates a hazard with a high level of risk which, if
not avoided, will result in death or serious injury.
Internal pilot type
External pilot type
Operating pressure
-101.2 kPa to 0.2 MPa
Operating pressure
0.2 to 0.9 MPa
Note 1)
2
ORIGINAL INSTRUCTIONS
N.O.
*1)
, and other safety regulations.
Warning
Caution
Equivalent operating pressure
30 or less (at 0.5 MPa)
Note 2)
]
External pilot
Air
0.2 to 0.9
-101.2 kPa to 0.9
0.2
-10 to 50 (no freezing)
Refer to catalogue
Contact SMC
1 cycle / 30 days
5
Non-locking push type
150 / 50
