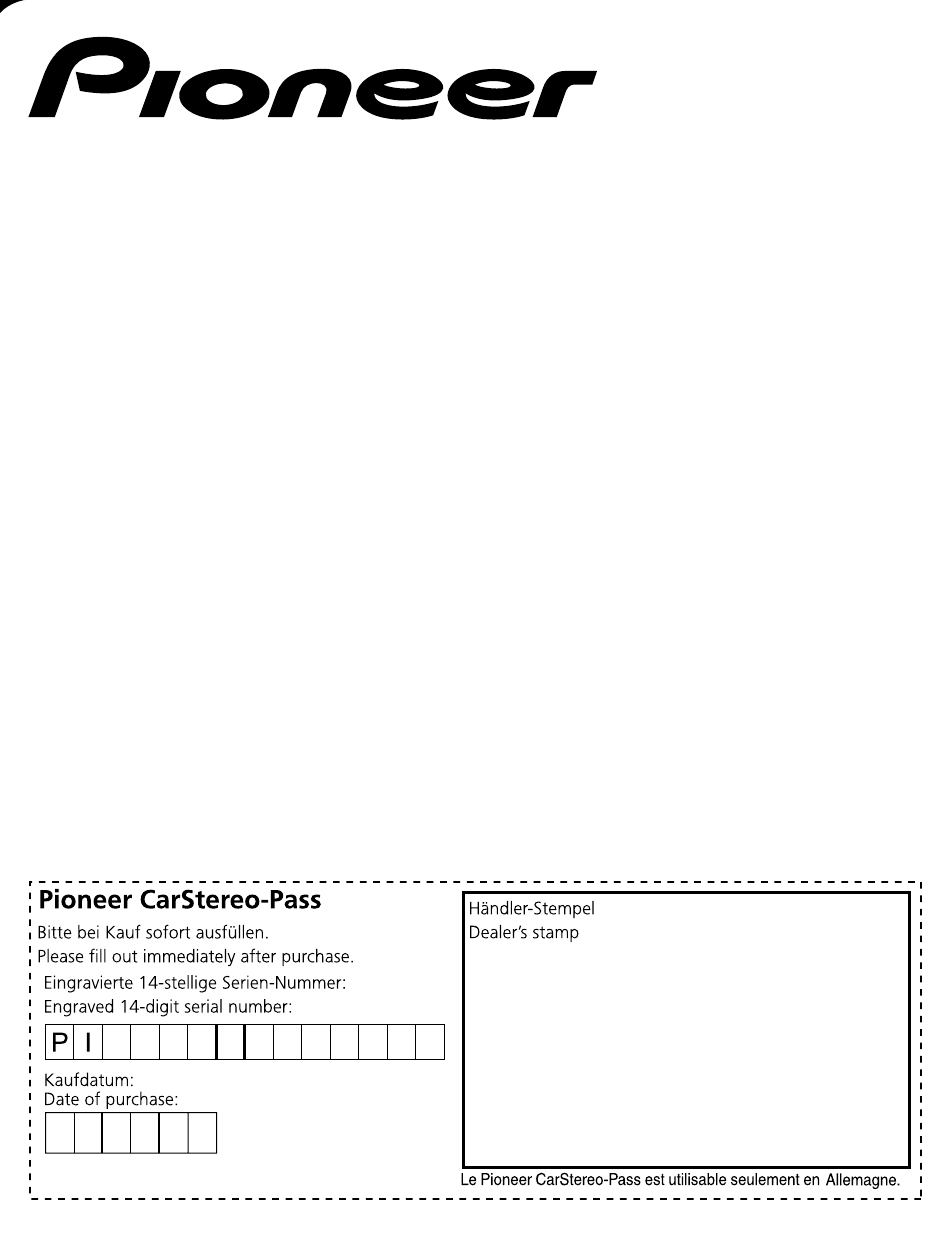

DIGITAL MEDIA RECEIVER
RECEPTEUR NUMERIQUE MULTIMEDIA
RICEVITORE MULTIMEDIALE DIGITALE
RECEPTOR DIGITAL DE MEDIOS
DIGITALER MEDIA RECEIVER
DIGITALE MEDIA-RECEIVER
MVH-MS410BT
Quick start guide
Guide de démarrage rapide
Guida rapida all'uso
Guía de iniciación rápida
Schnellstartanleitung
Snelstartgids
QRD3709-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVH-MS410BT and is the answer not in the manual?

Questions and answers

Related Manuals for Pioneer MVH-MS410BT

Summary of Contents for Pioneer MVH-MS410BT

  • Page 1 DIGITAL MEDIA RECEIVER RECEPTEUR NUMERIQUE MULTIMEDIA RICEVITORE MULTIMEDIALE DIGITALE RECEPTOR DIGITAL DE MEDIOS DIGITALER MEDIA RECEIVER DIGITALE MEDIA-RECEIVER MVH-MS410BT Quick start guide Guide de démarrage rapide Guida rapida all’uso Guía de iniciación rápida Schnellstartanleitung Snelstartgids QRD3709-A...

  • Page 2: Before You Start

    (DEMO OFF)”. Before You Start Thank you for purchasing this PIONEER product To ensure proper use, please read through this guide before using this product. It is especially important that you read and observe WARNINGS and CAUTIONS in this guide. Please keep the guide in a safe and accessible place for future reference.
  • Page 3 • This product is evaluated in moderate and tropical climate condition under the Audio, video and similar electronic apparatus - Safety requirements, IEC 60065. If you experience problems Should this unit fail to work properly, please contact your dealer or nearest authorized PIONEER Service Station. before installation. Connections −...

  • Page 4: Power Cord

    Rear output or subwoofer output Front output Antenna input Fuse (10 A) Wired remote input Pioneer marine wired remote control (CD-ME300) can only be connected (sold separately). Power cord Perform these connections when not connecting a rear speaker lead to a subwoofer.
  • Page 5 Perform these connections when using a subwoofer without the optional amplifier. Important In the case of above, two 4 Ω subwoofers wired in parallel will represent a 2 Ω load. To power cord input Left Right Front speaker Rear speaker White White/black Gray...

  • Page 6: Power Amp (Sold Separately)

    Power amp (sold separately) Perform these connections when using the optional amplifier. System remote control Connect to blue/white cable. Power amp (sold separately) Connect with RCA cables (sold separately) To front output Front speaker To rear output or subwoofer output Rear speaker or subwoofer Installation CAUTION...
  • Page 7 • Install this unit away from hot places such as near the heater outlet. • Optimum performance is obtained when the unit is installed at an angle of less than 60°. • When installing, to ensure proper heat dispersal when using this unit, make sure you leave ample space behind the rear panel and wrap any loose cables so they are not blocking the vents.
  • Page 8 Screw in one screw on each side to hold the unit in place. Tapping screw (5 mm × 9 mm, not supplied with product) Mounting bracket Dashboard or console Using the included bracket Check to make sure that the included bracket matches your particular model of boat and then attach it to the unit as shown below.

  • Page 9: Installing The Microphone

    Removing the unit (installed with the supplied mounting sleeve) Remove the trim ring. Trim ring Notched tab • Releasing the front panel allows easier access to the trim ring. • When reattaching the trim ring, point the side with the notched tab down. Insert the supplied extraction keys into both sides of the unit until they click into place.
  • Page 10 Slide the microphone base to detach it from the microphone clip. Microphone Microphone clip Microphone base Install the microphone as follows. Double-sided tape Clamp (sold separately)

  • Page 11: Basic Operation

    Basic operation MVH-MS410BT (navigation)/LIST USB port M.C. (multi-control) dial SRC (source)/OFF DISP (display) Detach button Display window BAND/ AUX input jack (3.5 mm stereo jack) About the main menu You can adjust various settings in the main menu. Press the M.C. dial to display the main menu.

  • Page 12: Setup Operation

    Frequently used operations Purpose Operation Press SRC/OFF to turn on the Turn on the power power. Press and hold SRC/OFF to turn off the power. Turn the M.C. dial. Adjust the volume Press SRC/OFF repeatedly. Select a source Press DISP repeatedly. Change the display information Press BAND/ Return to the previous display/list...

  • Page 13: Tuner Operation

    CLOCK SET Set the clock. 1 Turn the M.C. dial to adjust the hour, then press to confirm. The indicator moves to the minute setting automatically. 2 Turn the M.C. dial to adjust the minute, then press to confirm. FM STEP Select the FM tuning step from 100 kHz or 50 kHz.

  • Page 14: Usb/Iphone®/Aux Operation

    Press a number button (1/ to 6/ ). Best stations memory (BSM) After selecting the band, press the M.C. dial to display the main menu. Turn the M.C. dial to select [FUNCTION], then press to confirm. Turn the M.C. dial to select [BSM], then press to confirm. To store stations manually While receiving the station you want to store, press and hold one of the number buttons (1/...

  • Page 15: Bluetooth Connection

    Insert the stereo mini plug into the AUX input jack. Press SRC/OFF to select [AUX IN] as the source. Bluetooth connection Up to two Bluetooth telephones can be connected simultaneously. Turn on the Bluetooth function of the device. Select the unit name shown in the device display. Make sure the same 6-digit number appears on this unit and the device.

  • Page 16: Making A Connection With Pioneer Smart Sync

    To exit the voice recognition mode, press BAND/ Making a connection with Pioneer Smart Sync Pioneer Smart Sync is the application that intelligently brings your favorite marine application, messages, and music together in the boat. WARNING Do not attempt to operate the application while driving.

  • Page 17: Listening To Spotify

    − For devices other than the USB-connected Android device, press SRC/OFF to select any source and press and hold the M.C. dial. − For iPhone, launch Pioneer Smart Sync on the mobile device. Listening to Spotify® (Not available when [USB MTP] is set to [ON] in the SYSTEM settings.) Update the firmware of the Spotify application to the latest version before use.
  • Page 18 Pioneer vakuuttaa, että radiolaitetyyppi [*] on direktiivin Español: 2014/53/EU mukainen. Por la presente, Pioneer declara que el tipo de equipo EU-vaatimustenmukaisuusvakuutuksen täysimittainen radioeléctrico [*] es conforme con la Directiva 2014/53/UE. teksti on saatavilla seuraavassa internetosoitteessa: http:// El texto completo de la declaración UE de conformidad www.pioneer-car.eu/compliance...
  • Page 19 It-test kollu tad-dikjarazzjoni ta’ konformità tal-UE huwa disponibbli f’dan l-indirizz tal-Internet li ġej: http://www. pioneer-car.eu/compliance Slovenčina: Pioneer týmto vyhlasuje, že rádiové zariadenie typu [*] je v súlade so smernicou 2014/53/EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: http://www.pioneer-car.eu/ compliance Slovenščina:...
